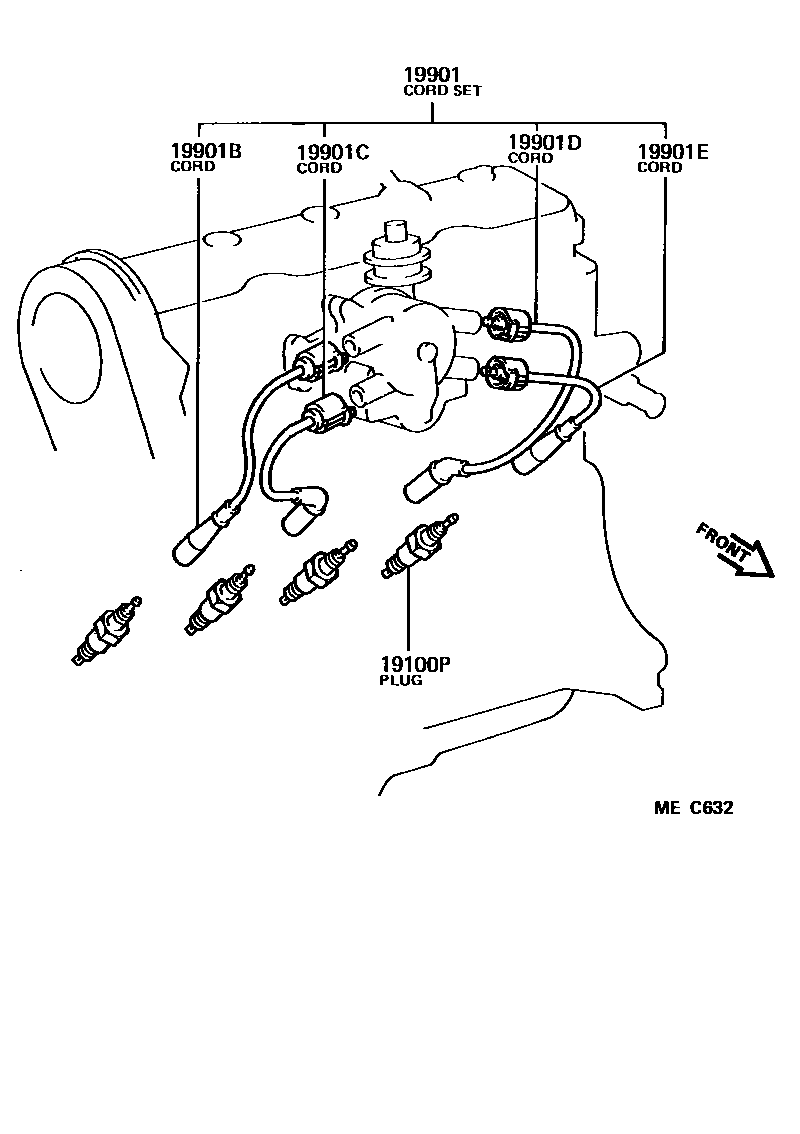

Toyota CAMRY 点火线圈和火花塞 — Figure 1901
Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01091 |
| 19850 | Glow plug assembly | 19850-64010 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-64020 · 19871-64021 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-22140 |
| 19901B | No. 1 spark plug damper wire | 90919-12494 · 90919-12497 |
| 19901C | No. 2 spark plug damper wire | 90919-12495 · 90919-12496 |
| 19901D | No. 3 spark plug damper wire | 90919-12496 |
| 19901E | No. 4 spark plug damper wire | 90919-12497 |
