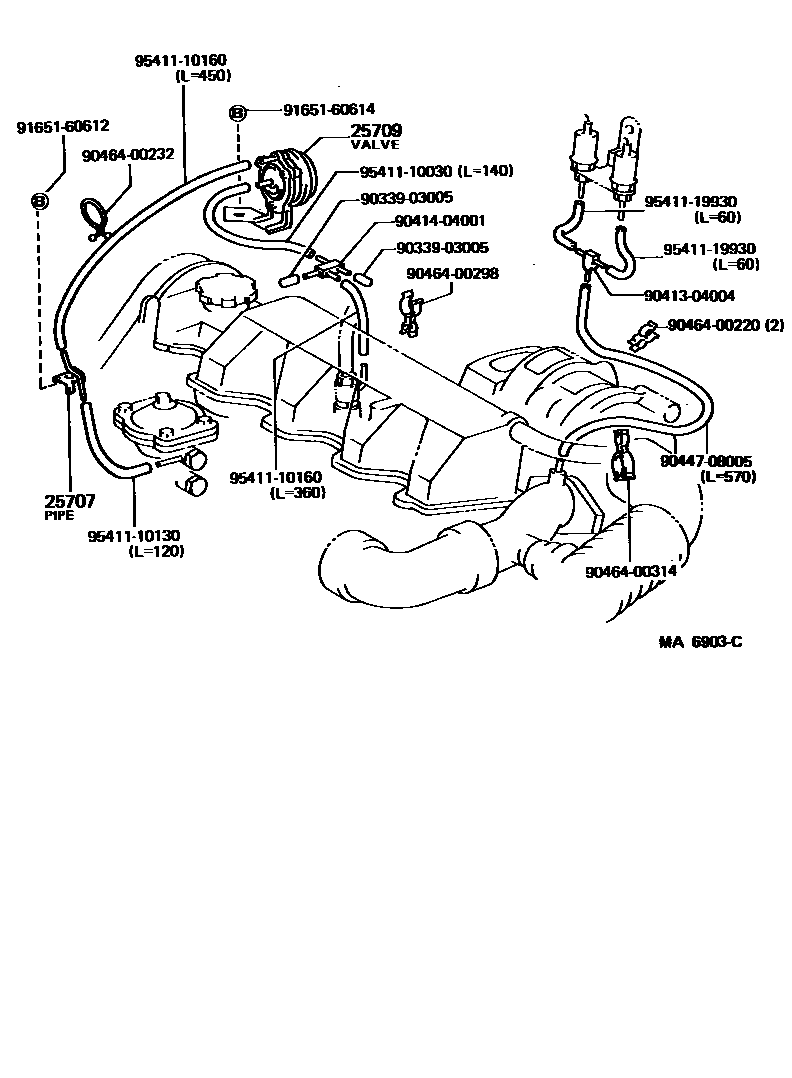

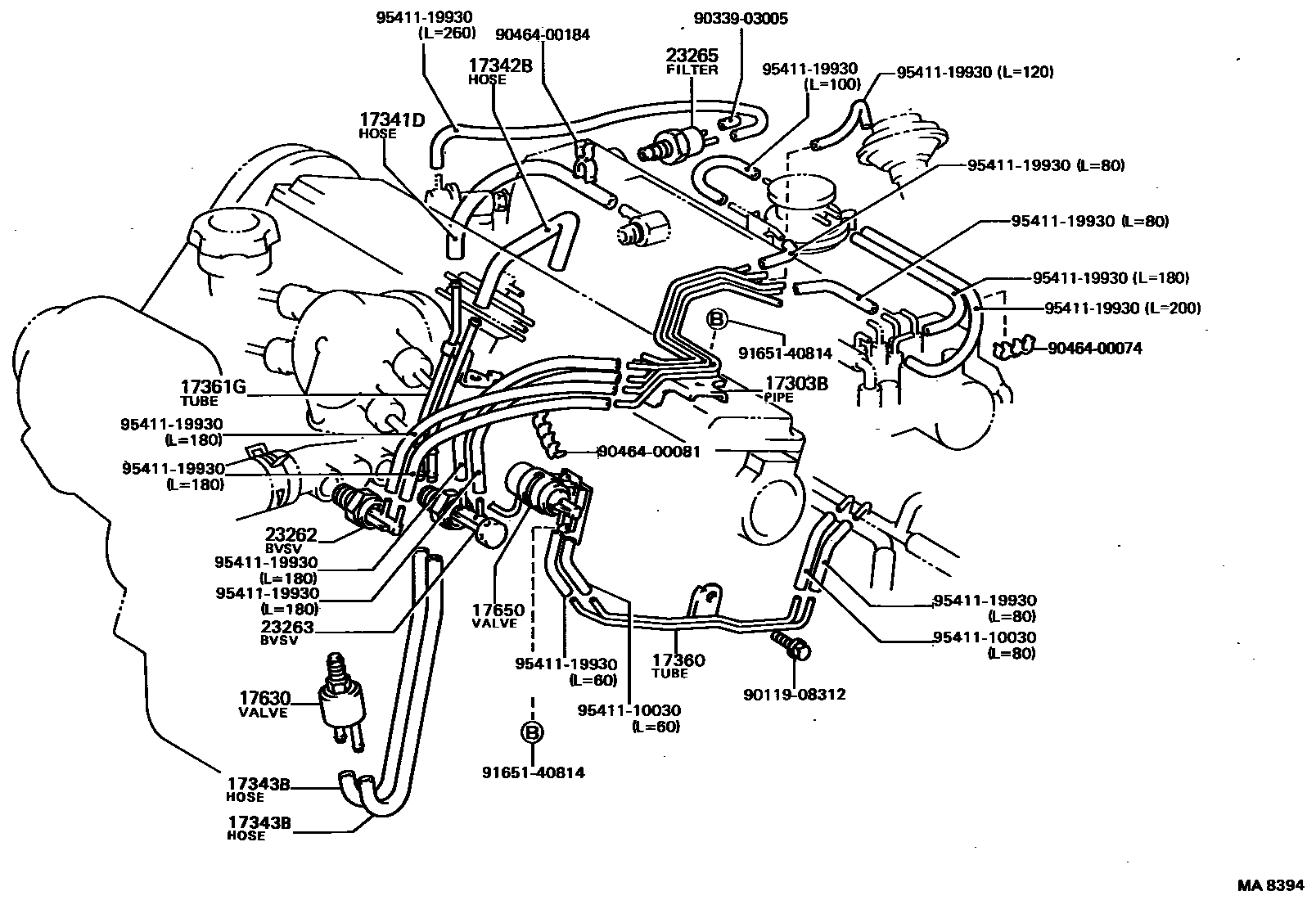

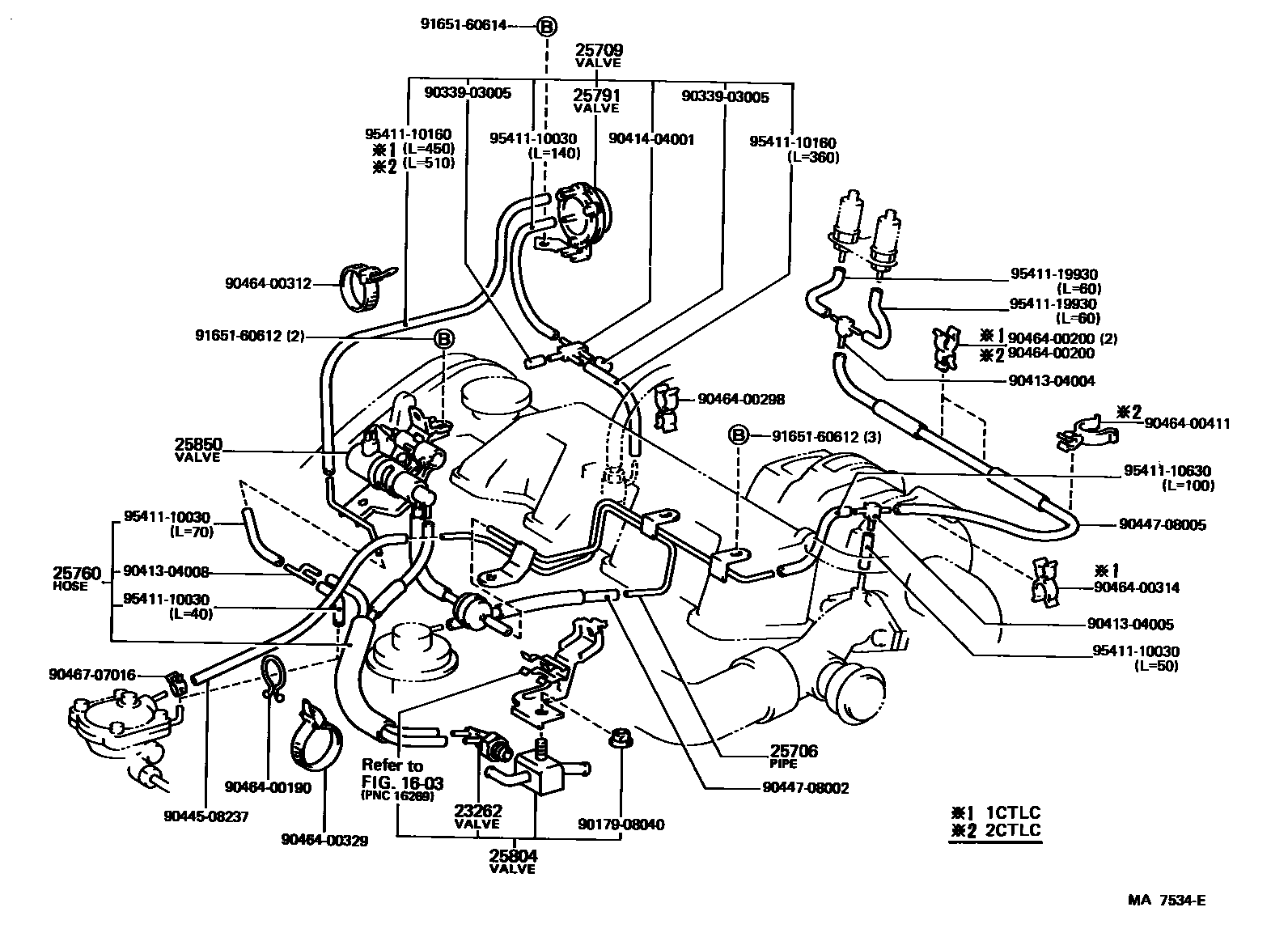

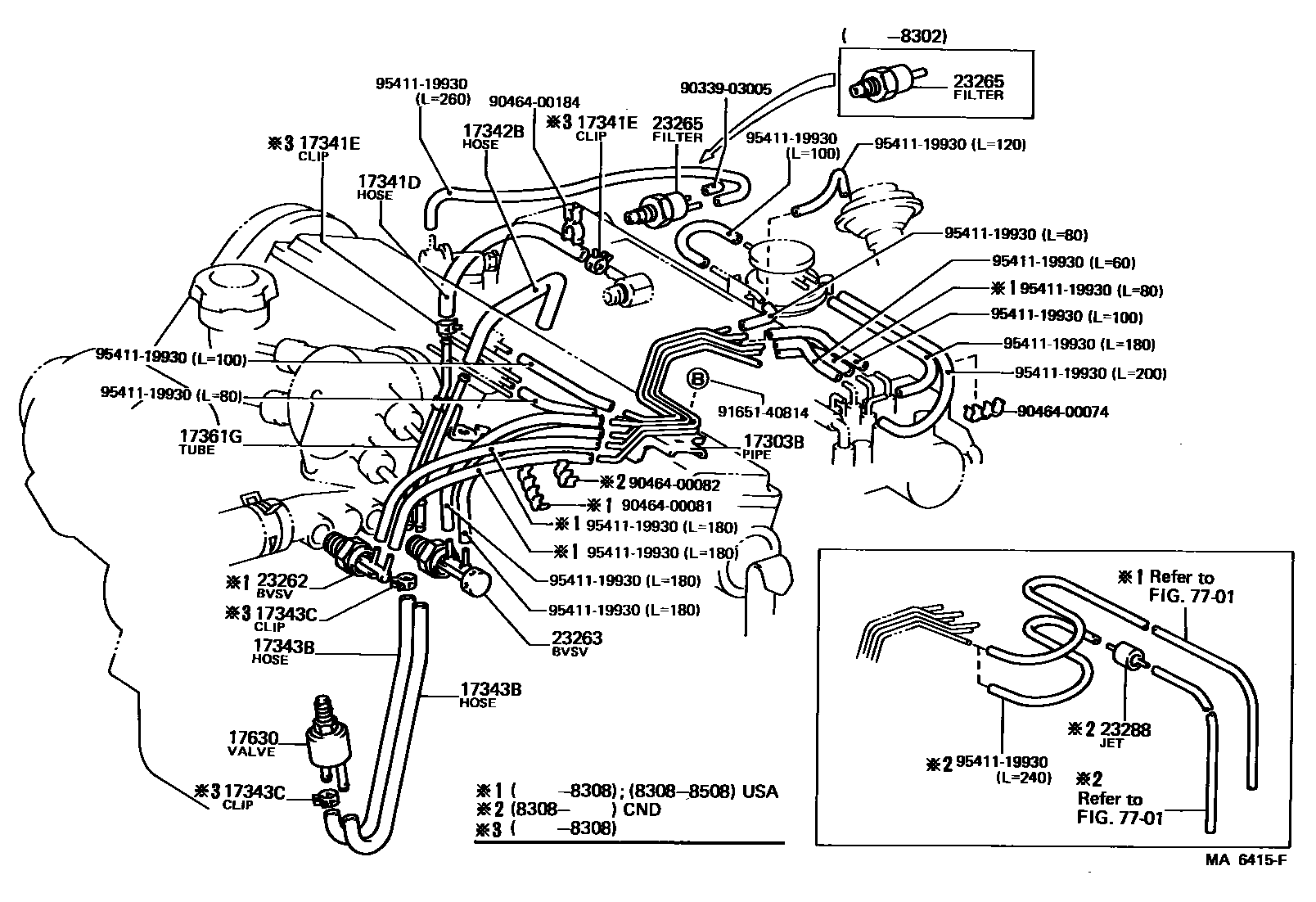

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-74010 |
| 17341D | No. 1 hose (for idle boost) | 17341-63050 · 90445-11040 |
| 17341E | Clamp No. 1 (for idle lift hose) | 96132-30400 |
| 17342B | No. 2 hose (for idle boost) | 17342-74010 |
| 17343B | No. 3 hose (for idle speed boost) | 17343-74010 |
| 17343C | Clamp No. 3 (for idle lifting hose) | 96132-30400 |
| 17360 | air pipe assembly | 17360-63041 |
| 17361G | Air pipe (for idle boost) | 17361-74010 |
| 17630 | Air control valve assembly | 17630-28010 · 17630-70020 |
| 17650 | Vacuum switch valve assembly | 89570-20230 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05058 · 90925-05068 |
| 23263 | No. 2 bimetallic vacuum switch valve | 25820-13020 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11023 |
| 23288 | Nozzle No. 1 | 90925-04026 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-64010 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-64010 |
| 25709 | High altitude compensator valve sub-assembly | 25709-64010 · 25709-64020 · 25709-64021 |
| 25760 | Vacuum transfer hose assembly | 25770-64020 |
| 25791 | High altitude compensator valve | 25791-64010 · 25791-64011 |
| 25804 | Vacuum control valve assembly | 25804-64020 |
| 25850 | Electronic vacuum regulating valve assembly | 25850-64010 |
