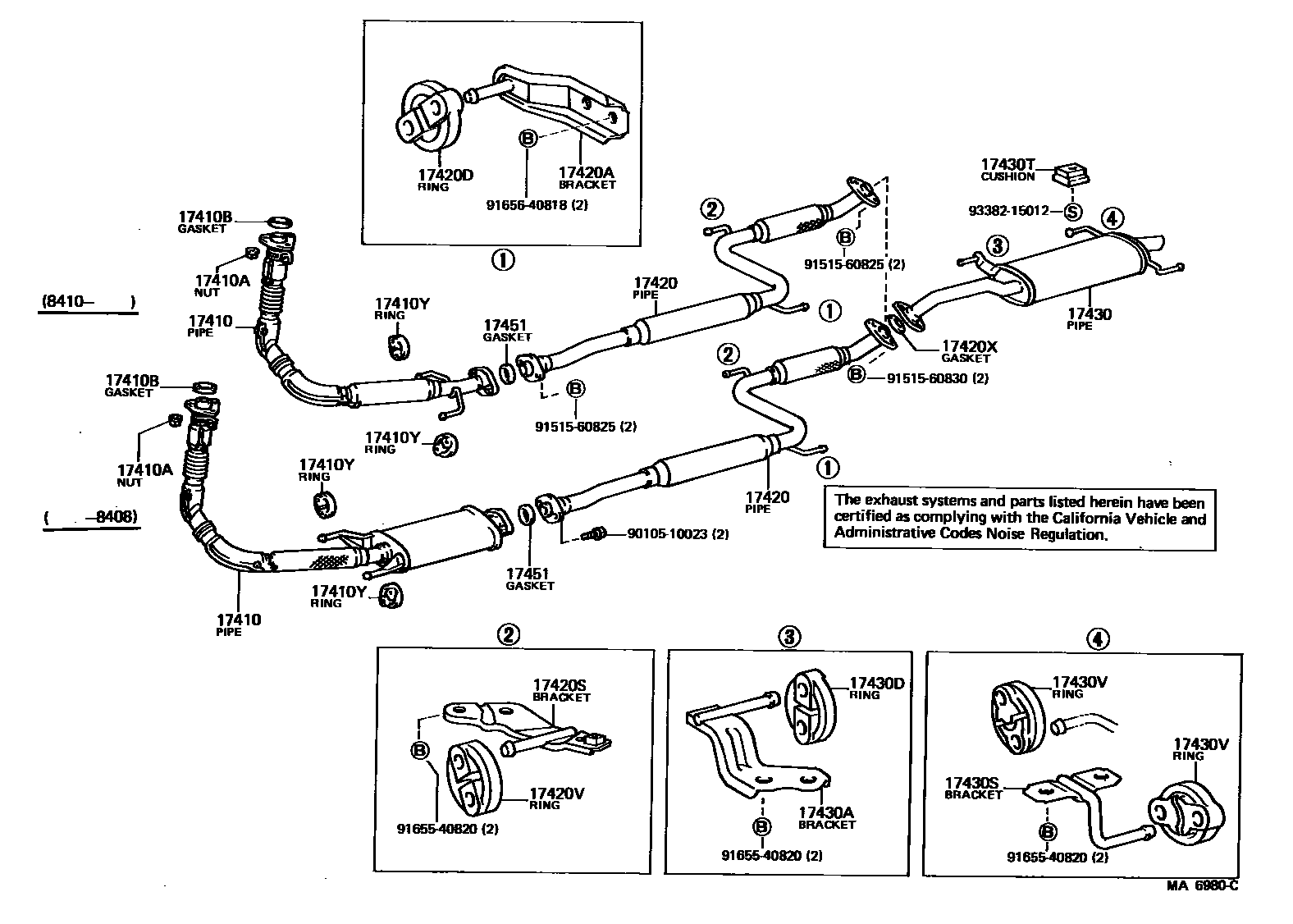

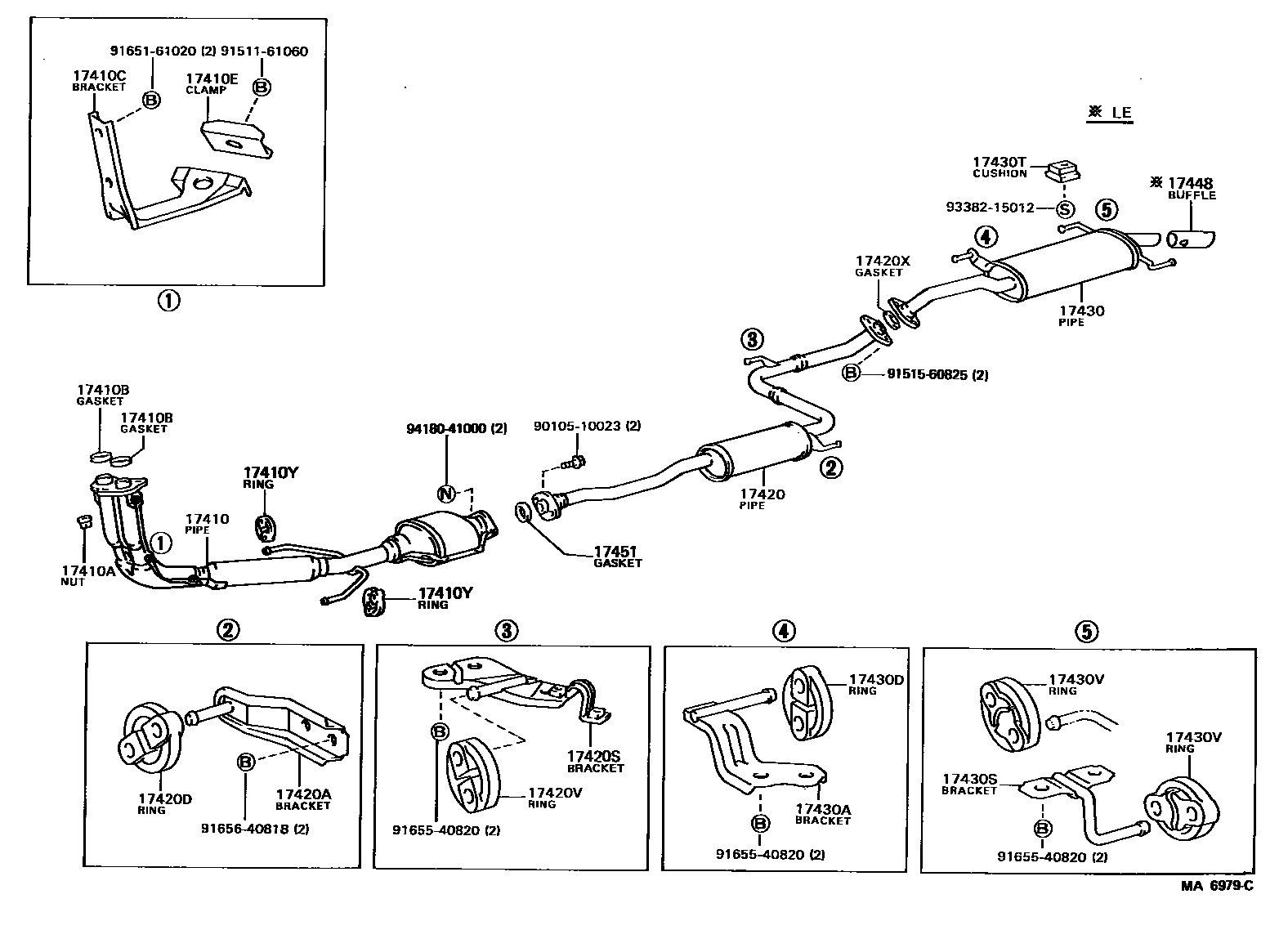

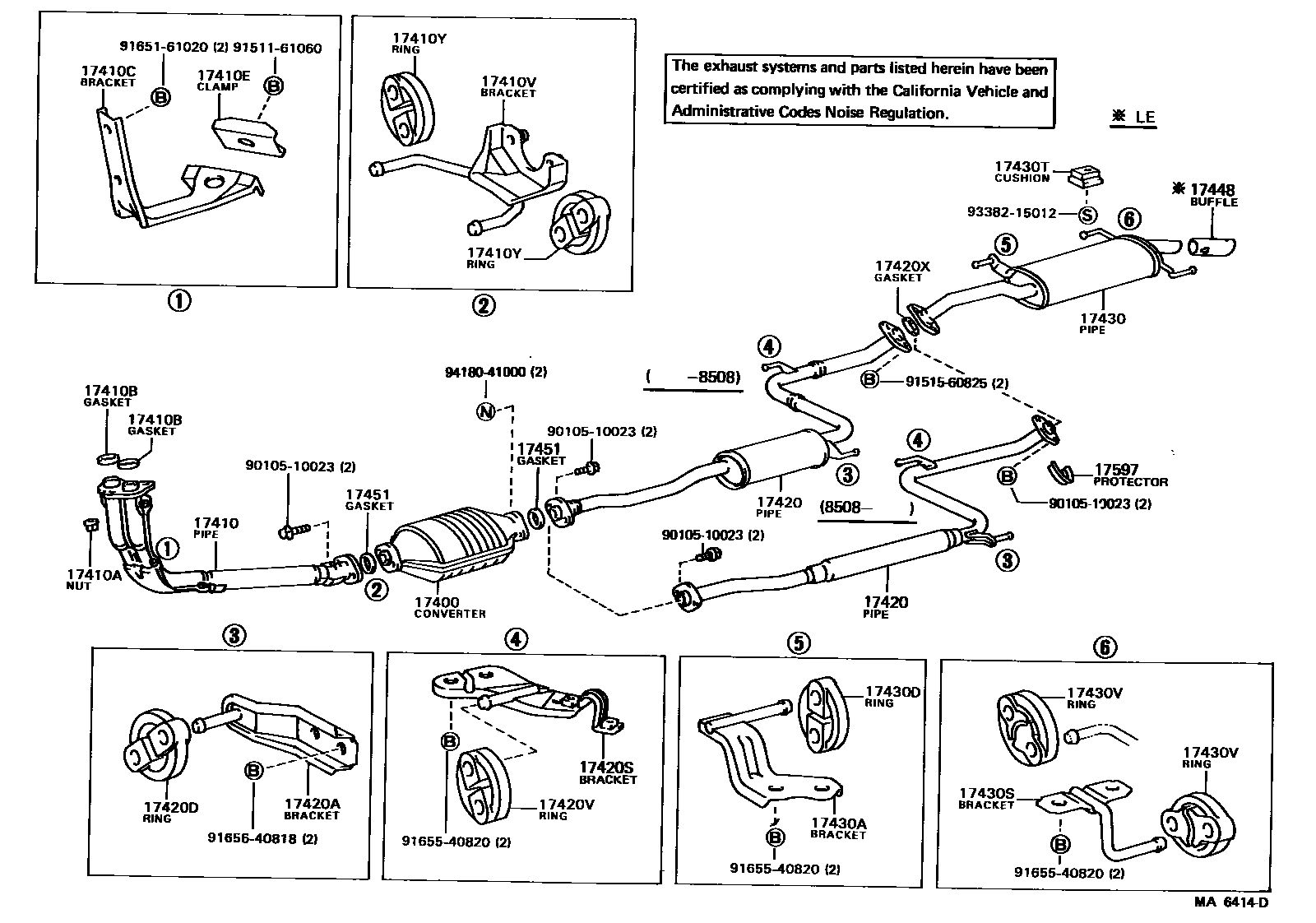

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-74011 |
| 17410 | Front exhaust pipe assembly | 17410-63020 · 17410-64050 · 17410-64100 · 17410-74030 · 17410-74120 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10028 · 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06001 · 90917-06012 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-63020 |
| 17410E | No. 1 front exhaust pipe clamp (for front) | 90917-04054 |
| 17410V | Front exhaust pipe bracket (for rear) | 17503-63010 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 17565-63020 · 17565-63060 |
| 17420 | Central exhaust pipe assembly | 17403-63010 · 17420-64040 · 17420-64041 · 17420-64050 · 17420-74070 |
| 17420A | Center exhaust pipe front bracket | 17506-63010 |
| 17420D | Center exhaust pipe front bolt or ring | 17565-63020 · 17565-63060 |
| 17420S | Center exhaust pipe rear bracket | 17507-63010 · 17507-63020 |
| 17420V | Center exhaust pipe rear bolt or ring | 17565-63020 · 17565-63060 |
| 17420X | Center exhaust pipe liner | 90917-06004 |
| 17430 | Exhaust tailpipe assembly | 17430-64170 · 17430-64171 · 17430-64230 · 17430-64260 · 17430-74010 · 17430-74011 · 17430-74060 |
| 17430A | Exhaust tailpipe bracket (for front) | 17508-63010 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 17565-63020 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17509-63040 |
| 17430T | Exhaust tailpipe cushion (for rear) | 17591-36010 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 17565-63030 |
| 17448 | Exhaust pipe tail throat | 17448-70020 · 17448-74010 |
| 17451 | Exhaust pipe gasket | 90917-06012 · 90917-06020 · 90917-06023 |
| 17597 | Exhaust pipe fender | 17597-74020 |
