Toyota CAMRY 后视镜 — Figure 8701

Toyota CAMRY EPC diagram 8701, 后视镜, with 2 images and 16 PNC and OE references.

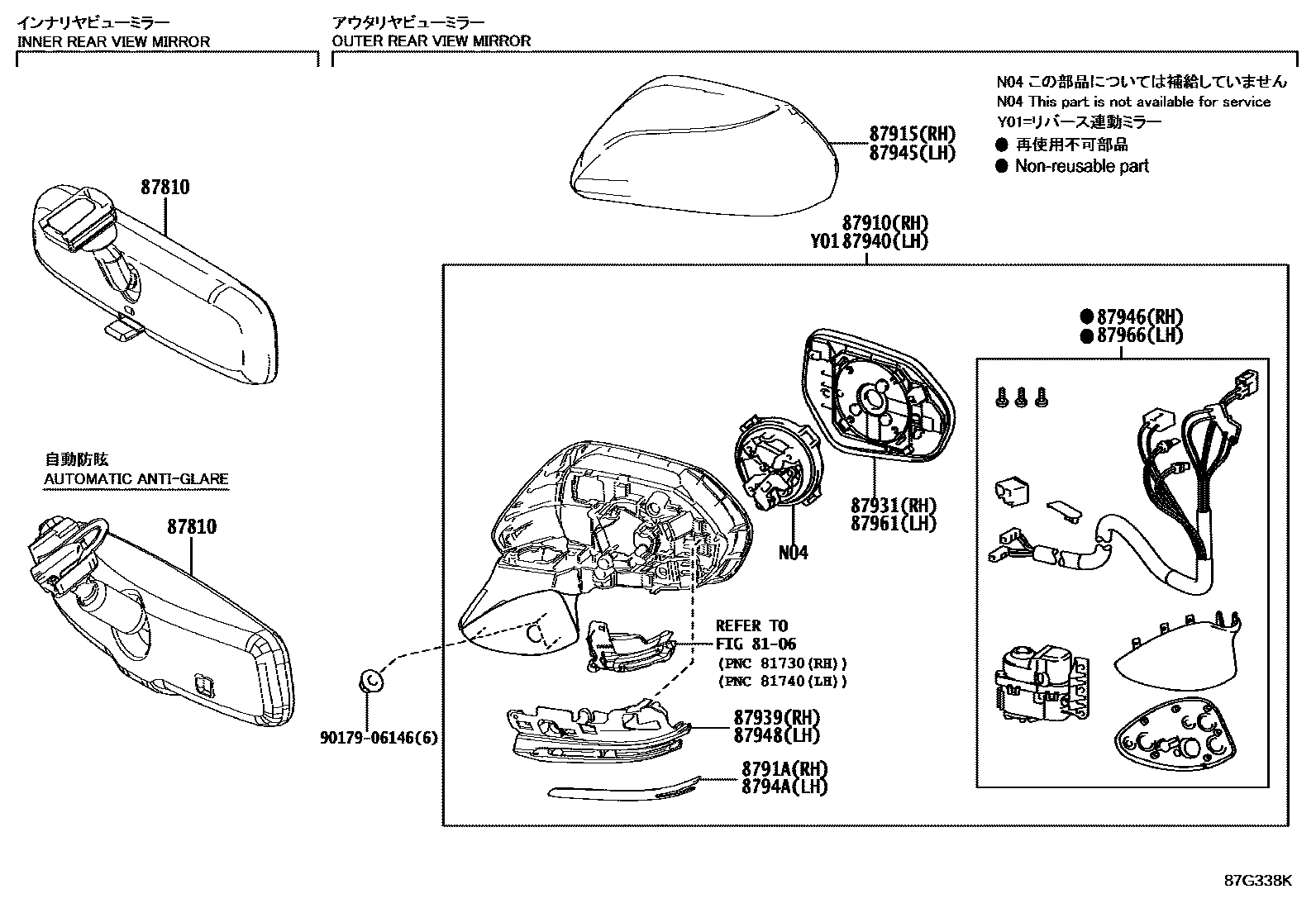

Toyota CAMRY 后视镜 EPC diagram — 87G338K
后视镜 — 87G338K (201706 – 202102)

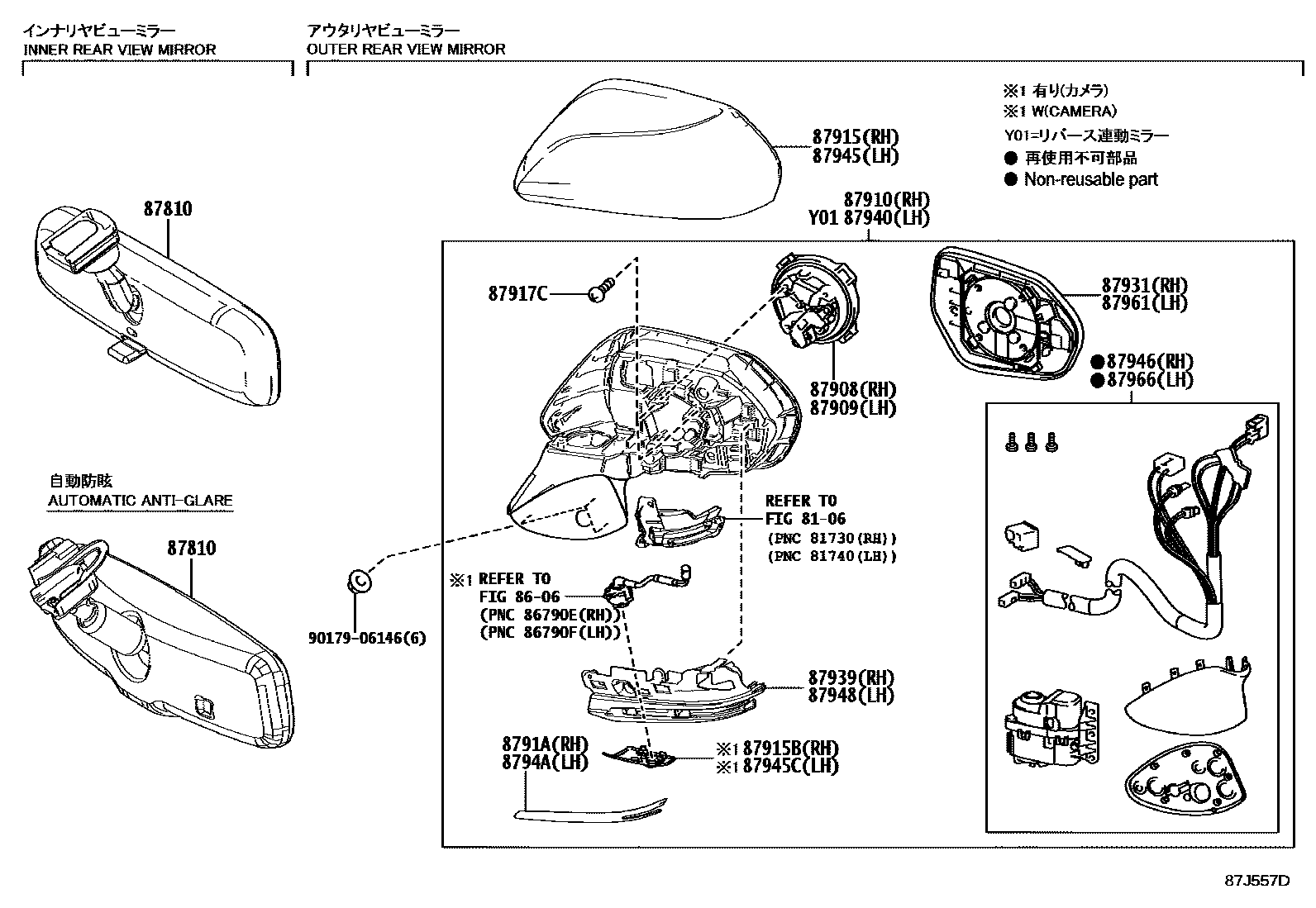

Toyota CAMRY 后视镜 EPC diagram — 87J557D
后视镜 — 87J557D (202102 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0WS50 · 87810-0WS51 · 87810-53200 · 87810-53210
87908Right exterior rearview mirror actuator assembly87908-42M50
87909Left exterior rearview mirror actuator assembly87908-42M50
87910Right exterior rearview mirror assembly87910-33D00 · 87910-33D10 · 87910-33K00 · 87910-33K10 · 87910-33K20 · 87910-33K21
87915BRight exterior rearview mirror lower cover8791A-33D50
87917CExterior rearview mirror screws87917-15010
8791ARight exterior rearview mirror cover No. 28791B-47360
87931Right exterior rearview mirror87902-33170 · 87902-33180 · 87902-33340 · 87902-33350
87939Right exterior rearview mirror hole cover87939-33D50 · 87939-47360
87940Left exterior rearview mirror assembly87940-33D00 · 87940-33D10 · 87940-33K00 · 87940-33K10 · 87940-33K20 · 87940-33K21
87945CLeft exterior rearview mirror lower cover8794A-33D50
87946Right exterior rearview mirror retractor87946-33D10 · 87946-33D20 · 87946-33K20
87948Left exterior rearview mirror hole cover87948-33D50 · 87948-47250
8794ANo. 2 left exterior rearview mirror cap8794B-47250
87961Left exterior rearview mirror87907-12020 · 87907-33150 · 87907-33160 · 87907-33170
87966Left exterior rearview mirror retractor87966-33D10 · 87966-33D20 · 87966-33K20
