Toyota CAMRY 预碰撞安全系统 — Figure 8617

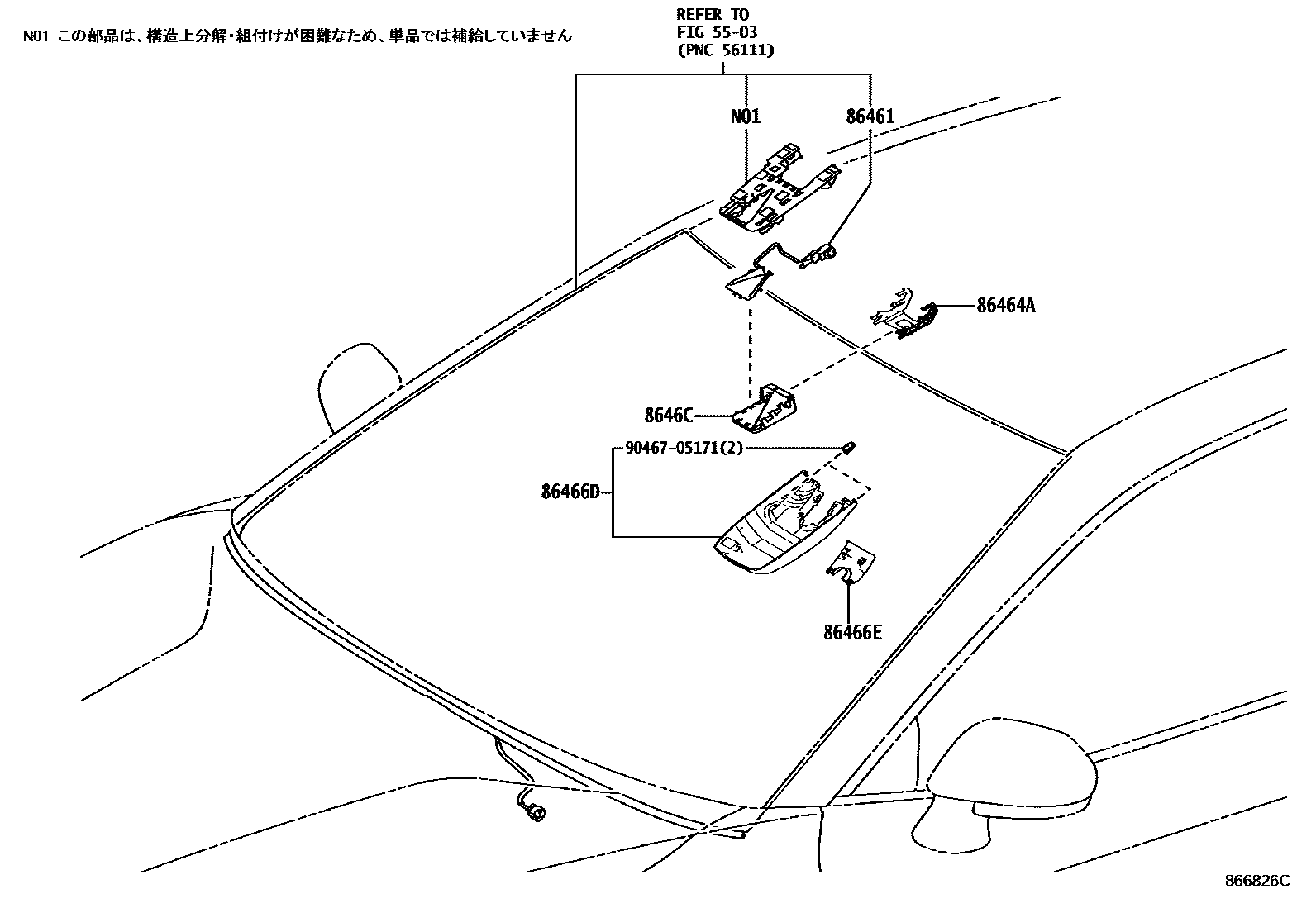

Toyota CAMRY EPC diagram 8617, 预碰撞安全系统, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86461 | Toyota part | 86401-33030 · 86461-33030 |
| 86464A | Toyota part | 86464-26010 · 86464-71010 |
| 86466D | Toyota part | 86466-33060 · 86466-33110 |
| 86466E | Toyota part | 86466-33070 |
| 8646C | Toyota part | 8646C-06030 · 8646C-06050 · 8646C-06070 · 8646C-33040 · 8646C-33041 |
