Toyota CAMRY 车载电话和呼救装置 — Figure 8615

Toyota CAMRY EPC diagram 8615, 车载电话和呼救装置, with 2 images and 6 PNC and OE references.

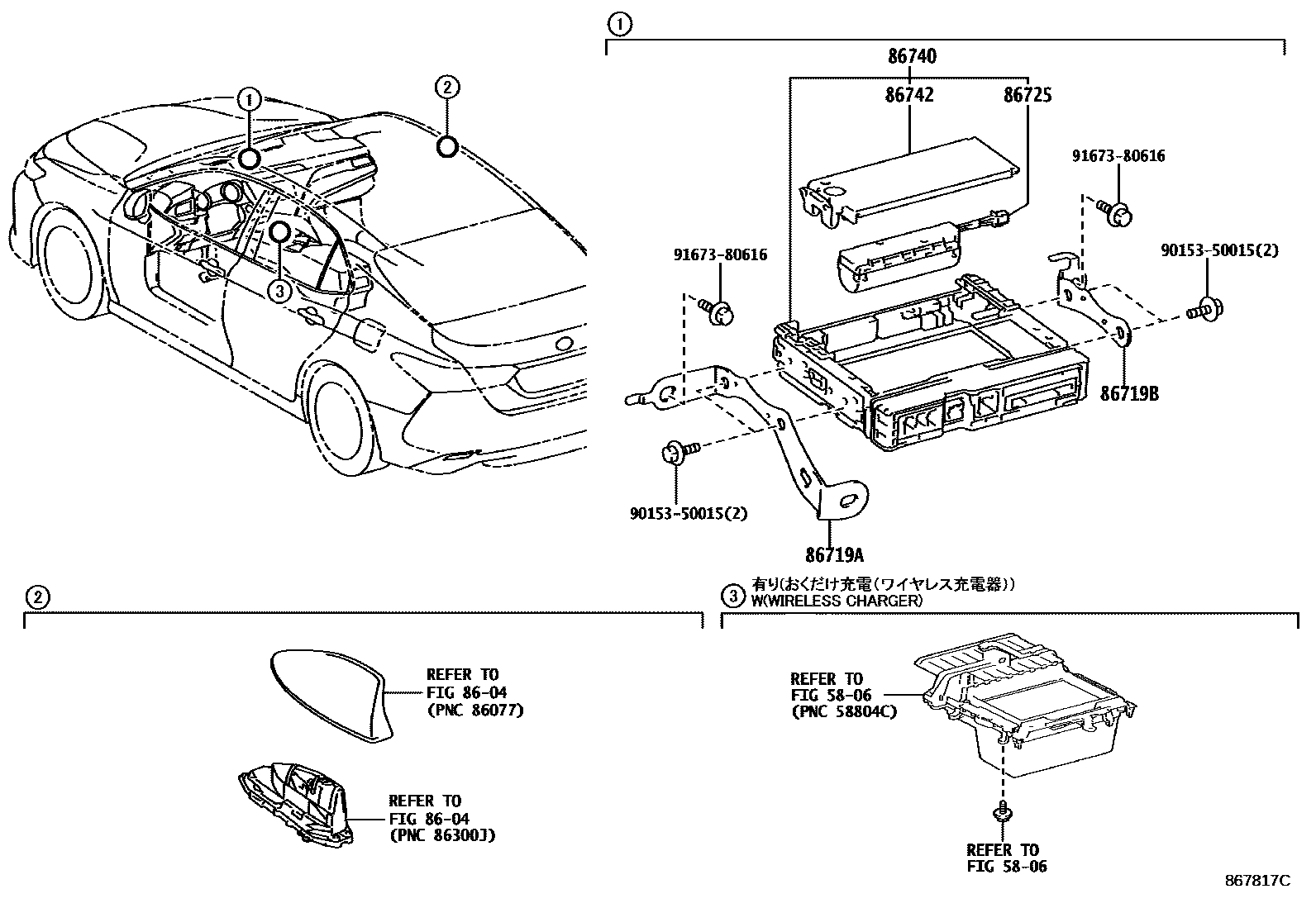

Toyota CAMRY 车载电话和呼救装置 EPC diagram — 867817C
车载电话和呼救装置 — 867817C (201910 – 202102)

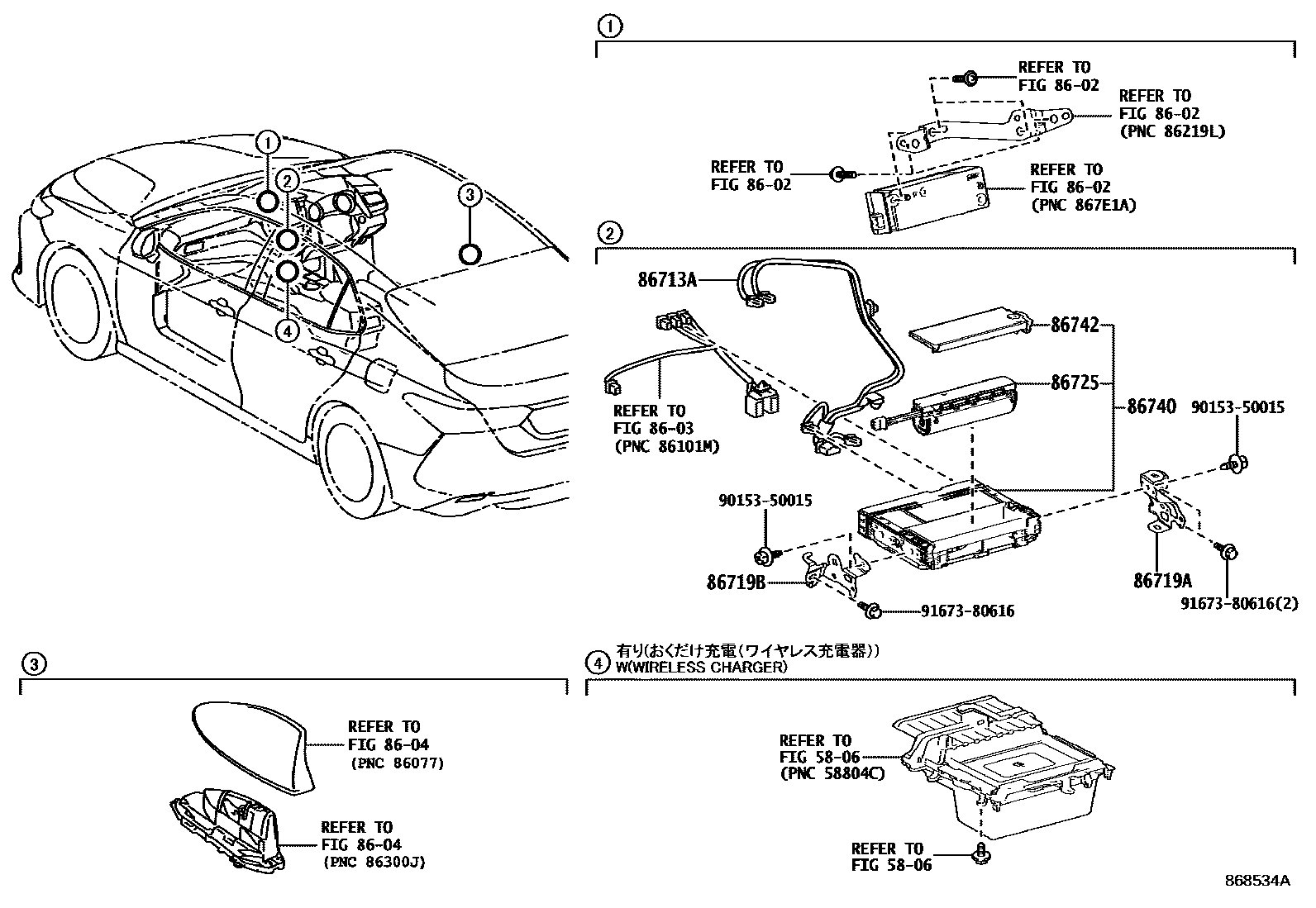

Toyota CAMRY 车载电话和呼救装置 EPC diagram — 868534A
车载电话和呼救装置 — 868534A (202102 – 999999)

PNC and OE references

PNCPart nameOE numbers
86713ATelephone ECU harness (to transceiver)86713-33150 · 86713-33170
86719APhone holder No. 186719-33220 · 86719-33290
86719BPhone holder No. 286719-33190 · 86719-33300
86725mobile phone battery86725-26010
86740Telephone transceiver assembly86741-33121 · 86741-33122 · 86741-K0011
86742transceiver cover86742-26010
