Toyota CAMRY 收音机通信和ETC — Figure 8610

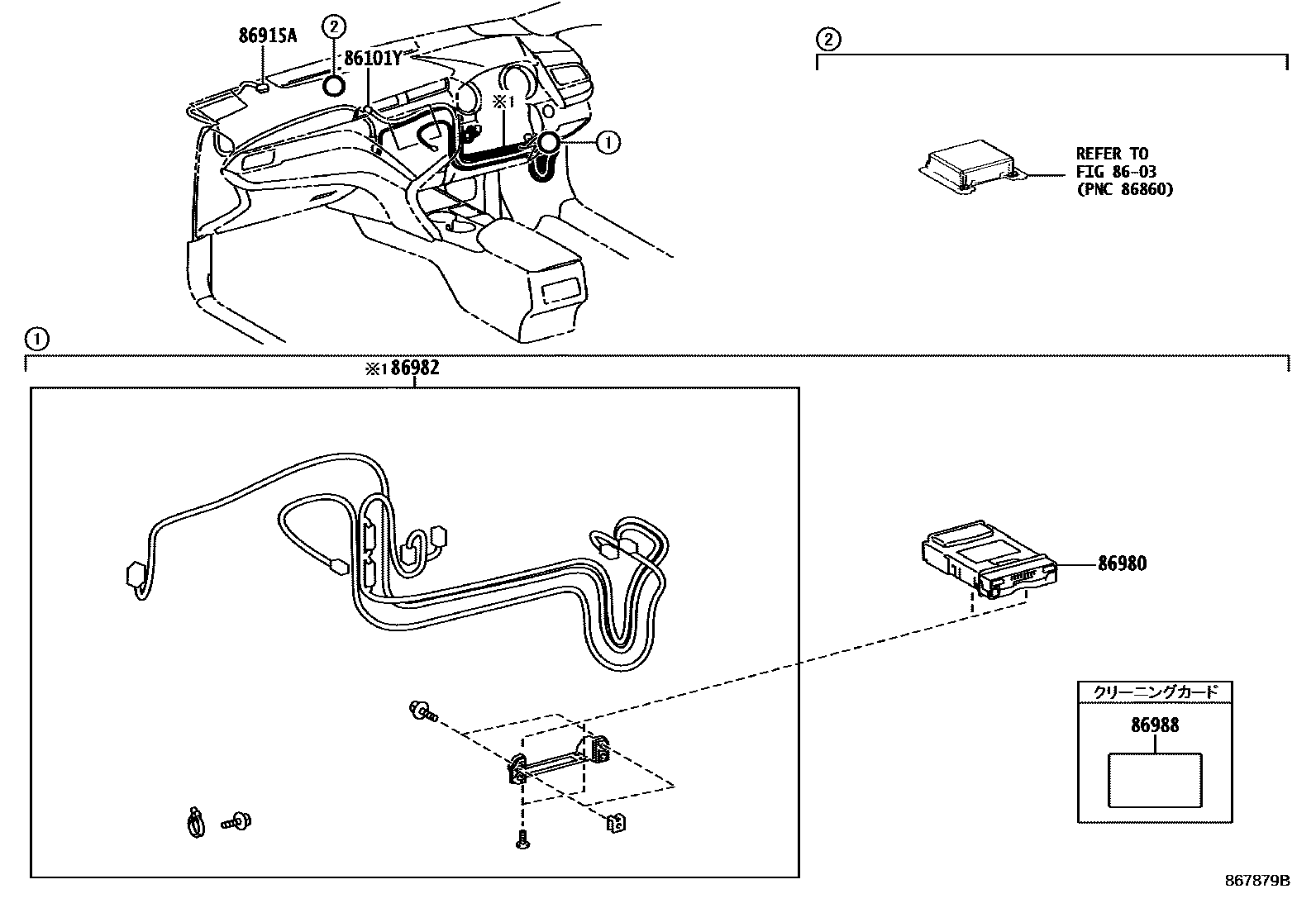

Toyota CAMRY EPC diagram 8610, 收音机通信和ETC, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101Y | Toyota part | 86101-33P00 · 86101-33Z10 |
| 86915A | Toyota part | 86915-K0010 |
| 86980 | Toll collection machine ECU assembly | 86980-K0010 · 86980-K0011 · 86980-K0020 · 86980-K0021 |
| 86982 | Toll collection machine wiring harness | 86982-K0010 · 86982-K0020 |
| 86988 | Toyota part | 86988-11010 |
