Toyota CAMRY antenna — Figure 8604

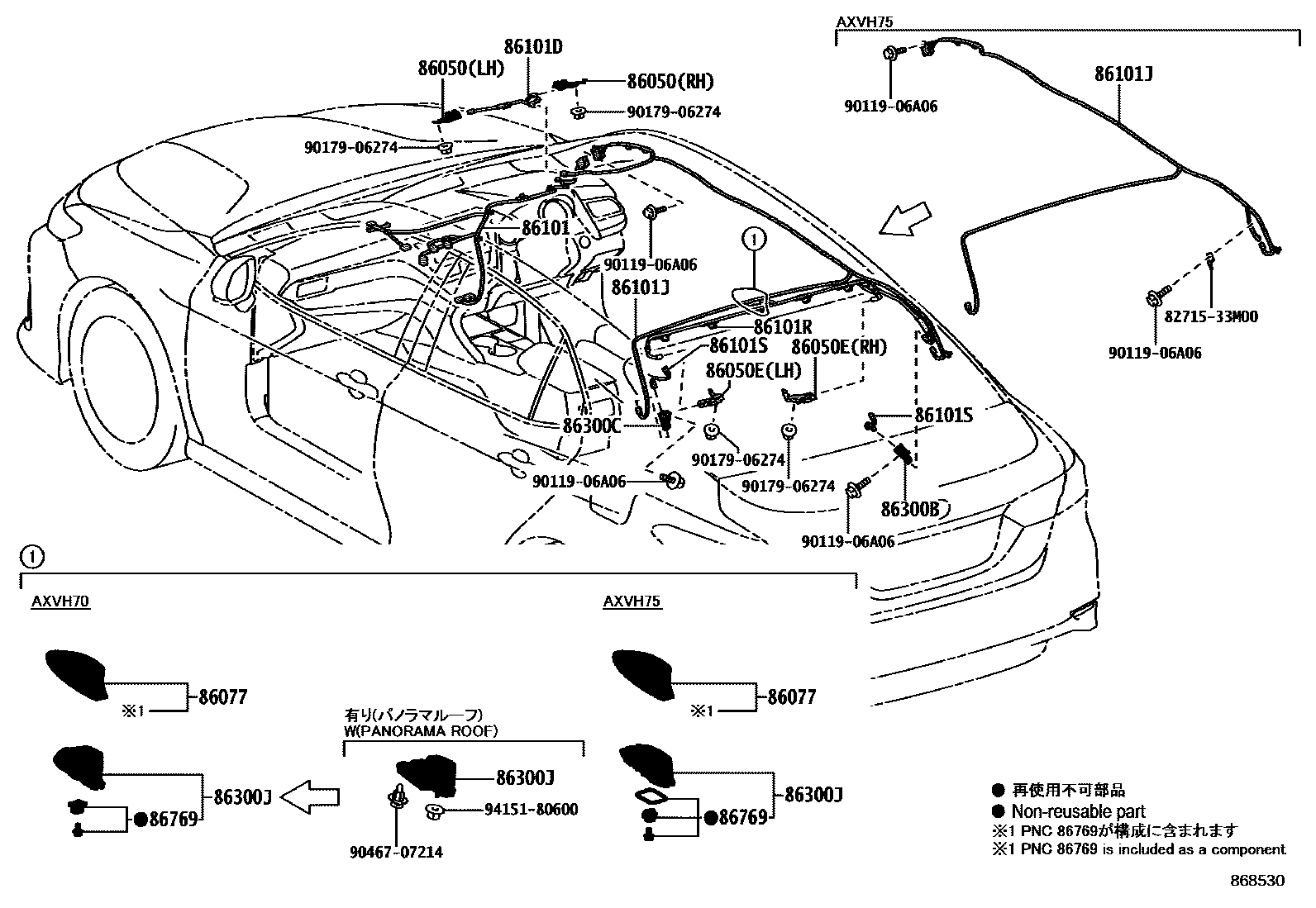

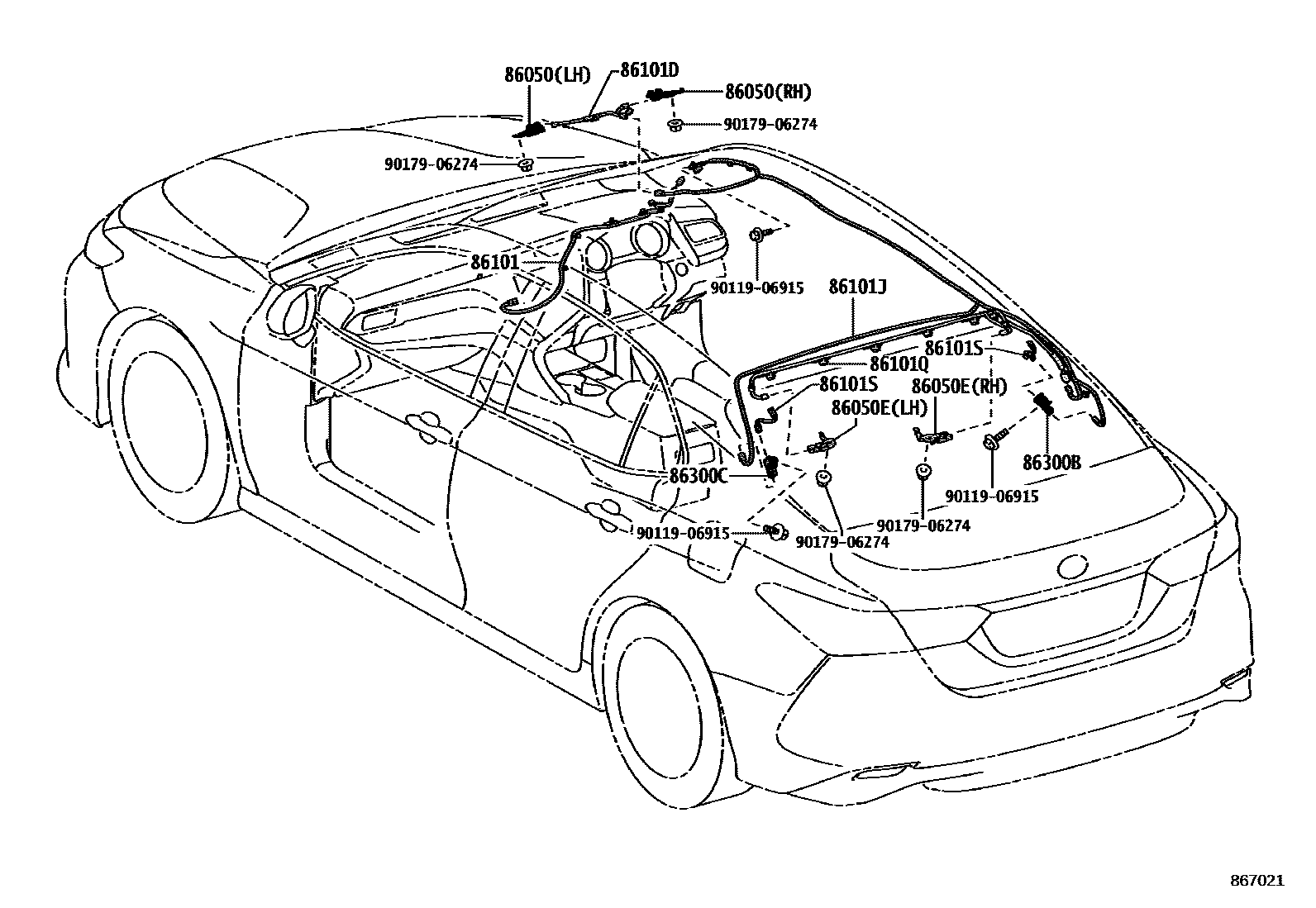

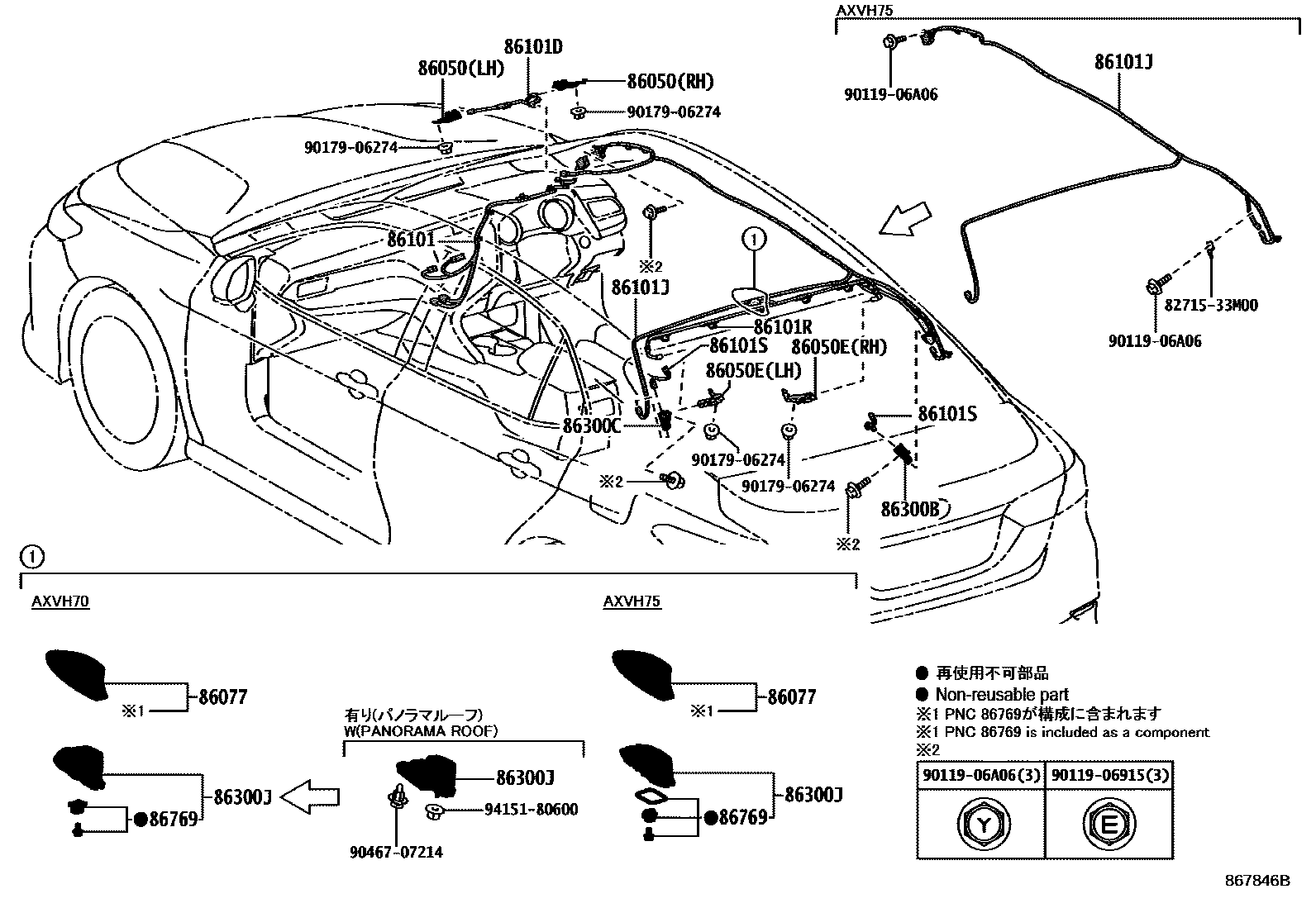

Toyota CAMRY EPC diagram 8604, antenna, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86050 | Monitor antenna assembly | 86050-53180 · 86050-53190 |
| 86050E | Monitor antenna assembly | 86050-33180 · 86050-33190 |
| 86101 | Antenna wire sub-assembly | 86101-33K50 · 86101-33M10 · 86101-33W10 · 86101-33X40 · 86101-33Y90 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-33L30 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-33J20 · 86101-33J30 · 86101-33L90 · 86101-33M00 · 86101-33V00 · 86101-33V90 · 86101-33W00 |
| 86101Q | No. 4 antenna wire sub-assembly | 86101-33L40 |
| 86101R | No. 5 antenna wire sub-assembly | 86101-33V10 · 86101-33W20 |
| 86101S | Antenna wire sub-assembly | 86101-33J00 |
| 86300B | Amplifier antenna assembly | 86300-33370 |
| 86300C | Amplifier antenna assembly | 86300-33380 |
| 86300J | Roof antenna assembly | 86760-62030 · 86760-62040 · 86760-K0010 |
| 86769 | Toyota part | 86769-62010 · 86769-K0010 |
