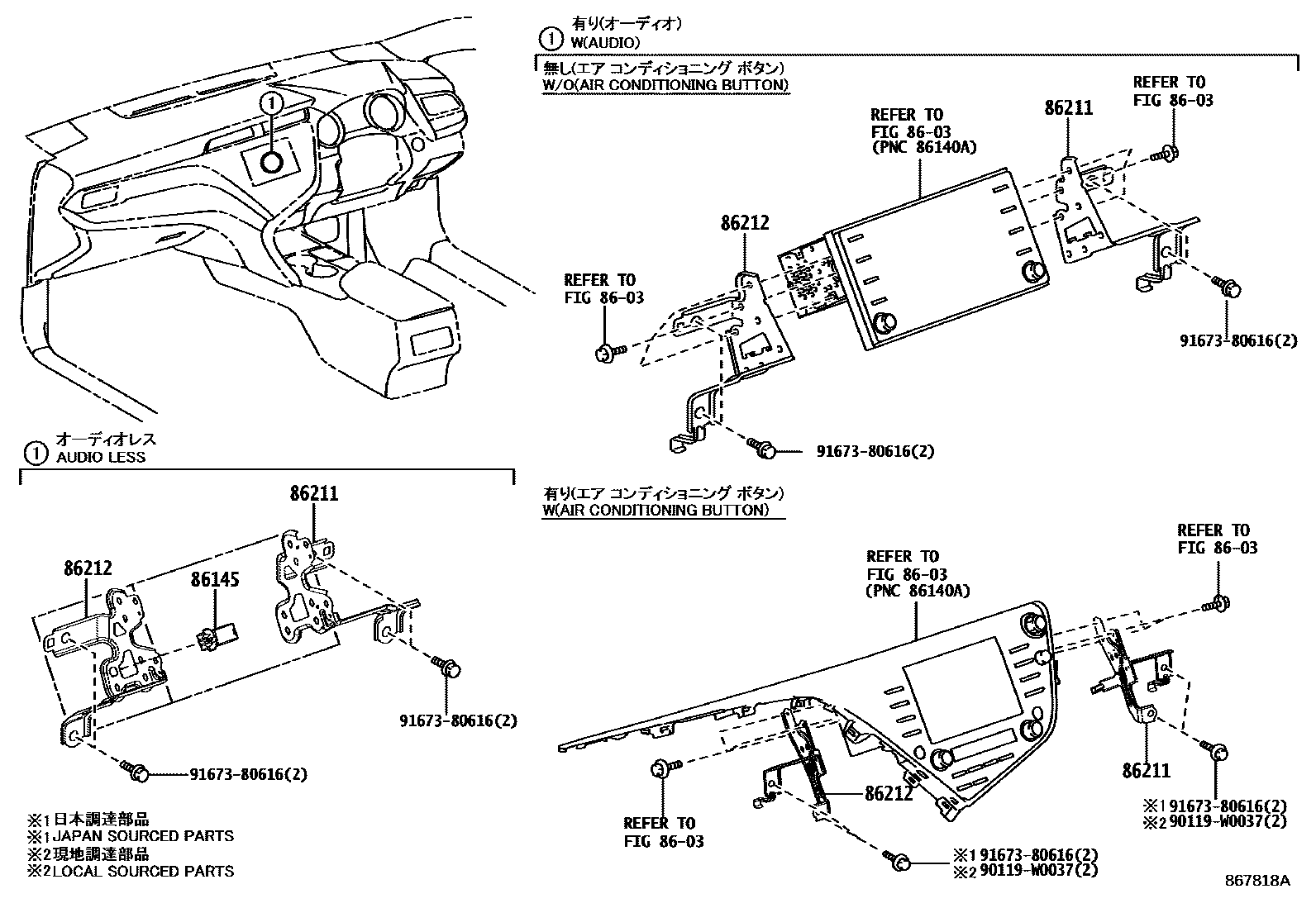

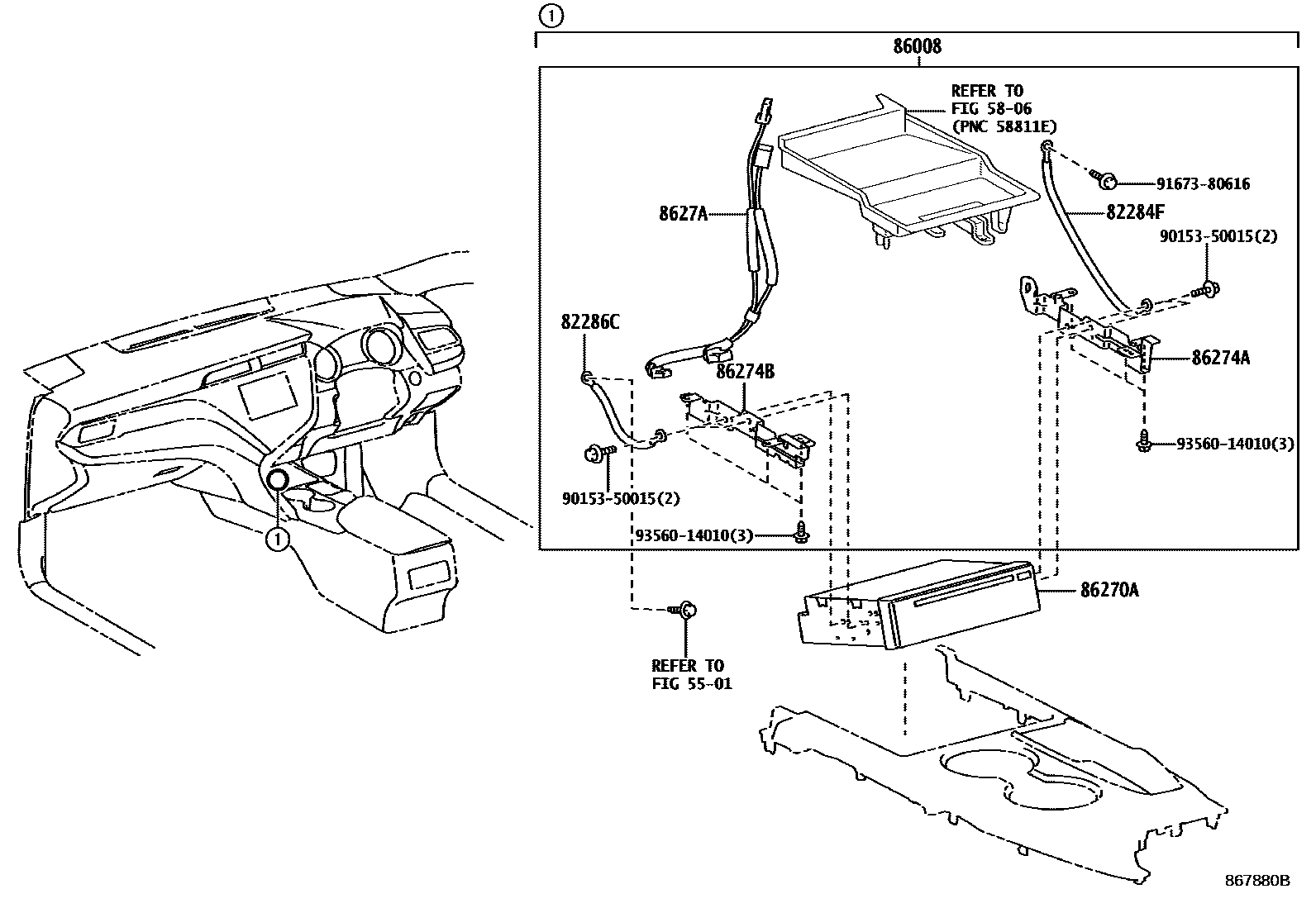

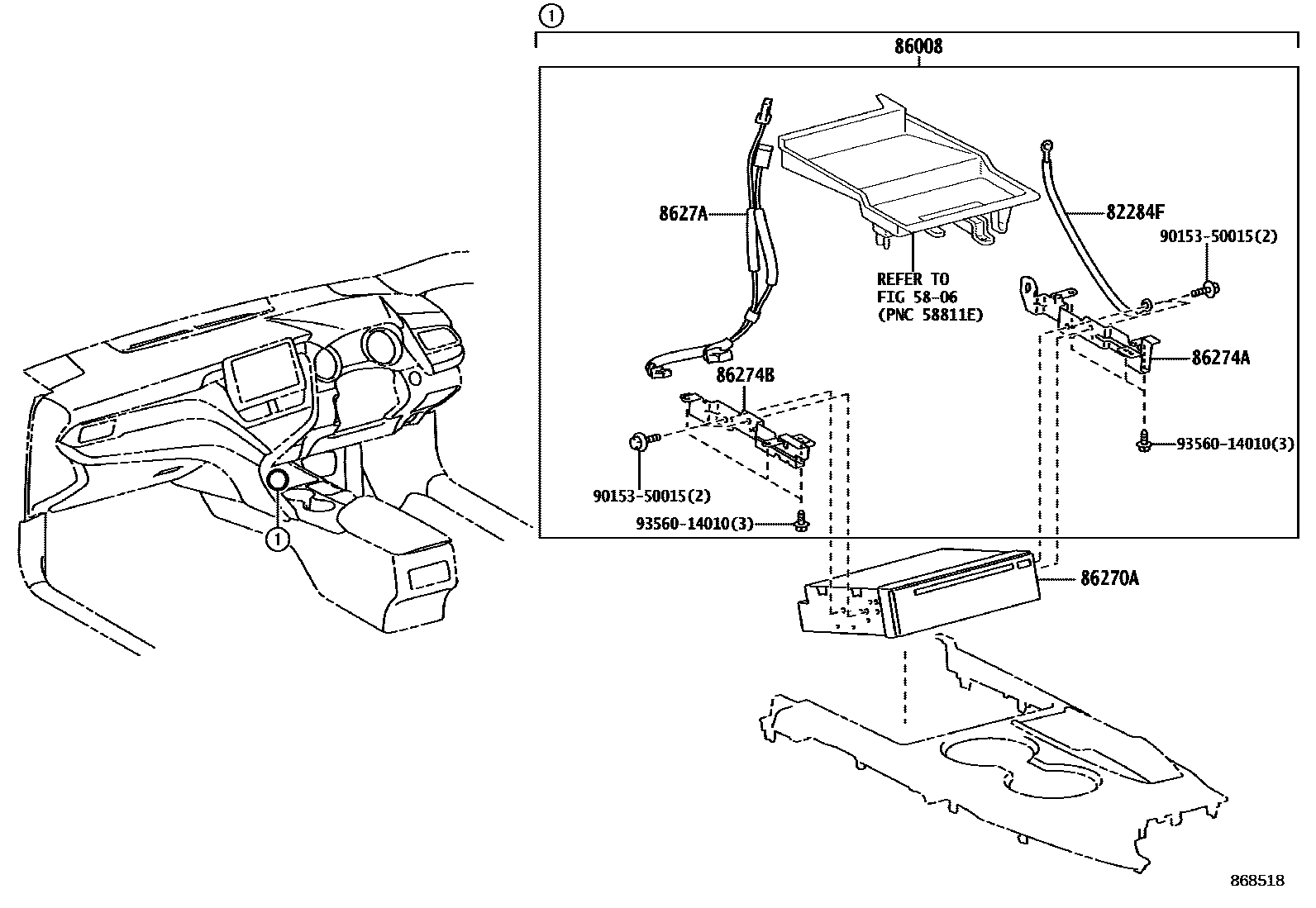

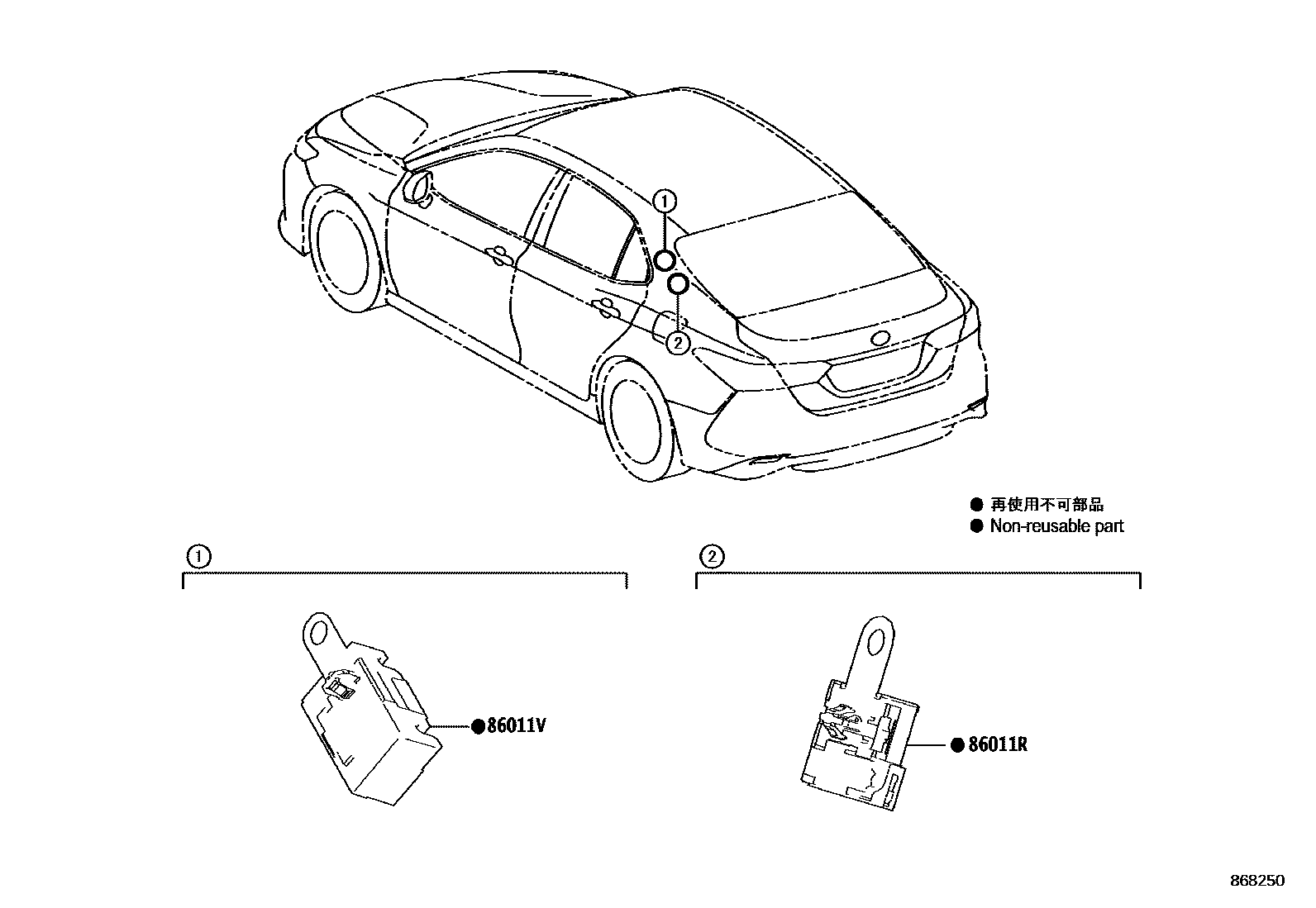

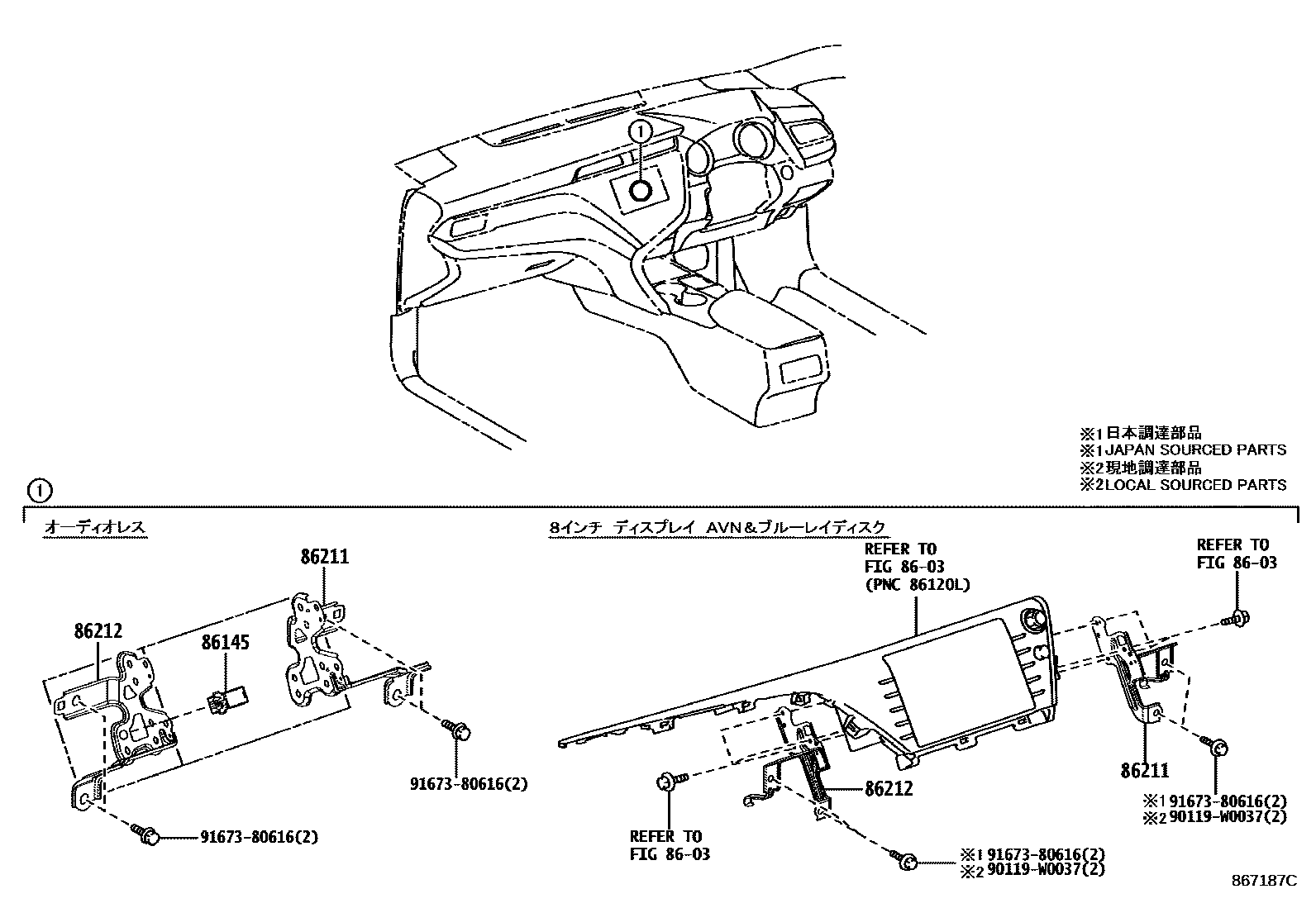

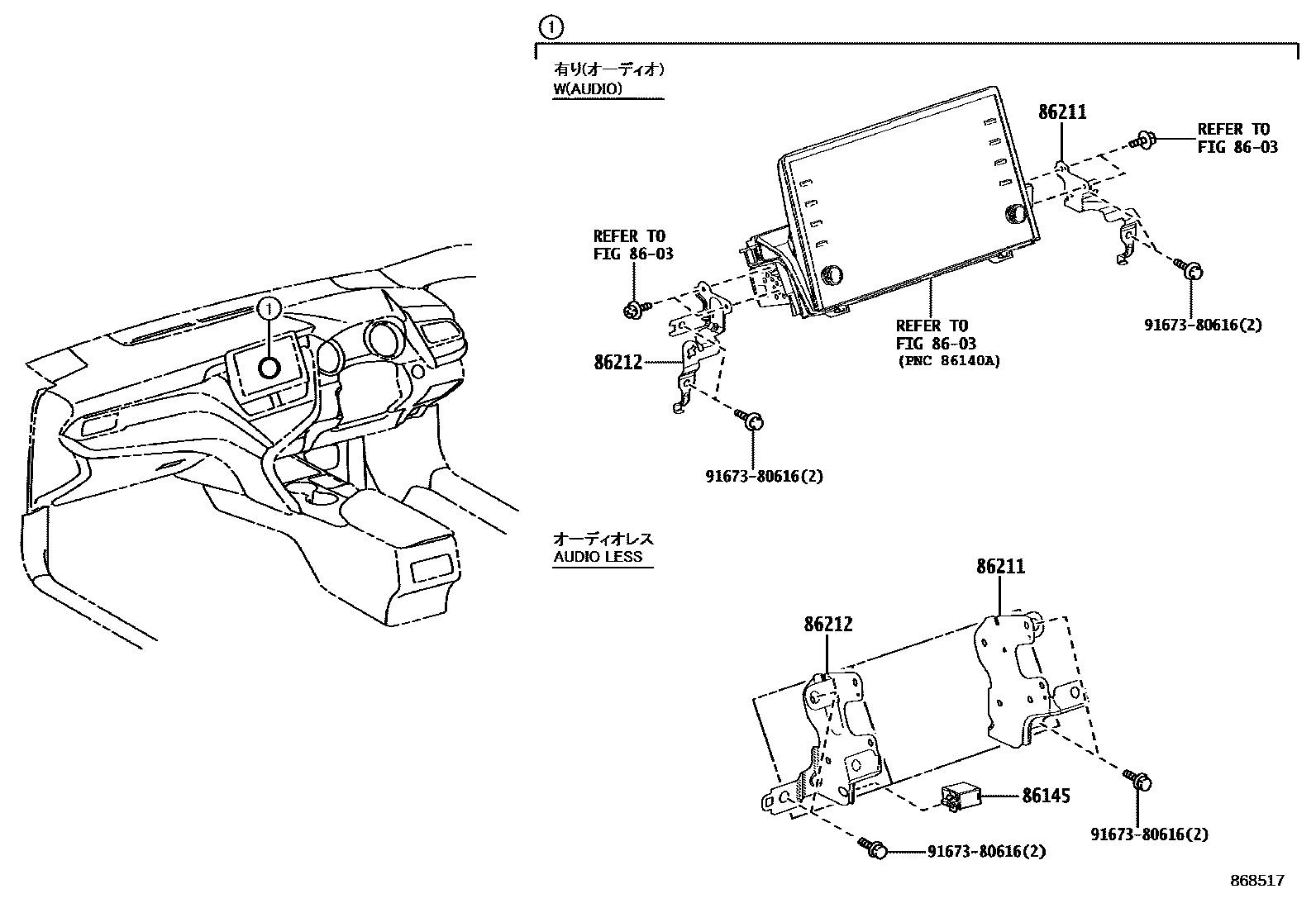

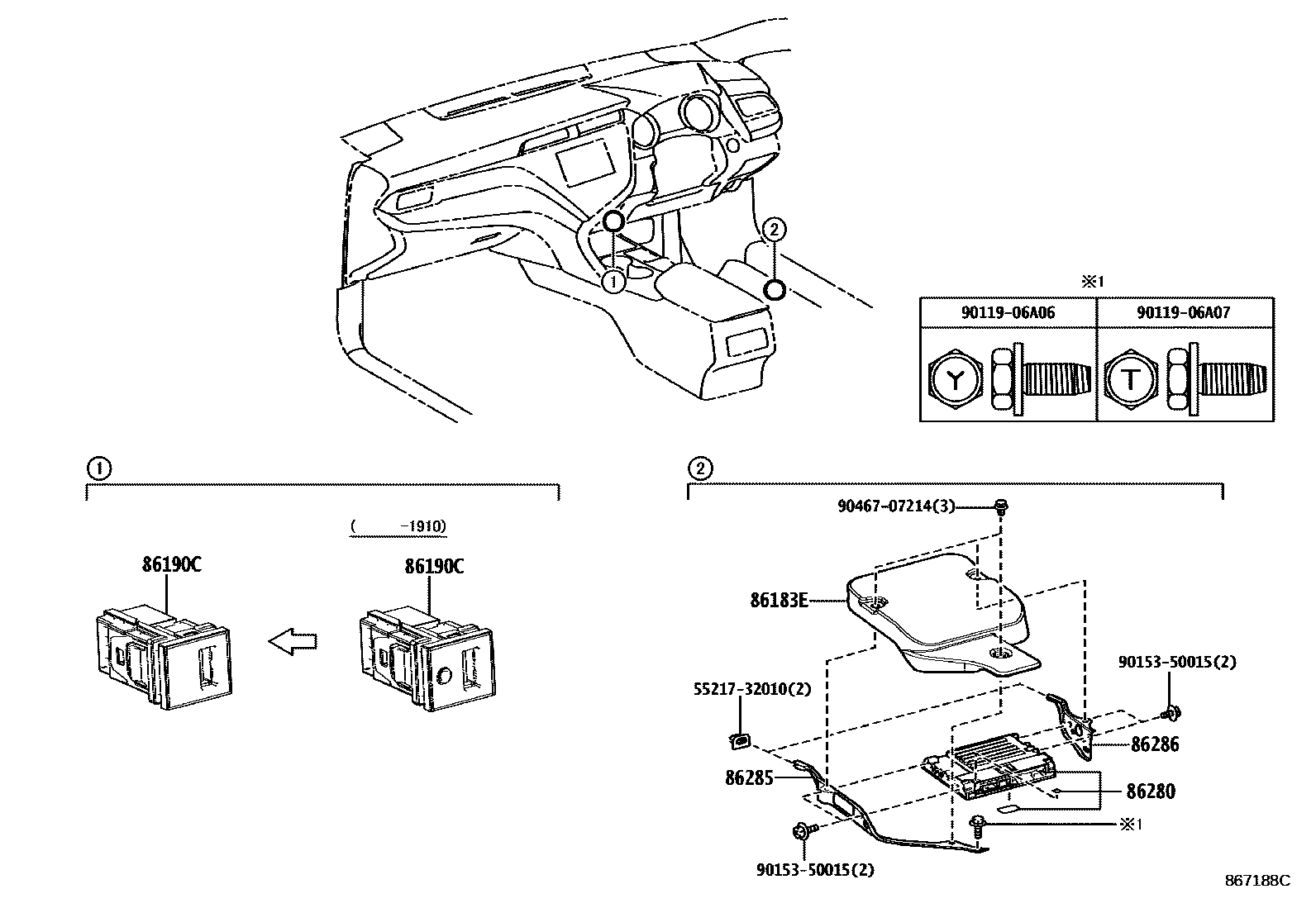

Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 7 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82284F | Toyota part | 82284-33150 |
| 82286C | Toyota part | 82286-33050 |
| 86008 | Toyota part | 86008-33010 · 86008-33020 |
| 86011R | radio settings phase modulator | 90980-04189 |
| 86011V | radio settings phase modulator | 90980-04204 |
| 86145 | Antenna connector | 86145-52010 |
| 86183E | audio amplifier cover | 86183-33100 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-12070 · 86190-33060 |
| 86211 | No. 1 radio bracket | 86211-33320 · 86211-33340 · 86211-33350 · 86211-33400 · 86211-33410 · 86211-33430 |
| 86212 | No. 2 radio bracket | 86212-33320 · 86212-33340 · 86212-33350 · 86212-33400 · 86212-33410 · 86212-33430 |
| 86270A | CD player assembly | 86270-K0010 |
| 86274A | CD player stand | 86274-33180 |
| 86274B | CD player stand | 86277-33010 |
| 8627A | Toyota part | 8627A-33010 · 8627A-33020 |
| 86280 | Stereo parts amplifier assembly | 86280-33252 · 86280-33320 |
| 86285 | Amplifier Stand No. 1 | 86285-33170 |
| 86286 | Amplifier Stand No. 2 | 86286-33160 |
