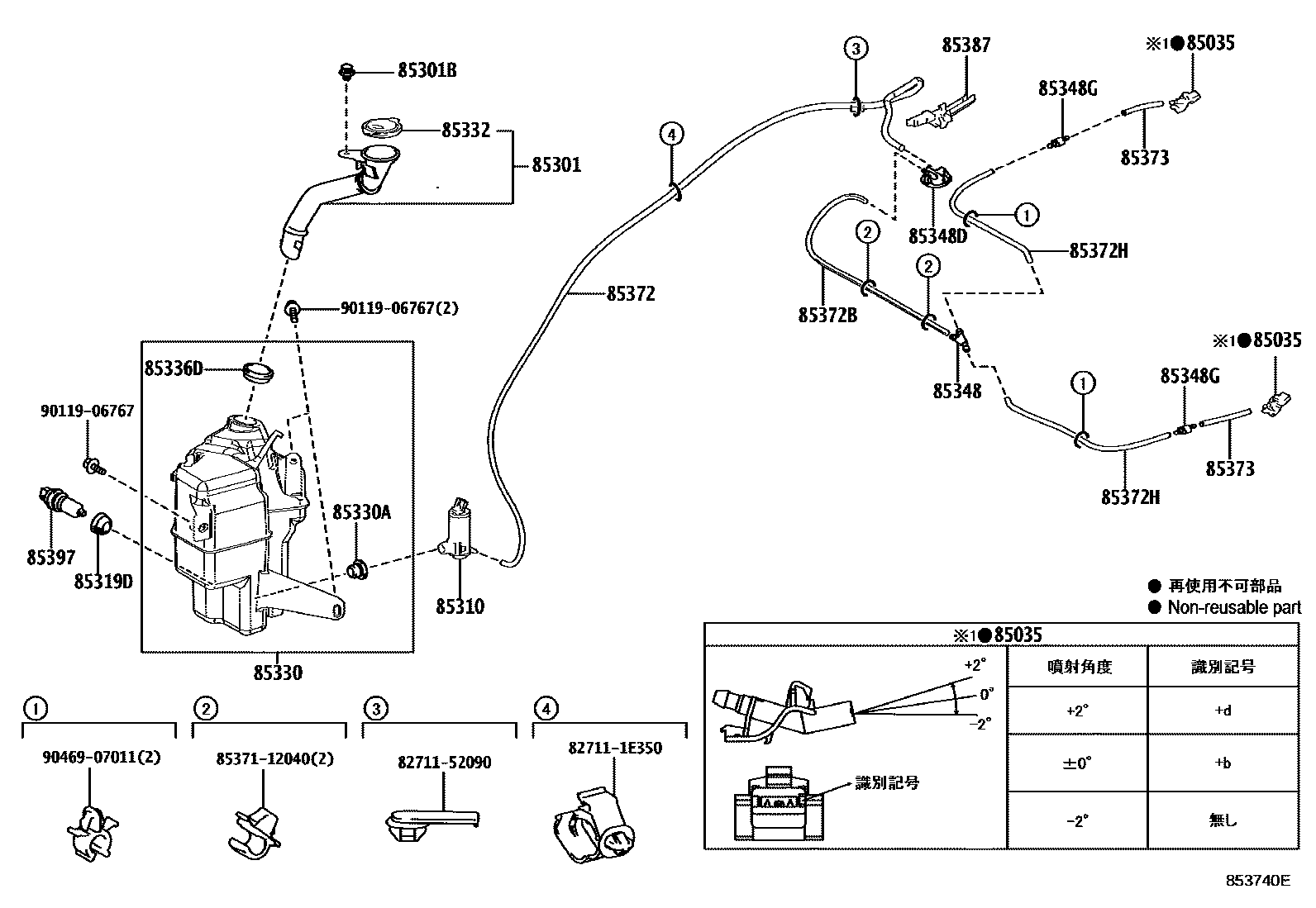

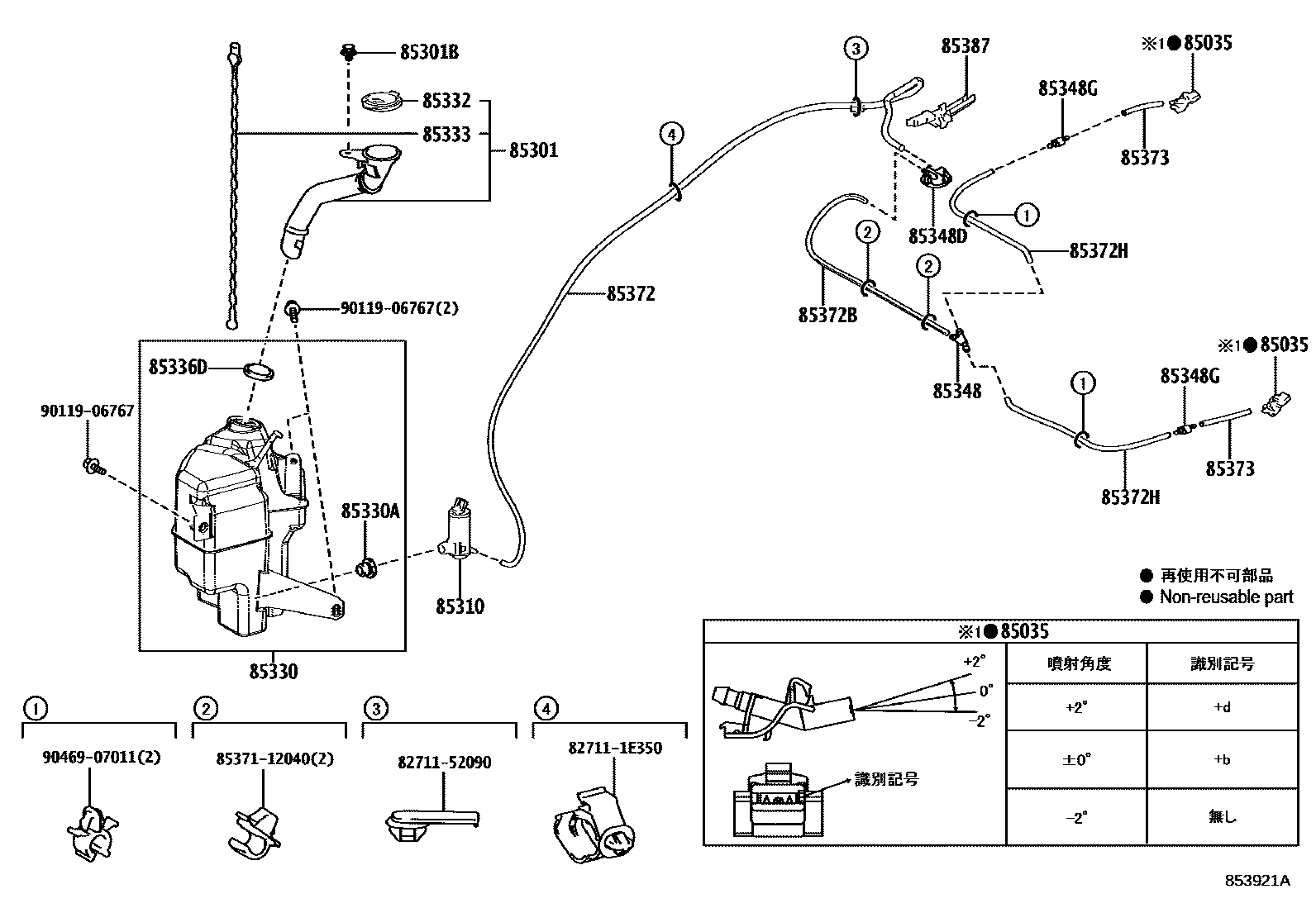

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30220 · 85381-30230 · 85381-30240 |
| 85301 | Cleaner water inlet sub-assembly | 85329-33540 · 85329-33550 |
| 85301B | Toyota part | 90467-07214 |
| 85310 | Windshield washer motor and pump assembly | 85330-47060 · 85330-47080 · 85330-47081 |
| 85319D | front washer seal | 85319-33230 |
| 85330 | Windshield washer fluid tank assembly | 85315-33520 · 85315-33530 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-24130 |
| 85333 | Windshield washer fluid tank filter | 85312-47020 |
| 85336D | Windshield washer fluid tank seal | 85336-30160 |
| 85348 | Windshield washer hose connector No. 1 | 85378-33410 |
| 85348D | No. 1 windshield washer elbow joint | 85373-30030 · 85373-33030 |
| 85348G | Windshield washer hose connector No. 2 | 85321-26020 |
| 85387 | Clip No. 1 (for windshield washer) | 85371-33040 |
| 85397 | Liquid level warning switch assembly | 85397-52100 |
