Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

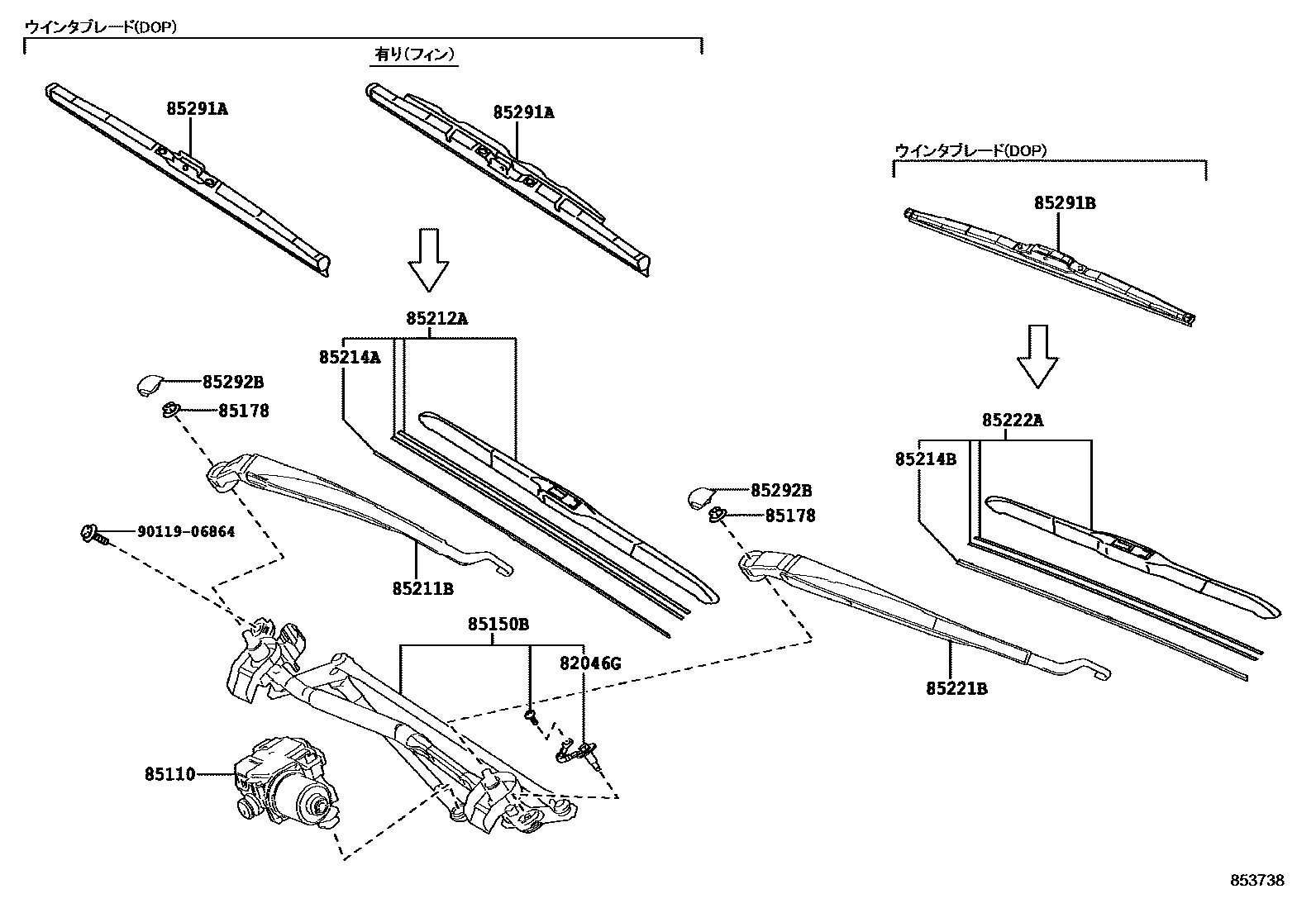

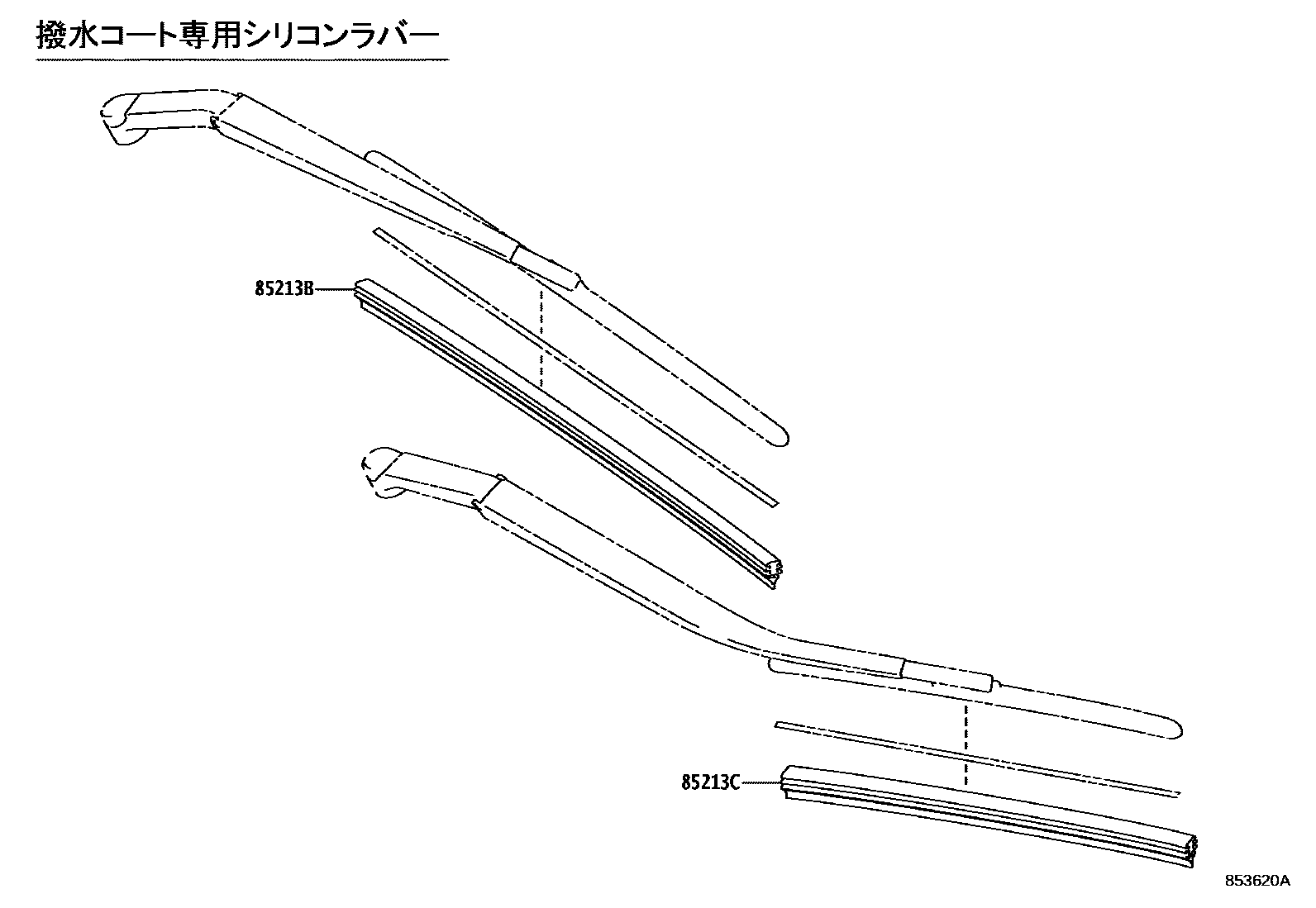

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82046G | Toyota part | 82046-33060 |
| 85110 | Windshield wiper motor assembly | 85110-33440 · 85110-33441 |
| 85150B | Wiper connecting rod assembly | 85150-33320 |
| 85178 | Nut (for securing front wiper arm) | 90182-10006 |
| 85211B | Right front wiper arm | 85211-33460 |
| 85212A | Right front wiper blade | 85212-33350 · 85212-52210 |
| 85213B | Toyota part | 85213-30280 |
| 85213C | Toyota part | 85213-60080 |
| 85214A | Right wiper rubber strip | 85214-52110 |
| 85214B | Left wiper rubber strip | 85214-60120 |
| 85221B | Left front wiper arm | 85221-33450 |
| 85222A | Left front wiper blade | 85222-33350 |
| 85291A | Right front wiper blade for winter use | 85291-47040 · 85291-60091 |
| 85291B | Left front wiper blade for winter use | 85291-33060 |
| 85292B | Front wiper arm cap | 85292-13010 |
