Toyota CAMRY 空气囊 — Figure 8421

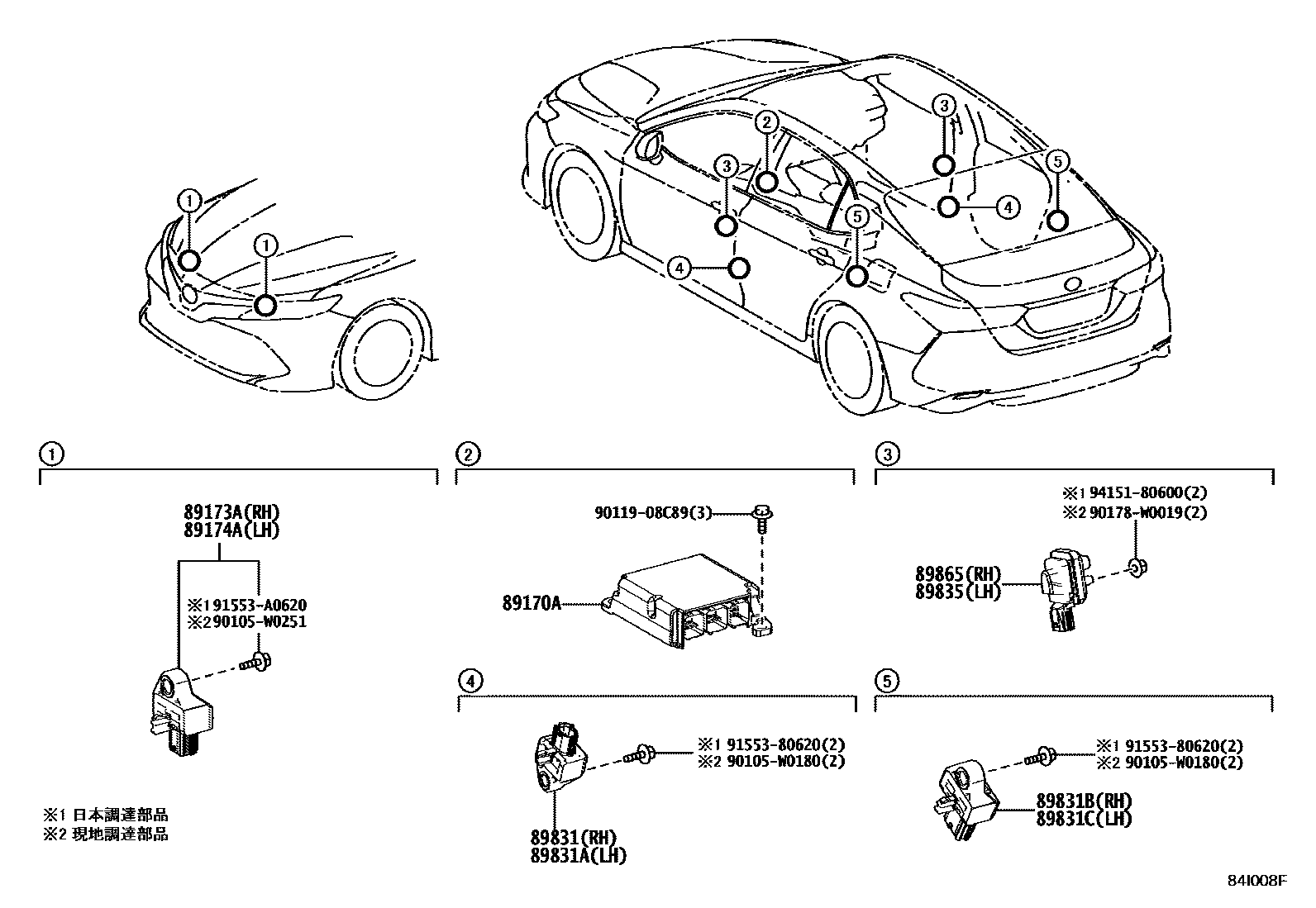

Toyota CAMRY EPC diagram 8421, 空气囊, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-33A90 · 89170-33G10 |
| 89173A | Right front air bag sensor | 89173-39525 · 89173-49505 |
| 89174A | Left front air bag sensor | 89173-39525 · 89173-49505 |
| 89831 | Toyota part | 89831-33090 |
| 89831A | Toyota part | 89831-33090 |
| 89831B | Toyota part | 89831-33080 |
| 89831C | Toyota part | 89831-33080 |
| 89835 | Left door side air bag sensor | 8983A-33010 · 8983A-33011 |
| 89865 | Right door side air bag sensor | 8983A-33010 · 8983A-33011 |
