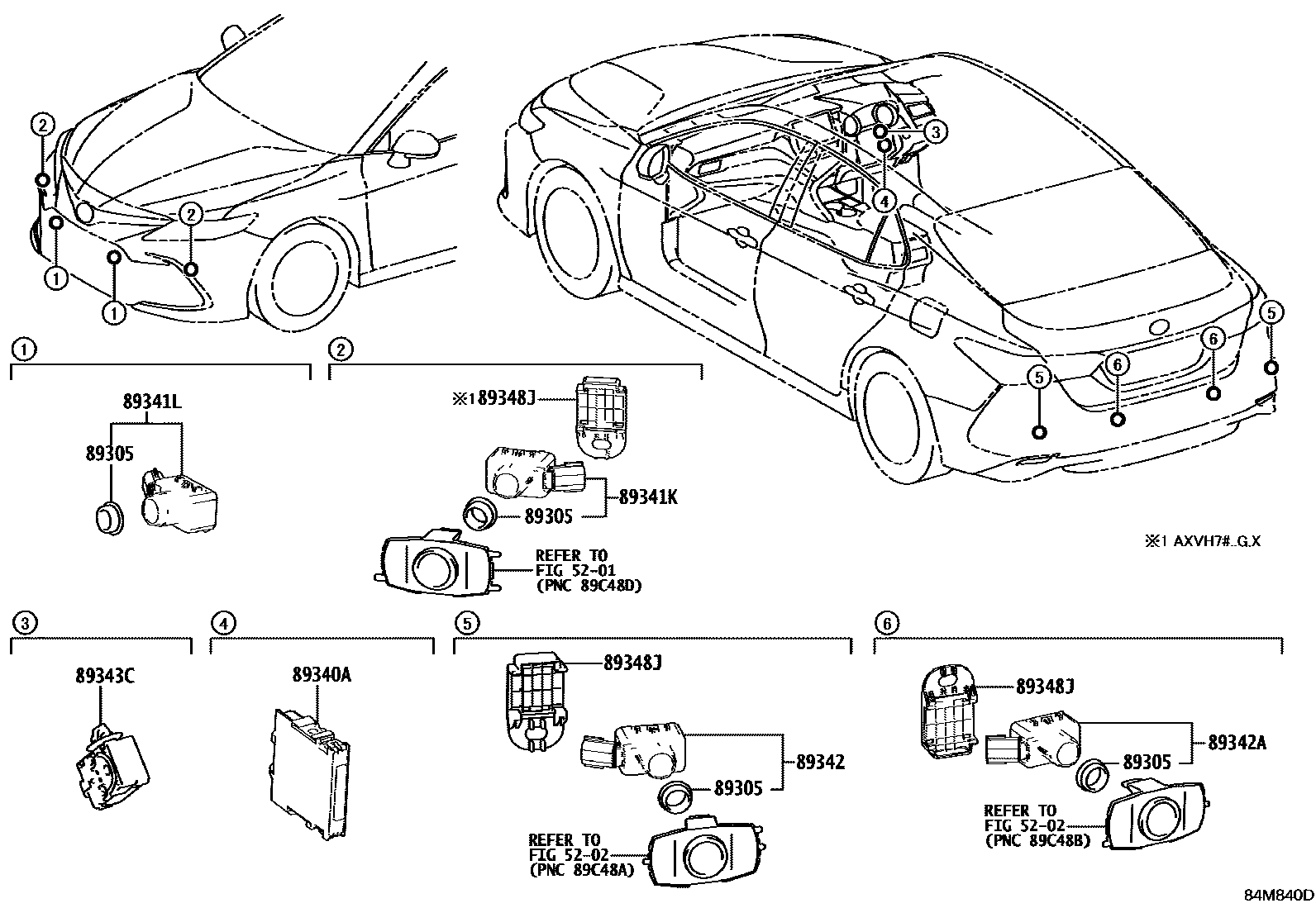

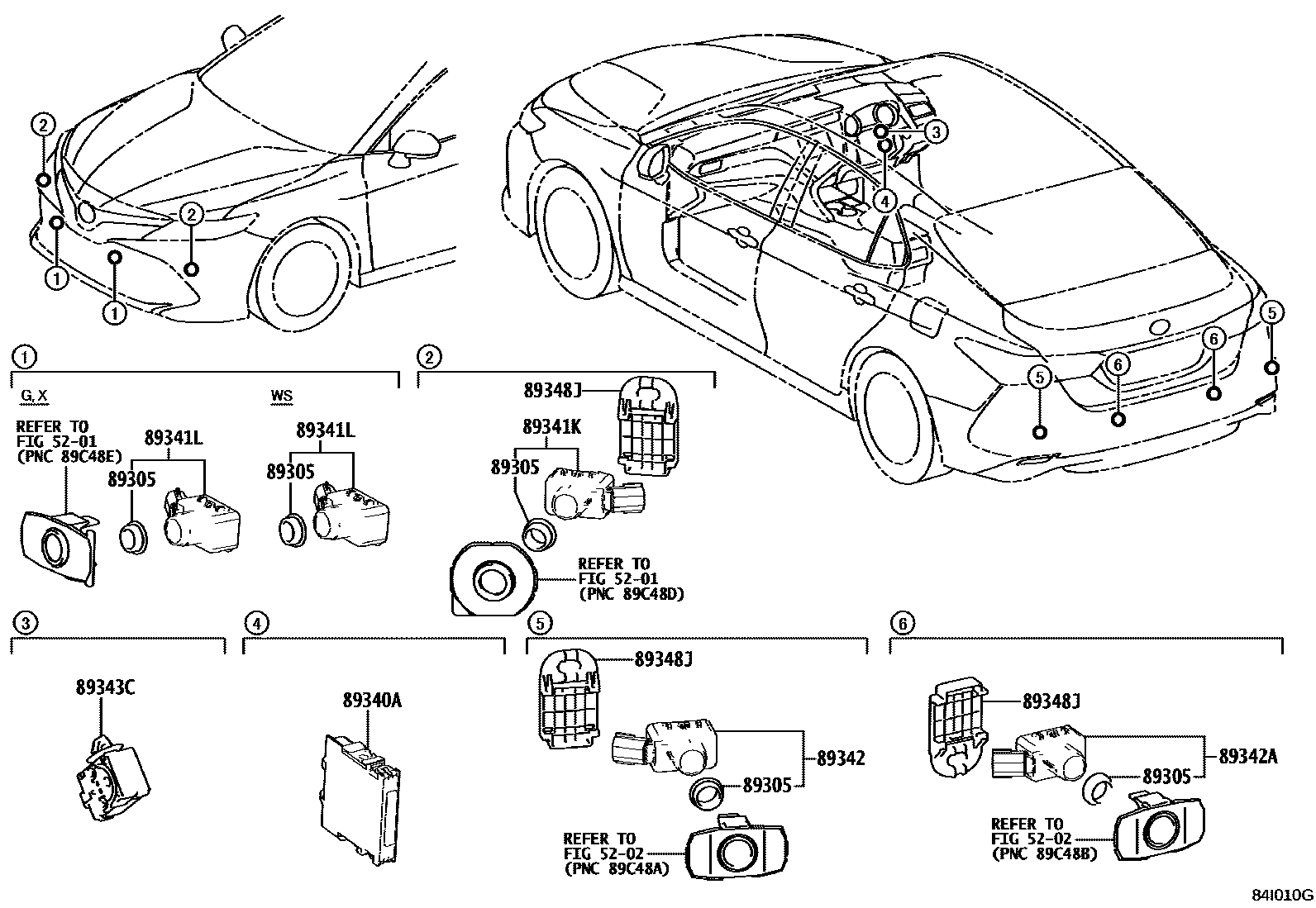

Toyota CAMRY 测距雷达和倒车雷达 — Figure 8417
Toyota CAMRY EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89305 | Toyota part | 89305-47010 · 89305-52010 |
| 89340A | Distance warning ECU assembly | 89340-33200 · 89340-33270 · 89340-33340 · 89340-33360 · 89340-33370 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 |
| 89348J | Ultrasonic sensor clip | 89348-58130 |
