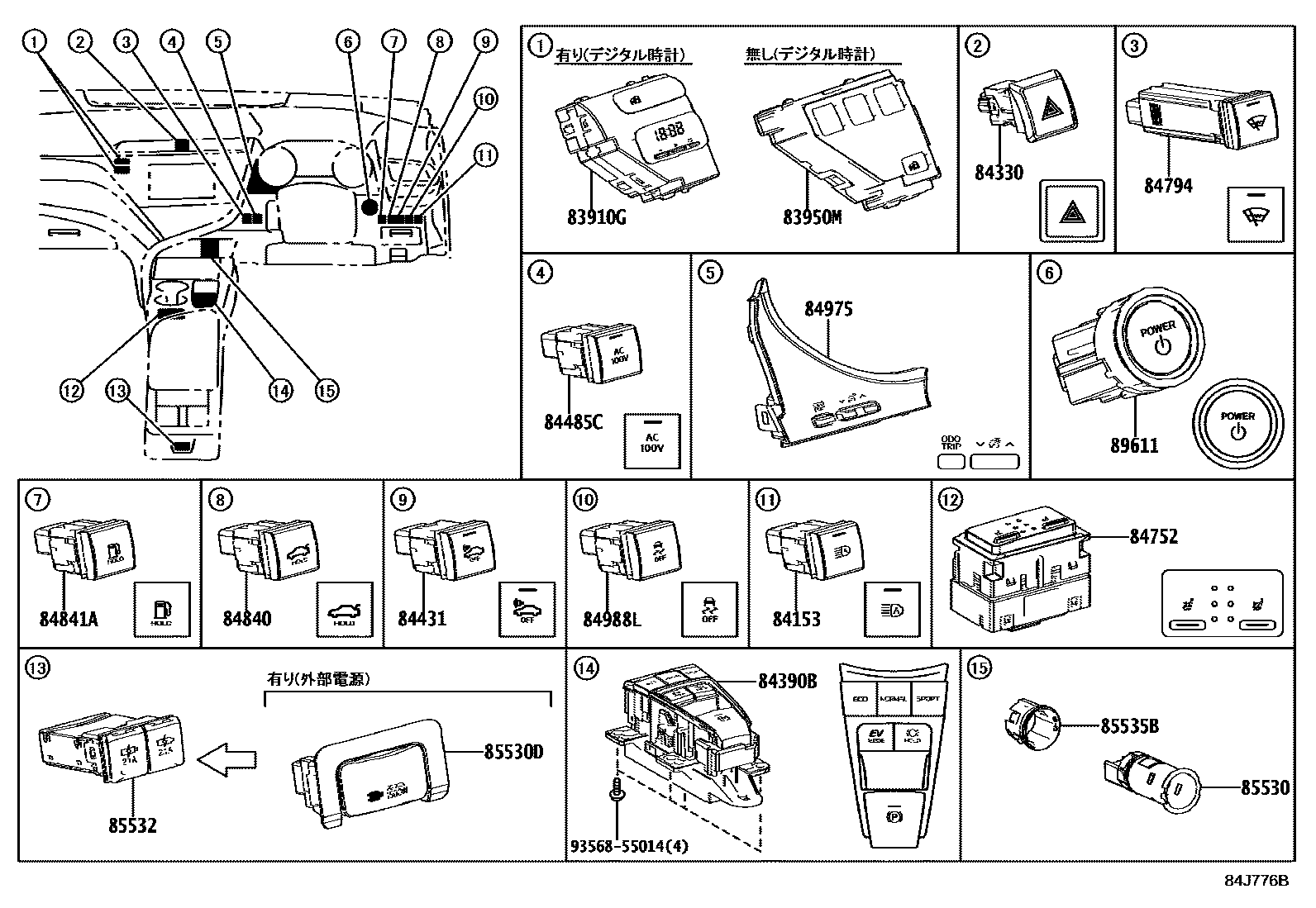

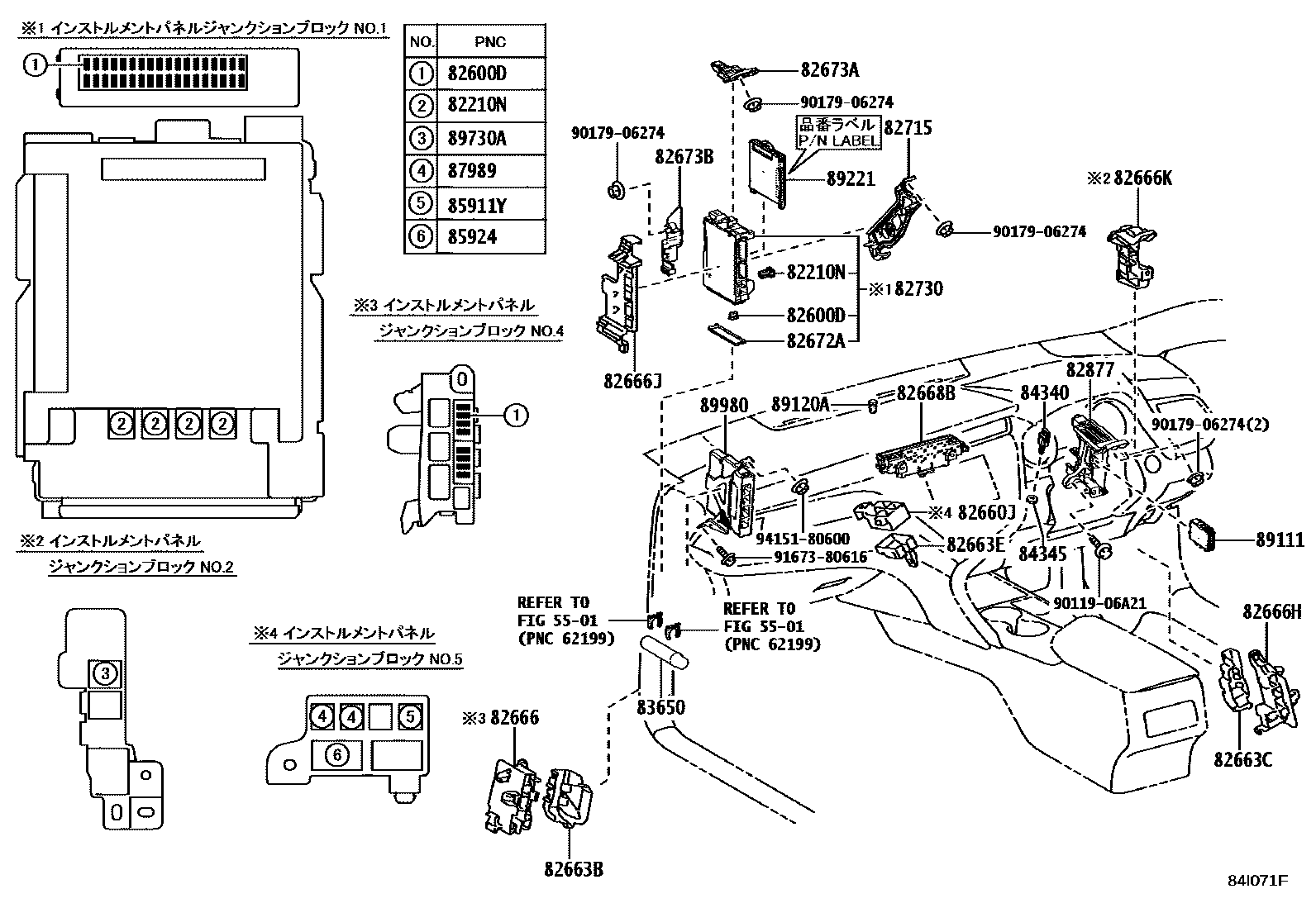

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 10 images and 114 PNC and OE references.
PNC and OE references

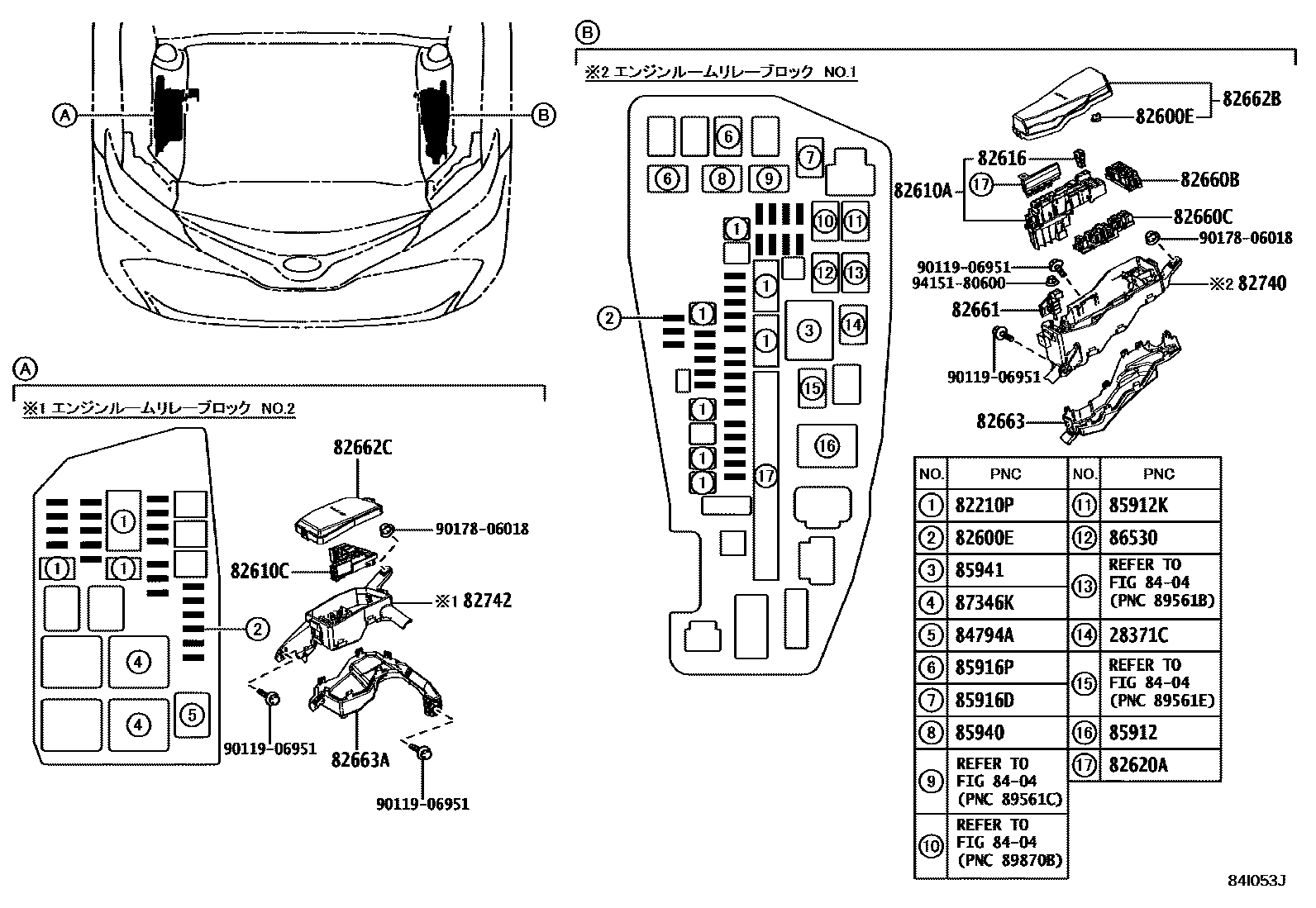

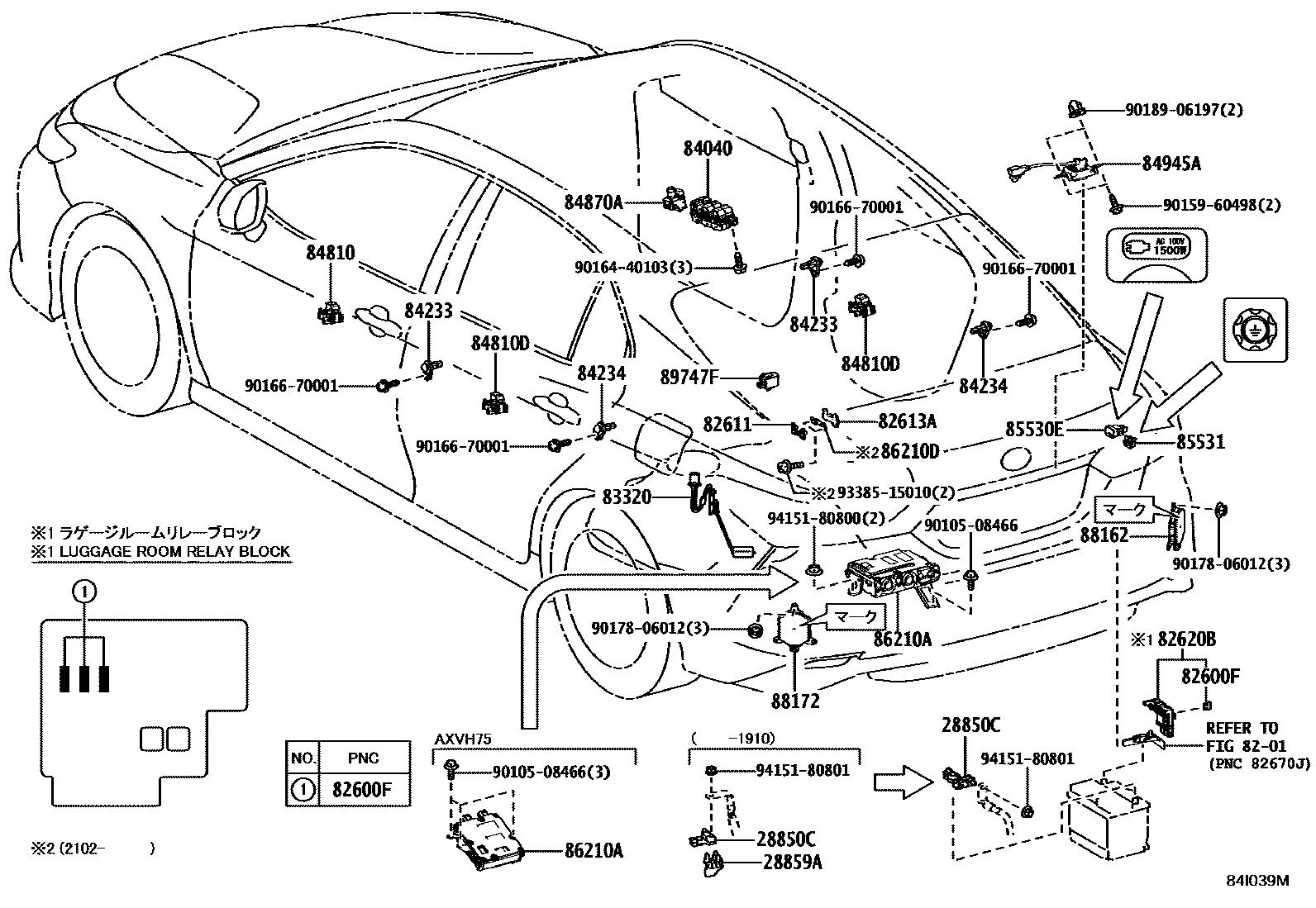

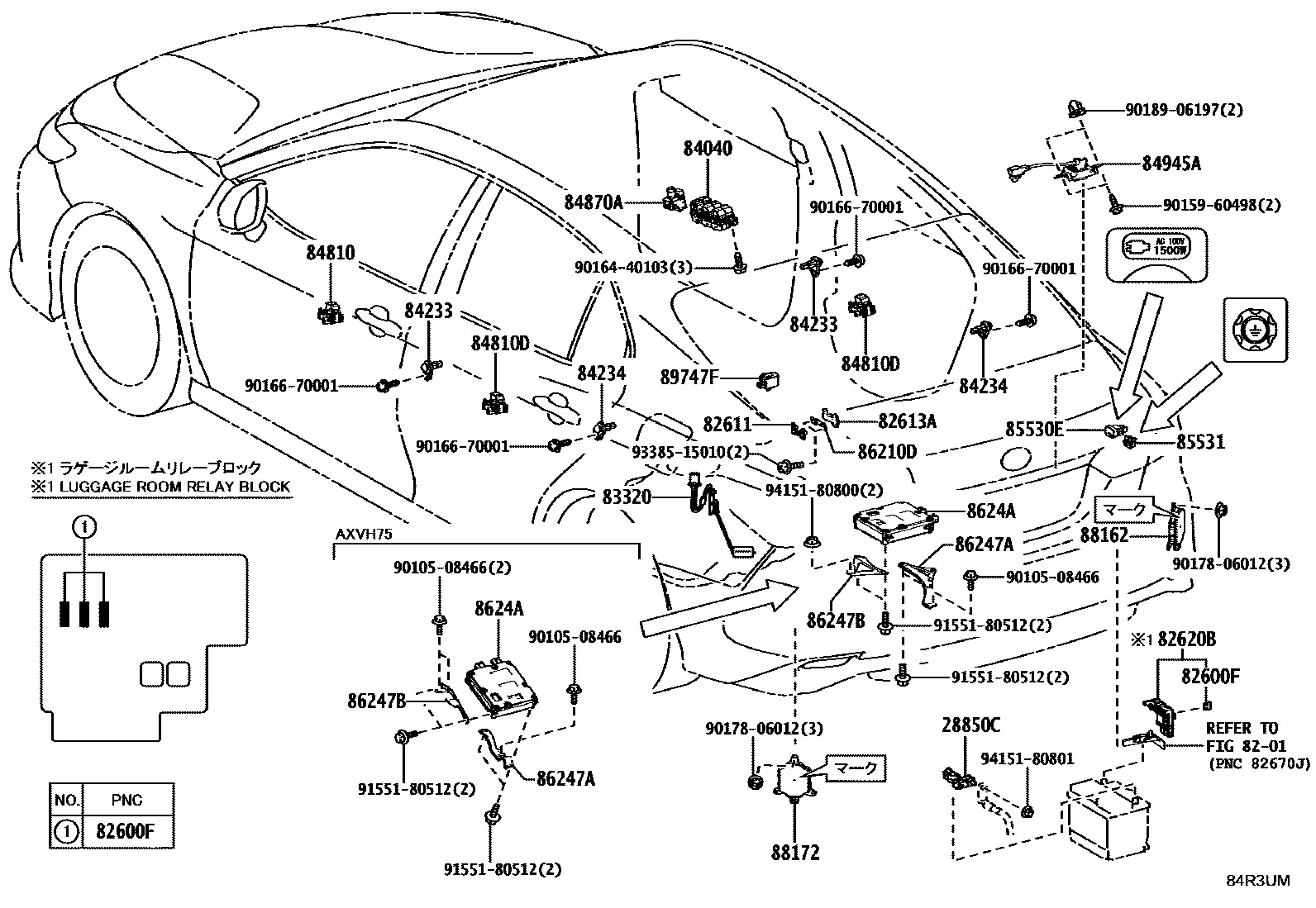

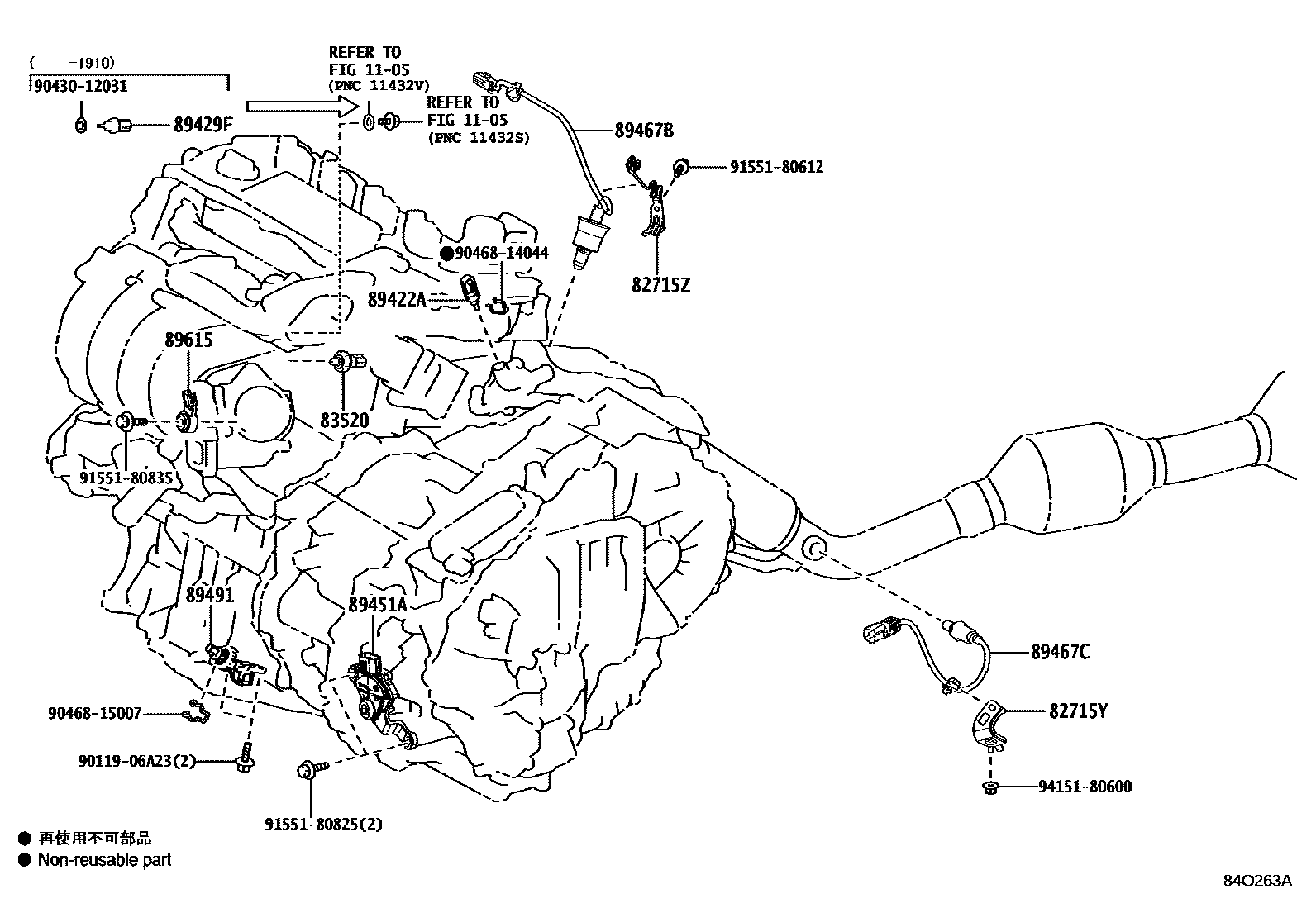

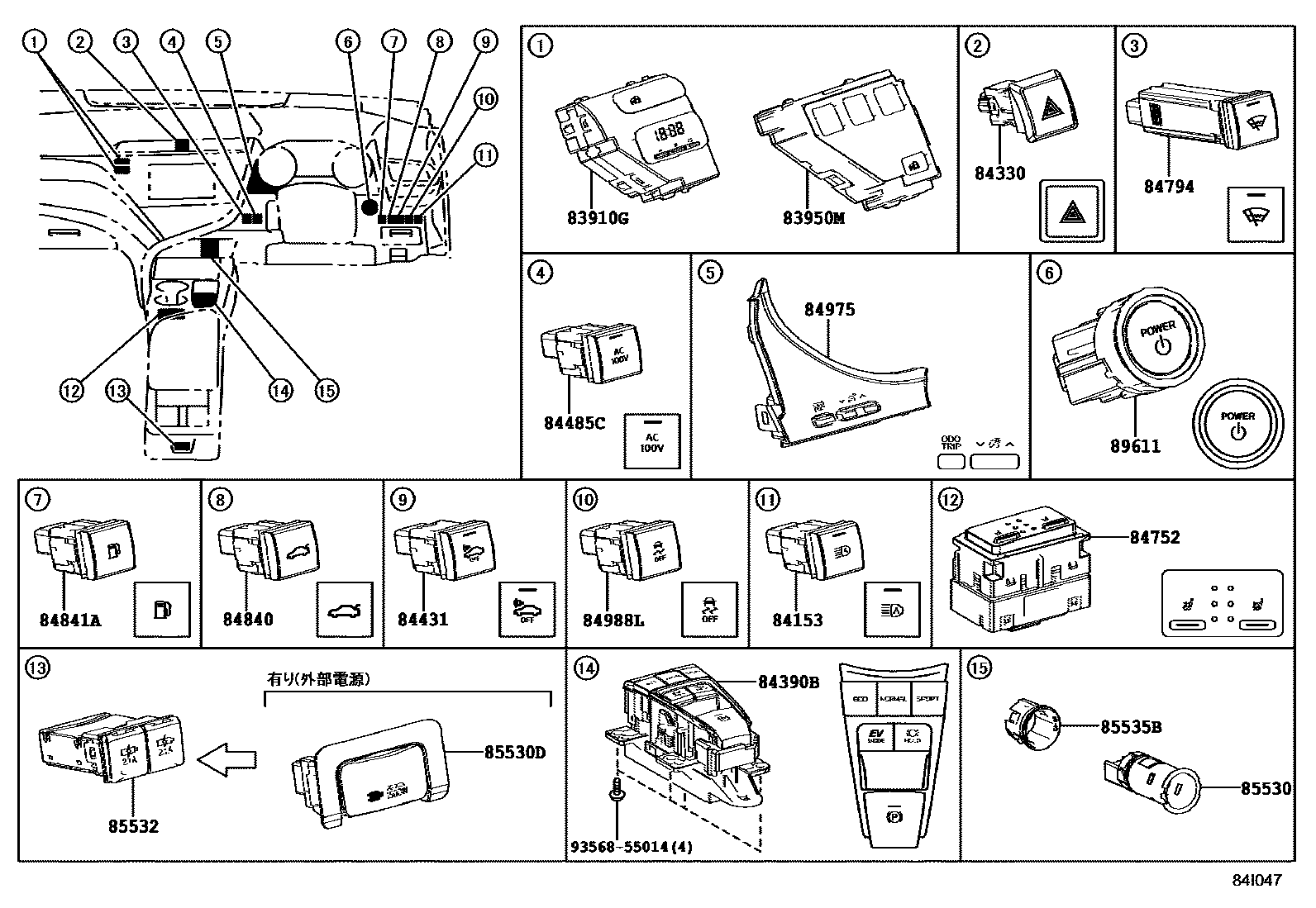

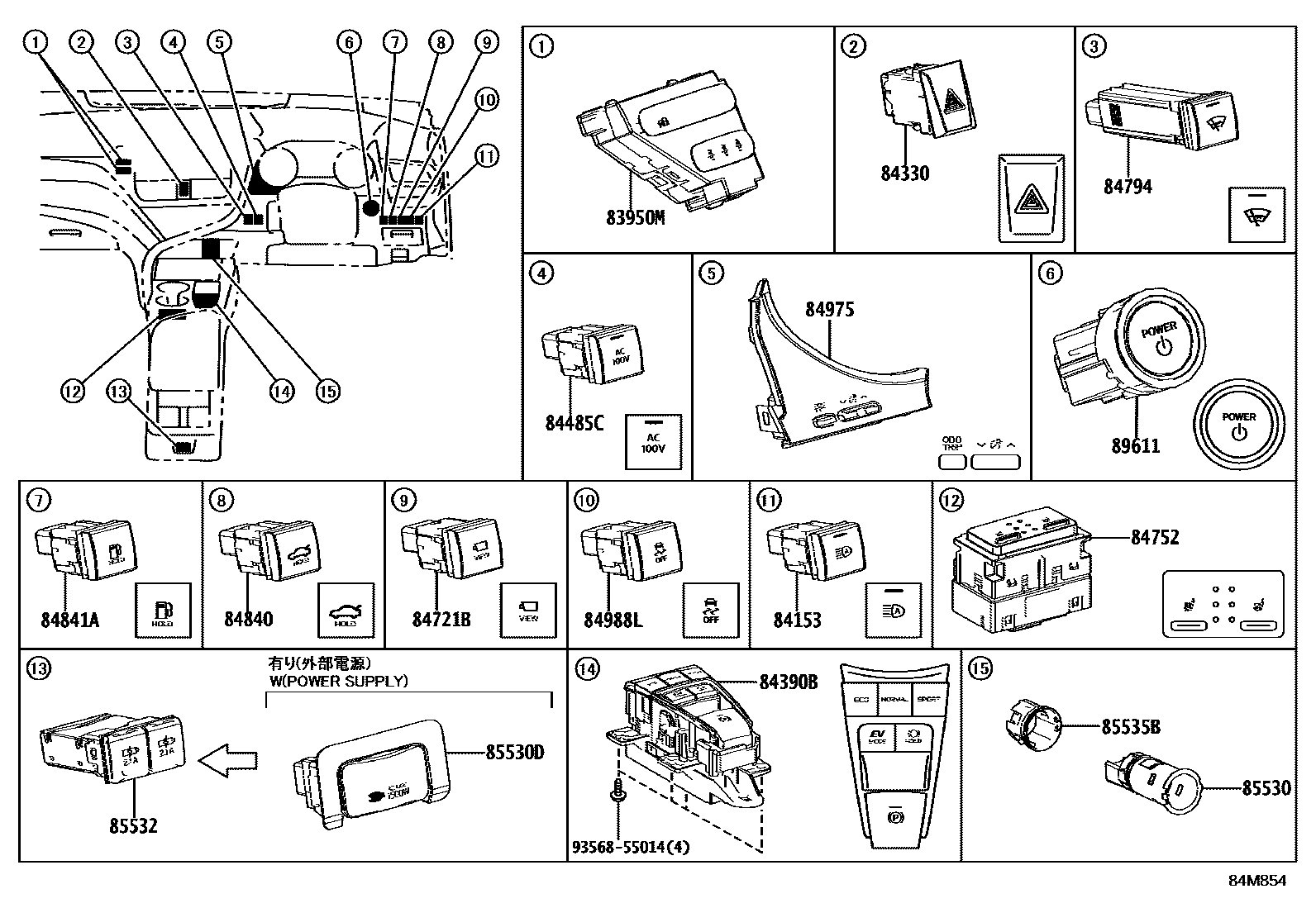

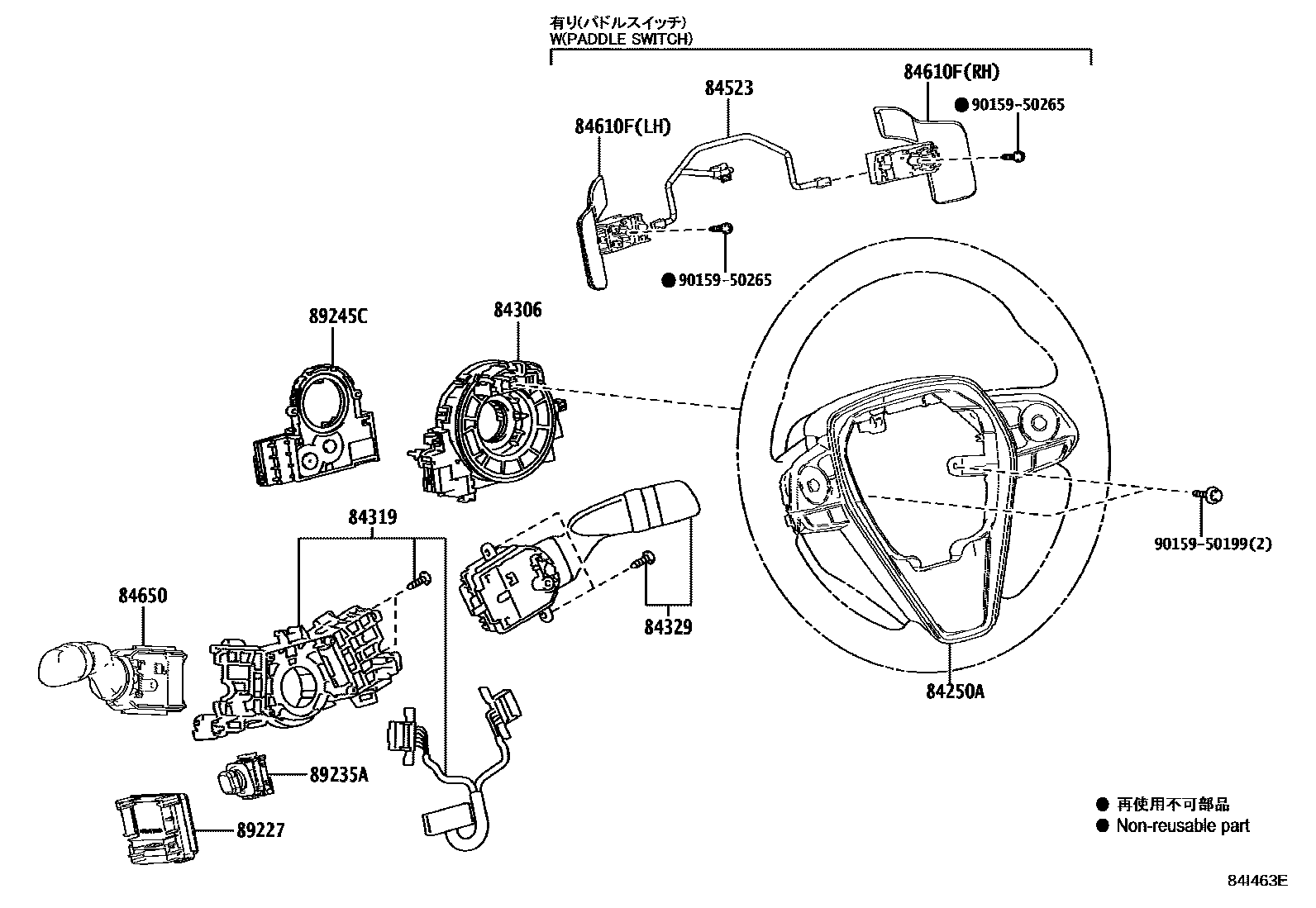

| PNC | Part name | OE numbers |
|---|---|---|
| 28371C | No. 2 ignition relay | 90987-02027 |
| 28850C | Toyota part | 28850-25010 · 28850-70010 |
| 28859A | Toyota part | 28859-25010 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08296 · 90982-08298 · 90982-08300 · 90982-08302 · 90982-08303 · 90982-08312 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09020 · 90982-09022 · 90982-09024 |
| 82610A | Fuse box assembly | 82610-33140 |
| 82610C | Fuse box assembly | 82610-33150 |
| 82611 | fuse box cover | 82611-47060 |
| 82613A | fuse box base | 82613-47020 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33140 |
| 82620B | Fuse box assembly | 82620-33110 · 82620-33111 |
| 82660B | Relay assembly | 82660-33100 |
| 82660C | Relay assembly | 82660-33110 |
| 82660J | Toyota part | 82660-33080 |
| 82661 | No. 1 relay box cover | 82661-33050 |
| 82662B | No. 2 relay box upper cover | 82662-33810 · 82662-33B50 · 82662-33B51 · 82662-33B52 |
| 82662C | No. 3 relay box upper cover | 82662-33B30 |
| 82663 | Relay box lower cover | 82663-33230 |
| 82663A | No. 2 relay box lower cover | 82663-33220 |
| 82663B | No. 3 relay box lower cover | 82663-33240 |
| 82663C | No. 4 relay box lower cover | 82663-33250 |
| 82663E | No. 7 relay box lower cover | 82663-33260 |
| 82666 | Connector holder | 82666-33570 |
| 82666H | Connector holder No. 2 | 82666-33580 |
| 82666J | No. 3 connector holder | 82666-33630 |
| 82666K | No. 4 connector holder | 82666-33640 |
| 82668B | Toyota part | 82666-33590 |
| 82672A | Junction box cover | 82672-33390 · 82672-33391 |
| 82673A | Junction box bracket | 82673-33120 |
| 82673B | Junction box bracket | 82673-33150 |
| 82715 | Wire harness clamp bracket | 82715-33T30 |
| 82715Y | Toyota part | 82715-33K30 |
| 82715Z | Toyota part | 82715-33K10 · 82715-33K11 |
| 82730 | Instrument panel junction box assembly | 82730-33Q30 · 82730-33Q31 |
| 82740 | Engine room relay box assembly | 82740-33090 |
| 82742 | Engine room No. 2 relay box | 82742-33050 |
| 82877 | Right ECU integrated box | 82877-33040 |
| 83320 | Fuel gauge sensor assembly | 83320-33160 |
| 83520 | Oil pressure gauge sensor assembly | 83520-33010 |
| 83650 | fuse | 90986-01005 |
| 83910G | clock assembly | 83910-33240 |
| 83950M | Warning light assembly | 83950-33030 · 83950-33050 · 83950-33170 |
| 84040 | Multi-channel network main switch assembly | 84040-10030 · 84040-12230 · 84040-33140 · 84040-33150 |
| 84153 | Automatic high beam switch | 84153-33040 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84306 | Spiral cable sub-assembly | 84308-33090 |
| 84319 | Steering wheel switch housing | 84319-33030 |
| 84329 | turn signal switch | 84329-33020 · 84329-33030 · 84329-K0010 · 84329-K0030 |
| 84330 | Hazard warning signal switch assembly | 84332-33110 · 84332-33140 |
| 84340 | brake light switch assembly | 84340-19095 · 84340-49075 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84390B | Electric parking brake switch assembly | 84390-33020 · 84390-33080 |
| 84431 | vehicle intrusion speaker switch | 84431-33060 |
| 84485C | Toyota part | 84485-33010 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84610F | Transmission shift switch assembly | 84610-33011 · 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-33590 |
| 84721B | Toyota part | 84721-33010 |
| 84752 | Relax seat switch | 84752-33170 · 84752-33420 |
| 84794 | Front wiper de-icer switch | 84794-33050 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84810 | Electric window lift switch assembly | 84810-12120 · 84810-26040 · 84810-47010 · 84810-48030 |
| 84810D | Rear electric window lift switch assembly | 84810-12120 · 84810-26040 · 84810-47010 · 84810-48030 |
| 84840 | Trunk door opening switch assembly | 84840-33120 · 84840-33121 |
| 84841A | Fuel filler cap opener switch | 84841-33040 · 84841-33041 |
| 84870A | Exterior rearview mirror switch assembly | 84872-12180 · 84872-33100 · 84872-47040 · 84872-47060 · 84872-47070 · 84872-48030 |

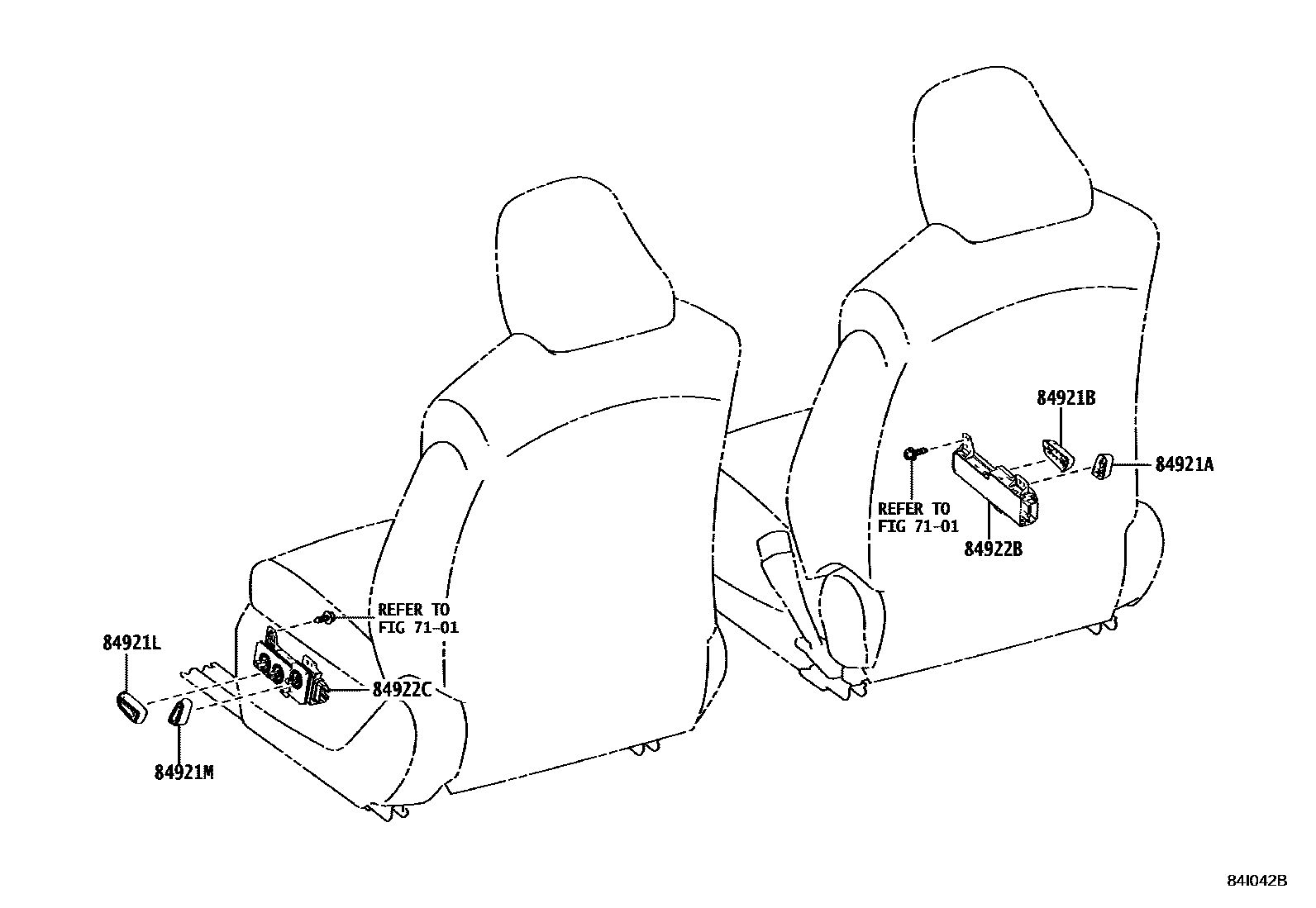

| 84922C | Front left electric seat switch | 84922-33180 |
| 84945A | Toyota part | 84945-33040 |
| 84975 | trip odometer switch | 84975-33050 |
| 84988L | VSC off switch | 84988-33100 |
| 85530 | No. 1 power socket assembly | 85530-52010 |
| 85530D | No. 2 power socket assembly | 85530-33090 |
| 85532 | Toyota part | 85532-33010 · 85532-33020 · 85532-60020 |
| 85535B | No. 1 power outlet cover | 85535-33100 |
| 85911Y | Toyota part | 90987-02027 |
| 85912 | defogger relay | 90987-04010 |
| 85912K | Toyota part | 90987-02027 |
| 85916D | fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02027 |
| 85924 | Ignition control relay | 90987-02031 |
| 85940 | Windshield wiper relay assembly | 90987-02027 |
| 85941 | windshield washer relay | 90987-02025 |
| 86210A | Voltage inverter assembly | 86210-33010 · 86210-33020 · 86210-33040 |
| 86210D | High voltage fuse | 90982-11053 |
| 86247A | Voltage inverter bracket | 86247-33010 · 86247-33070 |
| 86247B | Toyota part | 86247-33020 · 86247-33080 |
| 8624A | Toyota part | 8624A-33020 · 8624A-33040 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 87346K | PTC heater relay | 90987-02025 |
| 87989 | Rearview mirror control relay | 85927-22010 · 90987-04004 |
| 88162 | Blind spot monitor right sensor | 88162-33030 · 88162-33070 · 88162-33071 · 88162-33120 · 88162-33130 · 88162-33131 |
| 88172 | Blind spot monitor left sensor | 88162-33030 · 88162-33070 · 88162-33071 · 88162-33120 · 88162-33130 · 88162-33131 |
| 89111 | Network gateway ECU | 89111-10060 · 89111-33190 · 89111-76050 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221 | Multi-channel network body ECU | 89220-33T20 · 89220-3T100 · 89220-3T350 · 89220-3T820 · 89220-3T821 · 89220-3TQ20 |
| 89227 | Multi-channel network steering column tilt and telescopic control ECU | 89227-48070 |
| 89235A | Tilt-telescoping steering column switch | 89235-33010 |
| 89245C | steering sensor | 8924B-33040 · 8924B-50050 |
| 89422A | water temperature sensor | 89422-33040 |
| 89429F | temperature sensor | 89429-12010 |
| 89451A | shift lever position sensor | 89451-10010 |
| 89467B | air fuel ratio sensor | 89467-33290 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-33210 |
| 89491 | Engine oil level sensor | 89491-33050 · 89491-33051 · 89491-33052 |
| 89611 | push button start switch | 89611-30142 · 89611-30143 · 89611-30144 · 89611-30145 |
| 89615 | knock control sensor | 89615-20090 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89980 | Hybrid vehicle control ECU assembly | 89980-33130 · 89980-33280 · 89980-33350 · 89980-33390 · 89980-33460 · 89980-33520 · 89980-33610 · 89980-33650 |
