Toyota CAMRY 仪表 — Figure 8301

Toyota CAMRY EPC diagram 8301, 仪表, with 2 images and 9 PNC and OE references.

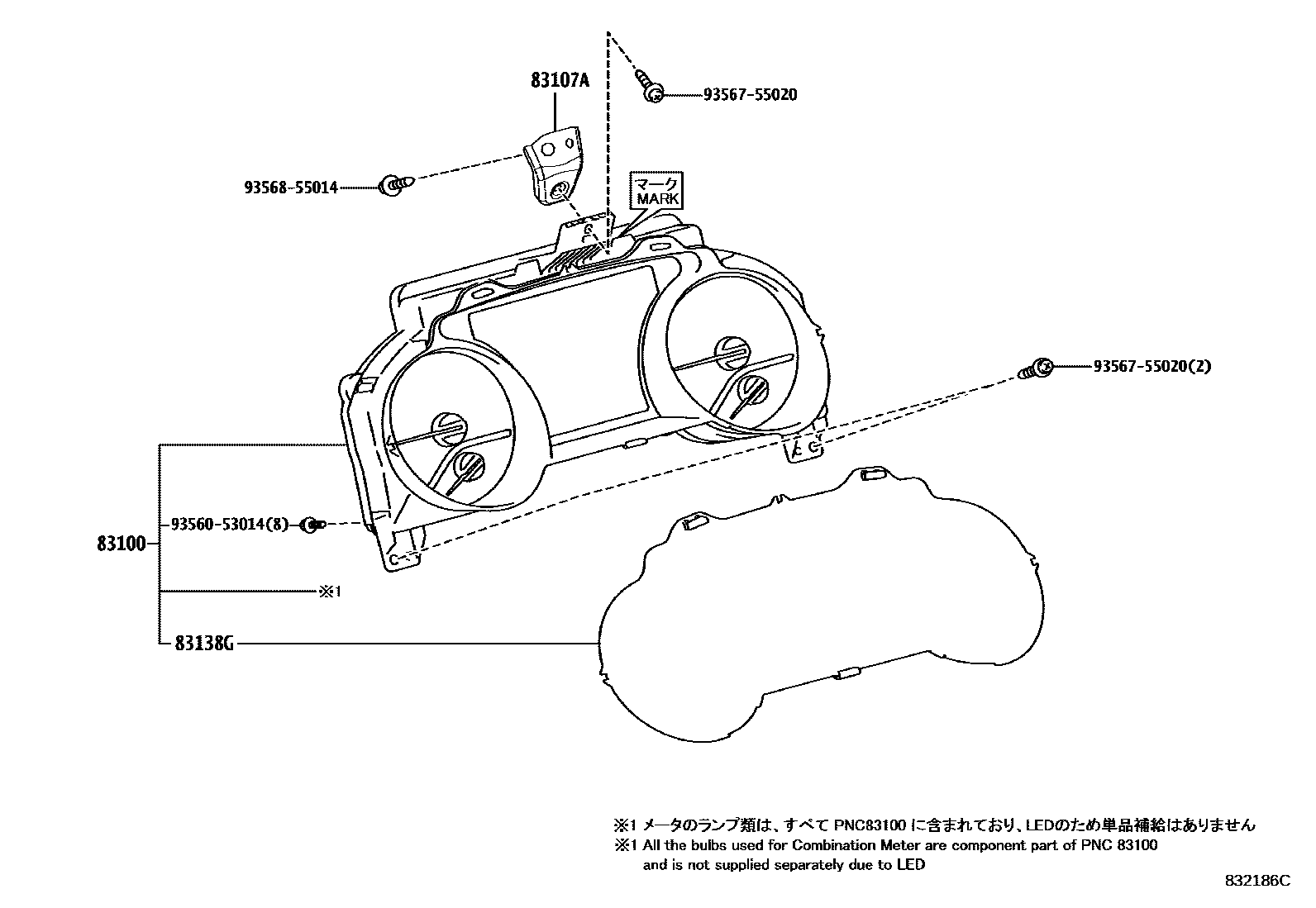

Toyota CAMRY 仪表 EPC diagram — 832186C
仪表 — 832186C (201706 – 999999)

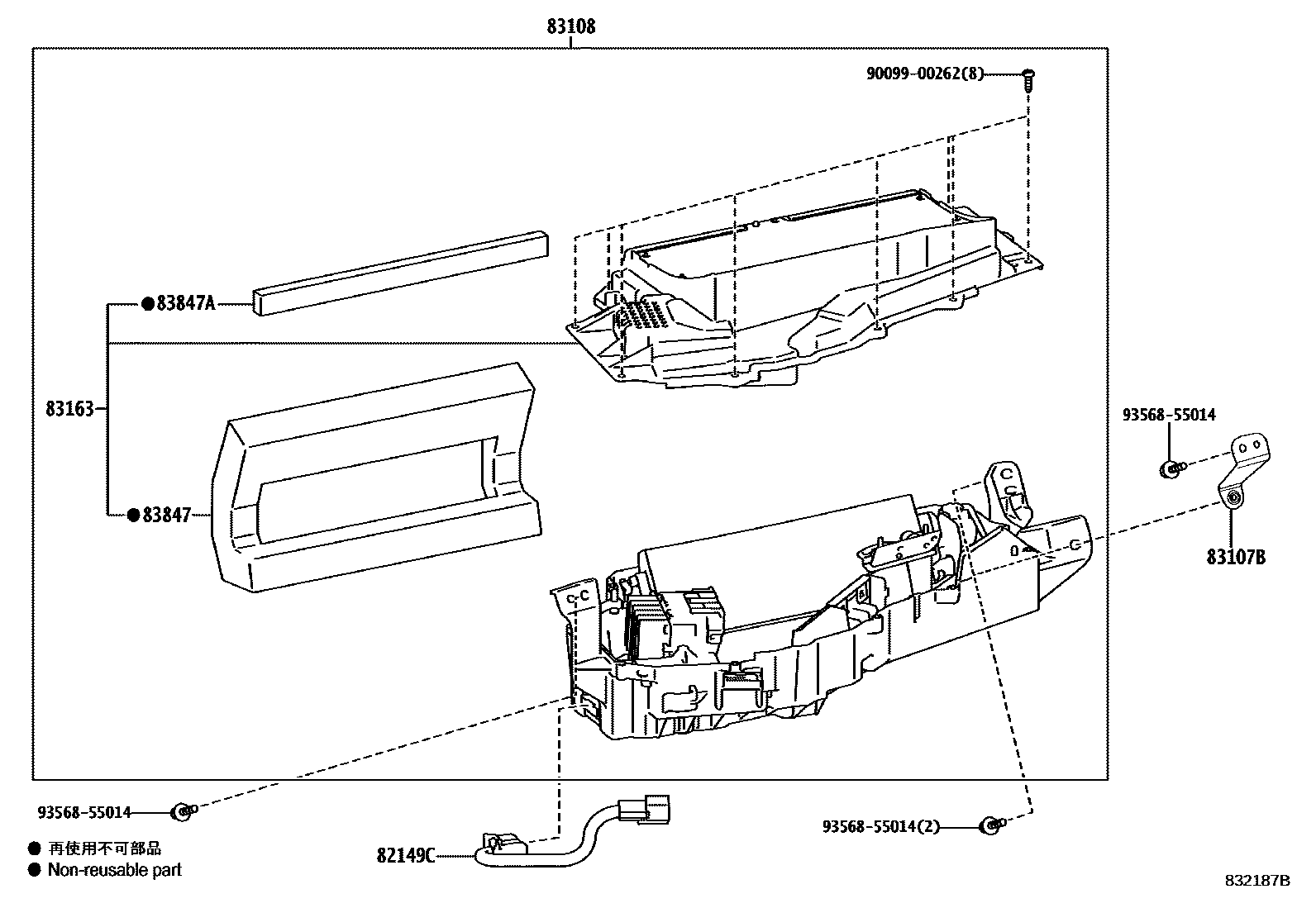

Toyota CAMRY 仪表 EPC diagram — 832187B
仪表 — 832187B (201706 – 999999)

PNC and OE references

PNCPart nameOE numbers
82149CToyota part82149-33010
83100Combined instrument assembly83800-33Q90 · 83800-33Q91 · 83800-33Q92 · 83800-33Q93 · 83800-33Q94 · 83800-33Q95 · 83800-33S80 · 83800-33S81 · 83800-33S82 · 83800-33S83 · 83800-33S84 · 83800-33S85 · 83800-33S86
83107AToyota part83107-33010
83107BToyota part83107-33030
83108Instrument rearview mirror sub-assembly83108-33040 · 83108-33041 · 83108-33042
83138GInstrument cluster glass83852-33S80
83163No. 1 instrument cluster rearview mirror panel83163-33040 · 83163-33042
83847No. 1 combination speedometer cushion83847-33030
83847ACombination speedometer cushion83847-33040
