Toyota CAMRY 车内灯 — Figure 8121

Toyota CAMRY EPC diagram 8121, 车内灯, with 3 images and 14 PNC and OE references.

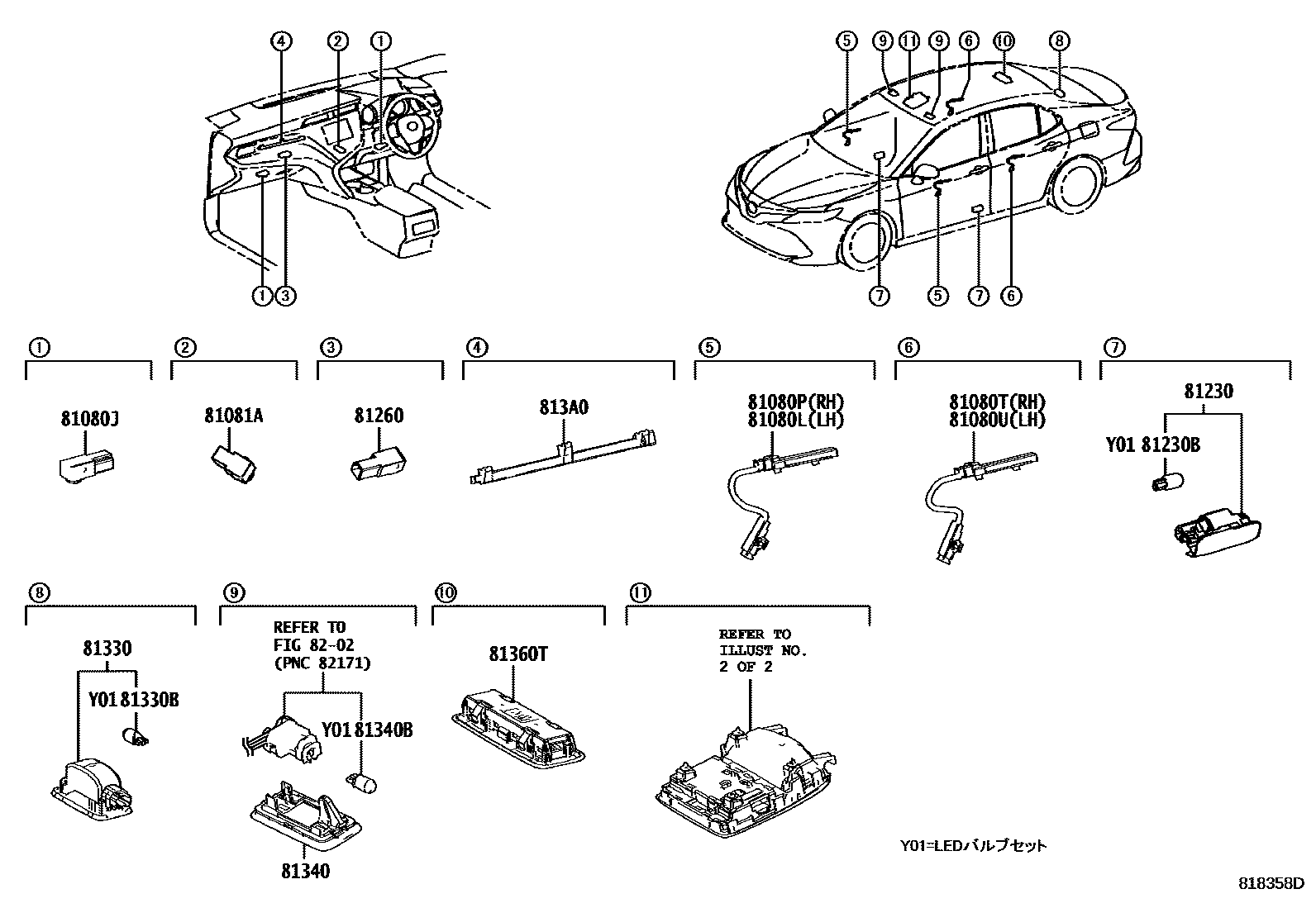

Toyota CAMRY 车内灯 EPC diagram — 818358D
车内灯 — 818358D (201706 – 202102)

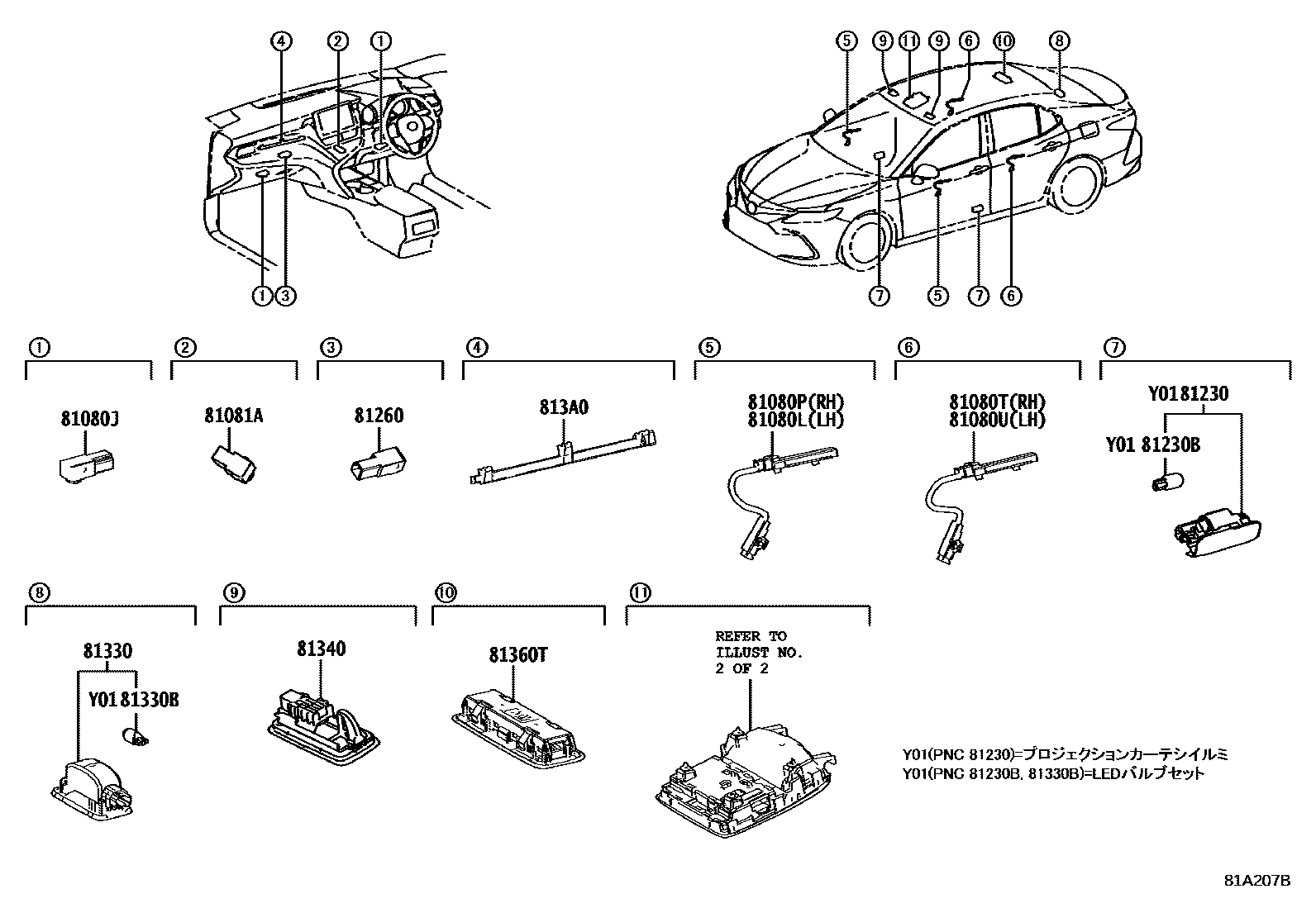

Toyota CAMRY 车内灯 EPC diagram — 81A207B
车内灯 — 81A207B (202102 – 999999)

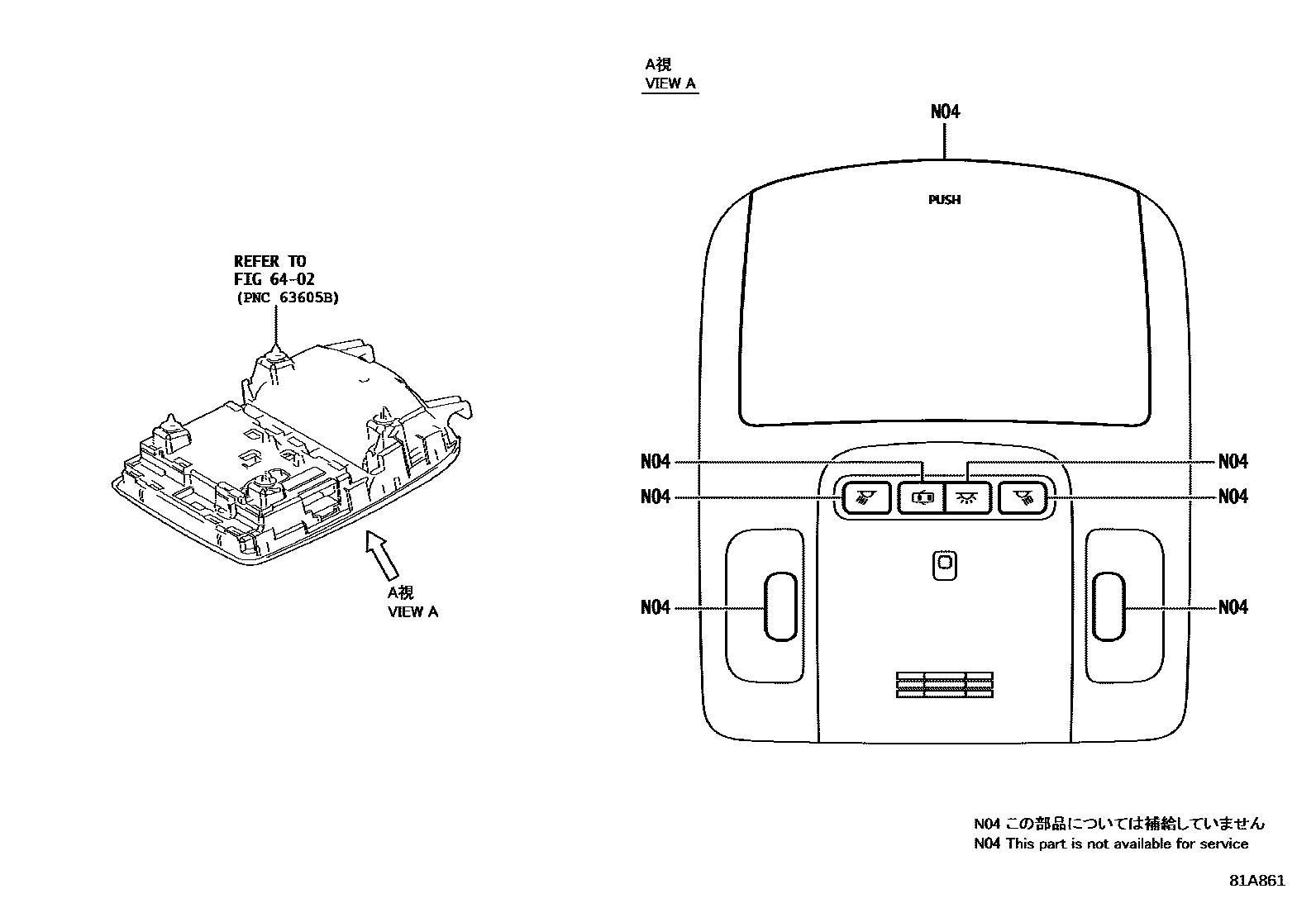

Toyota CAMRY 车内灯 EPC diagram — 81A861
车内灯 — 81A861 (201706 – 999999)

PNC and OE references

PNCPart nameOE numbers
81080JNo. 1 interior lighting assembly81080-33280
81080LNo. 1 interior lighting assembly on the left81080-33160
81080PRight No. 1 interior lighting assembly81080-33150
81080TToyota part81080-33150
81080UToyota part81080-33160
81081ANo. 2 interior lighting sub-assembly81080-33300
81230Door control light assembly81230-30200
81230BBulb (for gated lights)90981-12010
81260Glove box light assembly81080-33290
81330No. 1 trunk light assembly81250-30210
81330Btrunk light bulb99132-12050
81340Vanity light assembly81340-30110 · 81340-33170
81340BBulb (for vanity lights)90981-11062
813A0Toyota part813A0-33020
