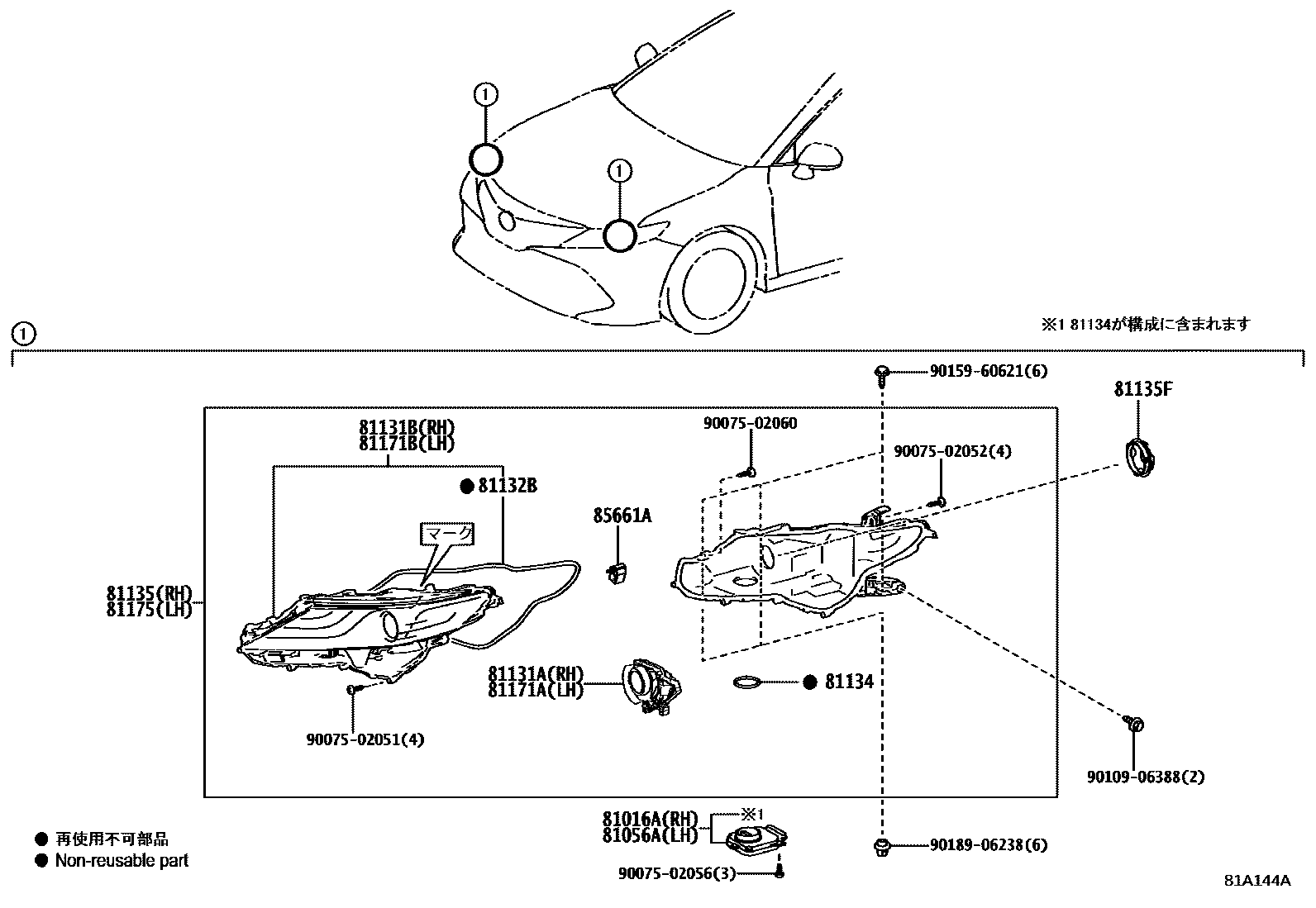

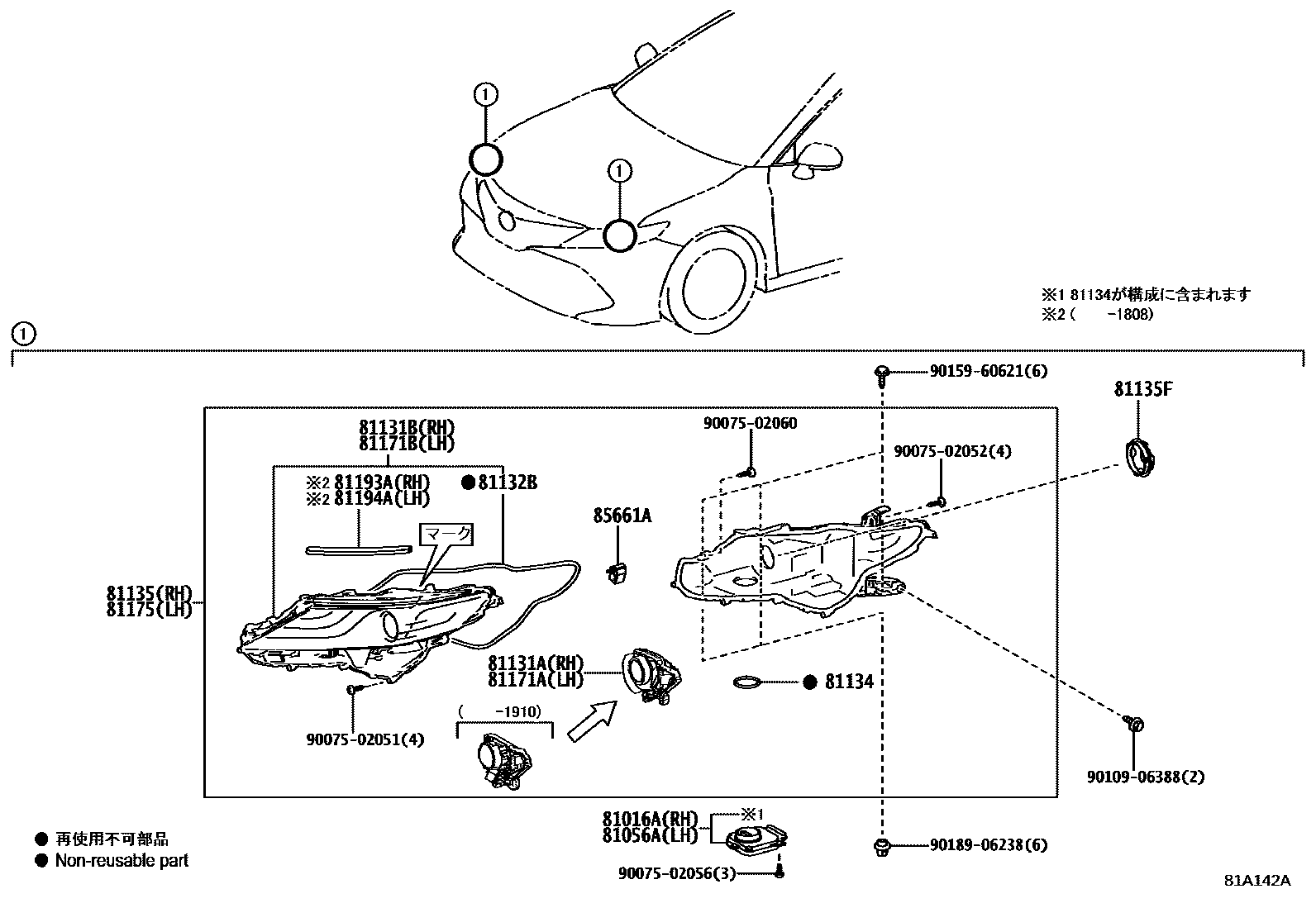

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016A | Toyota part | 81016-33E70 · 81016-33E71 |
| 81056A | Toyota part | 81056-33E10 · 81056-33E11 |
| 81131A | Right headlight assembly assembly | 81130-33E70 · 81130-33E71 · 81130-33K40 |
| 81131B | Right headlight lampshade | 81131-33D91 · 81131-33E70 · 81131-33E71 · 81131-33K40 · 81131-33L90 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81134 | headlight gasket | 90075-23003 |
| 81135 | Right headlight assembly | 81145-33D92 · 81145-33E70 · 81145-33E71 · 81145-33E72 · 81145-33K40 · 81145-33L90 |
| 81135F | Toyota part | 90075-66016 |
| 81171A | Left headlight assembly assembly | 81170-33E10 · 81170-33E11 · 81170-33K40 |
| 81171B | Left headlight lampshade | 81171-33D51 · 81171-33E10 · 81171-33E11 · 81171-33K40 · 81171-33L90 |
| 81175 | Left headlight assembly | 81185-33D52 · 81185-33E10 · 81185-33E11 · 81185-33E12 · 81185-33K40 · 81185-33L90 |
| 81193A | Right headlight protective cover | 81117-33E70 |
| 81194A | Left headlight protective cover | 81157-33E10 |
| 85661A | Headlight beam height adjustment motor | 85661-48050 |
