Toyota CAMRY 侧防护条 — Figure 7503

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 19 PNC and OE references.

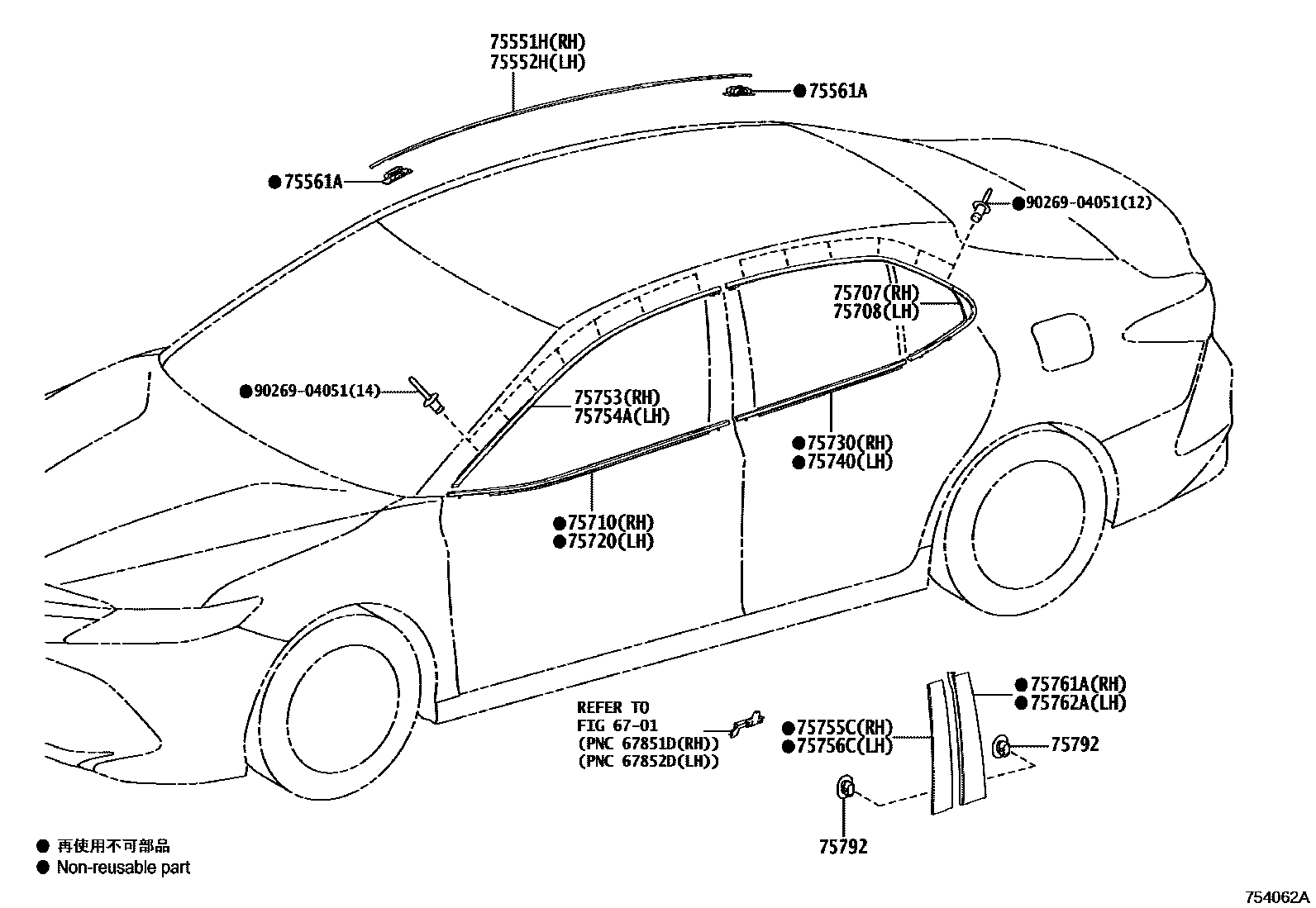

Toyota CAMRY 侧防护条 EPC diagram — 754062A
侧防护条 — 754062A (201706 – 999999)

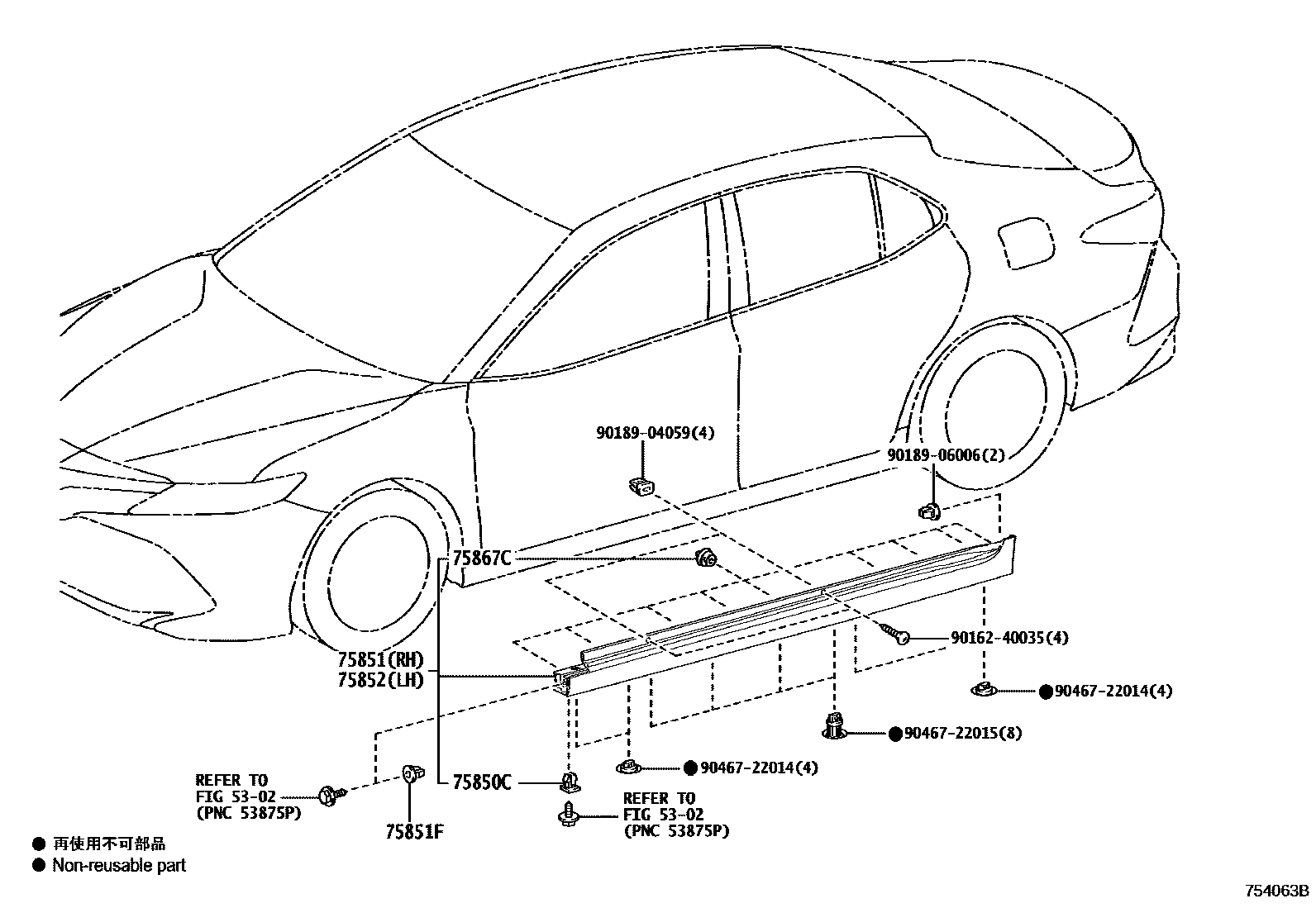

Toyota CAMRY 侧防护条 EPC diagram — 754063B
侧防护条 — 754063B (201706 – 999999)

PNC and OE references

PNCPart nameOE numbers
75551HDrainage groove side on the right side of the roof75555-33080 · 75555-33090
75552HDrainage channel side protection strip on the left side of the roof75556-33080 · 75556-33090
75561ARoof drain channel side decorative strip clip75561-52040
75707Right rear door window frame protective strip sub-assembly75707-33060 · 75707-33070
75708Left rear door window frame protective strip sub-assembly75708-33060 · 75708-33070
75710Right front door waistline protection strip assembly75710-33170 · 75710-33180
75720Left front door waistline protection strip assembly75720-33170 · 75720-33180
75730Right rear door waistline protection strip assembly75730-33170 · 75730-33180
75740Left rear door waistline protection strip assembly75740-33170 · 75740-33180
75753Protective strip on right front door window frame75753-33100 · 75753-33110 · 75753-33140 · 75753-33150
75754AProtective strip on left front door window frame75754-33100 · 75754-33110 · 75754-33140 · 75754-33150
75755CRight front door window frame rear protective strip75755-33090 · 75755-33100
75756CLeft front door window frame rear protective strip75756-33090 · 75756-33100
75761ARight rear door window frame front protective strip75761-33090 · 75761-33100
75762ALeft rear door window frame front protective strip75762-33090 · 75762-33100
75792Car door window frame protective strip clip75792-47010
75850CToyota part90189-06193 · 90189-06237
75851FToyota part90189-06006
75867CDoor sill panel protective strip clip75867-68010
