Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

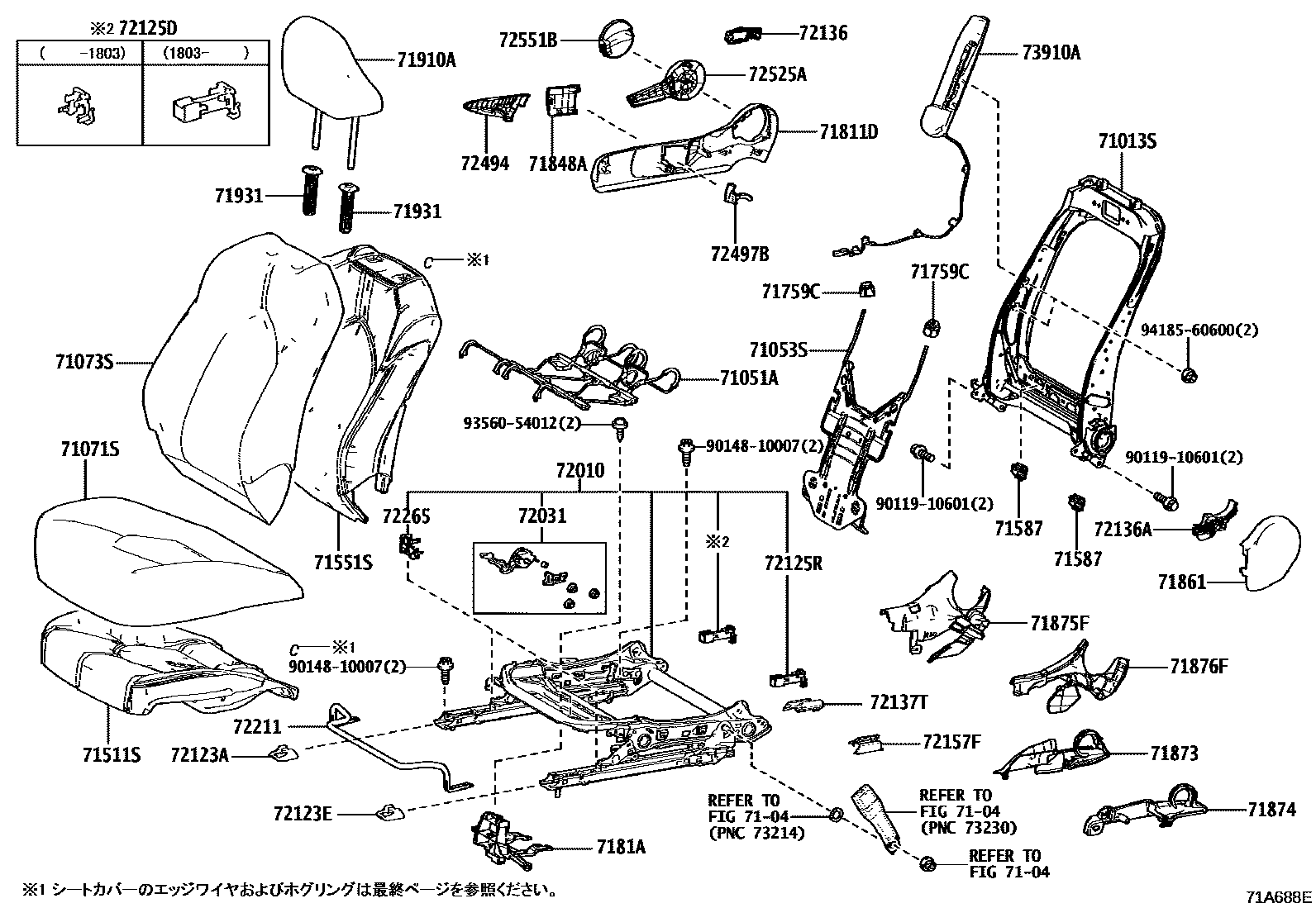

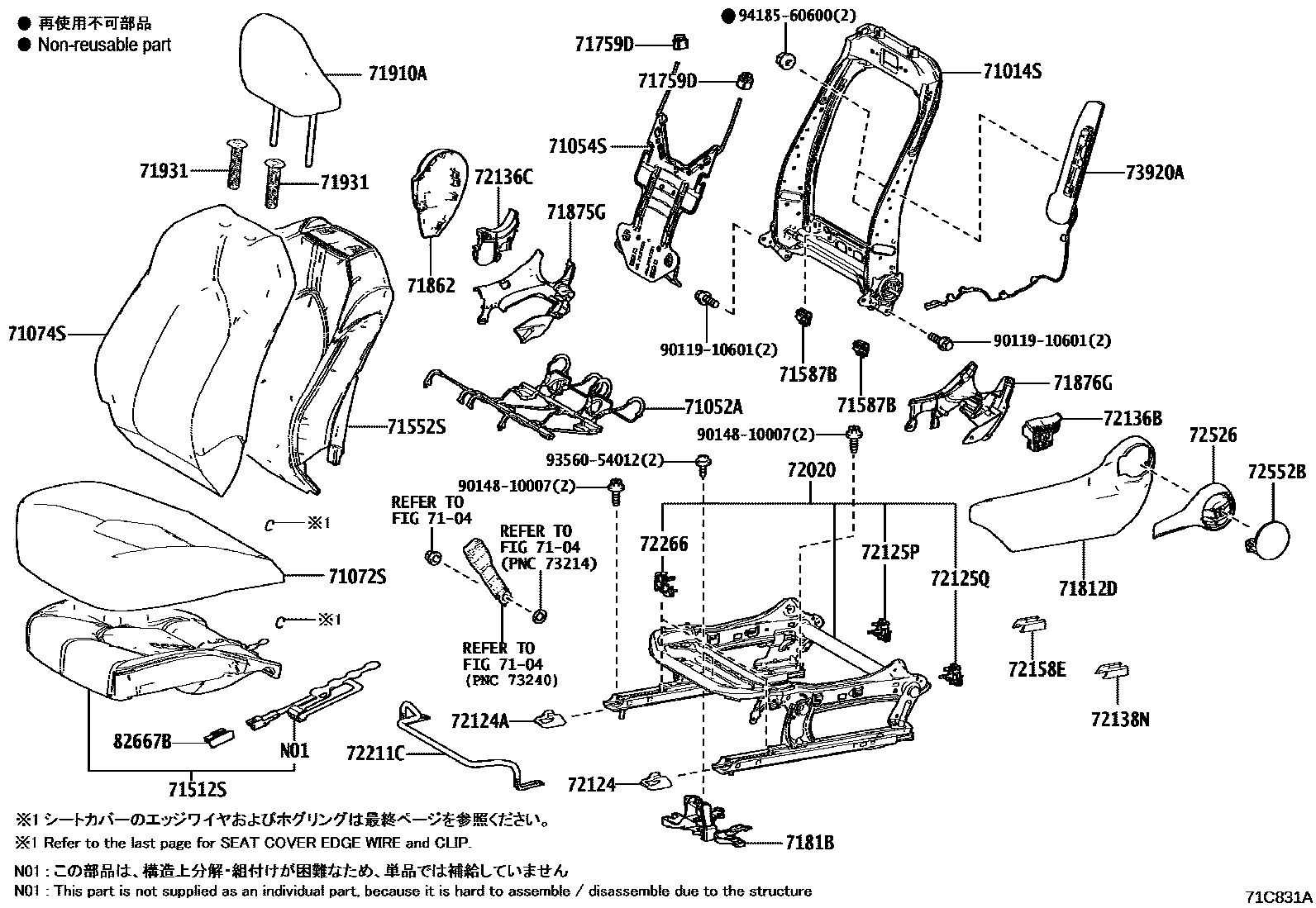

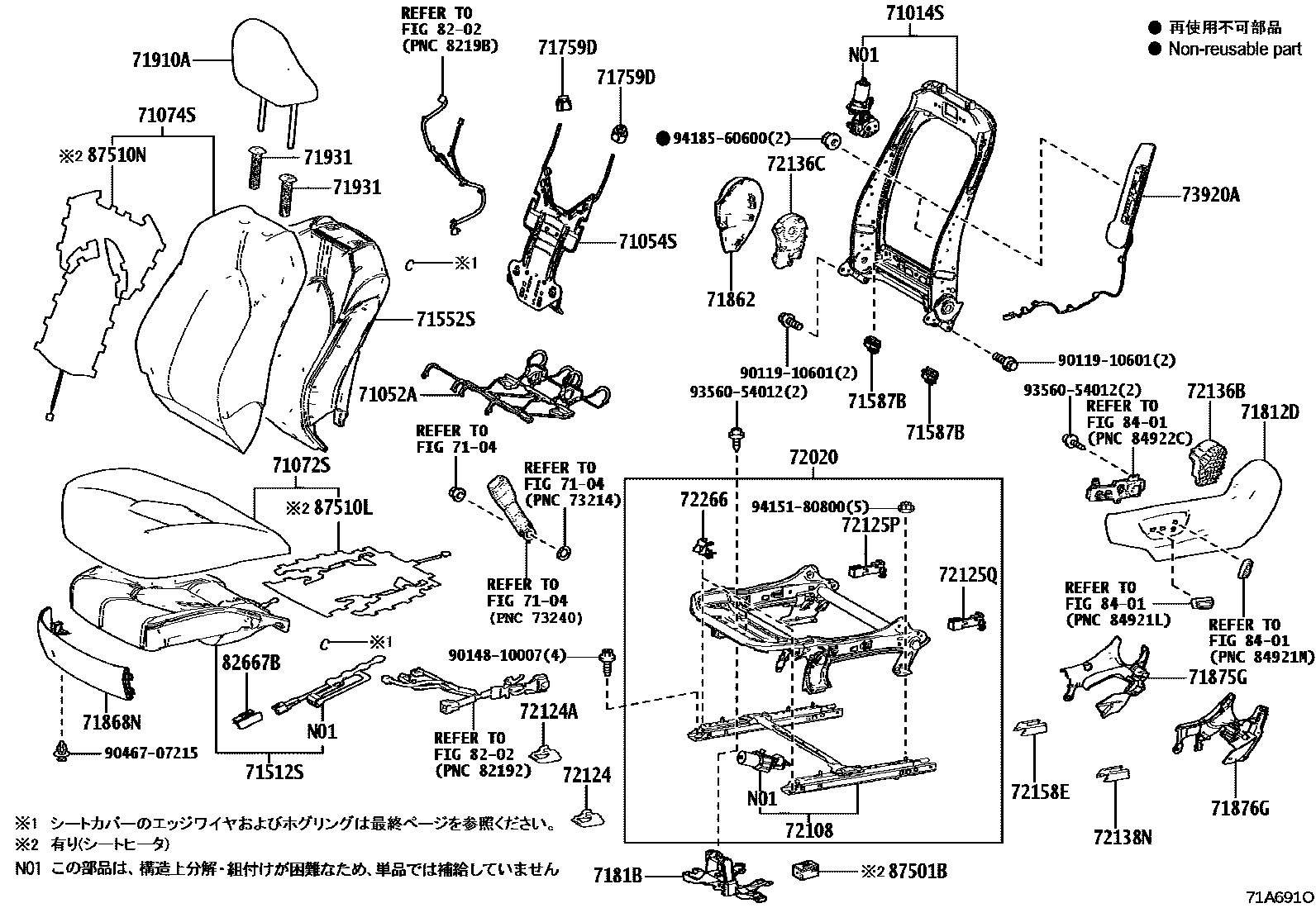

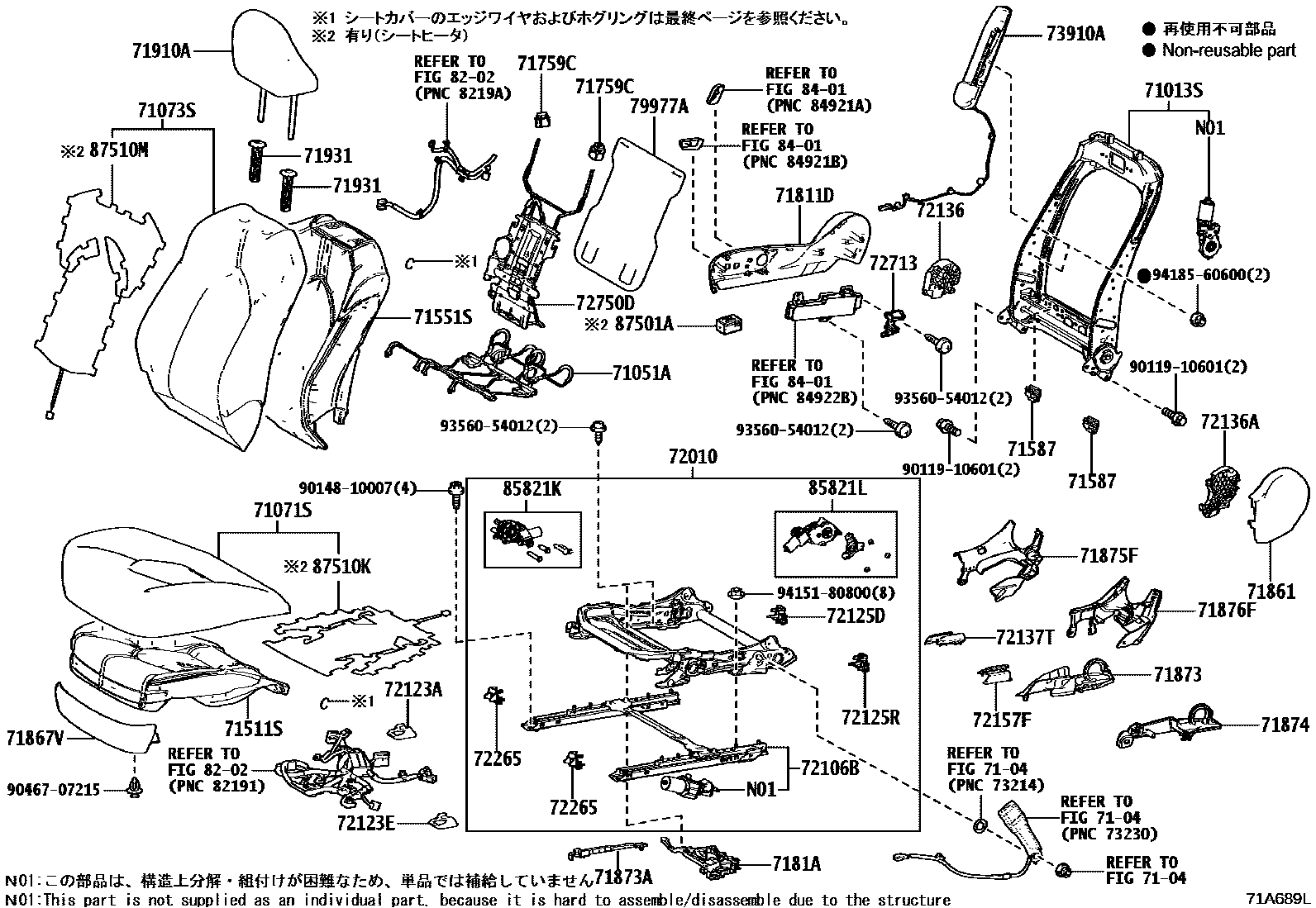

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-33340 · 71013-33350 · 71013-33351 · 71013-33560 · 71013-33570 · 71013-33571 |
| 71014S | Front left seat back frame sub-assembly | 71014-33160 · 71014-33170 · 71014-33400 · 71014-33420 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47090 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47090 |
| 71053S | Front right seat back spring sub-assembly | 71053-47050 |
| 71054S | Front left seat back spring sub-assembly | 71053-47050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-33530 · 71511-33560 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-33260 |
| 71551S | Front right seat back cushion (for split seats) | 71551-33410 |
| 71552S | Front left seat back cushion (for split seats) | 71552-33300 |
| 71587 | Front seat back edge protective cover | 71587-47010 |
| 71587B | Front seat back edge protective cover | 71587-47010 |
| 71759C | Front seat back hook No. 1 | 71759-52050 |
| 71759D | Front seat back hook 2 | 71759-52050 |
| 7181A | Toyota part | 7181A-33010 · 7181A-47010 |
| 7181B | Toyota part | 7181B-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-47070 |
| 71873A | Front seat cushion lower guard | 71873-47090 |
| 71874 | Front left seat cushion lower guard | 71873-47080 |
| 72010 | Front right seat adjuster assembly | 72010-33640 · 72010-47360 · 72010-47361 |
| 72020 | Front left seat adjuster assembly | 72020-33440 · 72020-47381 |
| 72031 | Front seat height adjuster assembly | 72443-47010 · 72443-47011 |
| 72106B | Toyota part | 72106-33070 |
| 72108 | Toyota part | 72108-33030 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-47060 |
| 72123E | Toyota part | 72123-47060 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-47060 |
| 72124A | Toyota part | 72123-47060 |
| 72125D | Slide rail cover on rear seat No. 2 | 72125-47010 · 72125-47020 |
| 72125P | Toyota part | 72125-47010 · 72125-47020 |
| 72125Q | Toyota part | 72125-47010 · 72125-47020 |
| 72125R | Toyota part | 72125-47010 · 72125-47020 |
| 72136 | No. 1 seat slide rail lower rail | 72136-33230 · 72136-33250 |
| 72136A | No. 2 seat slide rail lower rail | 72136-33240 · 72136-33260 |
| 72136B | No. 3 seat slide rail lower rail | 72136-33290 · 72136-33320 |
| 72136C | No. 4 seat slide rail lower rail | 72136-33300 · 72136-33340 |
| 72137T | Toyota part | 72137-47060 |
| 72138N | Toyota part | 72137-47060 |
| 72157F | Toyota part | 72157-47080 |
| 72158E | Toyota part | 72158-47080 |
| 72211 | Seat slide adjustment handle | 72211-47050 |
| 72211C | Seat slide adjustment handle | 72211-47050 |
| 72265 | Right seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72266 | Left seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72497B | Right height adjuster bracket cover | 72498-47010 |
| 72713 | Toyota part | 72713-47010 |
| 72750D | Right lumbar support adjuster assembly | 72750-11020 · 72750-47020 |
| 73910A | Front right seat airbag assembly | 73910-33080 |
| 73920A | Front left seat airbag assembly | 73920-33080 |
| 79977A | Seat back felt pad | 79977-33030 |
| 82667B | Connector holder | 82666-47630 |
| 85821K | Right electric seat tilt adjustment motor assembly | 85801-47020 |
| 85821L | Right electric seat height adjustment motor assembly | 85801-47010 |
| 87501A | Right seat heater control sub-assembly | 87501-33010 |
| 87501B | Left side seat heater control sub-assembly | 87501-33010 |
| 87510K | Front right seat cushion heater assembly | 87510-33380 |
| 87510L | Front left seat cushion heater assembly | 87510-33390 |
| 87510M | Front right seat back heater assembly | 87530-33170 |
| 87510N | Front left seat back heater assembly | 87530-33170 |
