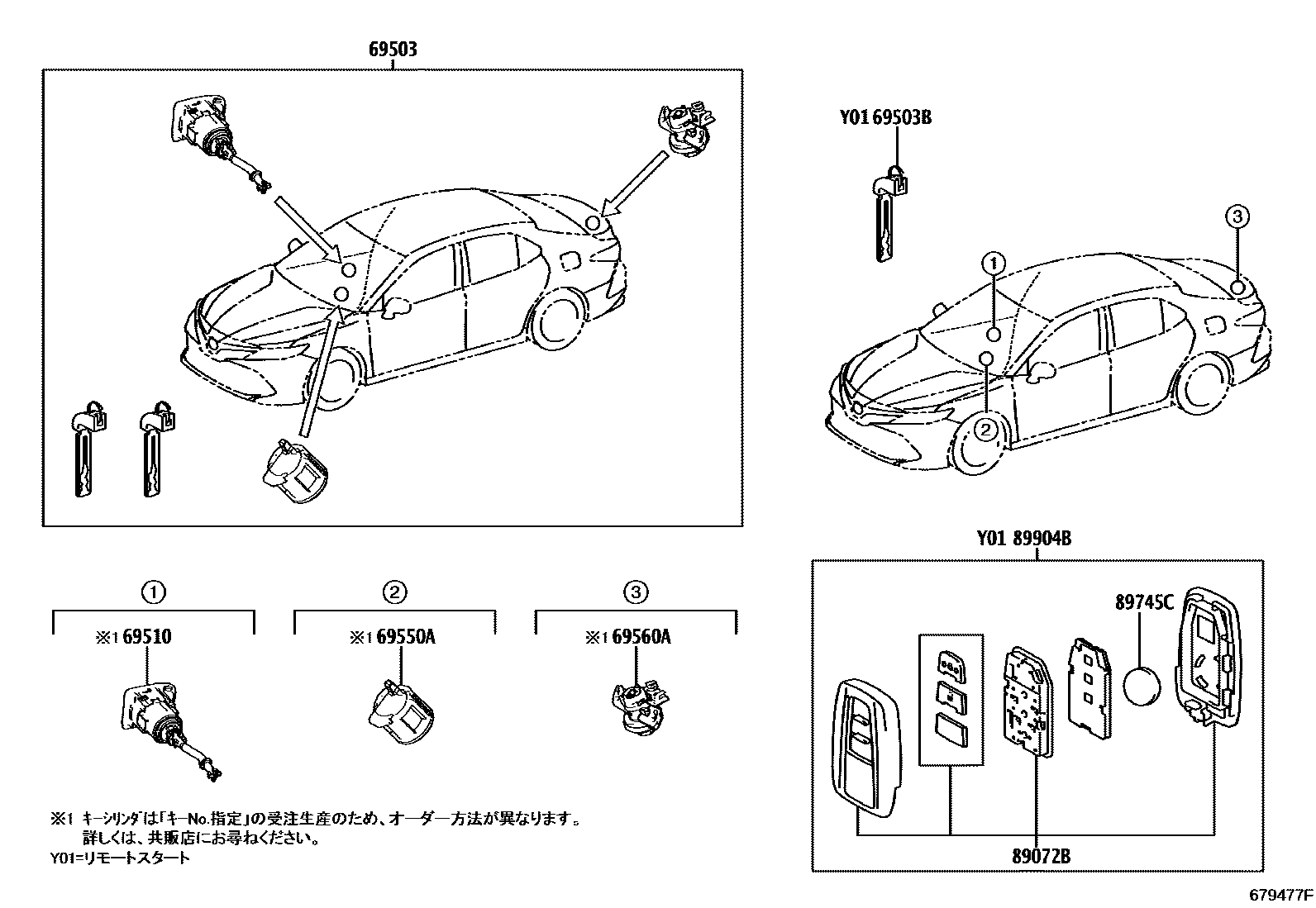

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-33D70 |
| 69503B | internal tooth key | 69515-16100 · 69515-47020 |
| 69510 | Right front door lock cylinder assembly | 69510-33210 |
| 69550A | Glove box cover lock cylinder assembly | 69550-50040 |
| 69560A | Trunk door lock core assembly | 69560-33360 |
| 89072B | Remote key shell assembly (for smart key) | 89072-33A60 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33750 · 89904-33G70 |
