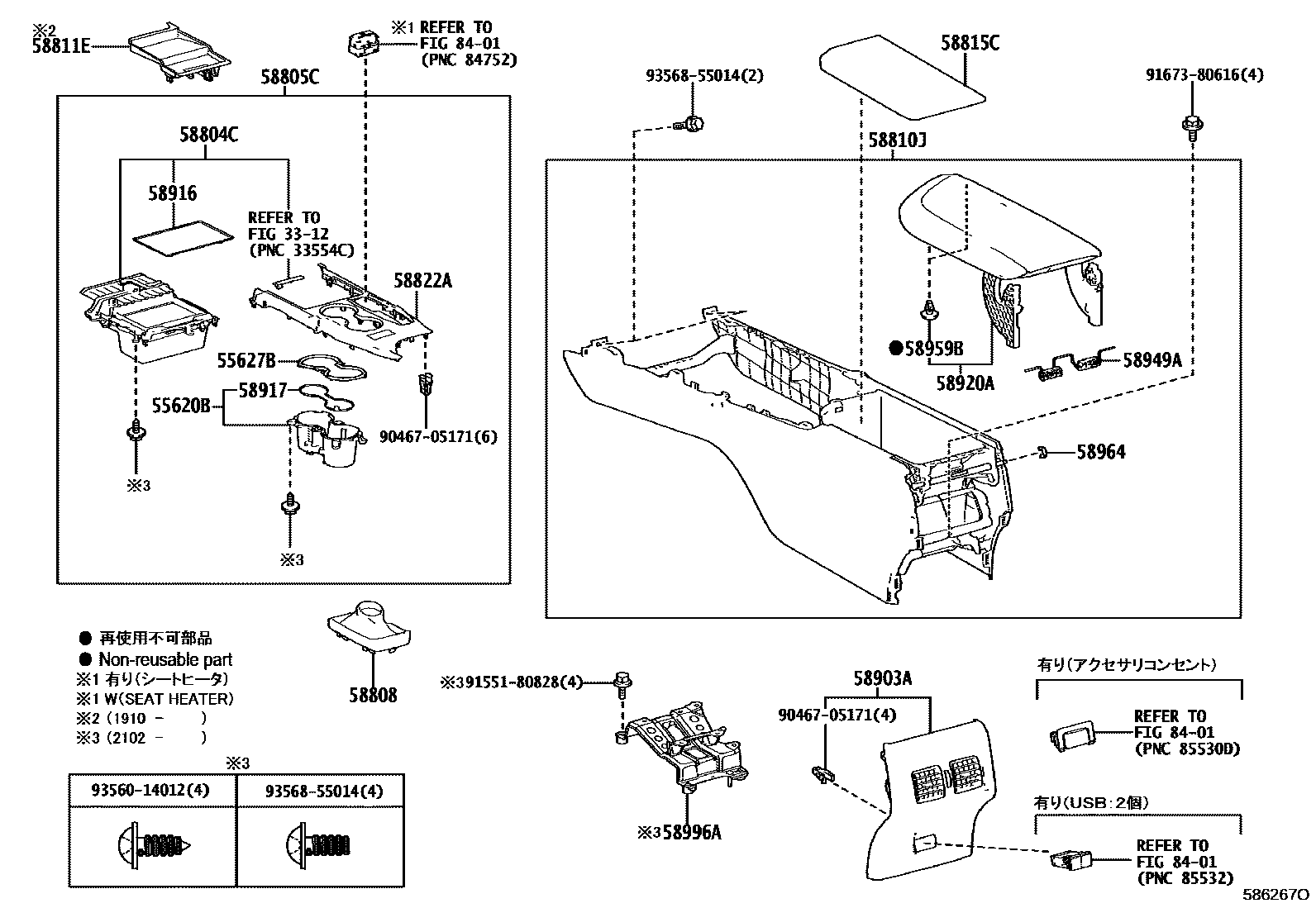

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620B | Dashboard cup holder | 55620-33400 |
| 55627B | Toyota part | 55627-33030 · 55627-33040 |
| 58804C | Front armrest box insert sub-assembly | 58804-33A50 · 58804-33A60 · 58804-33A80 · 58804-33B50 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-33670 · 58805-33680 · 58805-33B90 · 58805-33C20 · 58805-33C40 · 58805-33C50 · 58805-33C70 · 58805-33C80 |
| 58811E | Upper armrest box | 58811-33140 |
| 58815C | Armrest box felt pad | 58815-33180 |
| 58822A | Rear armrest box upper panel | 58822-33490 · 58822-33500 · 58822-33510 · 58822-33520 |
| 58916 | Armrest box bottom pad | 58916-33120 |
| 58917 | Armrest box bottom pad No. 2 | 58917-33130 |
| 58949A | Toyota part | 58949-33080 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58964 | Armrest box cover No. 1 stop | 58964-33040 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-33100 · 58996-33101 |
