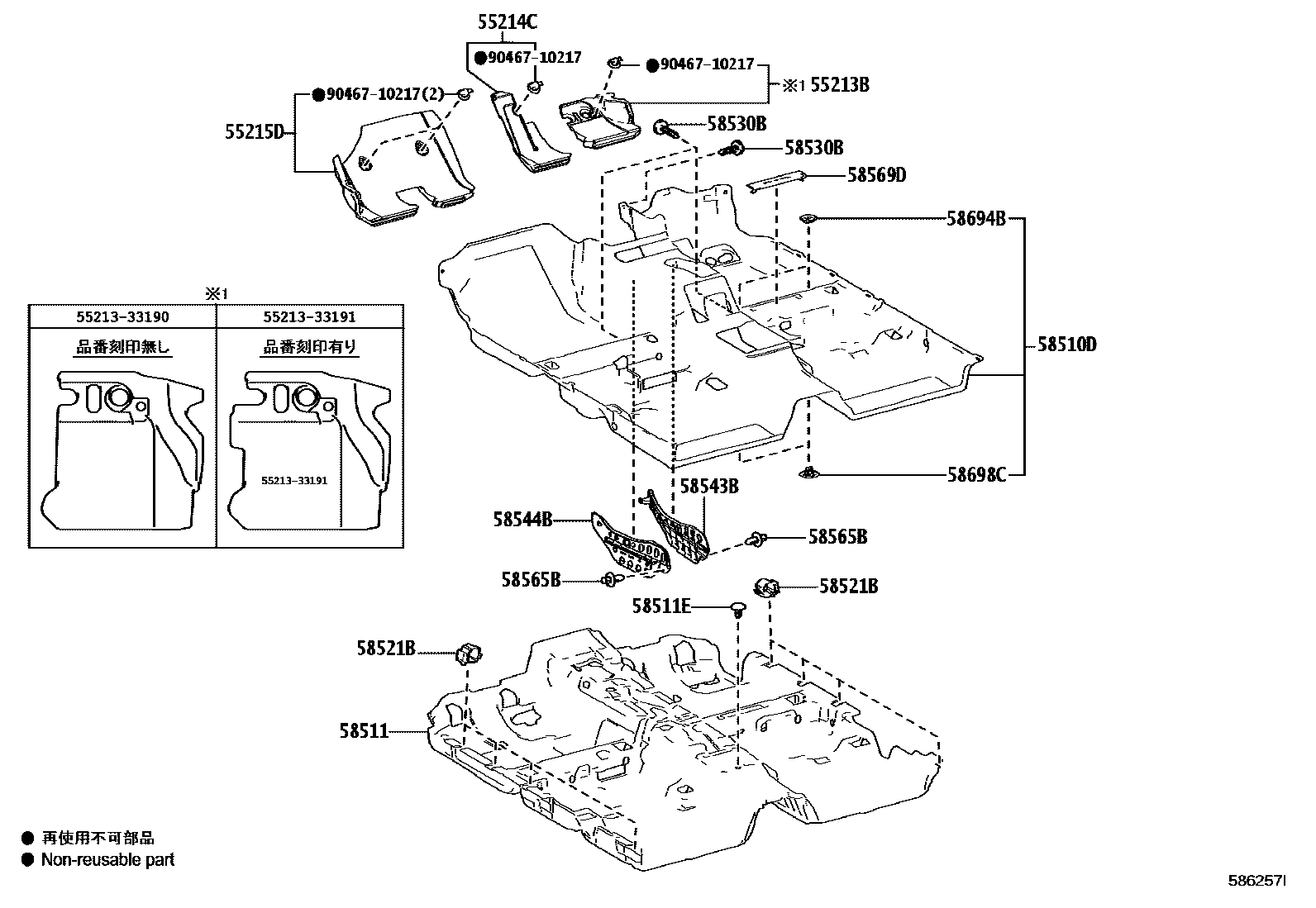

Toyota CAMRY 地板垫和地毯 — Figure 5804
Toyota CAMRY EPC diagram 5804, 地板垫和地毯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55213B | No. 1 insulation pad for front wall panel | 55213-33190 · 55213-33191 |
| 55214C | No. 2 insulation pad for front wall panel | 55214-33120 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-33050 |
| 58511 | front floor mat | 58511-33020 · 58511-33021 · 58511-33022 |
| 58521B | carpet hook | 58521-33060 |
| 58543B | Right carpet bracket | 58543-33120 |
| 58544B | left carpet bracket | 58544-33120 |
| 58694B | Pad the fixing plate | 58694-33010 |
| 58698C | Fixing plate under the pad | 58698-33010 |
