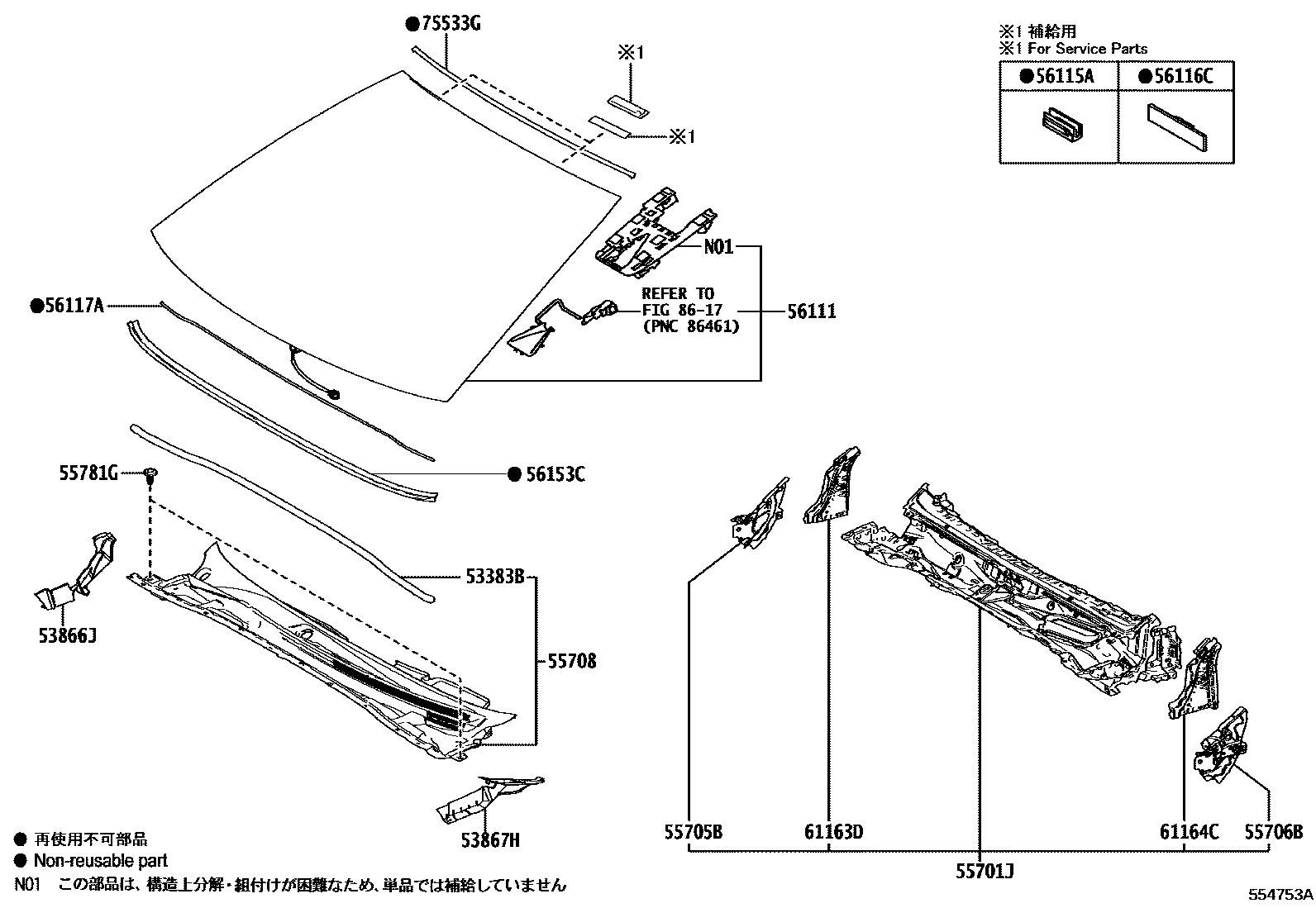

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-33140 |
| 53866J | Right front fender to cowl side seal | 53866-33100 |
| 53867H | Left front fender to cowl side seal | 53867-33100 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-33260 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-33040 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-33040 |
| 55708 | Toyota part | 55708-33260 · 55708-33261 · 55708-33280 · 55708-33281 · 55708-33282 |
| 55781G | Ventilation grille clips on front apron | 90467-09242 |
| 56111 | windshield | 56101-3T904 · 56101-3T905 · 56101-3T906 · 56101-3T907 · 56101-3T908 · 56101-3T909 · 56101-3Y963 · 56101-3Y964 · 56101-3Y965 · 56101-3Y966 · 56101-3Y967 · 56101-3Y968 · 56101-3Y976 · 56101-3Y977 · 56101-3Y978 · 56101-3Y979 · 56101-3Y980 · 56101-3Y981 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56153C | Front center window inner protective strip | 56153-33010 · 56153-33070 |
| 61163D | Toyota part | 61163-33020 |
| 61164C | Toyota part | 61164-33020 |
| 75533G | Windshield outer protective strip | 75531-33150 |
