Toyota CAMRY 发动机盖和前翼子板 — Figure 5302

Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 31 PNC and OE references.

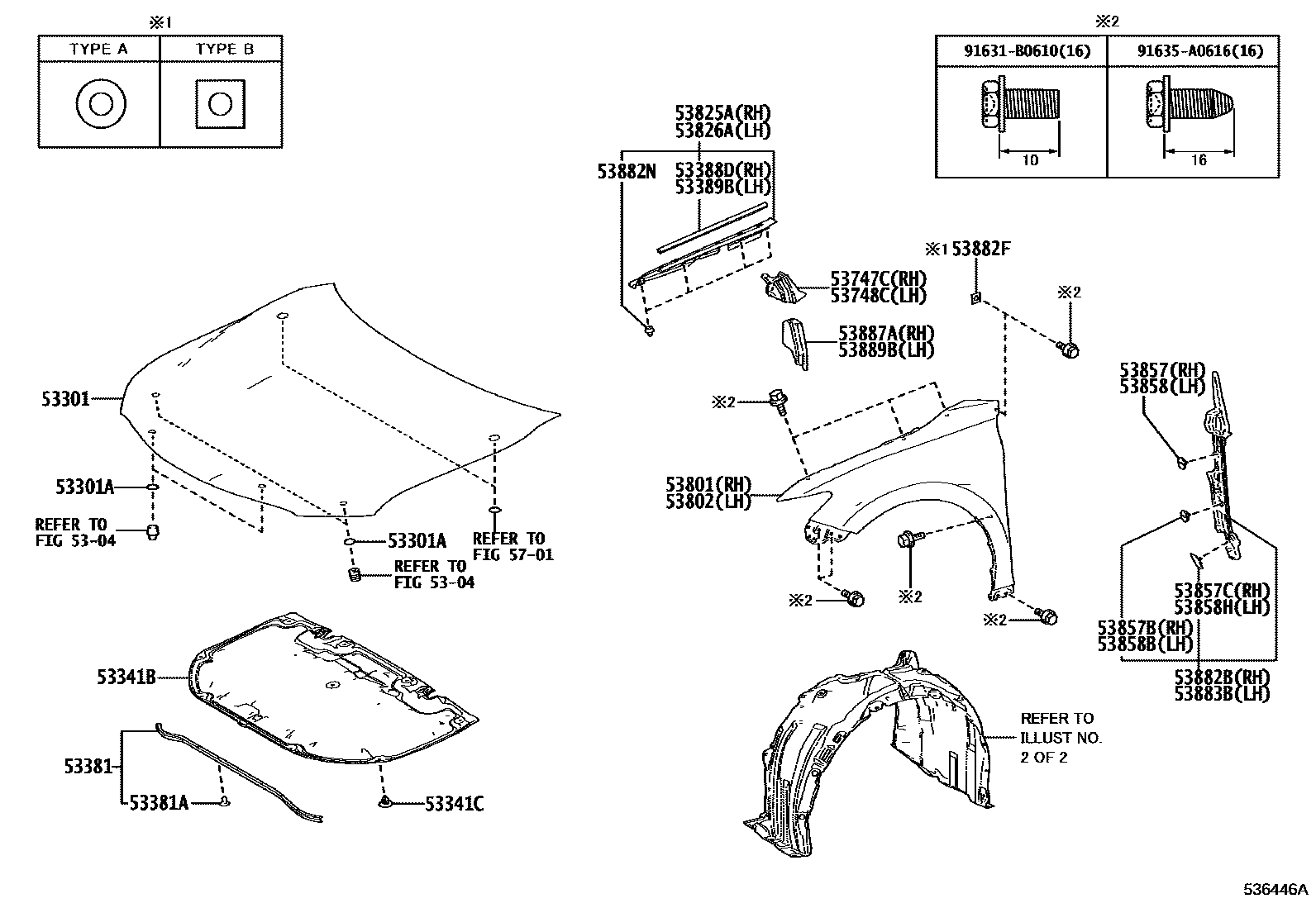

Toyota CAMRY 发动机盖和前翼子板 EPC diagram — 536446A
发动机盖和前翼子板 — 536446A (201706 – 999999)

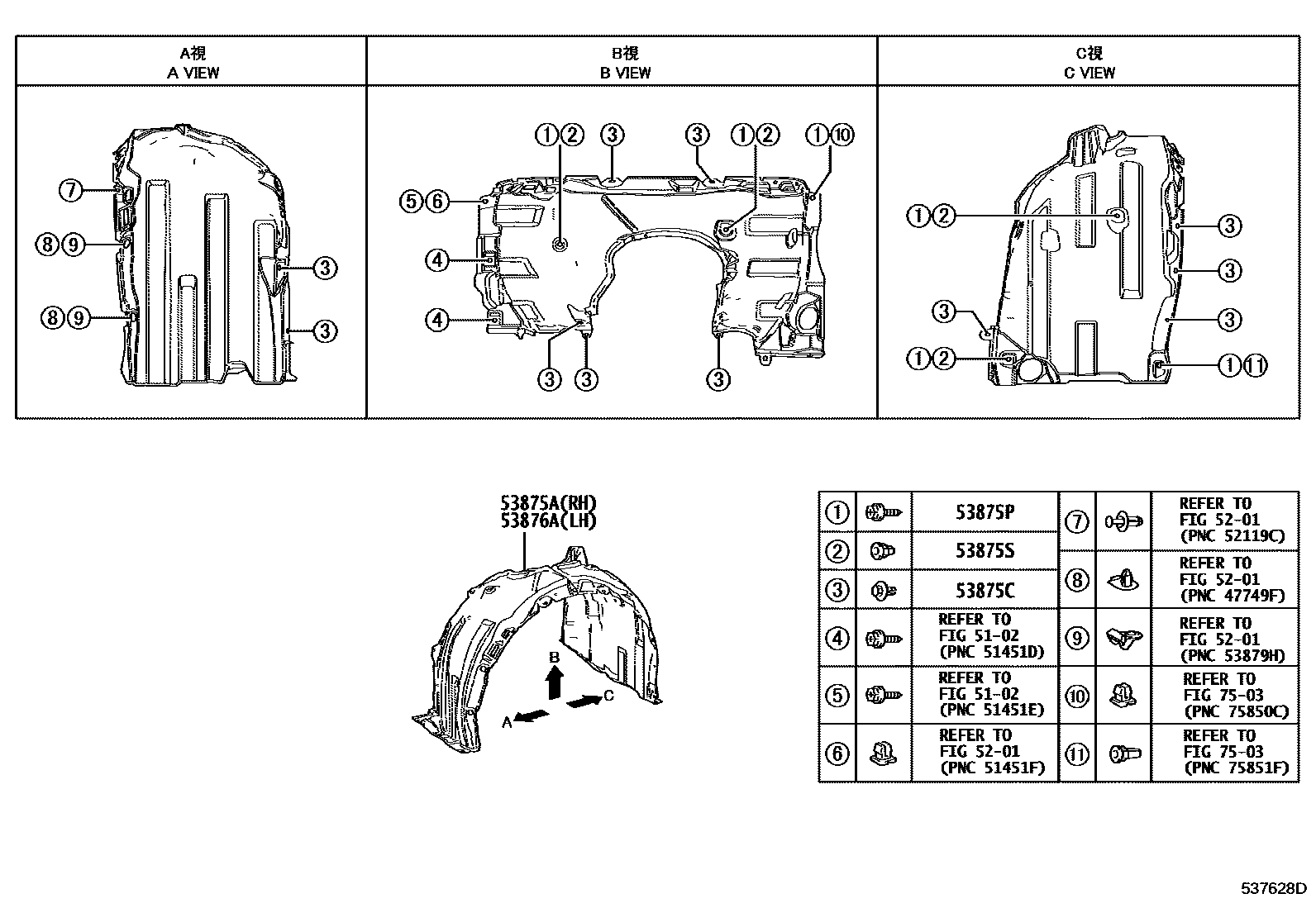

Toyota CAMRY 发动机盖和前翼子板 EPC diagram — 537628D
发动机盖和前翼子板 — 537628D (201706 – 999999)

PNC and OE references

PNCPart nameOE numbers
53301Engine cover sub-assembly53301-33230
53301AHole plug (for engine cover)90950-06124
53341Bengine cover gasket53341-33190 · 53341-33191
53341CClip (for engine cover gasket)90467-09050
53381Engine cover to radiator bracket seal53381-33110
53381AClip (for engine cover to radiator bracket seal)90467-08011
53388DEngine cover to right front fender seal53388-33080
53389BEngine cover to left front fender seal53388-33080
53747CRight air sealing plate53747-33030
53748CLeft air sealing plate53748-33030
53801Right front fender sub-assembly53801-33200
53802Left front fender sub-assembly53802-33200
53825ARight front fender protection piece53825-33060
53826AProtection piece on left front fender53826-33060
53857Right front fender external panel fixing piece53857-47011
53857BRight front fender external panel fixing piece53857-47011
53857CToyota part53857-12010
53858Left front fender external panel fixing piece53857-47011
53858BLeft front fender external panel fixing piece53857-47011
53858HToyota part53857-12010
53875ARight front fender lining53805-33060 · 53805-33070
53875CFront fender lining clip90467-07214
53875PToyota part90159-60622 · 90159-60623
53875SToyota part90189-06065 · 90189-06236
53876ALeft front fender lining53806-33080 · 53806-33090
53882BRight front fender seal53882-33070
53882Ffront fender seal53882-30030 · 53882-33060
53882NClip (for front fender seal)90467-09219 · 90467-10161
53883BLeft front fender seal53883-33060
53887ANo. 1 front fender splash guard seal53887-33020
53889BNo. 2 left front fender splash guard seal53889-33070
