Toyota CAMRY radiator grille — Figure 5301

Toyota CAMRY EPC diagram 5301, radiator grille, with 4 images and 5 PNC and OE references.

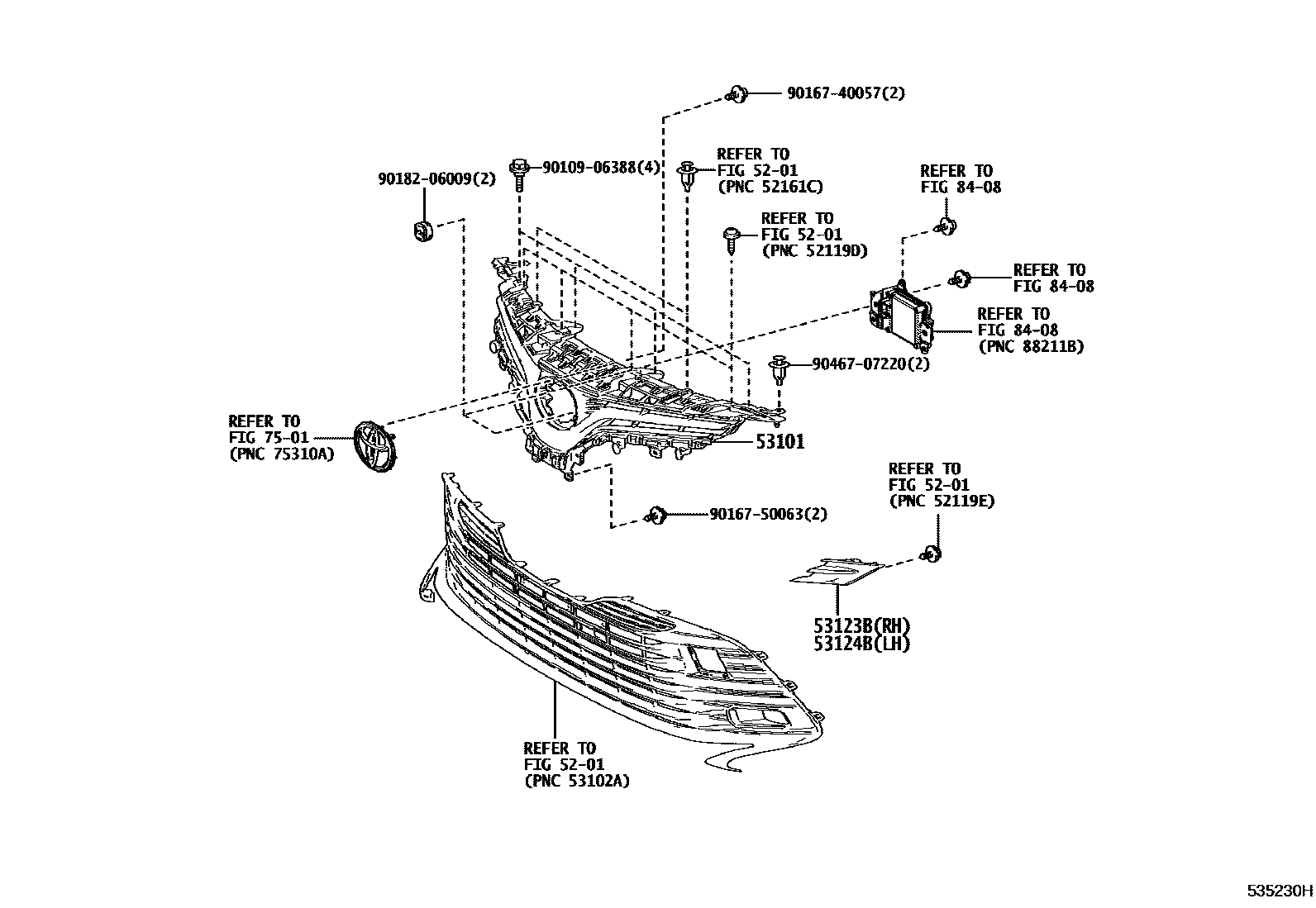

Toyota CAMRY radiator grille EPC diagram — 535230H
radiator grille — 535230H (201706 – 202101)

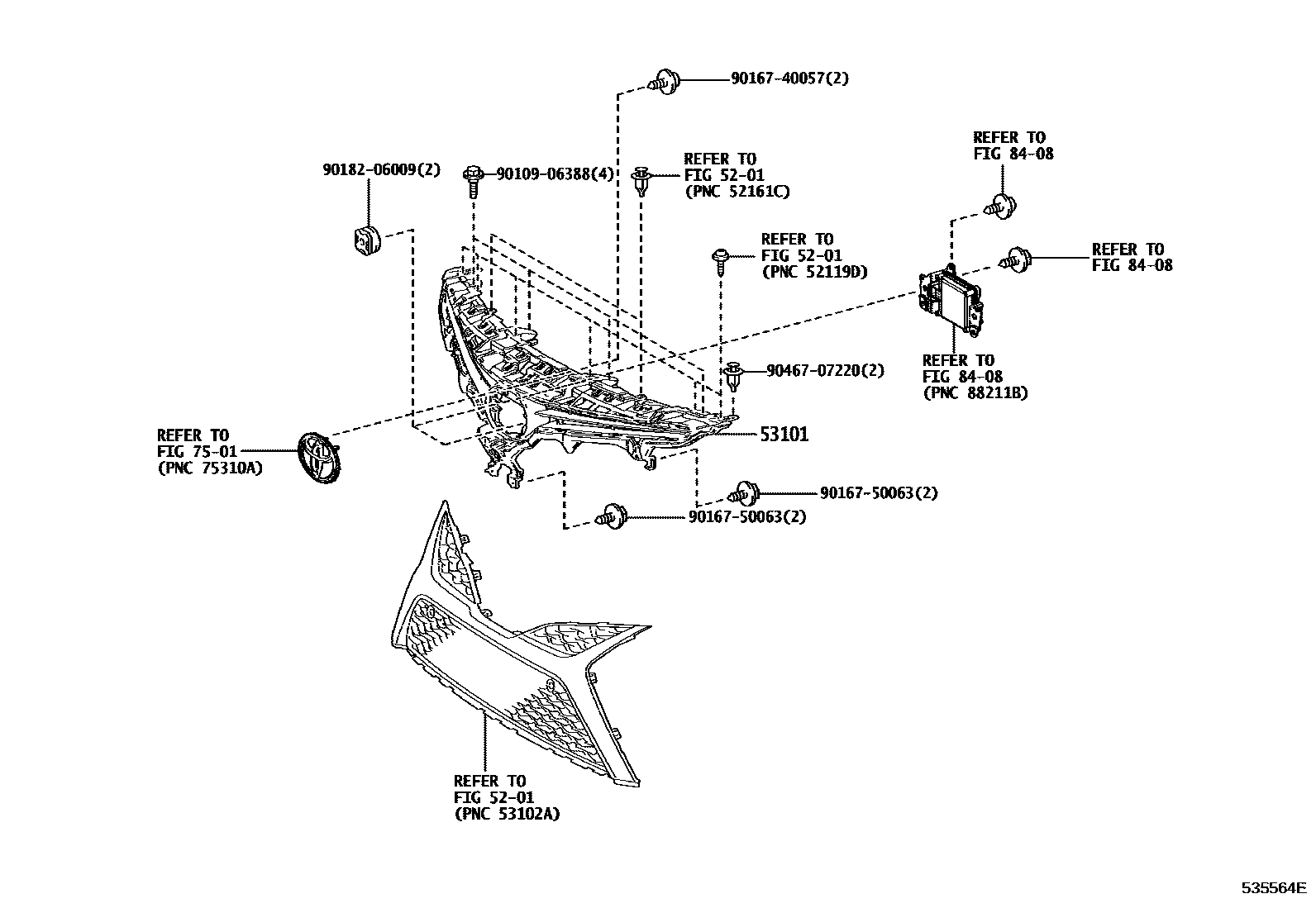

Toyota CAMRY radiator grille EPC diagram — 535564E
radiator grille — 535564E (201808 – 202101)

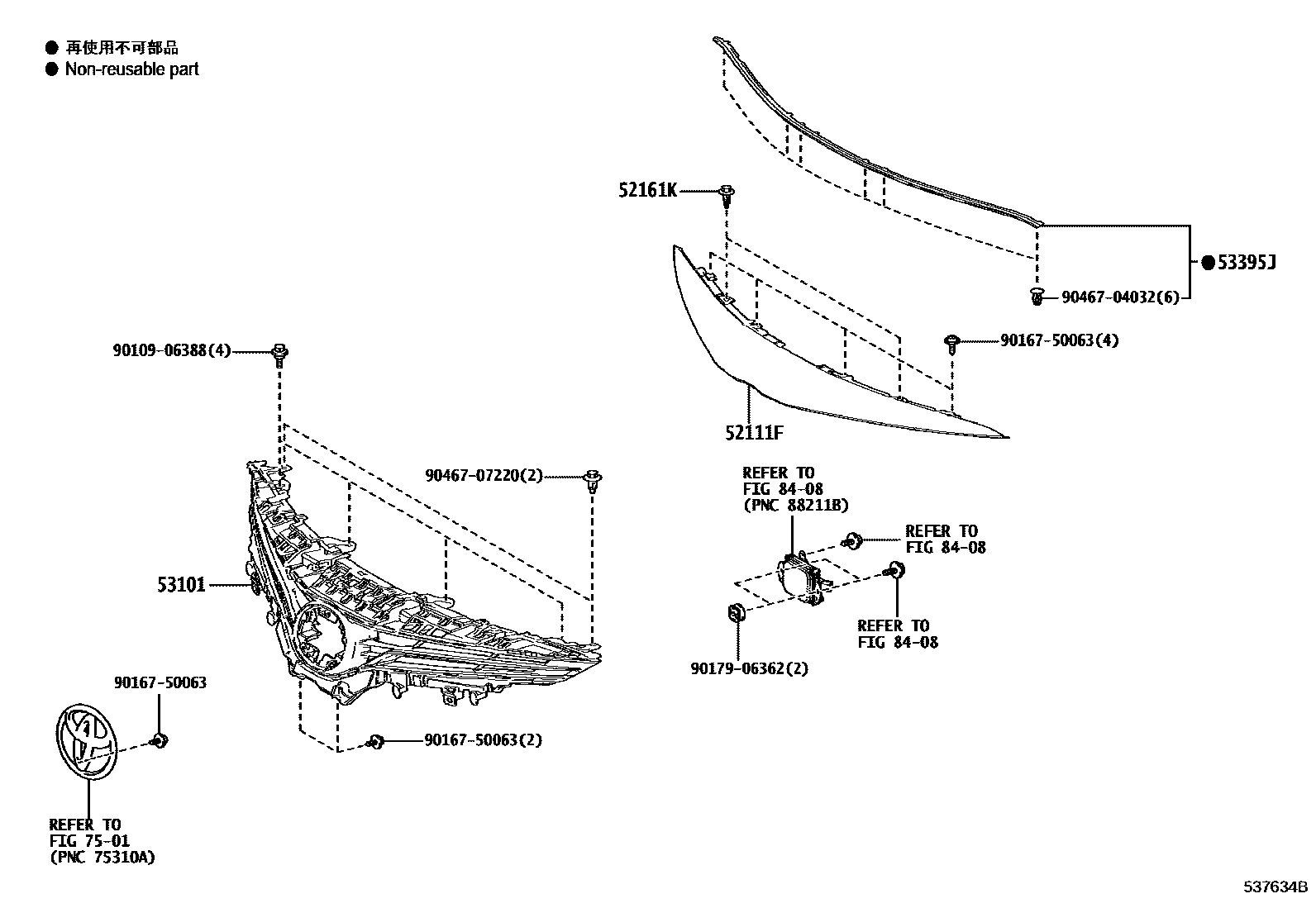

Toyota CAMRY radiator grille EPC diagram — 537634B
radiator grille — 537634B (202102 – 999999)

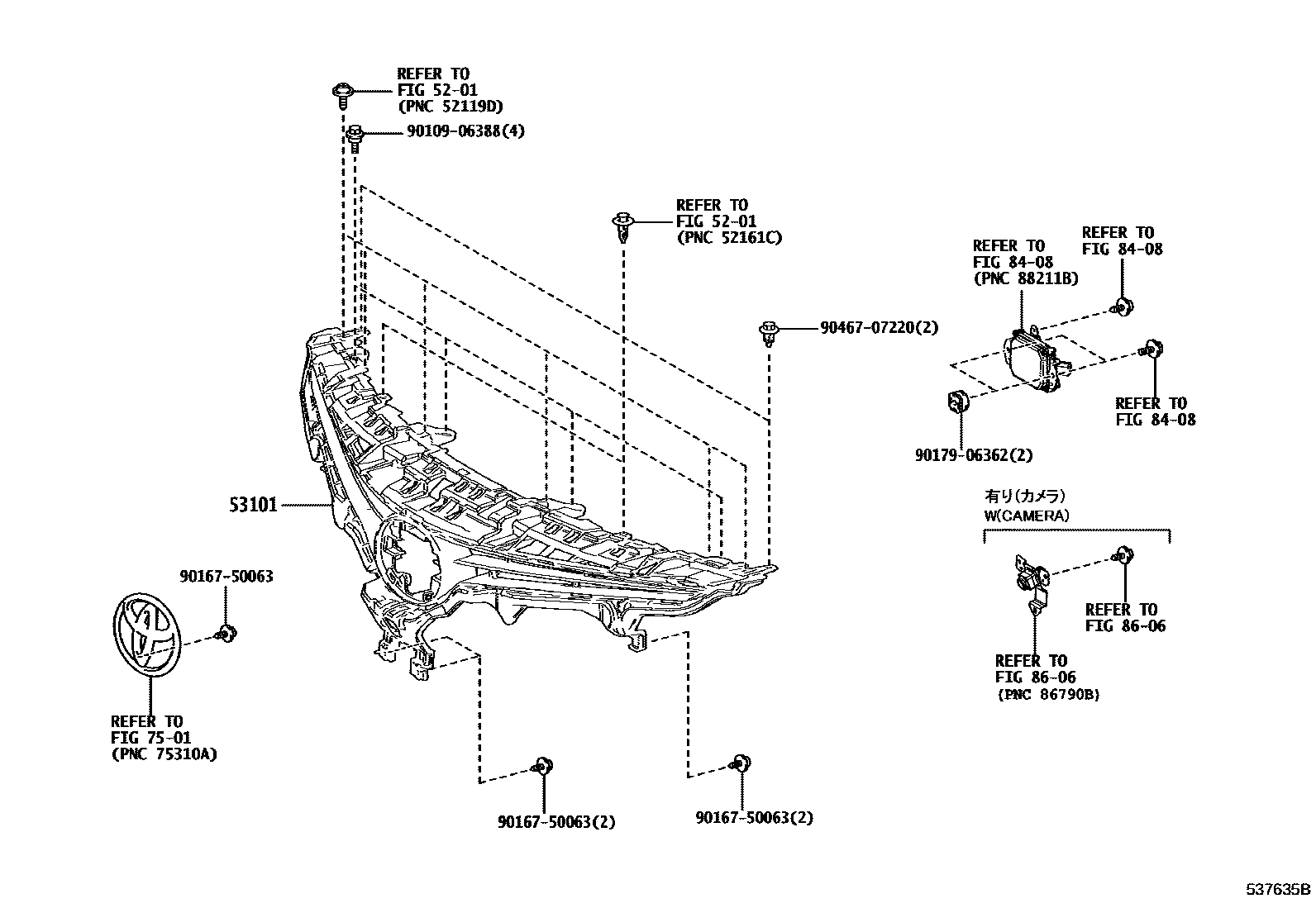

Toyota CAMRY radiator grille EPC diagram — 537635B
radiator grille — 537635B (202102 – 999999)

PNC and OE references

PNCPart nameOE numbers
52161Kfront bumper insert52161-16010
53101Radiator grille sub-assembly53101-33410 · 53101-33540 · 53101-33570 · 53101-33620 · 53101-33640
53123BProtective strip on the right side of the radiator grille53123-33050 · 53123-33100
53124BRadiator grille left protective strip53124-33070 · 53124-33120
53395JToyota part53395-33030
