Toyota CAMRY 后保险杠及附件 — Figure 5202

Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 5 images and 20 PNC and OE references.

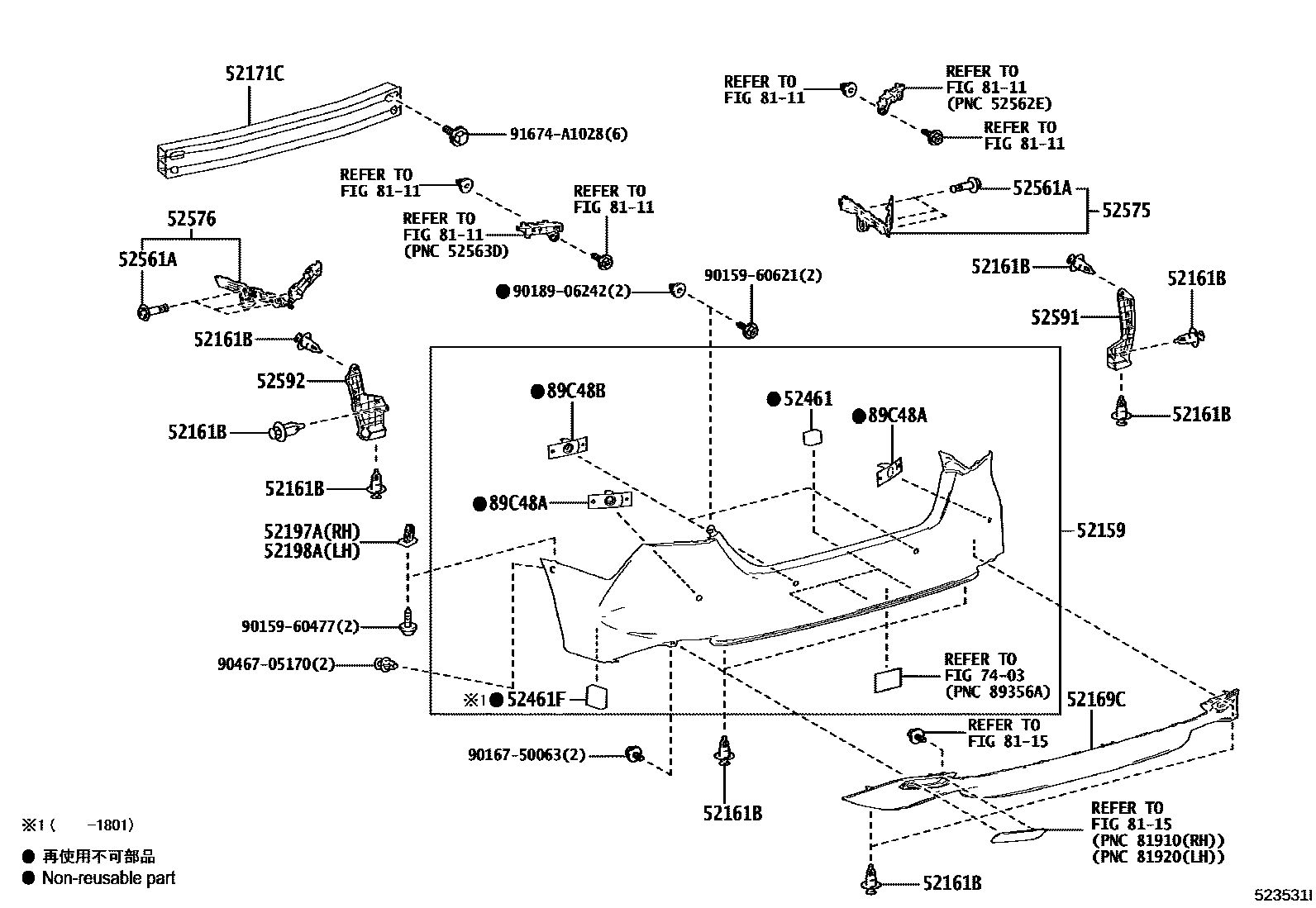

Toyota CAMRY 后保险杠及附件 EPC diagram — 523531I
后保险杠及附件 — 523531I (201706 – 202101)

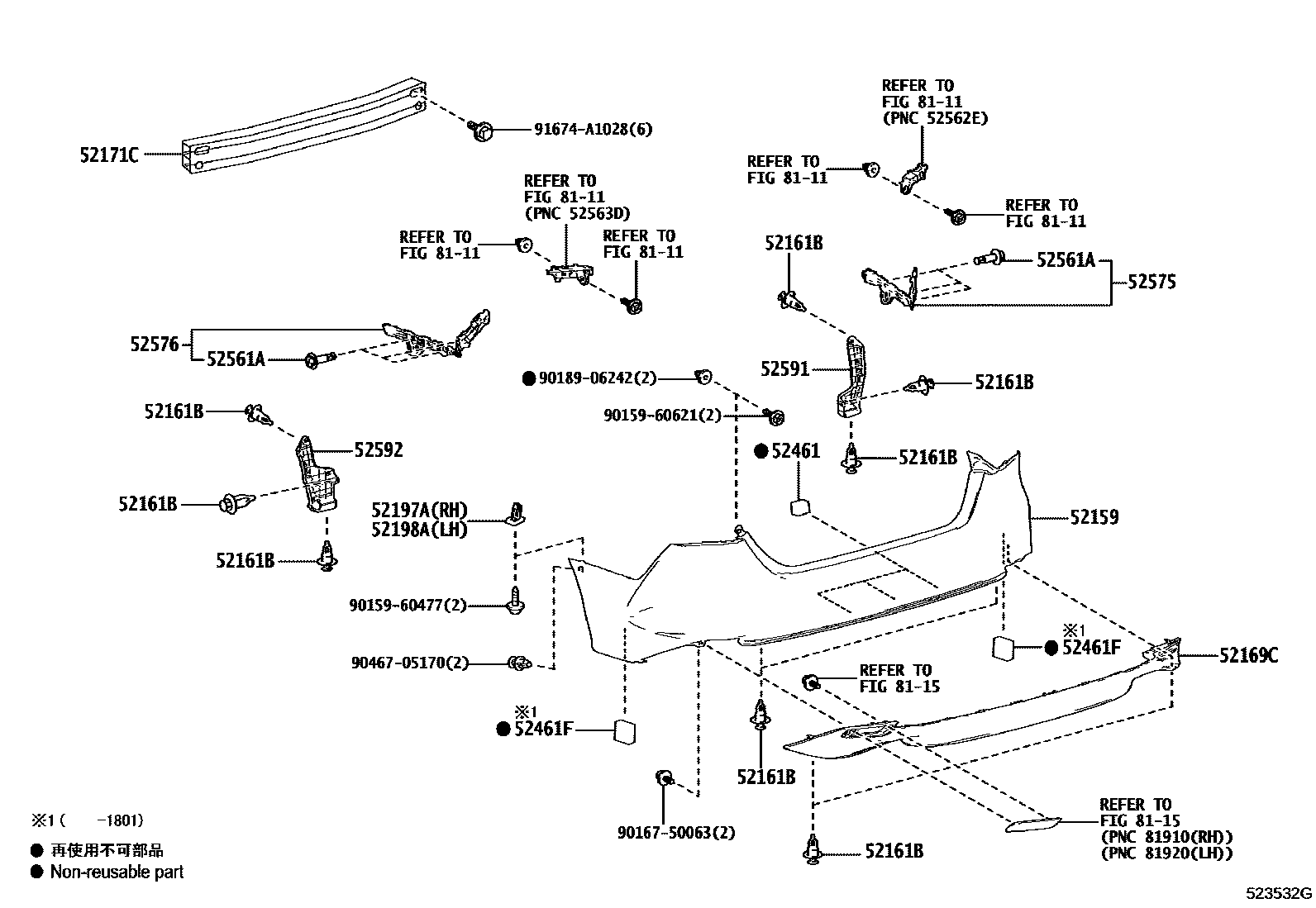

Toyota CAMRY 后保险杠及附件 EPC diagram — 523532G
后保险杠及附件 — 523532G (201706 – 202101)

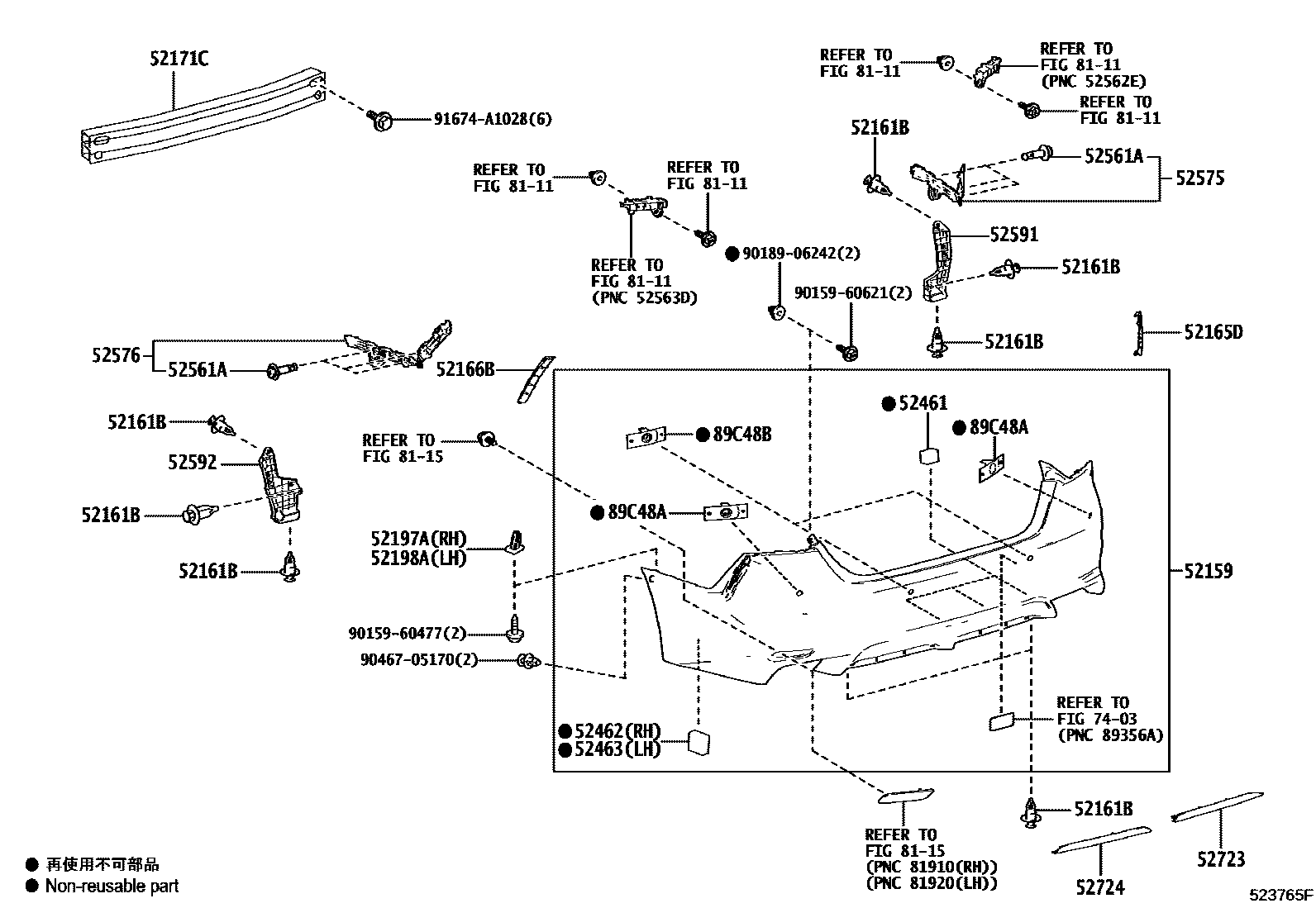

Toyota CAMRY 后保险杠及附件 EPC diagram — 523765F
后保险杠及附件 — 523765F (201808 – 202101)

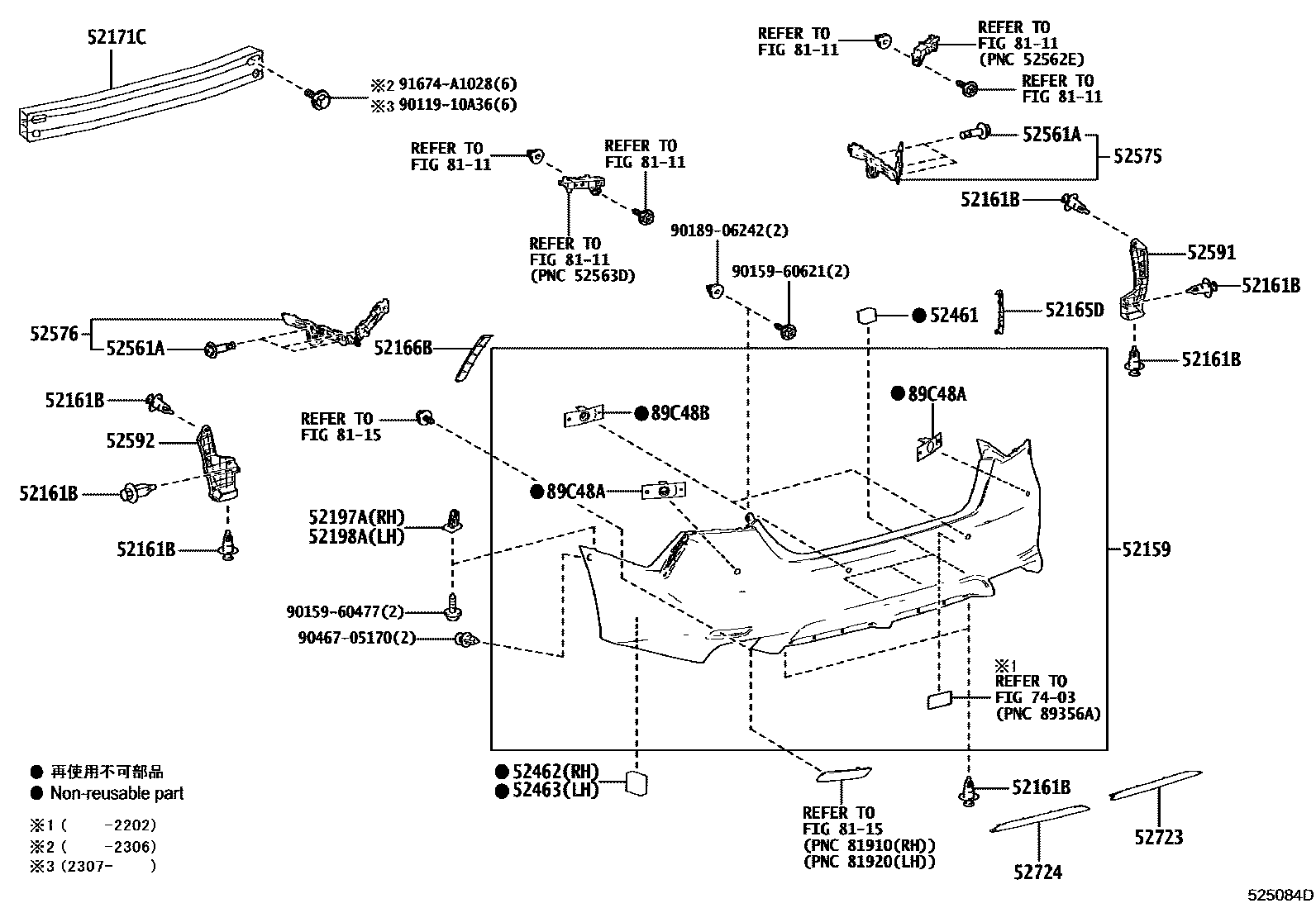

Toyota CAMRY 后保险杠及附件 EPC diagram — 525084E
后保险杠及附件 — 525084E (202102 – 999999)

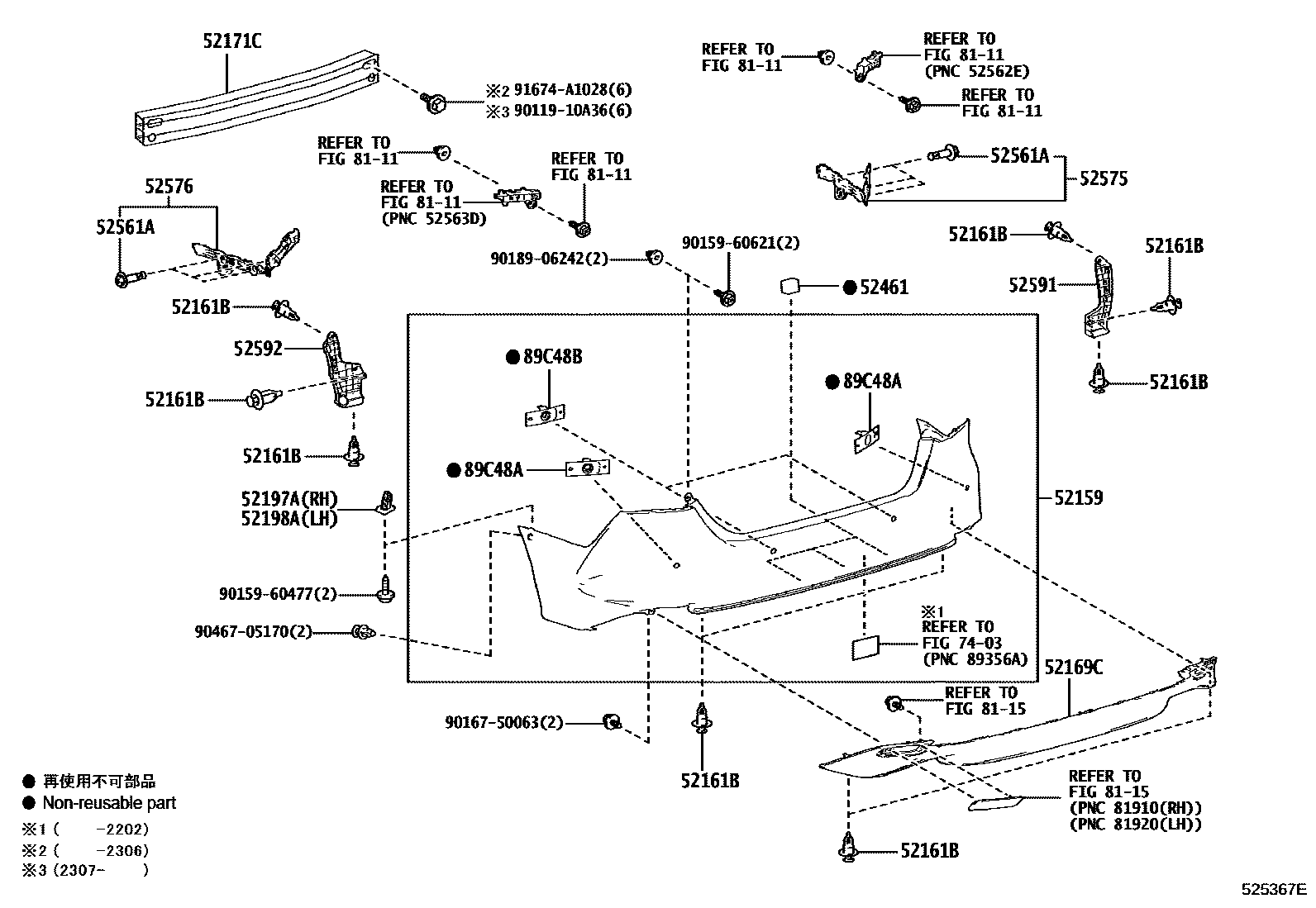

Toyota CAMRY 后保险杠及附件 EPC diagram — 525367E
后保险杠及附件 — 525367E (202102 – 999999)

PNC and OE references

PNCPart nameOE numbers
52161BRear bumper insert52161-16010
52165DToyota part52165-33010
52166BToyota part52166-33010
52169CRear bumper lower cover52169-33030
52171CToyota part52023-33060
52197ARear bumper right seal support52197-53040
52198ARear bumper left seal support52198-53020
52461Rear bumper center lining52462-30090 · 52462-33060
52461Frear bumper lining52462-33050
52462Rear bumper right side lining52462-33060
52463Rear bumper left lining52463-33100
52561AClip (for rear bumper mount)90467-09237
52575Rear bumper right side fixing bracket52575-33130
52576Rear bumper left side fixing bracket52576-33130
52591Rear bumper right seal52591-33040
52592Rear bumper left seal52592-33040
52723Rear bumper right extension protection strip52723-33010
52724Rear bumper left extension protection strip52724-33010
89C48AToyota part89348-33130
89C48BToyota part89348-33130
