Toyota CAMRY 前保险杠及附件 — Figure 5201

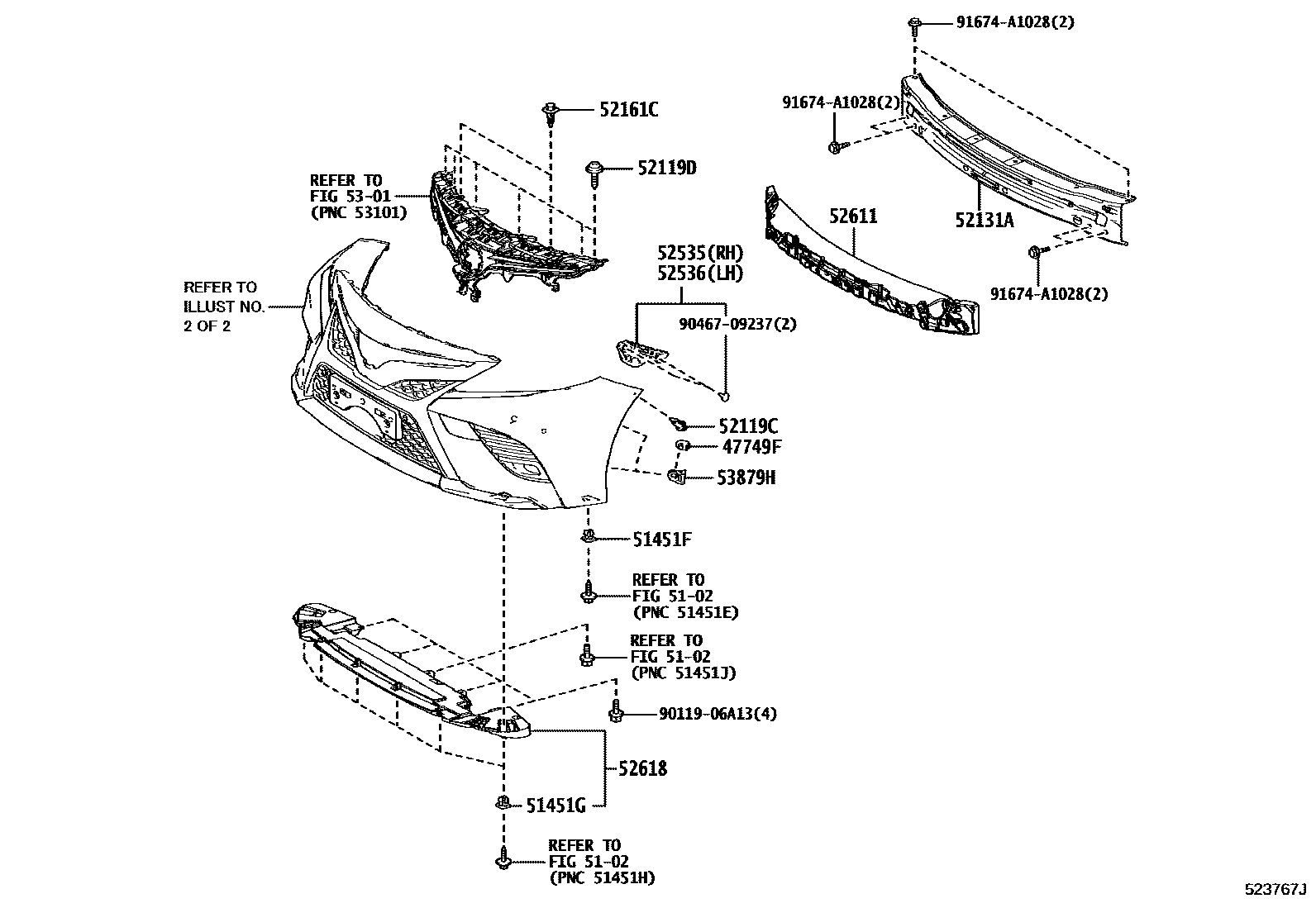

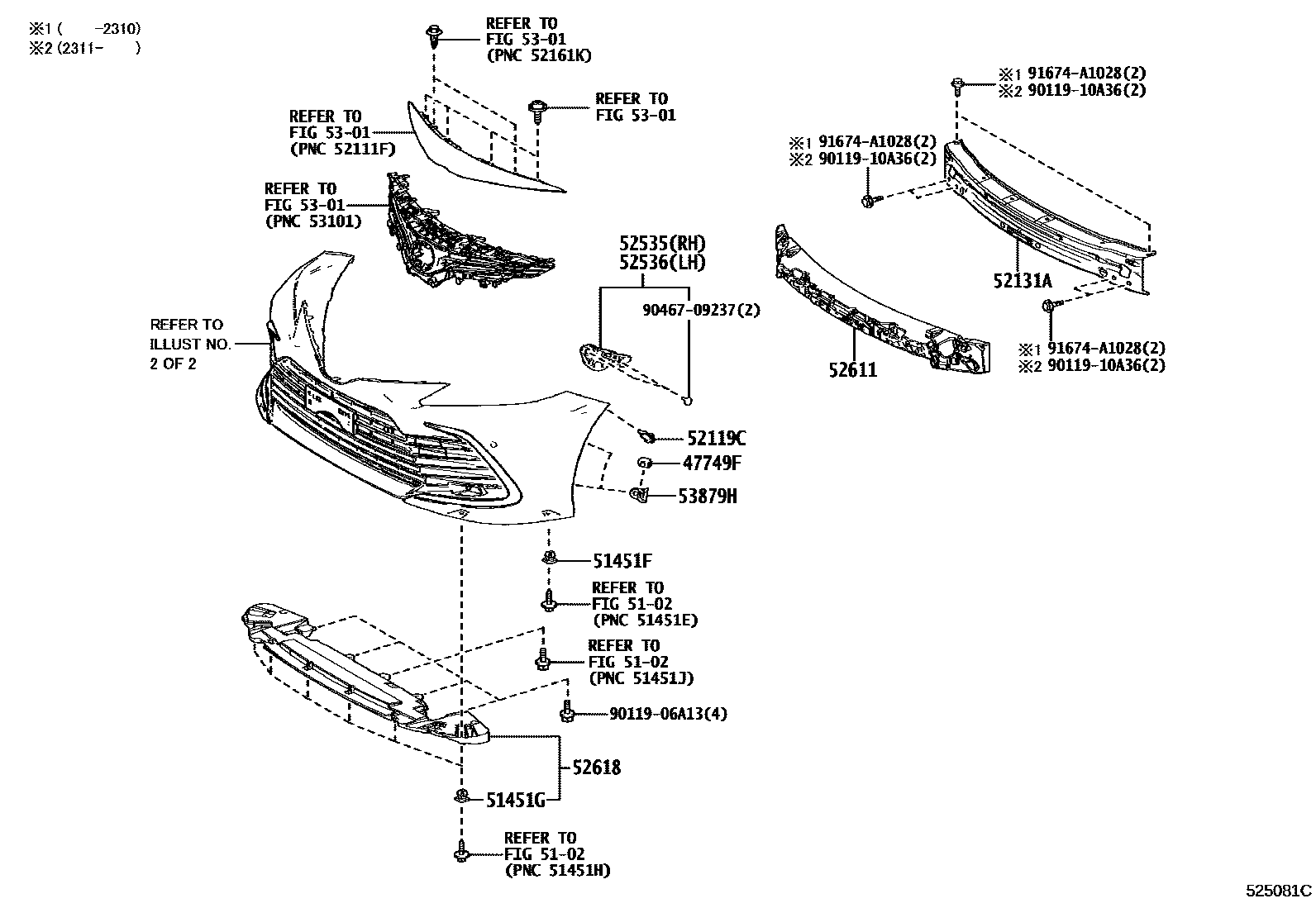

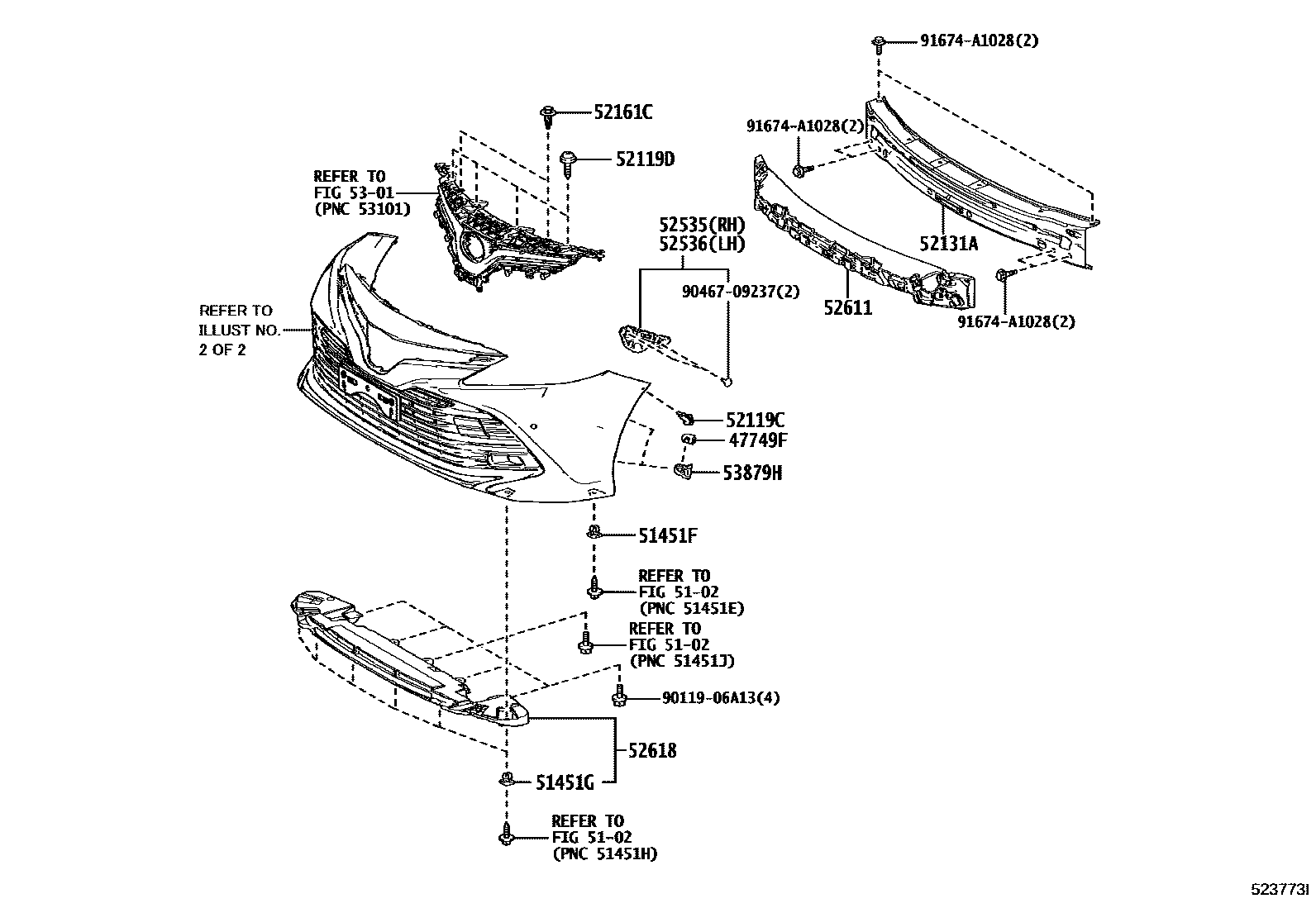

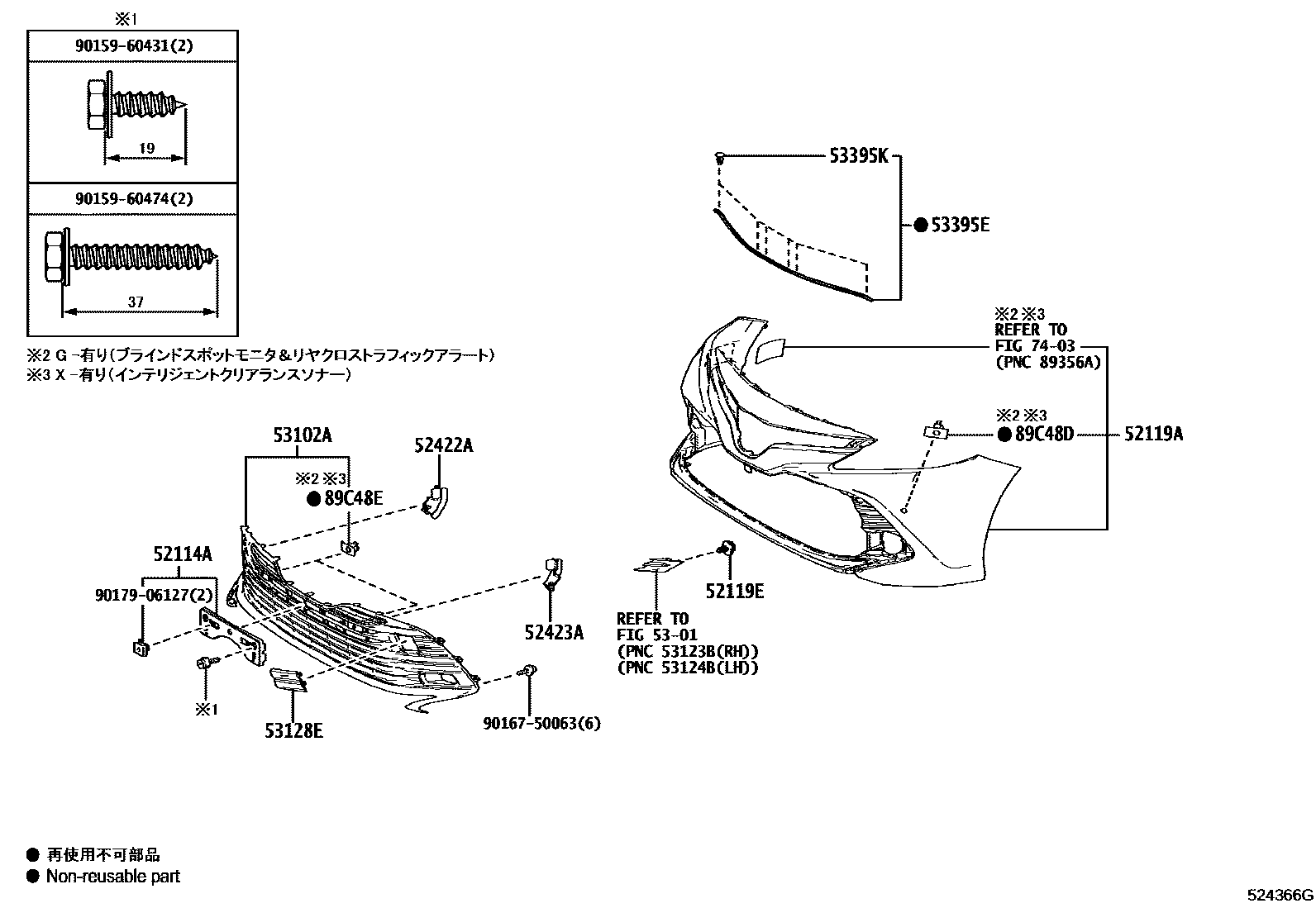

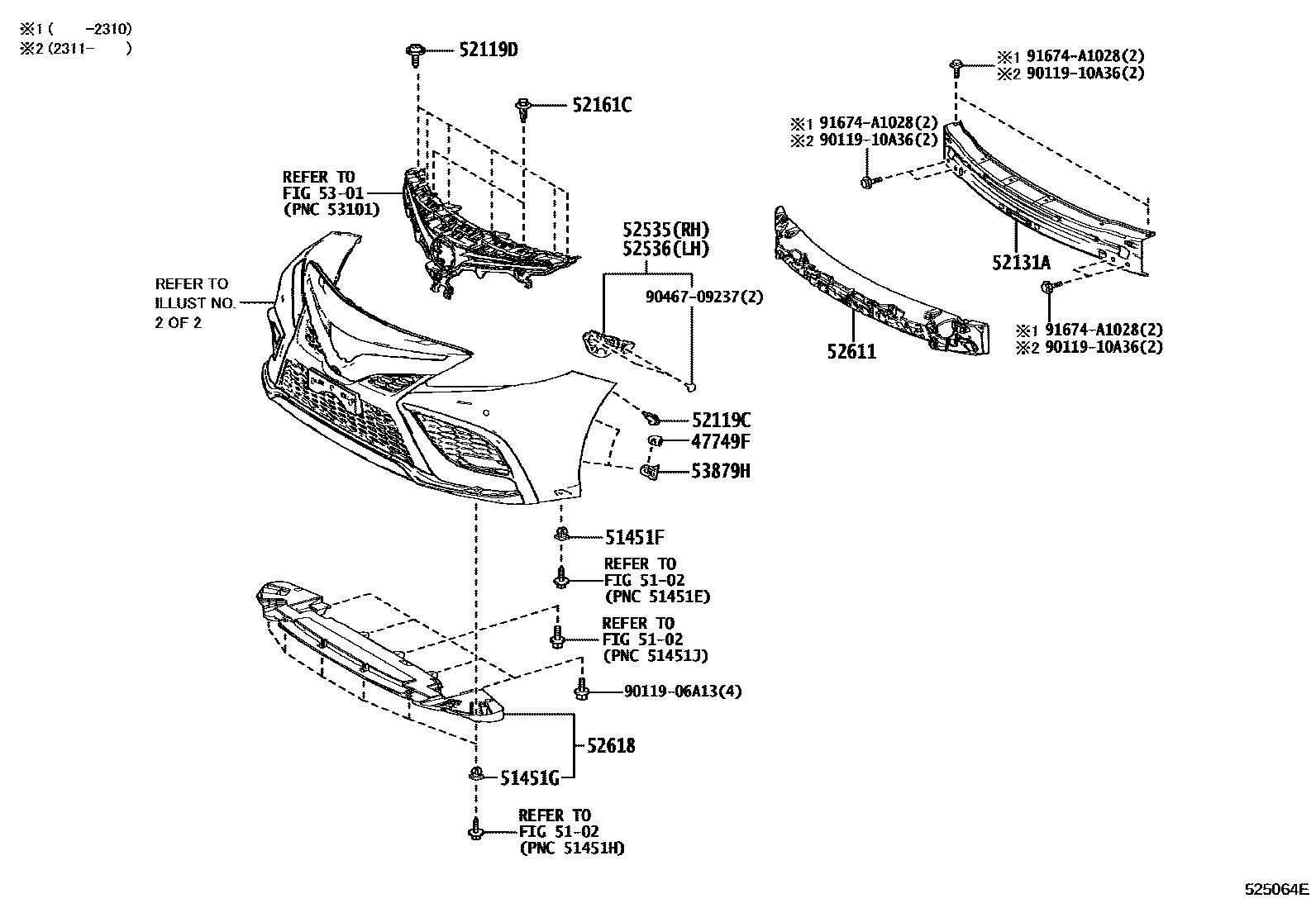

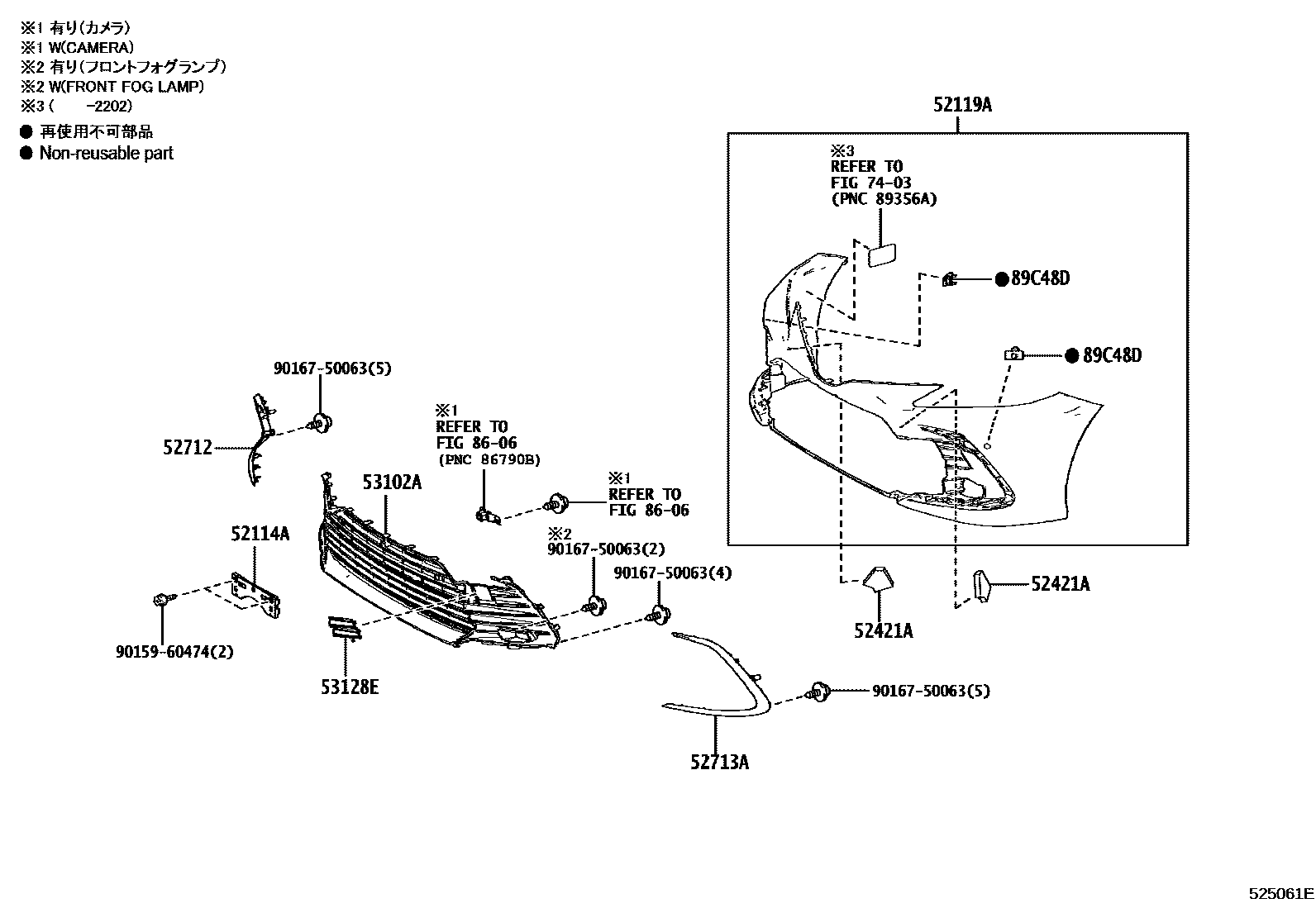

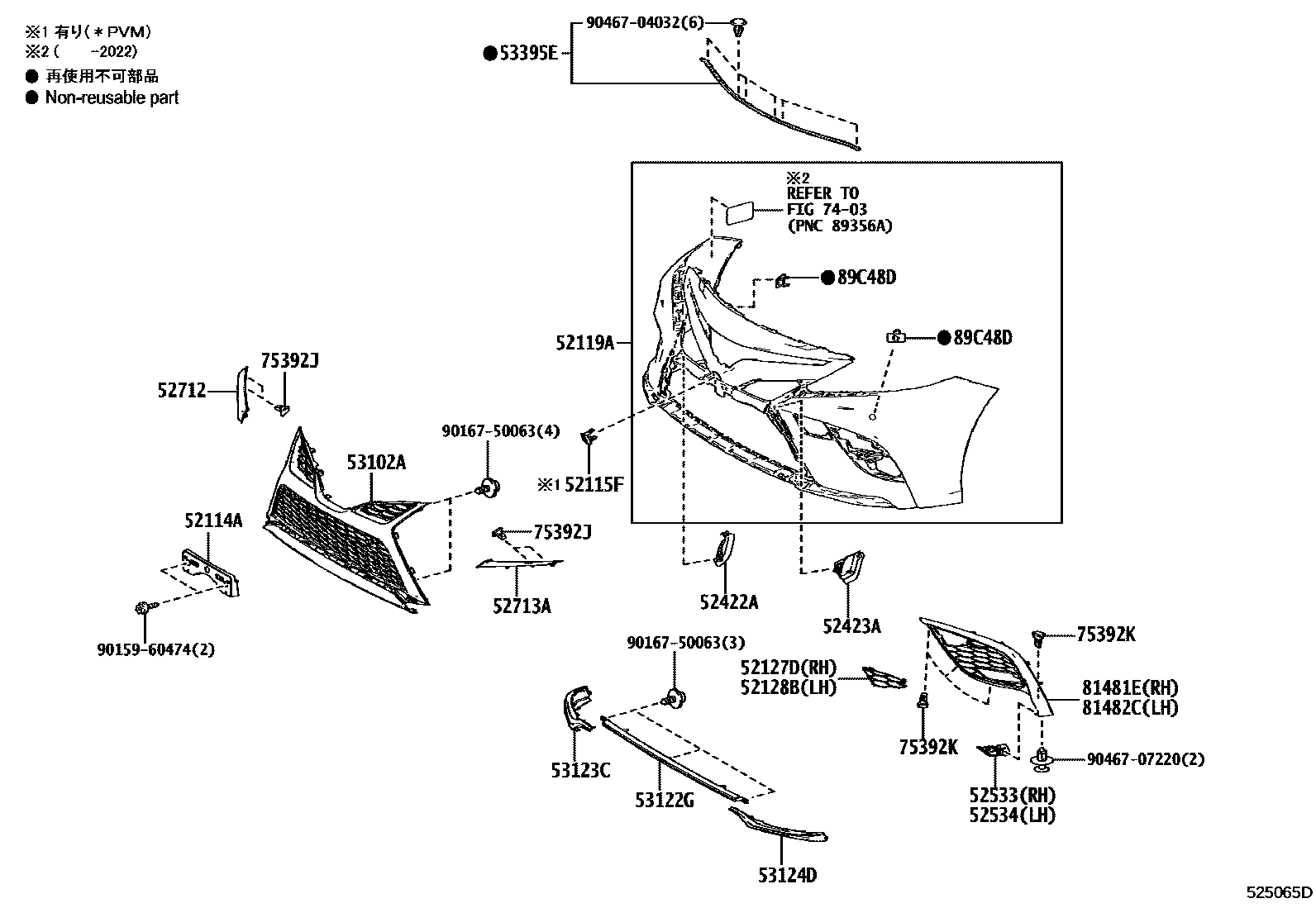

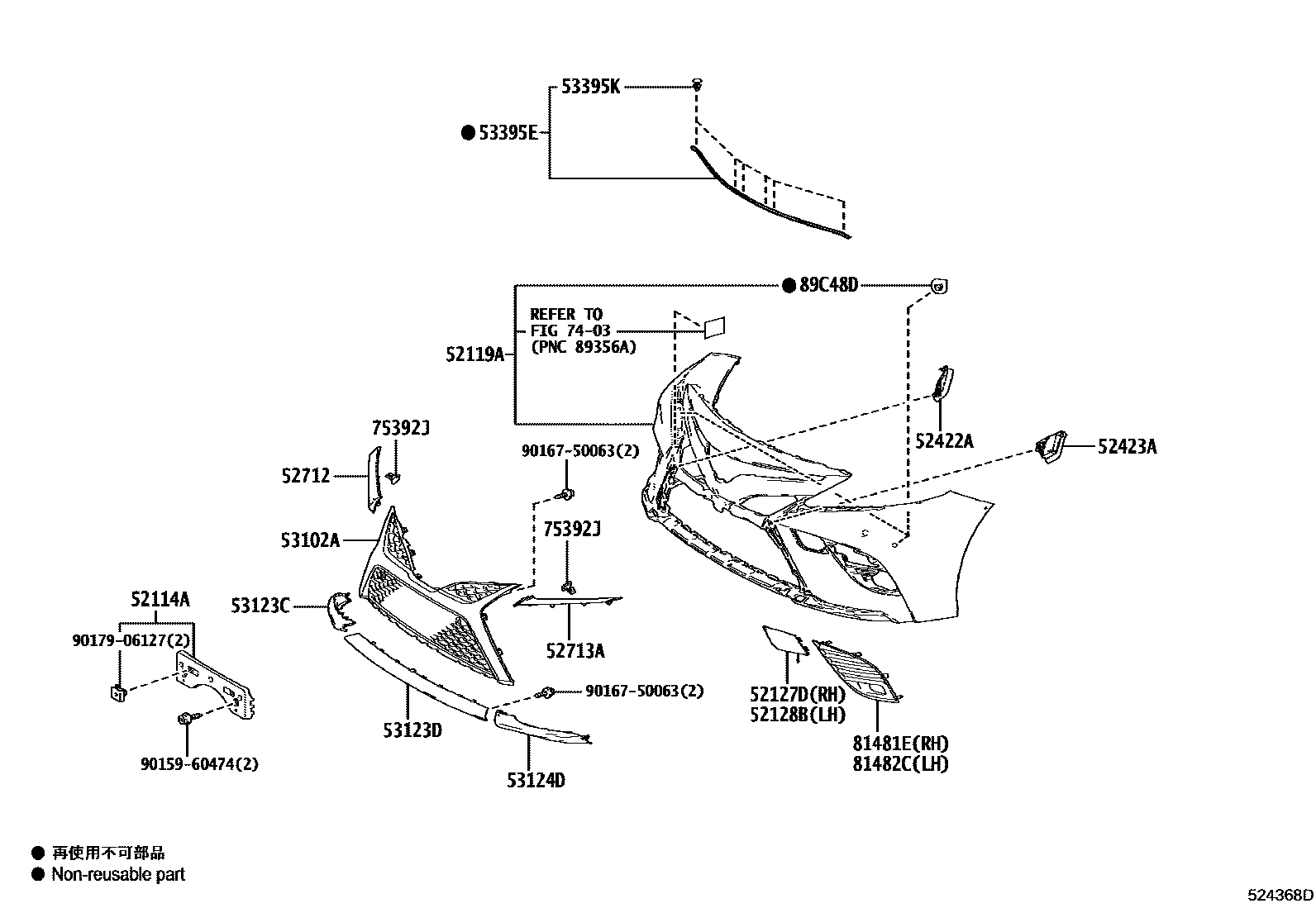

Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 8 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | Toyota part | 47749-33030 |
| 51451F | Toyota part | 90189-06237 |
| 51451G | Toyota part | 90189-06237 |
| 52114A | Front bumper extension mounting bracket | 52114-33420 · 52114-33460 · 52114-33610 · 52114-33620 |
| 52119C | Toyota part | 90467-05170 |
| 52119D | Toyota part | 90167-50063 |
| 52119E | Toyota part | 90167-50063 |
| 52127D | Front bumper right hole cover | 52127-33170 |
| 52128B | Front bumper left hole cover | 52128-33280 |
| 52131A | Front bumper reinforcement | 52131-33180 · 52131-33181 |
| 52161C | front bumper insert | 52161-16010 |
| 52421A | front bumper lining | 52421-33010 |
| 52422A | Front bumper right side lining | 52422-33010 · 52422-33020 |
| 52423A | Front bumper left lining | 52423-33010 · 52423-33020 |
| 52533 | Front bumper No. 1 fixed frame bracket | 52533-33040 |
| 52534 | Front bumper No. 2 fixed frame bracket | 52534-33030 |
| 52535 | Front bumper right side fixing bracket | 52535-33060 |
| 52536 | Front bumper left fixed bracket | 52536-33060 |
| 52611 | front bumper energy absorber | 52611-33300 · 52611-33360 |
| 52618 | Front bumper lower shock absorber | 52618-33060 · 52618-33110 |
| 52712 | Front bumper right side protective strip | 52712-33040 · 52712-33070 · 52712-33080 · 52712-33100 |
| 52713A | Front bumper left protective strip | 52713-33040 · 52713-33070 · 52713-33080 · 52713-33100 |
| 53102A | Toyota part | 53102-33060 · 53102-33070 · 53102-33170 · 53102-33240 · 53102-33250 · 53102-33470 · 53102-33520 · 53102-33560 |
| 53122G | Toyota part | 53122-33110 |
| 53123C | Radiator grille lower right protective strip | 53123-33040 · 53123-33150 |
| 53123D | Radiator grille lower protective strip | 53122-33050 · 53122-33130 |
| 53124D | Radiator grille lower left protective strip | 53124-33060 · 53124-33170 |
| 53128E | Toyota part | 53128-33030 · 53128-33040 · 53128-33130 |
| 53395E | Engine cover to front end plate seal | 53395-33030 · 53395-33040 |
| 53395K | Toyota part | 90467-04032 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 75392J | External protective strip fixings | 75392-35220 |
| 75392K | Toyota part | 75392-35220 |
| 81481E | Right fog light cover | 81481-33110 · 81481-33150 |
| 81482C | Left fog light cover | 81482-33110 · 81482-33140 |
| 89C48E | Toyota part | 89348-33150 · 89348-33160 |
