Toyota CAMRY 制动配管和卡箍 — Figure 4708

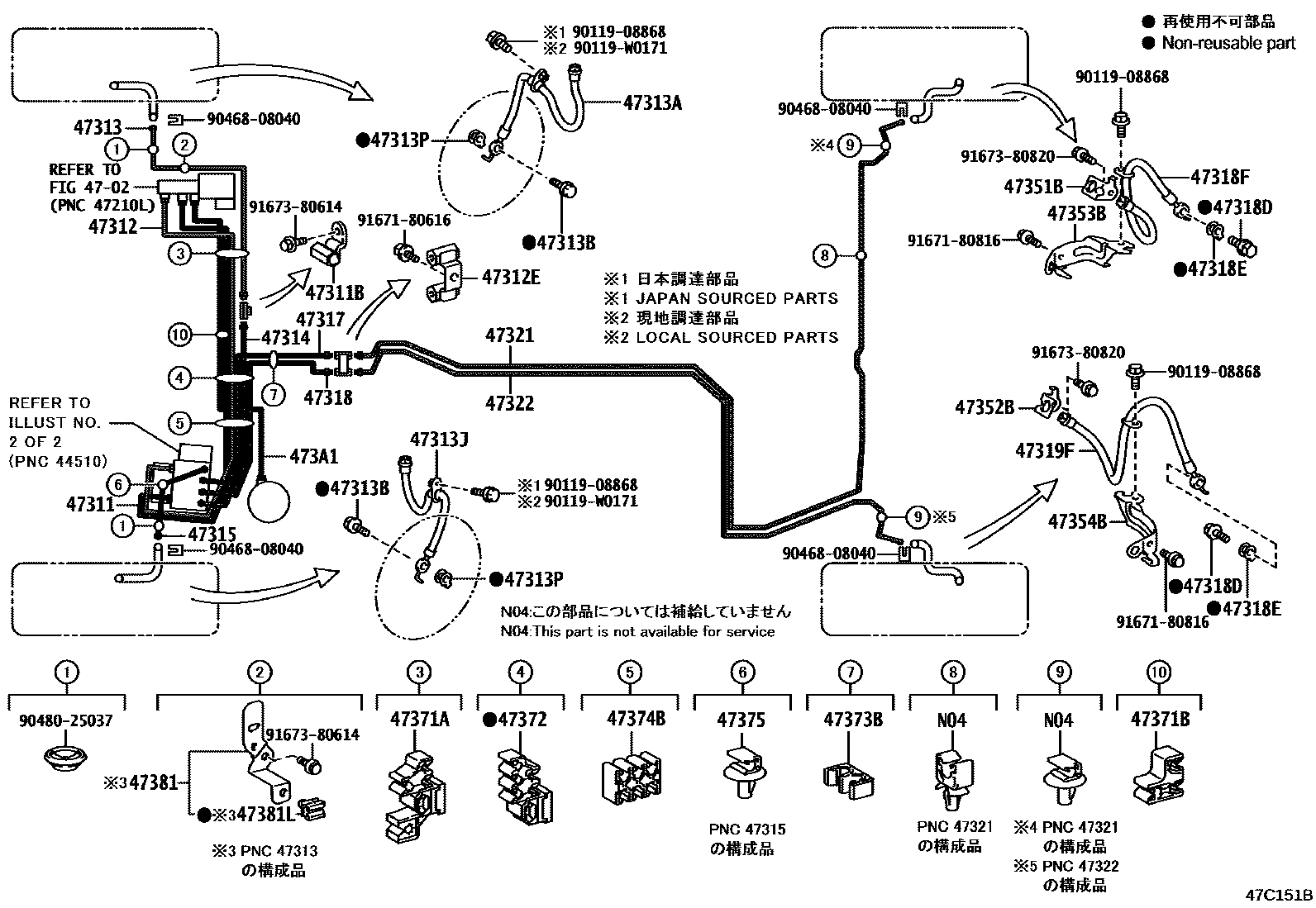

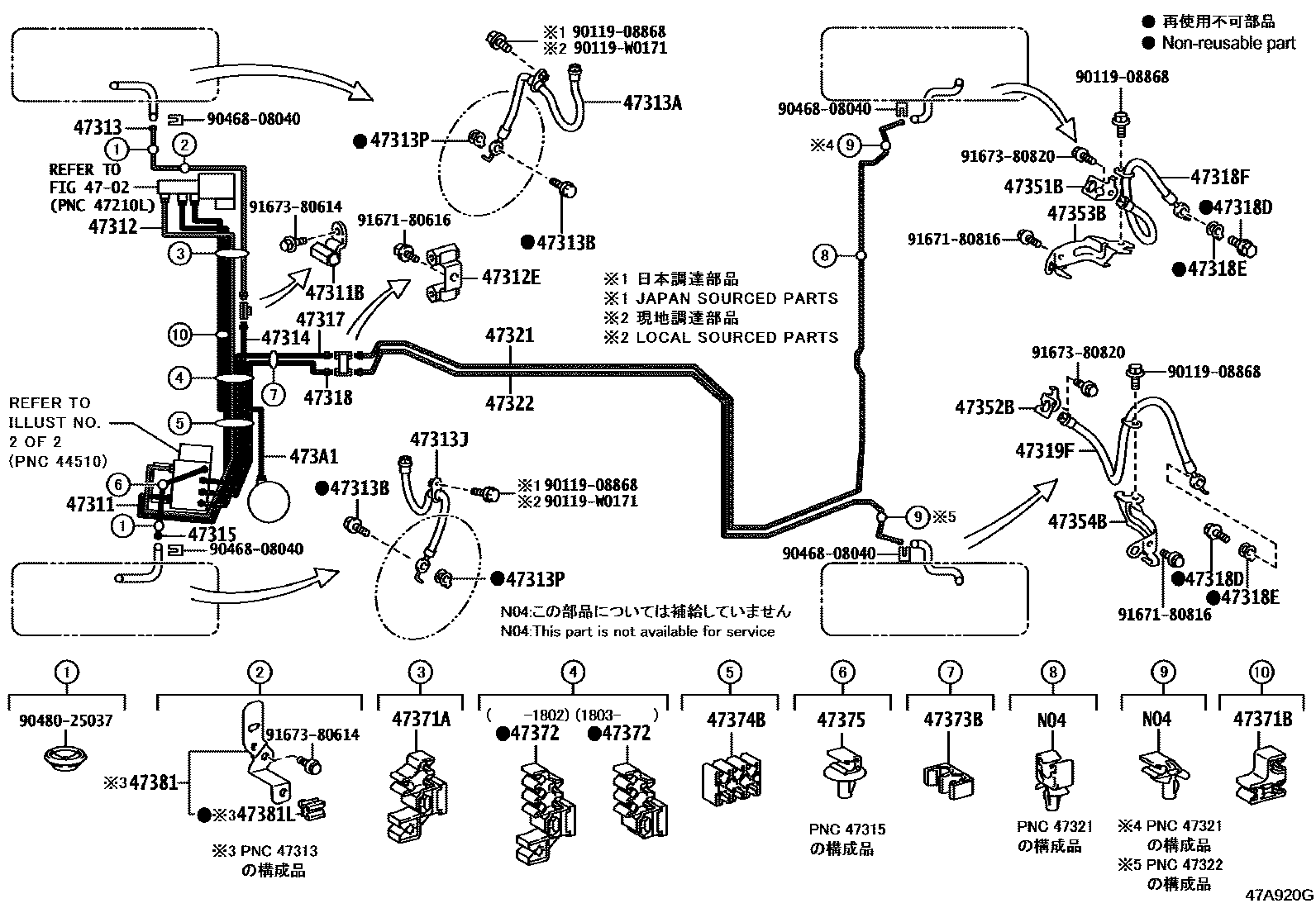

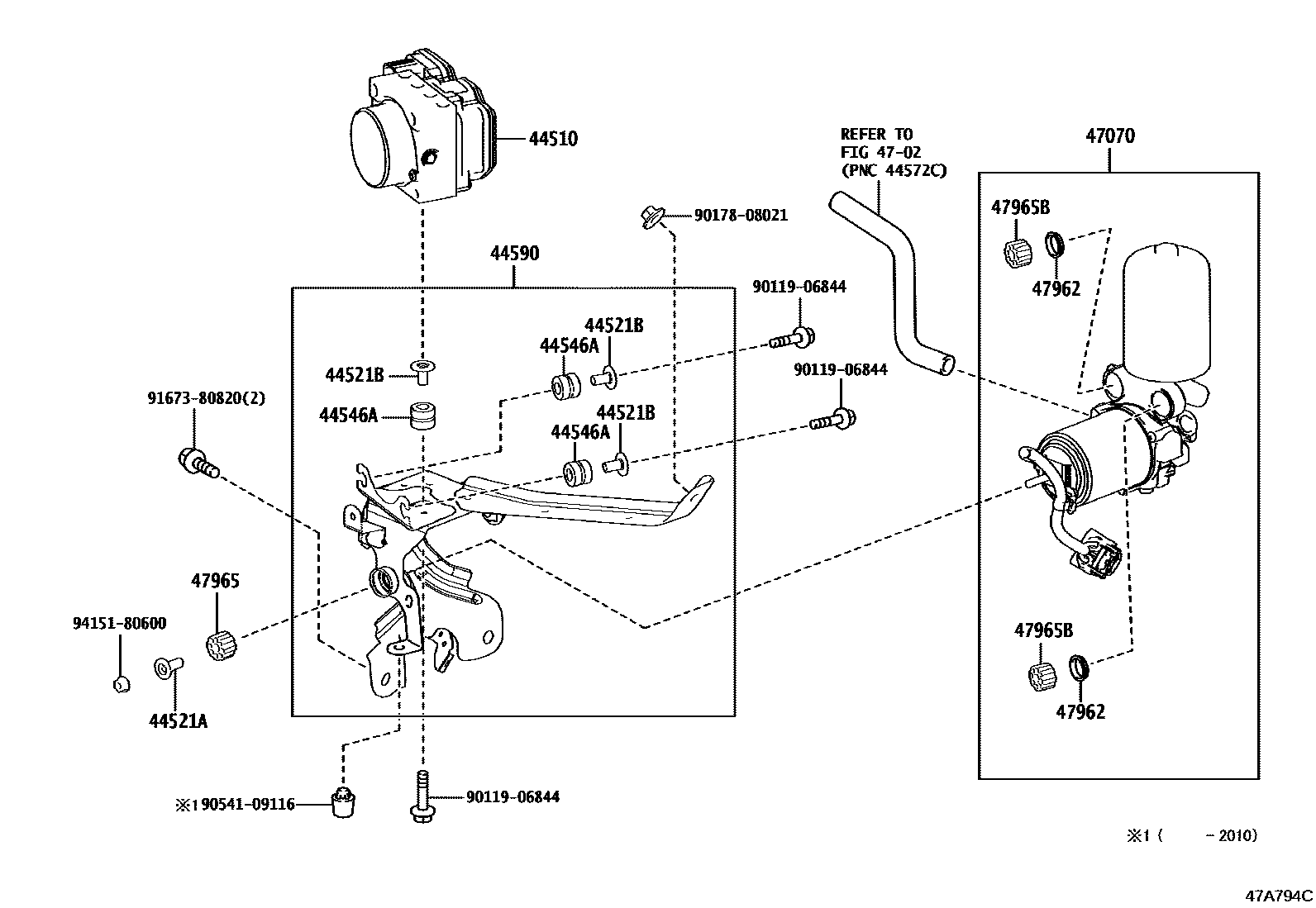

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 3 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-33490 · 44050-33650 · 44050-33A80 · 44050-33D80 |
| 44521A | Toyota part | 44521-47010 |
| 44521B | Toyota part | 44521-12050 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44590 | Brake actuator bracket assembly | 47940-33040 |
| 47070 | Brake booster pump assembly | 47070-33080 |
| 47311 | No. 1 front brake pipe | 47311-33430 · 47311-33431 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10272 |
| 47312 | No. 2 front brake pipe | 47312-33320 · 47312-33321 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10285 |
| 47313 | No. 3 front brake pipe | 47313-33340 · 47313-33341 |
| 47313A | No. 1 front flexible hose | 90947-02H65 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02H66 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-33350 · 47314-33351 |
| 47315 | No. 5 front brake pipe | 47315-33420 · 47315-33421 |
| 47317 | No. 7 front brake pipe | 47317-33450 · 47317-33451 |
| 47318 | No. 8 front brake pipe | 47318-33150 · 47318-33151 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-02H69 |
| 47319F | Left rear flexible hose | 90947-02H70 |
| 47321 | No. 1 rear brake pipe | 47321-33230 · 47321-33231 · 47321-33260 |
| 47322 | No. 2 rear brake pipe | 47322-33200 · 47322-33201 · 47322-33230 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-47030 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-47030 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-10110 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-10060 |
| 47371A | No. 1 brake pipe clamp | 90949-01E38 |
| 47371B | No. 6 brake pipe clamp | 47371-33370 |
| 47372 | No. 2 brake pipe clamp | 90949-01E39 · 90949-01E63 |
| 47373B | No. 3 brake pipe clamp | 90464-00904 |
| 47374B | No. 4 brake pipe clamp | 90949-01D99 |
| 47375 | No. 5 brake pipe clamp | 90949-01D17 |
| 47381 | No. 1 brake pipe clamp bracket | 47371-33340 |
| 47381L | No. 3 brake pipe clamp bracket | 90949-01D56 |
| 473A1 | Toyota part | 473A1-33020 · 473A1-33050 · 473A1-33051 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47965B | Toyota part | 47965-30010 |
