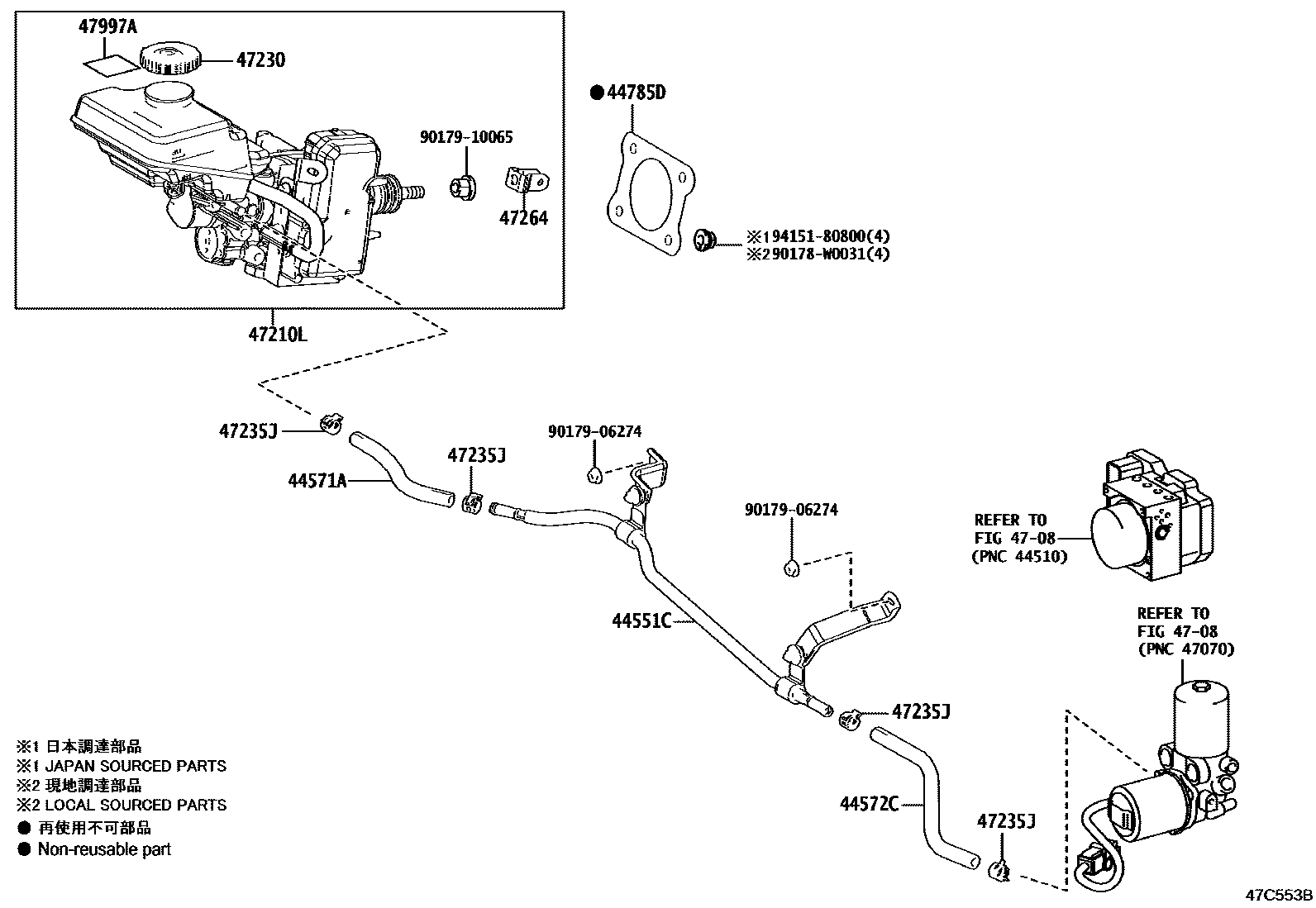

Toyota CAMRY 制动总泵 — Figure 4702
Toyota CAMRY EPC diagram 4702, 制动总泵, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-33090 |
| 44571A | No. 1 brake actuator hose | 44571-33160 |
| 44572C | No. 2 brake actuator hose | 44572-33040 |
| 44785D | brake master cylinder gasket | 44785-05020 · 44785-12040 |
| 47210L | Brake booster assembly with master cylinder | 47050-33400 · 47050-33520 · 47050-33560 · 47050-33590 · 47050-33740 · 47050-33741 · 47050-33760 · 47050-33761 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-33330 · 47230-47090 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 96137-41501 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
