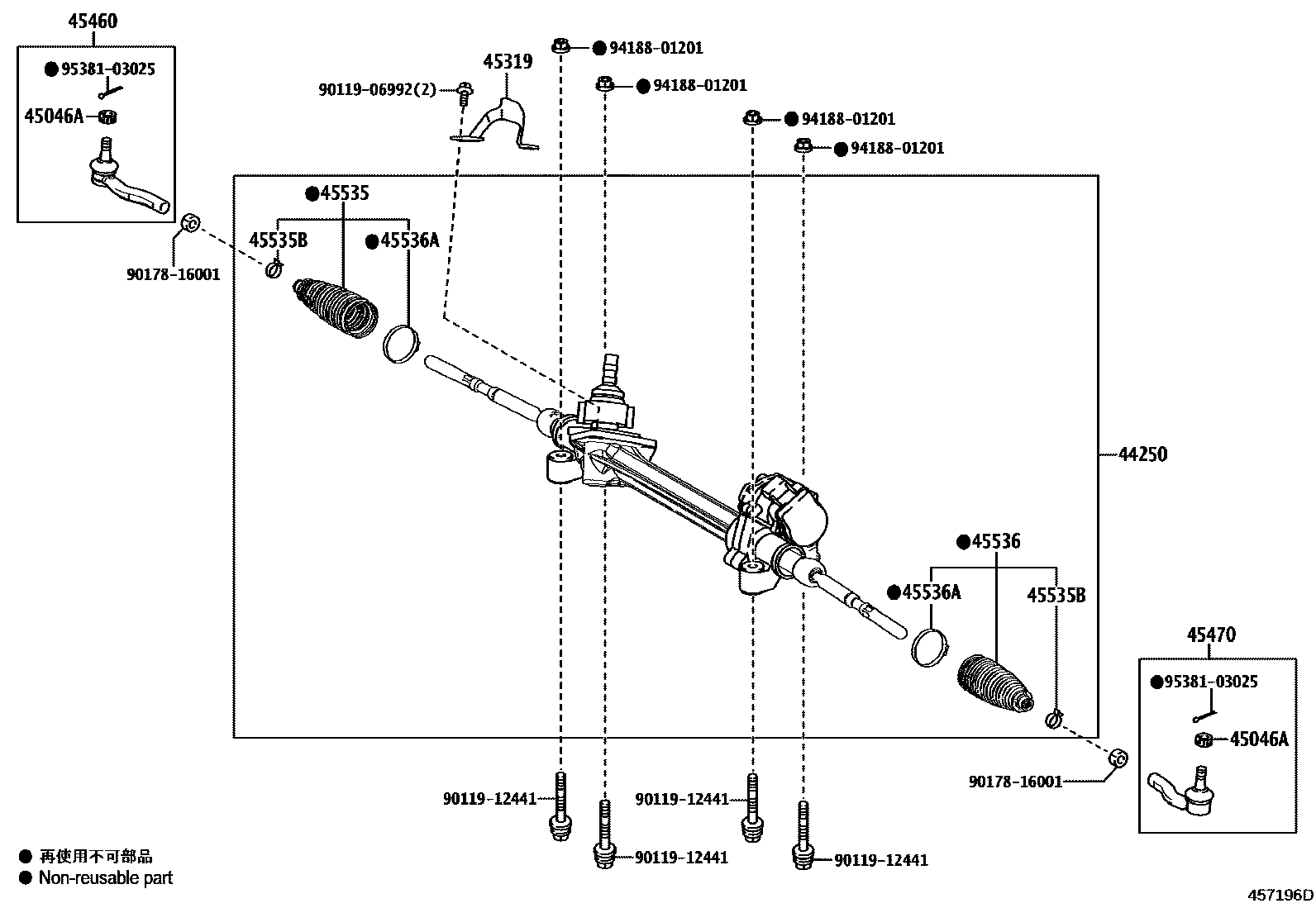

Toyota CAMRY 前转向齿轮和连杆 — Figure 4505
Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-33640 · 44250-33641 · 44250-33642 · 44250-33650 · 44250-33651 · 44250-33652 · 44250-33660 · 44250-33661 · 44250-33662 · 44250-33790 · 44250-33791 · 44250-33792 · 44250-33860 · 44250-33861 · 44250-33870 · 44250-33871 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45319 | Steering gear heat insulation pad | 45319-33030 |
| 45460 | Right tie rod assembly | 45460-80008 |
| 45470 | Left tie rod assembly | 45470-39365 |
| 45535 | No. 1 steering rack dust cover | 45535-29025 |
| 45535B | Clamp (for steering rack dust boot) | 90467-19021 |
| 45536 | No. 2 steering rack dust cover | 45535-29025 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-06030 |
