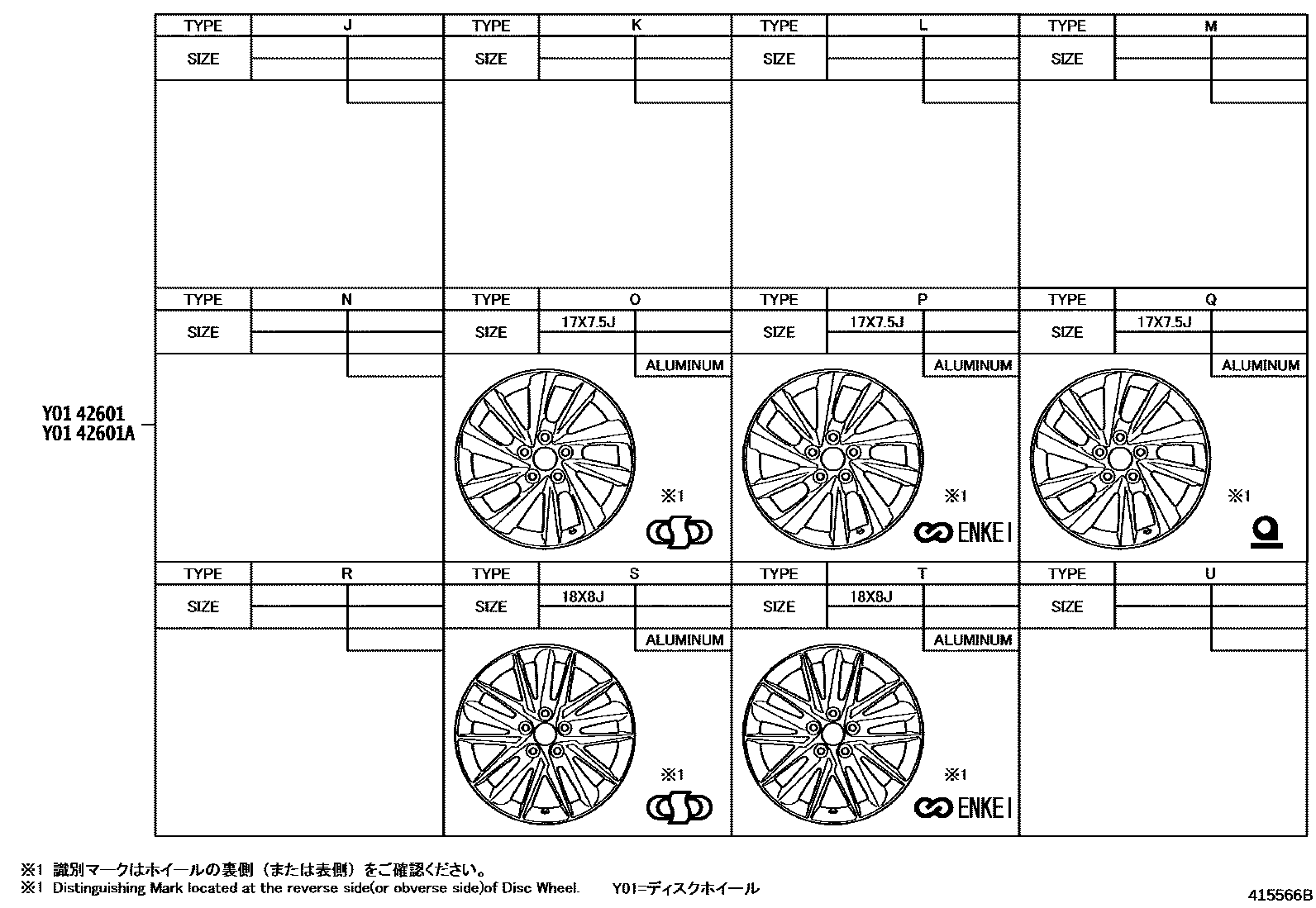

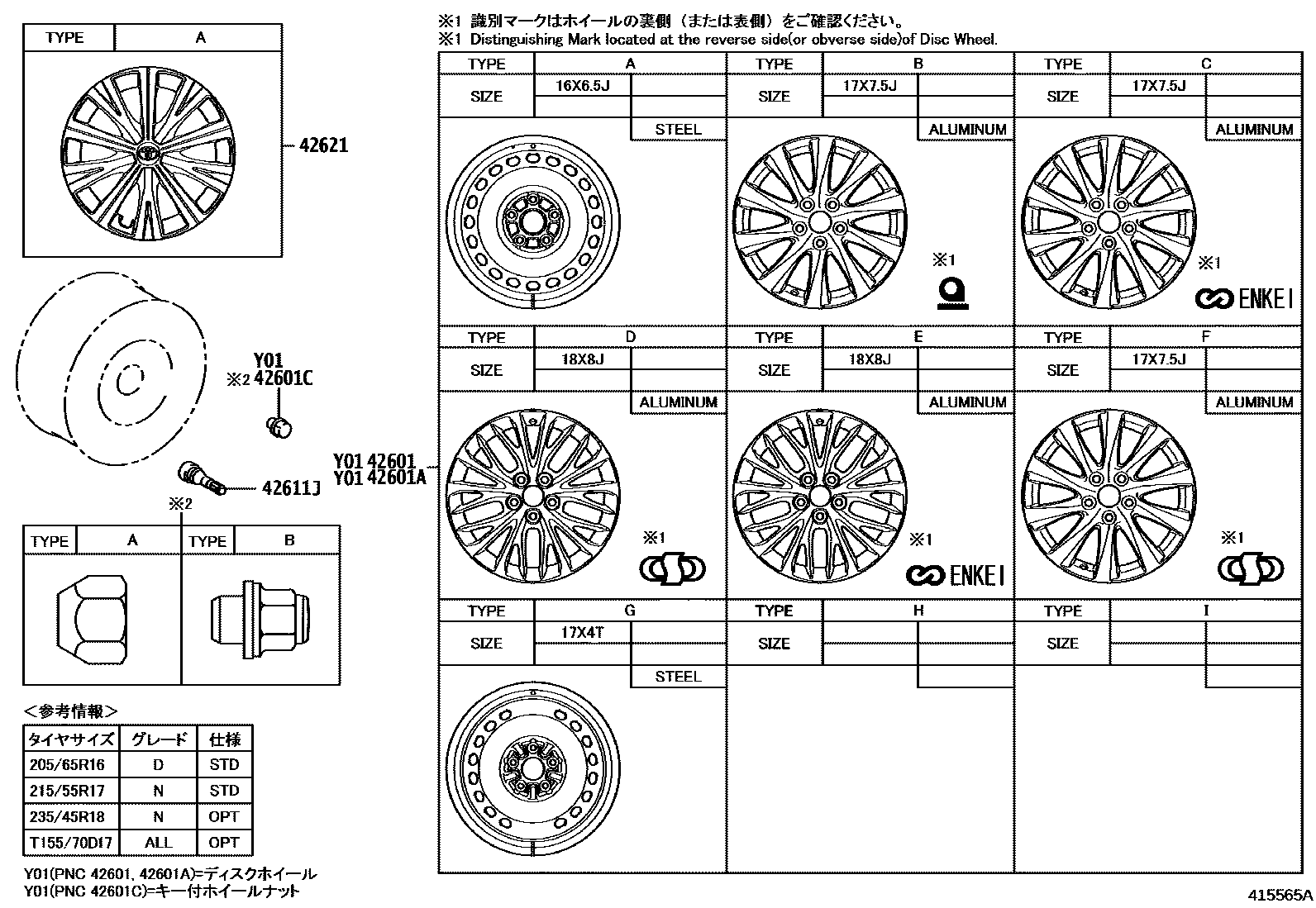

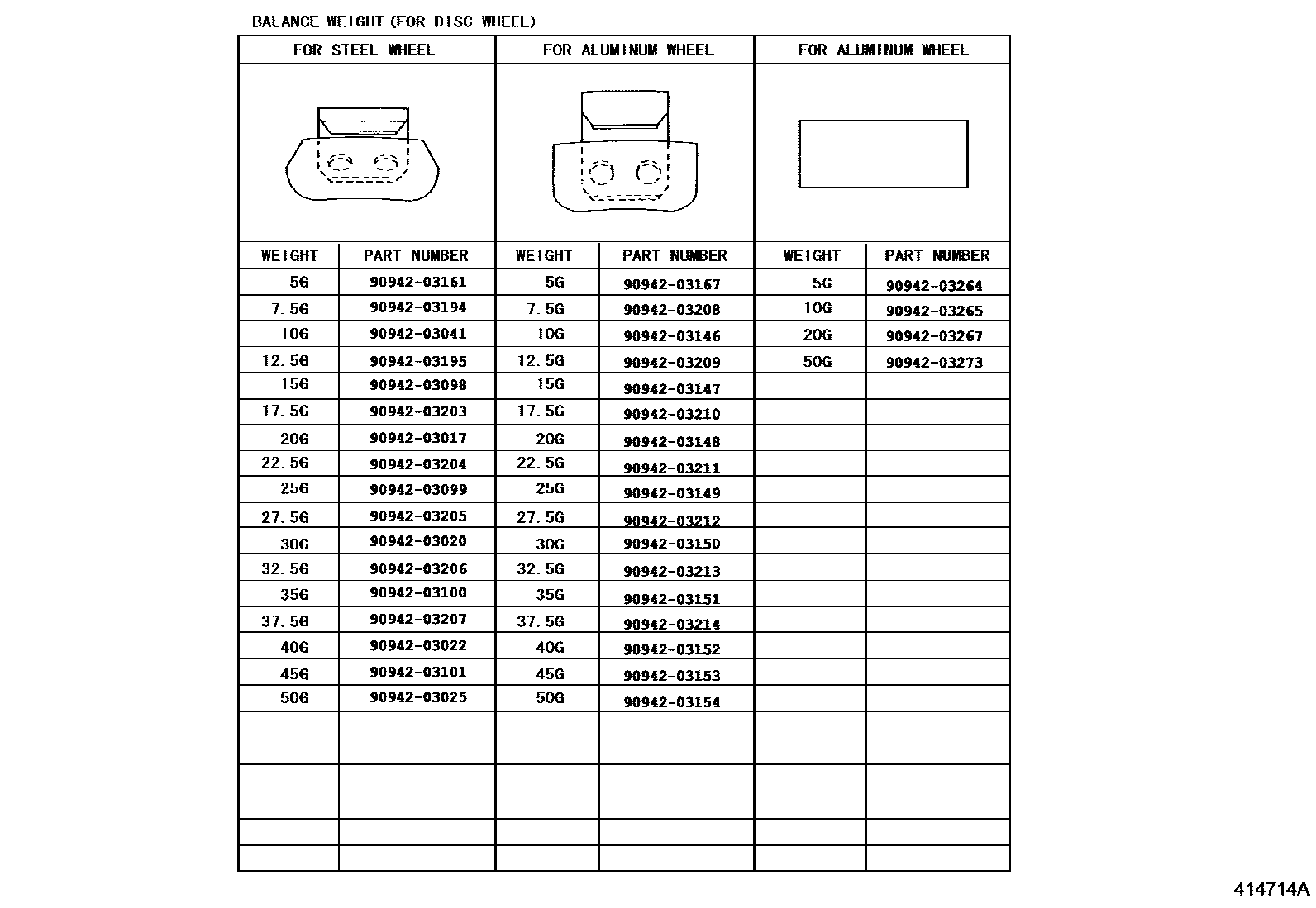

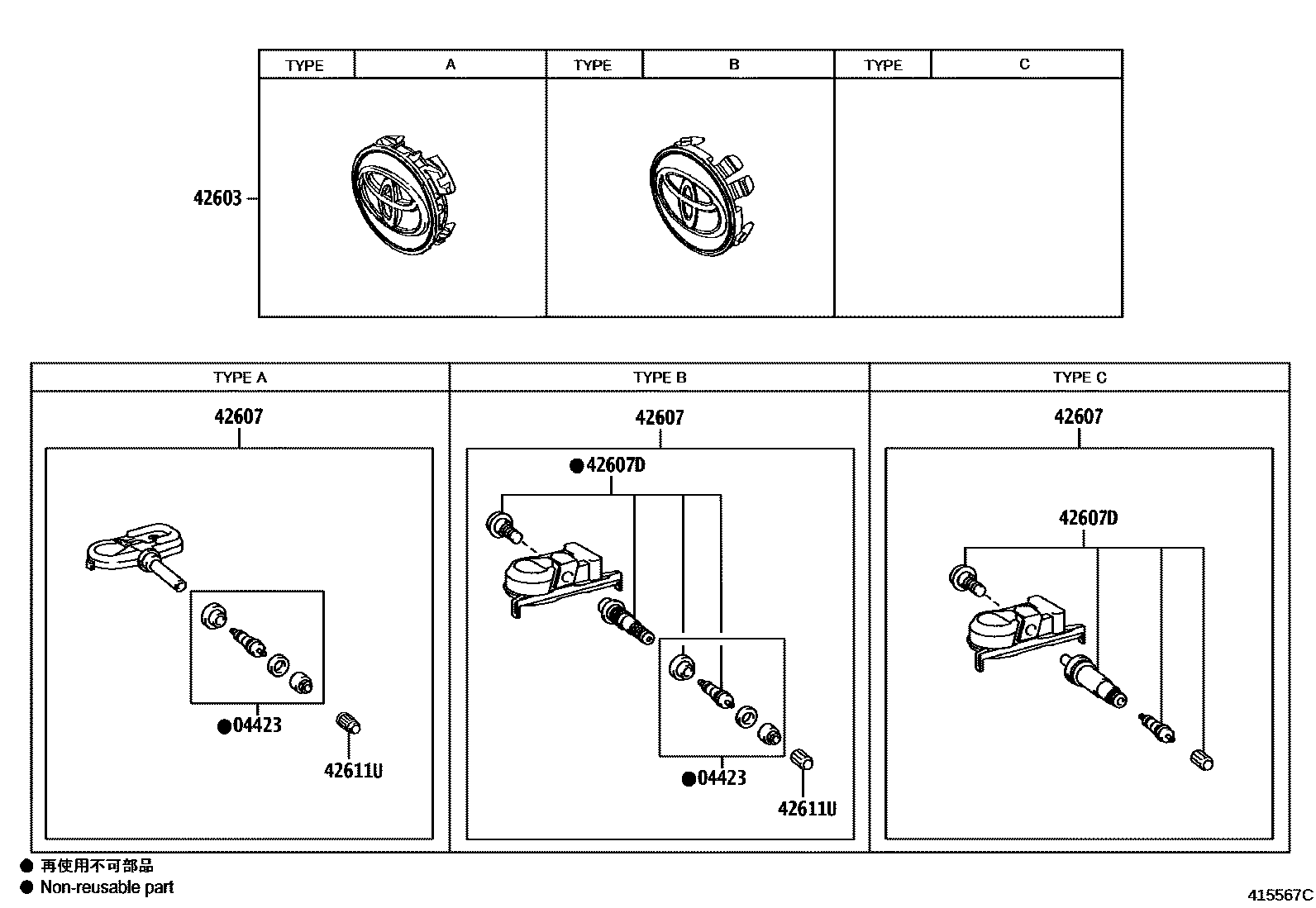

Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 42601 | spoke wheel | 42611-33830 · 42611-33B80 · 42611-33B81 · 42611-33C00 · 42611-33C10 · 42611-33C40 · 42611-33C60 · 42611-33C90 · 42611-33D10 · 42611-33D30 · 42611-33E00 · 42611-33E10 · 42611-33F10 · 42611-33F20 · 42611-33F30 · 42611-33F40 · 42611-33J10 |
| 42601A | Spoke wheel (for spare tire) | 42611-33E20 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-42130 · 42603-48140 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12010 · 42607-19005 · 42607-39005 |
| 42607D | Toyota part | 90942-05043 · 90942-05044 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42621 | wheel cover | 42602-33190 |
