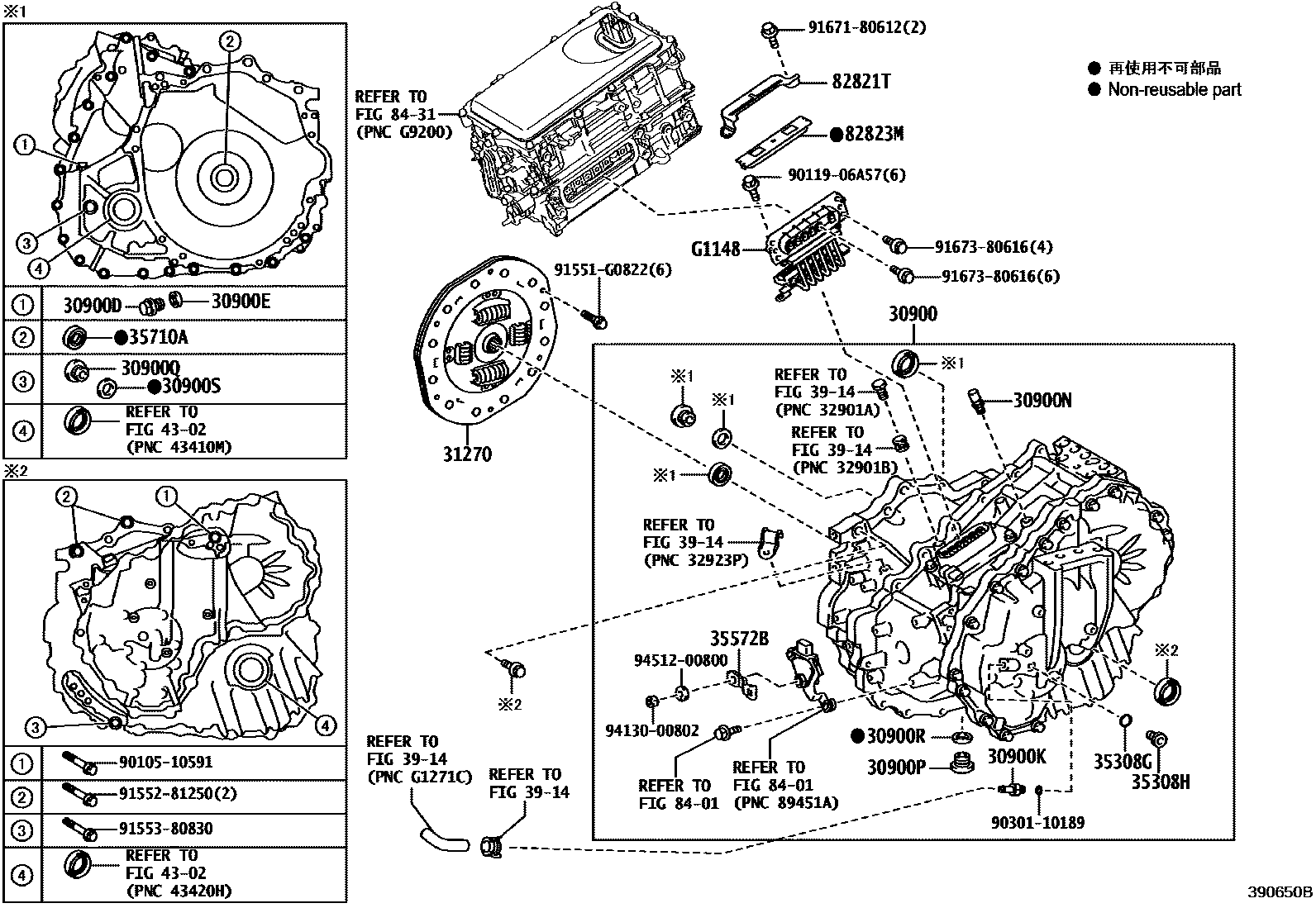

Toyota CAMRY HV或FCV传动桥总成 — Figure 3901
Toyota CAMRY EPC diagram 3901, HV或FCV传动桥总成, with 4 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-33100 · 30900-33110 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900K | Pipe connector (for transaxle housing) | 90404-13010 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | Toyota part | 90341-18016 |
| 30900Q | Toyota part | 90341-18016 |
| 30900R | Toyota part | 90430-18008 |
| 30900S | Toyota part | 90430-18008 |
| 30900T | Toyota part | 90930-03031 |
| 31270 | Transmission input damper assembly | 31270-33030 |
| 35308G | No. 2 O-ring (for transmission oil pump cover) | 90301-06196 |
| 35308H | Screw plug (for transmission oil pump cover) | 90341-08001 |
| 35572B | Transmission outer lever | 35572-33070 |
| 35710A | T-type oil seal (for input shaft) | 90311-27011 |
| 41196B | Toyota part | 41196-47010 |
| 41309E | Toyota part | 90311-38097 |
| 41309K | Differential side gear shaft sub-assembly | 41309-47020 · 41309-47021 |
| 41309L | Differential side gear shaft sub-assembly | 41309-47010 · 41309-47011 · 41309-47012 |
| 41309N | Toyota part | 90311-42056 |
| 41336L | dust cover | 41336-47020 |
| 41336M | dust cover | 41336-47010 |
| 41651G | Differential fixed cushion | 41651-48060 |
| 41653D | Differential fixed part upper stop | 41653-47010 |
| 41654B | Differential fixed part lower block | 41654-47010 |
| 52380F | Front differential bracket assembly | 52380-47010 |
| 82821T | Connector cover | 82821-47240 |
| 82823M | Terminal cover | 82823-47040 |
| G1050 | Rear traction motor assembly with transmission axle | G1050-47010 · G1050-47011 · G1050-47012 · G1050-47013 |
| G1050B | Toyota part | 90341-18023 |
| G1050C | Toyota part | 90341-18023 |
| G1050D | Toyota part | 90430-18008 |
| G1050E | Toyota part | 90430-18008 |
| G1143 | Motor cable bracket | G1143-33060 · G1143-76010 |
| G1148 | Motor cable | G1148-33050 |
| G1149 | Toyota part | G1149-33010 |
| G114D | Motor cable terminal cover | G114D-47021 |
