Toyota CAMRY Shift Lever & Retainer — Figure 3312

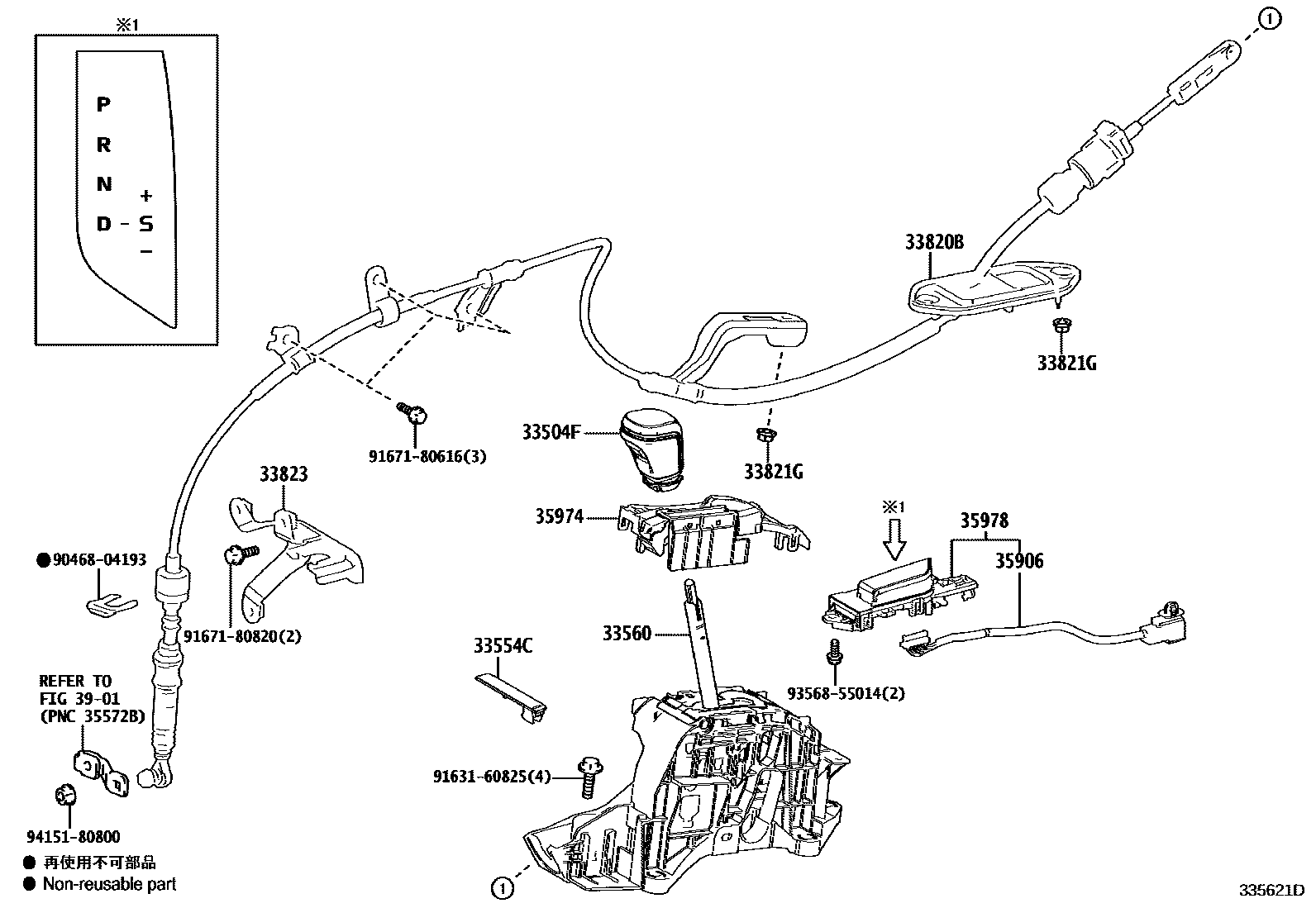

Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33554C | Shift lock release button cover | 33554-33180 |
| 33560 | Shift lock control unit assembly | 33560-33400 |
| 33820B | Transmission control cable assembly | 33820-33430 · 33820-33510 |
| 33821G | Nut (for transmission control cable) | 90179-06274 |
| 33823 | No. 1 transmission control cable bracket | 33823-33080 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-33210 |
| 35974 | Position indicator light lower shell | 35974-33250 |
| 35978 | Shift lever position indicator light | 35978-33210 |
