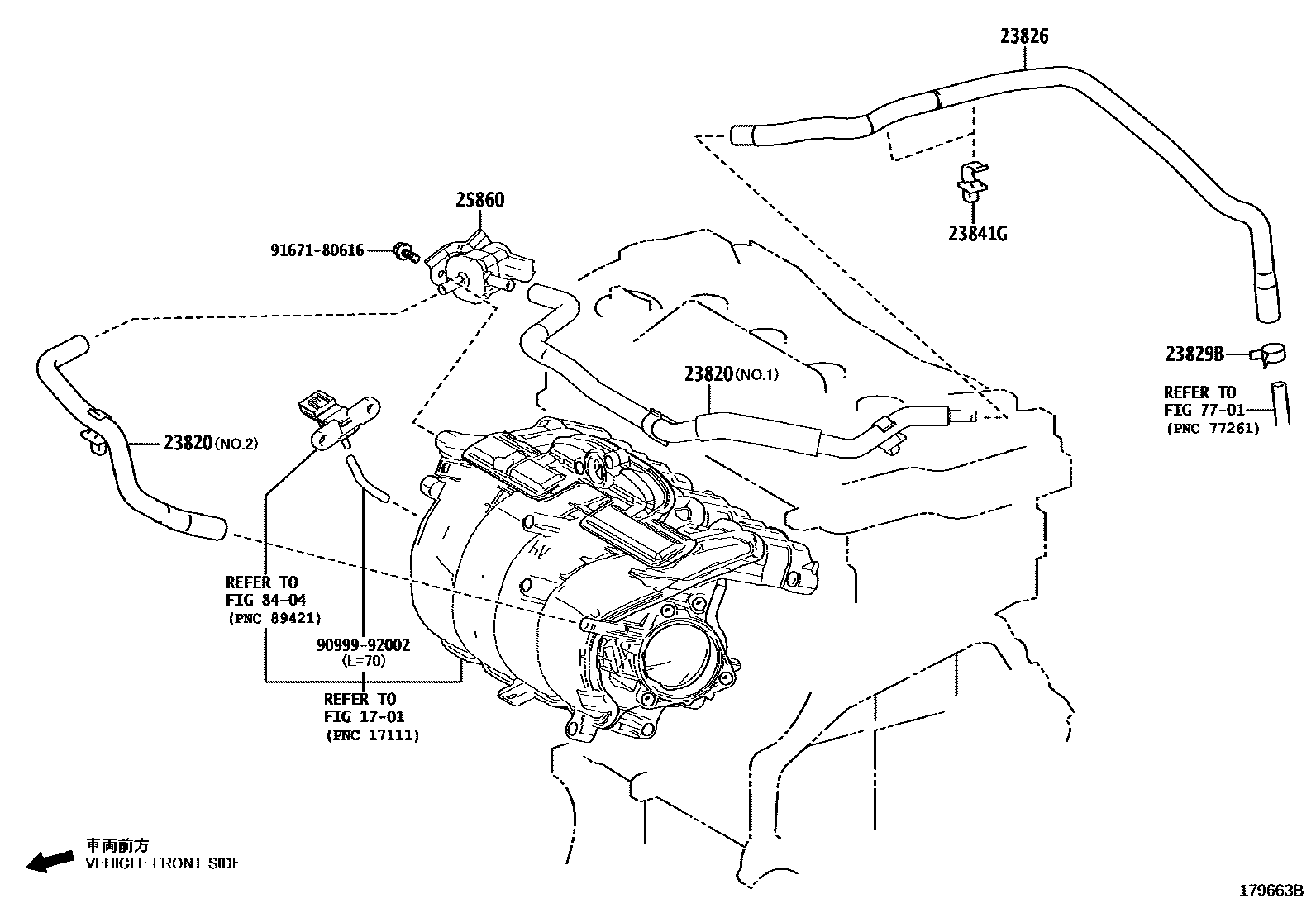

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23820 | Fuel vapor supply hose assembly | 23820-25051 · 23820-25130 · 23820-25150 · 23820-25160 |
| 23826 | No. 1 fuel vapor supply hose | 23826-25030 · 23826-25190 |
| 23829B | Clamp (for fuel vapor supply hose) | 96136-41901 |
| 23841G | fuel hose clamp | 77196-48010 · 77281-06010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-25020 · 25860-25070 |
