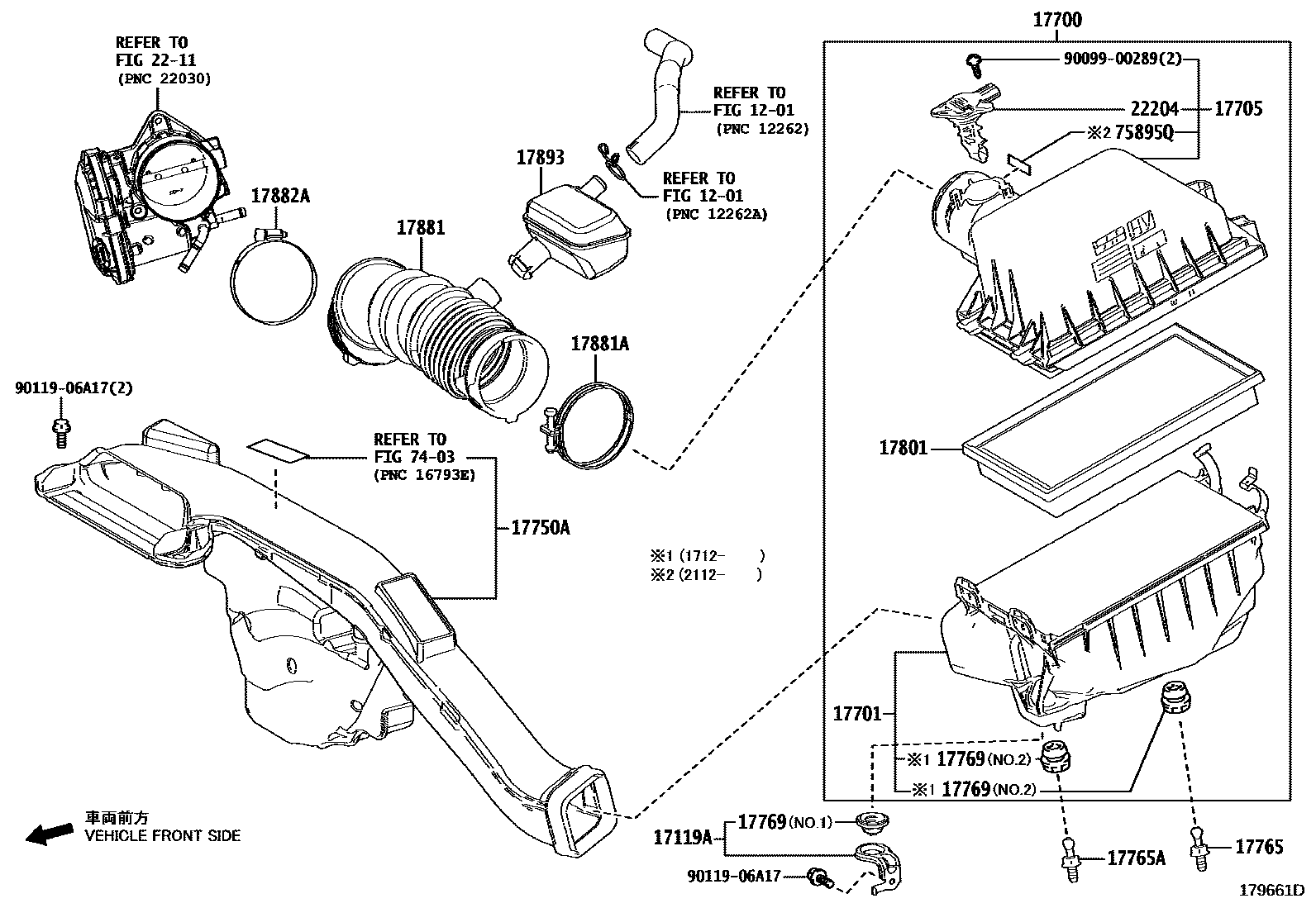

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-25010 |
| 17700 | air filter assembly | 17700-25100 · 17700-25101 |
| 17701 | Air filter housing sub-assembly | 17701-25080 · 17701-25081 |
| 17705 | Air filter cover sub-assembly | 17705-25070 |
| 17750A | Air filter air inlet assembly | 17750-25020 |
| 17765 | No. 1 air filter stay | 17765-25010 |
| 17765A | No. 1 air filter stay | 17765-25010 |
| 17769 | air filter bracket | 17769-25020 · 17769-25030 · 17769-38020 |
| 17801 | Air filter element sub-assembly | 17801-77050 |
| 17881 | No. 1 air cleaner hose | 17881-25030 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10850 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 17891-31010 |
| 17893 | Intake resonator | 17893-25010 |
| 22204 | Intake air flow meter assembly | 22204-75040 |
| 75895Q | Toyota part | 75895-52050 |
