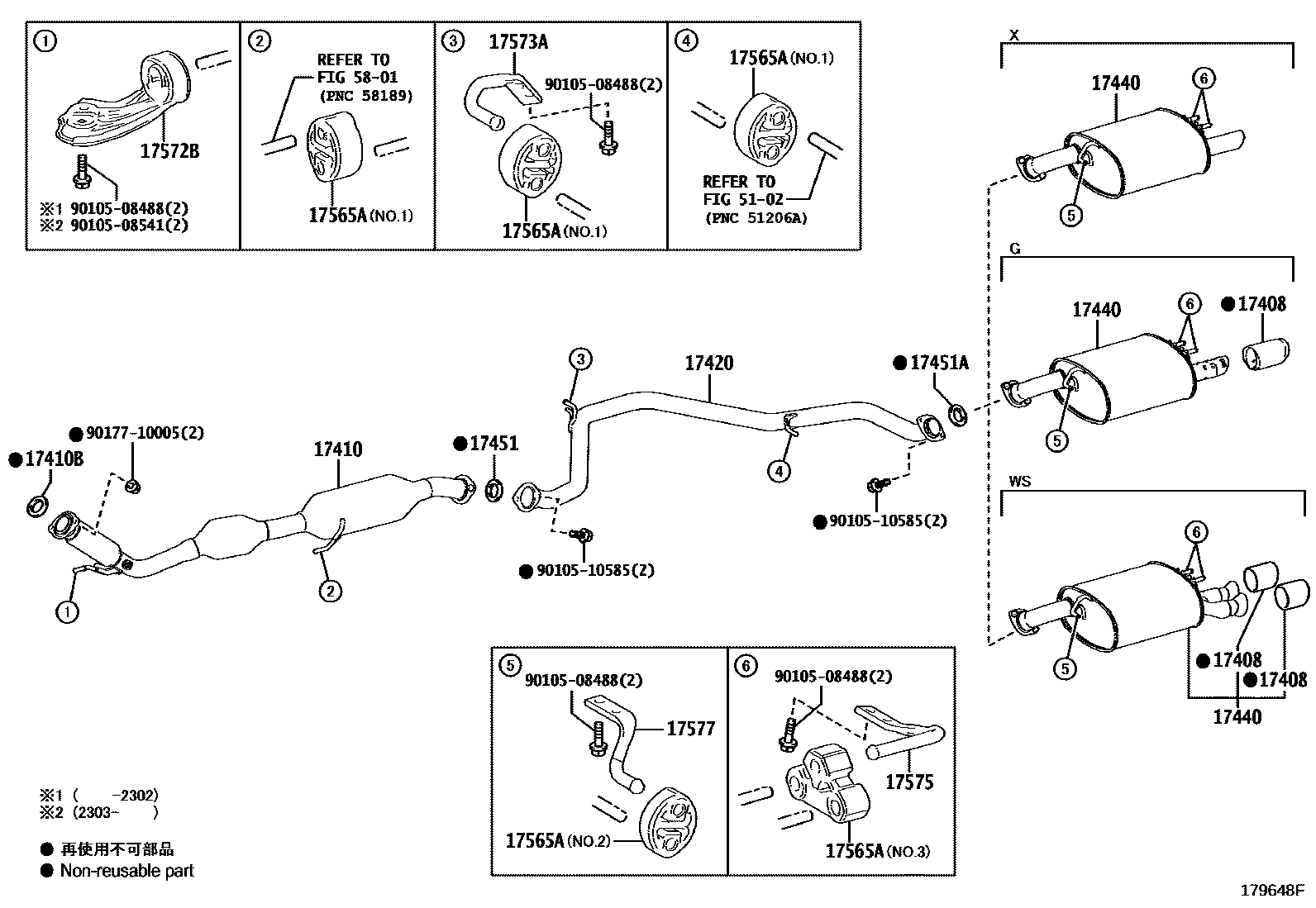

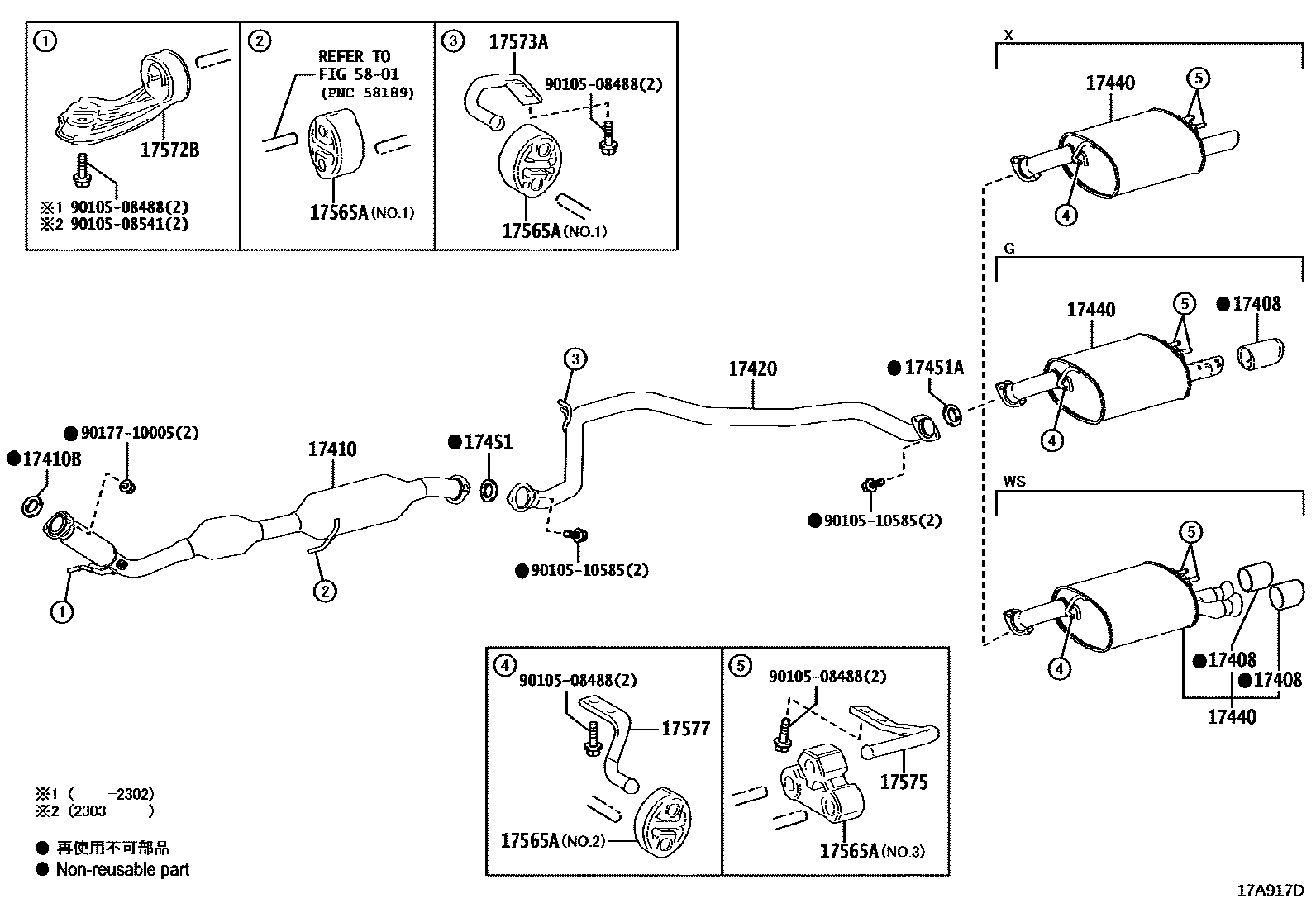

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-31080 · 17448-31160 |
| 17410 | Front exhaust pipe assembly | 17410-25130 |
| 17410B | Exhaust pipe gasket | 90917-06094 |
| 17420 | Central exhaust pipe assembly | 17420-25020 · 17420-25021 · 17420-25070 |
| 17440 | Left exhaust tailpipe | 17440-25010 · 17440-25020 · 17440-25030 |
| 17451 | Exhaust pipe gasket | 90917-06090 |
| 17451A | No. 2 exhaust pipe gasket | 90917-06078 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-22040 · 17565-31040 · 17566-25010 |
| 17572B | No. 2 exhaust pipe bracket | 17572-31150 |
| 17573A | No. 3 exhaust pipe bracket | 17573-25010 |
| 17575 | No. 5 exhaust pipe bracket | 17575-31160 |
| 17577 | No. 7 exhaust pipe bracket | 17577-31040 |
