Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603

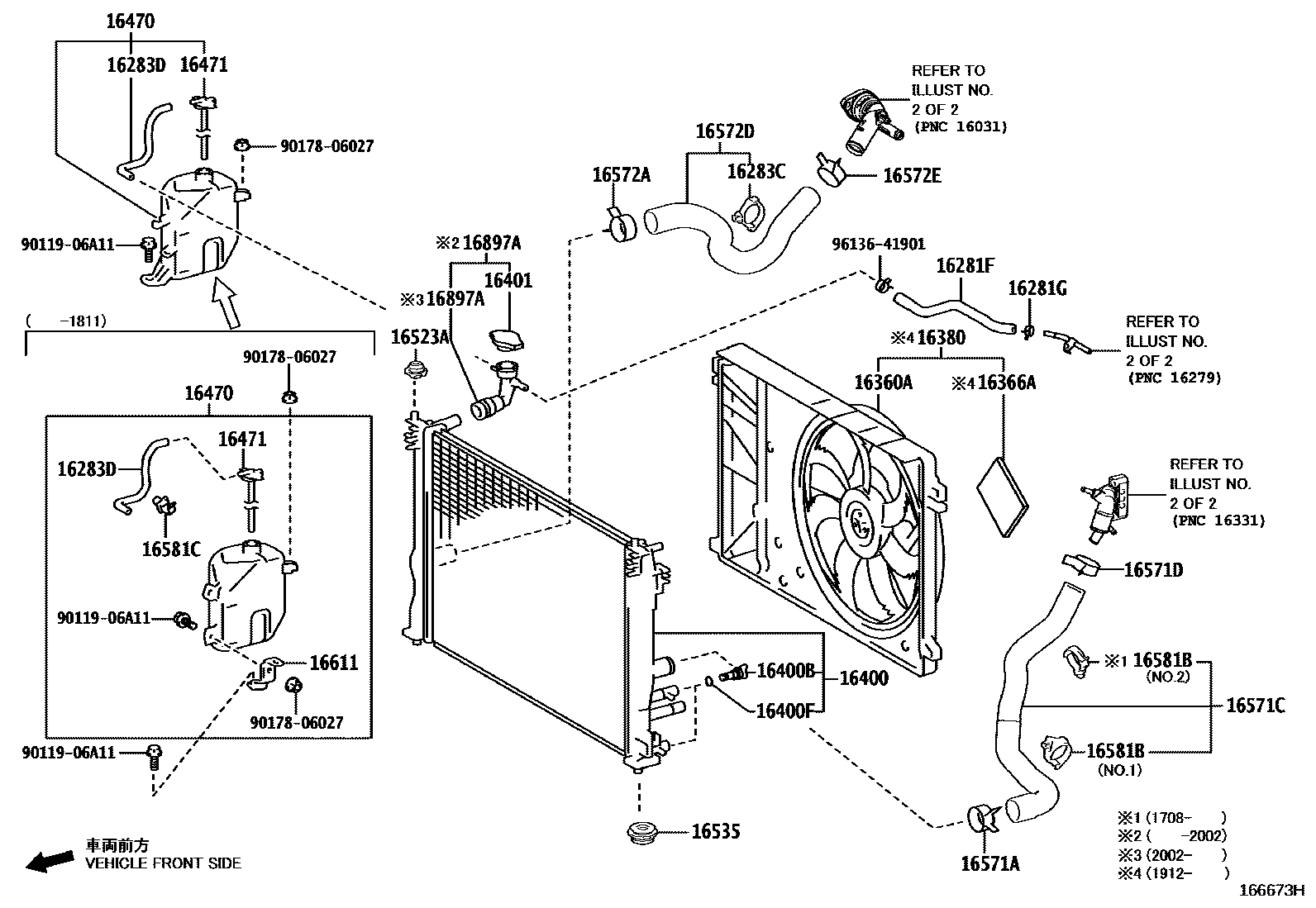

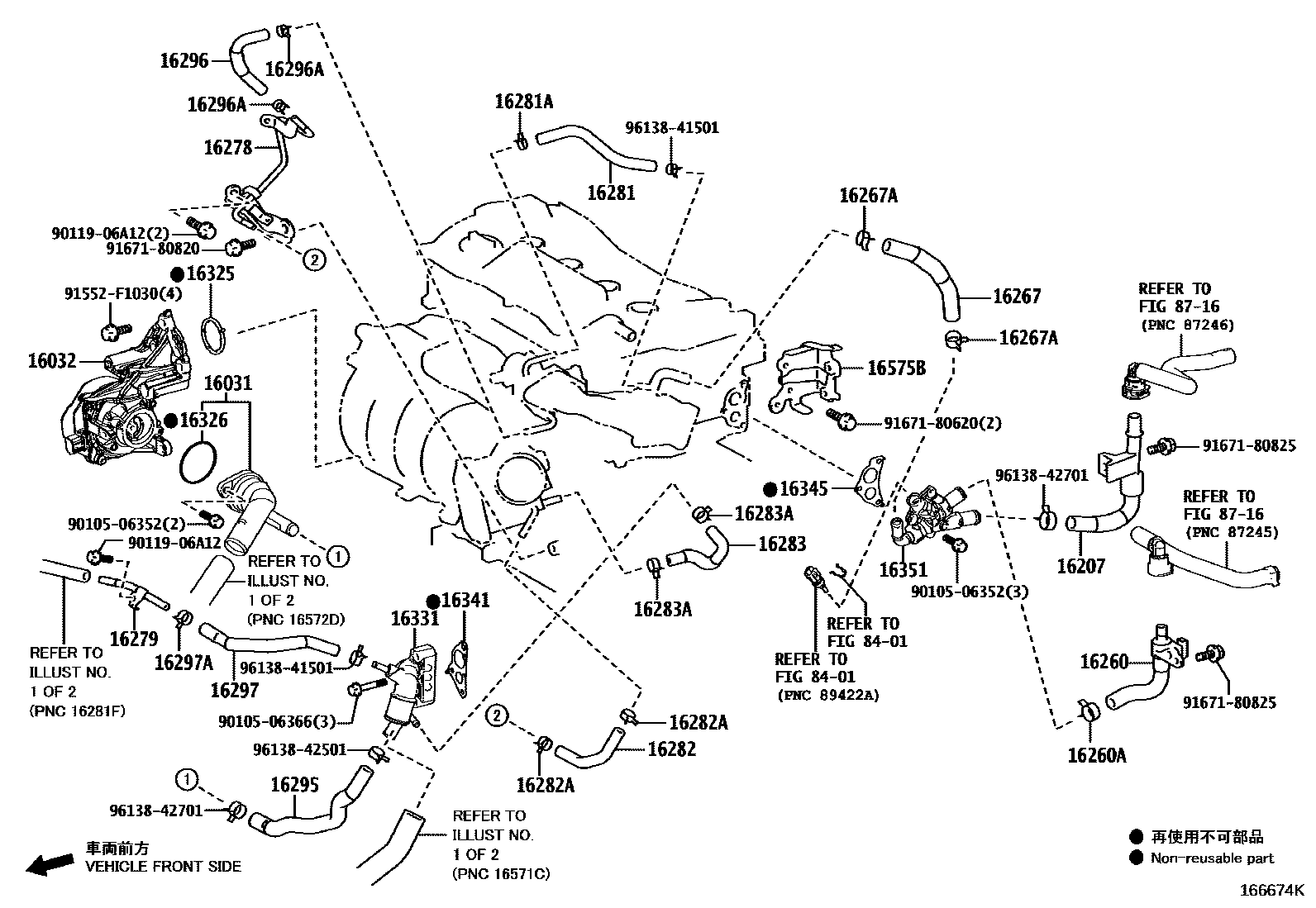

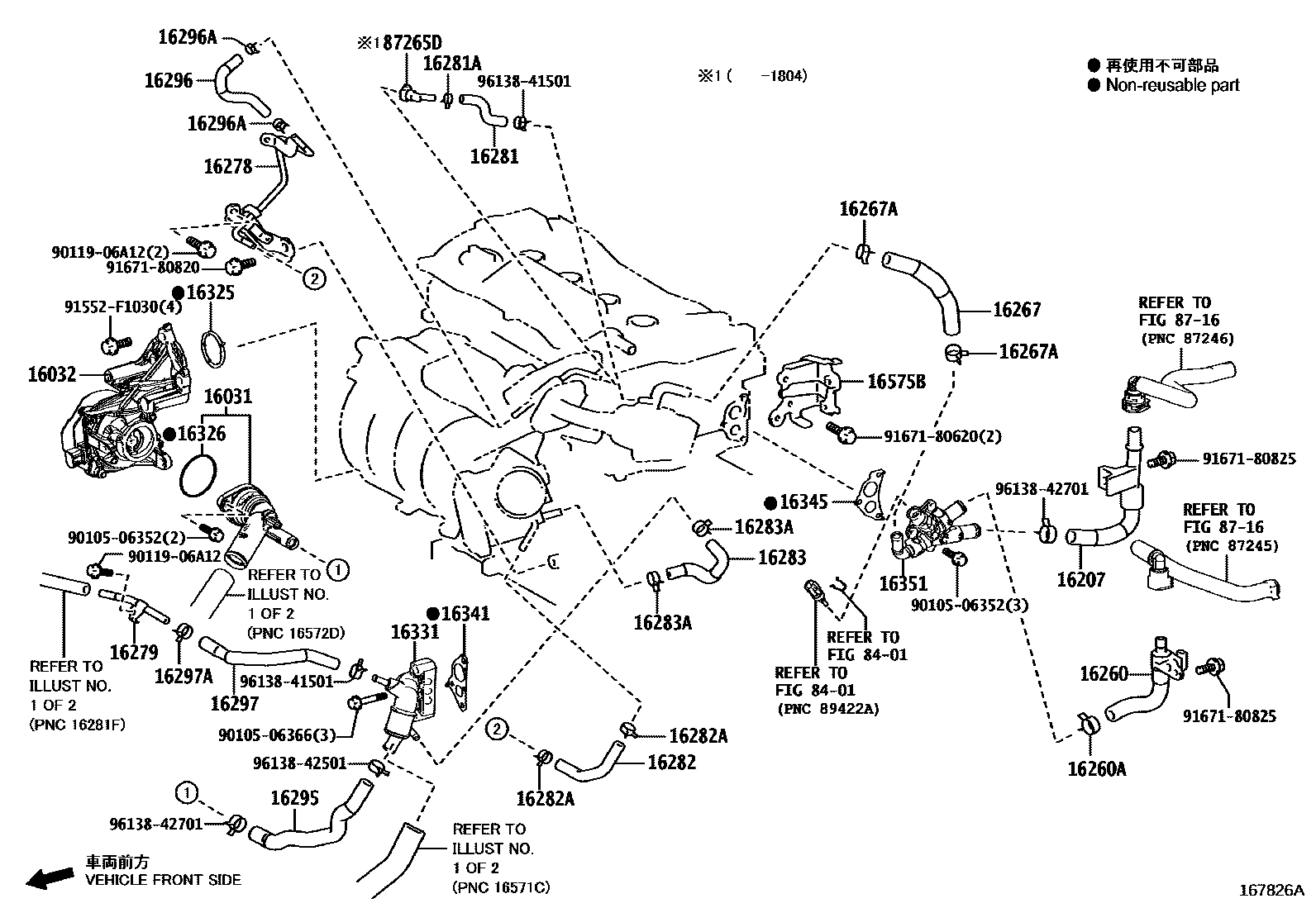

Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 3 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-25010 · 16031-25011 · 16031-25040 |
| 16032 | Toyota part | 16032-25010 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-25010 |
| 16260 | Water bypass hose assembly | 16260-25020 · 16260-25021 |
| 16260A | Clamp (for water bypass hose assembly) | 96136-42701 · 96138-42701 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-25020 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96138-42101 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-25030 |
| 16279 | No. 3 water bypass pipe | 16279-25020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-25020 · 16281-25021 · 99555-10200 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96138-41501 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16282-25021 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90467-15022 · 96138-51701 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-25040 · 16282-25041 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96138-41501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-25020 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96138-41501 |
| 16283C | Clip or clip (for water bypass hose) | 16581-25030 |
| 16283D | HOSE, WATER BY-PASS, NO.6 | 16283-25030 · 16283-25031 · 16283-25032 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-25010 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-25020 · 16296-25060 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96138-41501 |
| 16297 | No. 9 water bypass hose | 16297-25020 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90467-15022 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-25010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-25010 · 16326-47020 |
| 16331 | Water outlet | 16331-25030 |
| 16341 | GASKET, WATER OUTLET | 16341-25010 |
| 16345 | Outlet pipe gasket | 16345-25030 |
| 16351 | water bypass outlet | 16351-25040 |
| 16360A | Fan assembly with motor | 16360-31510 |
| 16366A | Cooling fan motor vibration isolation pad | 16366-31510 |
| 16380 | Fan bracket assembly | 16380-31020 |
| 16400 | Radiator assembly | 16400-25140 · 16400-25141 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-36030 |
| 16470 | Radiator reservoir assembly | 16470-25040 · 16470-25041 · 16470-25042 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-25010 |
| 16523A | Radiator bracket cushion | 16523-25010 · 16523-38010 |
| 16535 | Radiator lower support | 16535-20010 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-39002 |
| 16571C | Radiator hose No. 1 | 16571-25030 · 16571-25031 |
| 16571D | No. 1 radiator hose clip | 90466-43002 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-39002 |
| 16572D | Radiator hose No. 2 | 16572-25020 |
| 16572E | No. 2 radiator hose clip | 90466-43002 |
| 16575B | No. 2 water hose clamp bracket | 16575-25050 |
| 16581B | Hose clamp (for radiator hose) | 16581-25010 · 16581-25110 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-25050 |
| 16611 | Radiator reservoir bracket | 16611-25010 |
| 16897A | Filling port neck | 16897-25030 · 16897-25031 |
| 87265D | Heater water hose connector | 87265-33020 |
