Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 1 images and 4 PNC and OE references.

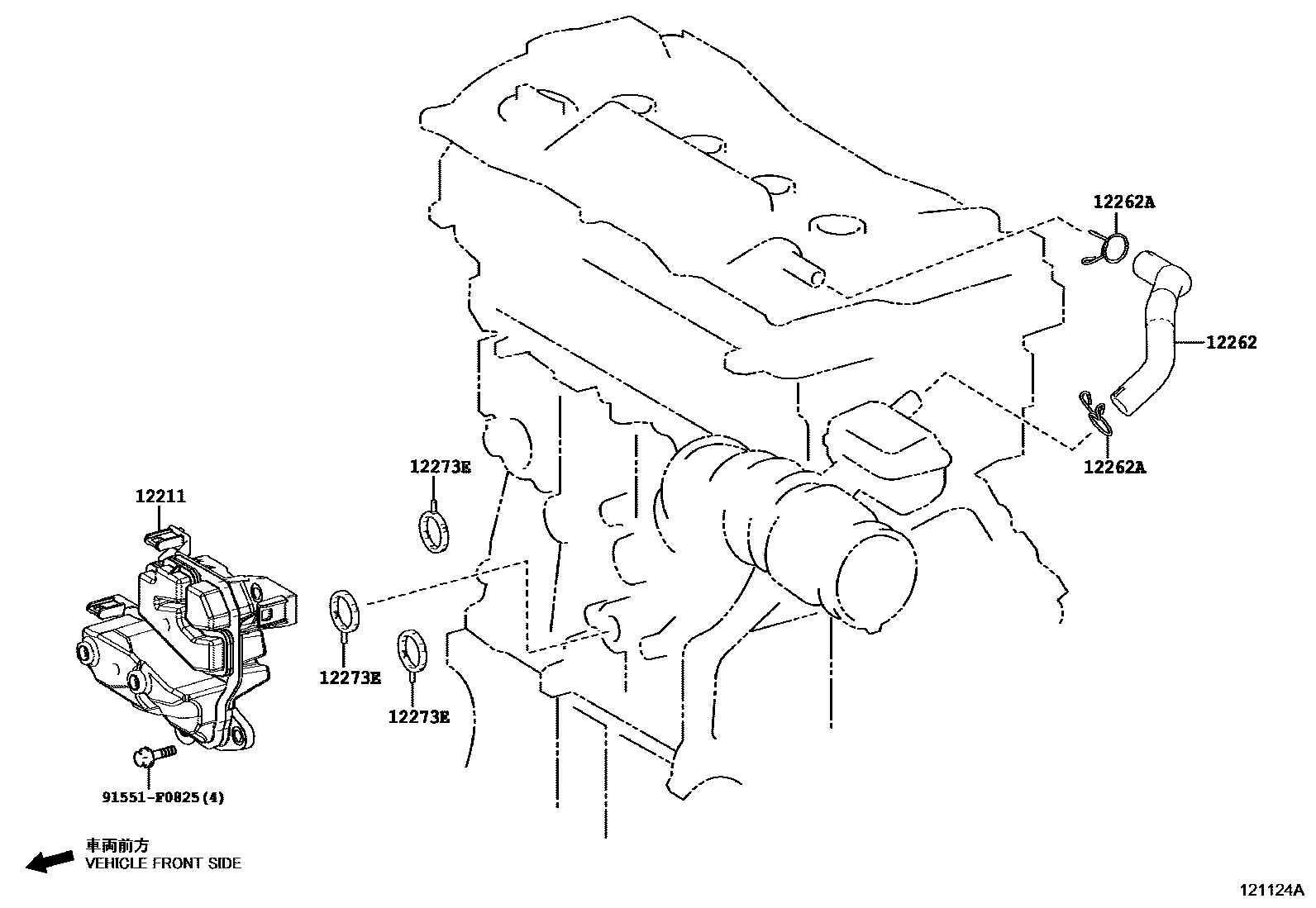

Toyota CAMRY Ventilation Hose EPC diagram — 121124A
Ventilation Hose — 121124A (201706 – 999999)

PNC and OE references

PNCPart nameOE numbers
12211Ventilation box No. 112211-25010 · 12211-25011
12262Ventilation hose No. 212262-25060
12262AClamp (for vent hose No. 2)90467-21004
12273EToyota part12273-24010 · 12273-25010
