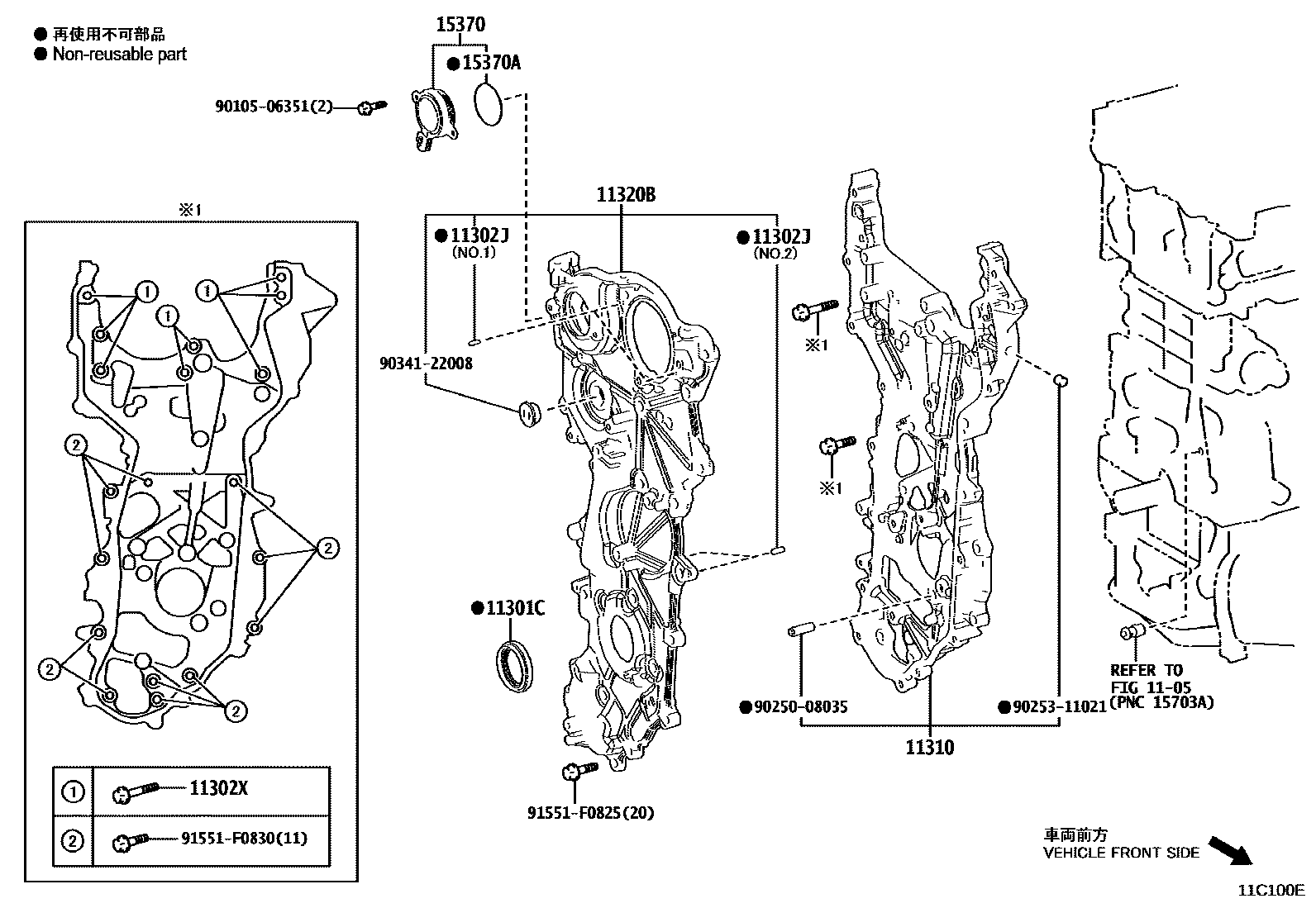

Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106
Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-40044 |
| 11302J | Direct sales (for timing chain cover) | 90250-04097 · 90250-06003 |
| 11302X | Toyota part | 91551-F0845 · 91551-G0845 |
| 11310 | Toyota part | 11310-25030 |
| 11320B | Toyota part | 11320-25010 · 11320-25011 |
| 15370 | Toyota part | 15370-25020 |
| 15370A | Toyota part | 90301-44006 |
