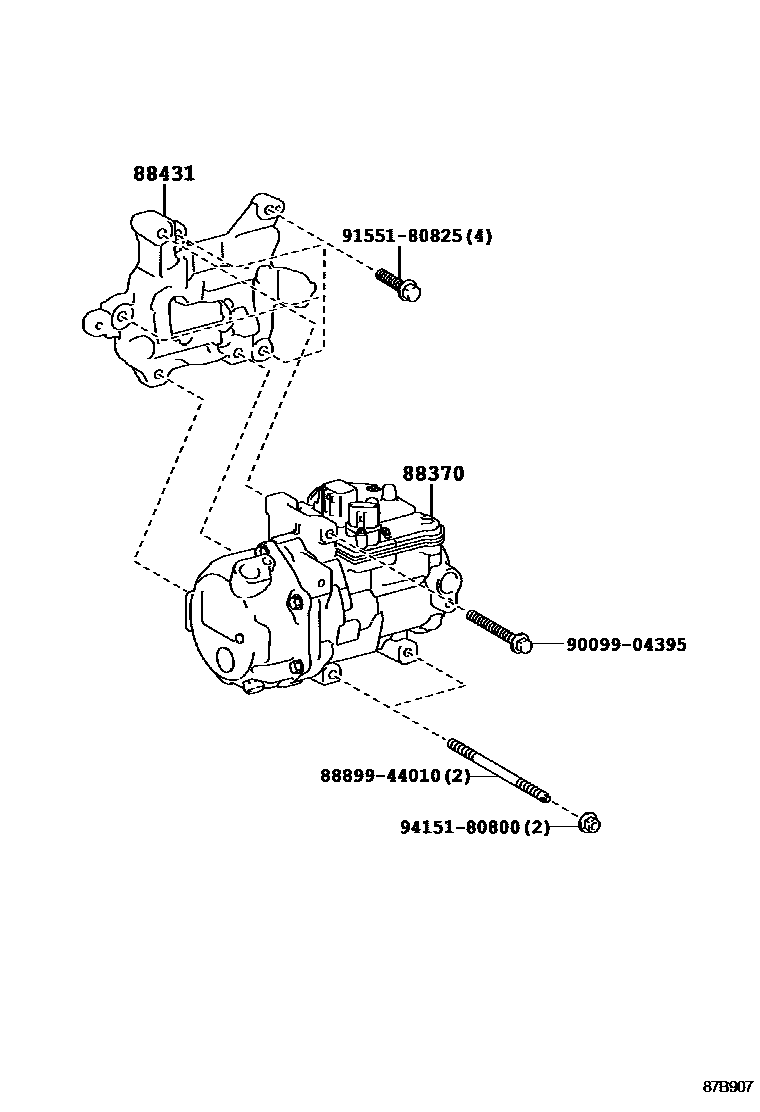

Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88370 | Compressor assembly with motor | 88370-33030 |
| 88431 | Compressor No. 1 mounting bracket | 88431-33050 |
