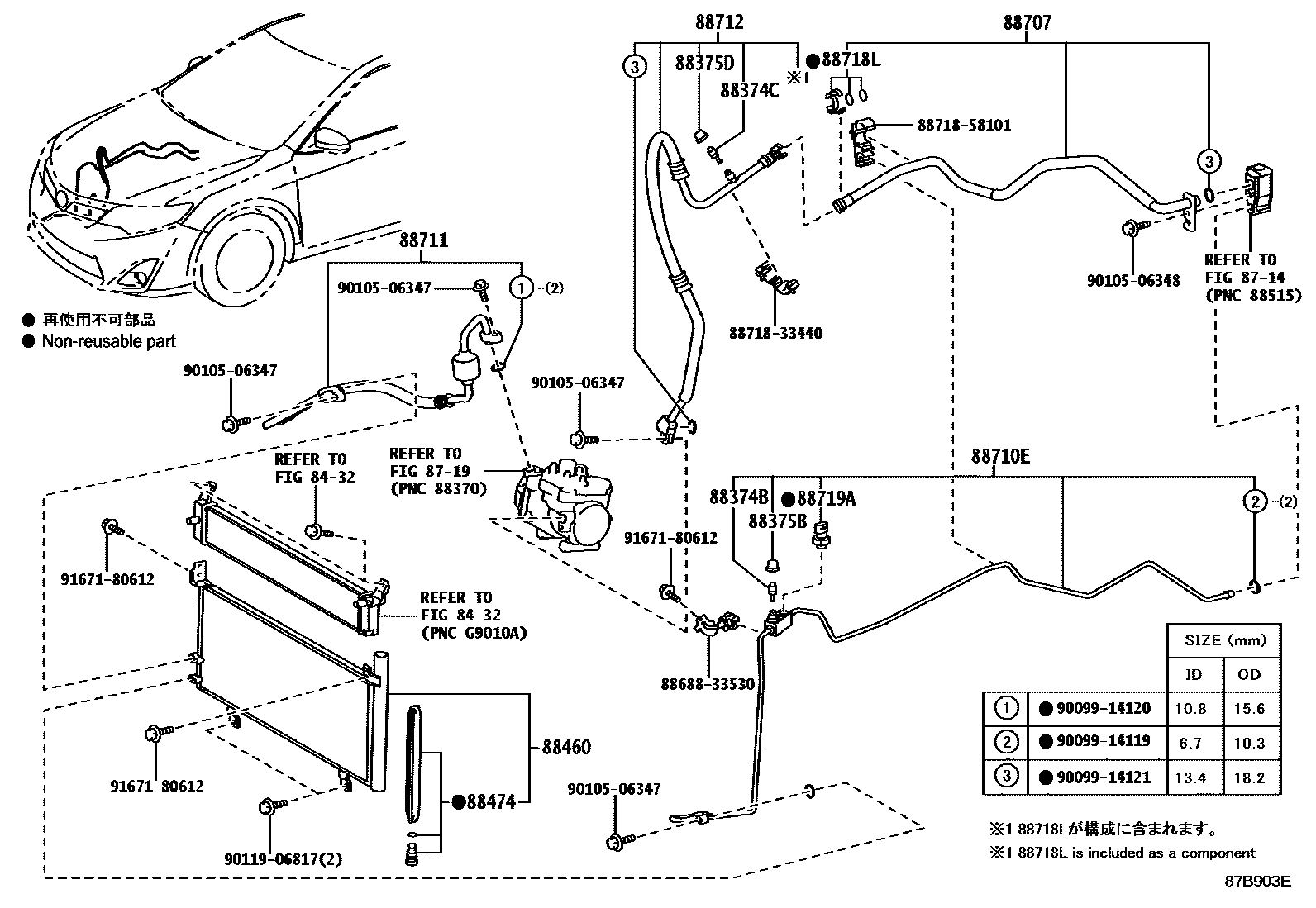

Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88460-33130 |
| 88474 | cooler dryer | 88474-47020 |
| 88707 | Suction pipe sub-assembly | 88707-33060 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-33380 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-33280 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-33310 |
| 88718L | Pipe clamp | 88718-52280 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
