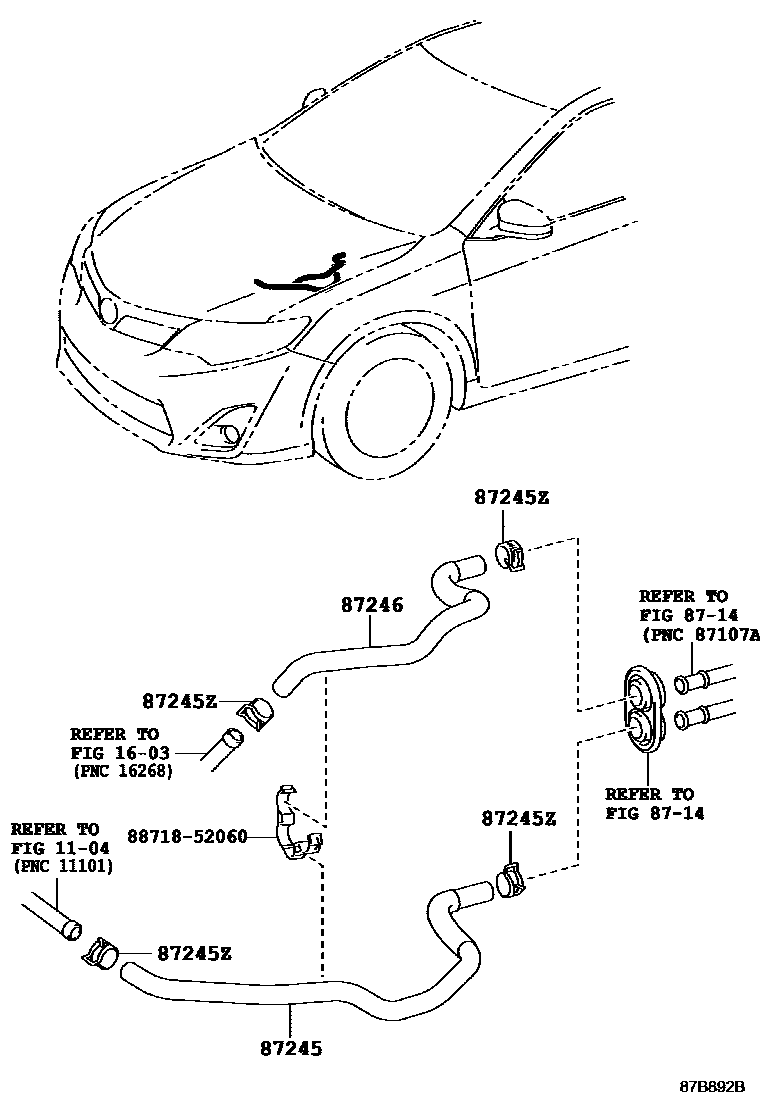

Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716
Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245 | Heater water inlet hose | 87245-33670 |
| 87245Z | Clip or clip (for heater water hose) | 96136-42501 · 96138-42501 |
| 87246 | Heater outlet hose | 87245-33700 |
