Toyota CAMRY 后视镜 — Figure 8701

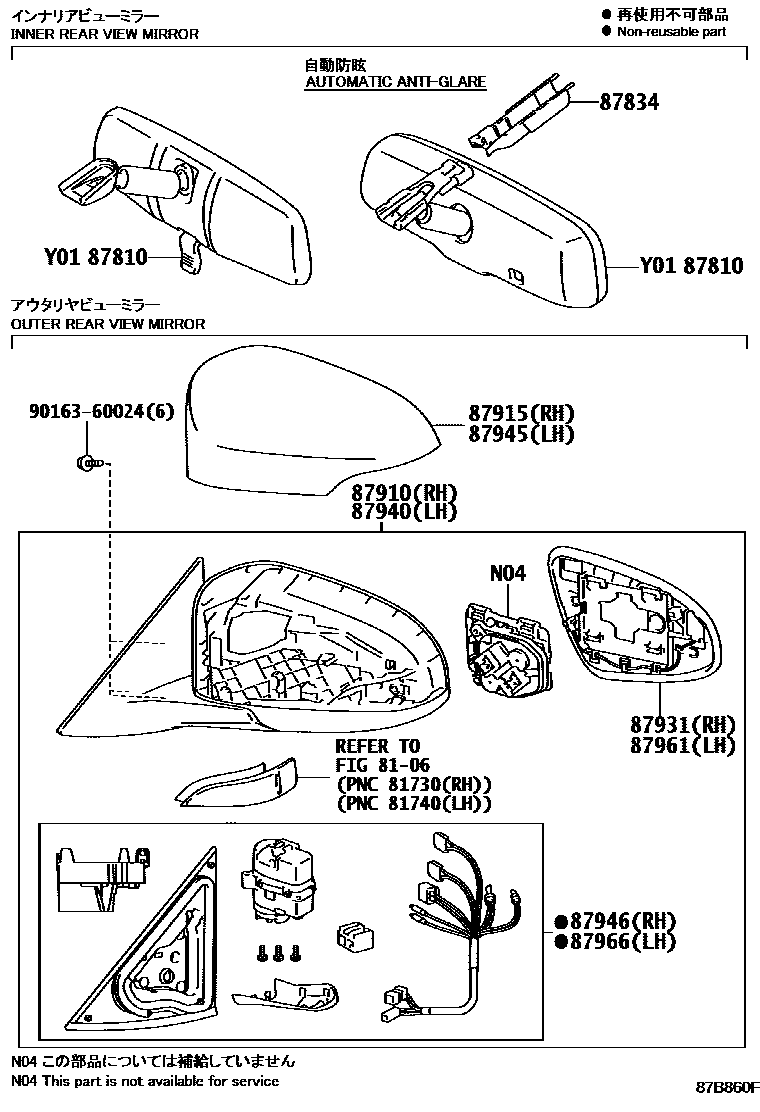

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0W260 · 87810-0WK20 · 87810-0WK21 · 87810-60191 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-33010 |
| 87910 | Right exterior rearview mirror assembly | 87910-33A60 · 87910-33A61 · 87910-33A71 · 87910-33A72 |
| 87931 | Right exterior rearview mirror | 87931-33A00 · 87931-33A01 · 87931-33A71 · 87931-33A72 |
| 87940 | Left exterior rearview mirror assembly | 87940-33A50 · 87940-33A51 · 87940-33A61 · 87940-33A62 |
| 87946 | Right exterior rearview mirror retractor | 87946-33A60 · 87946-33A70 |
| 87961 | Left exterior rearview mirror | 87961-33890 · 87961-33891 · 87961-33A61 · 87961-33A62 |
| 87966 | Left exterior rearview mirror retractor | 87966-33A50 · 87966-33A60 |
