Toyota CAMRY 喇叭 — Figure 8611

Toyota CAMRY EPC diagram 8611, 喇叭, with 2 images and 4 PNC and OE references.

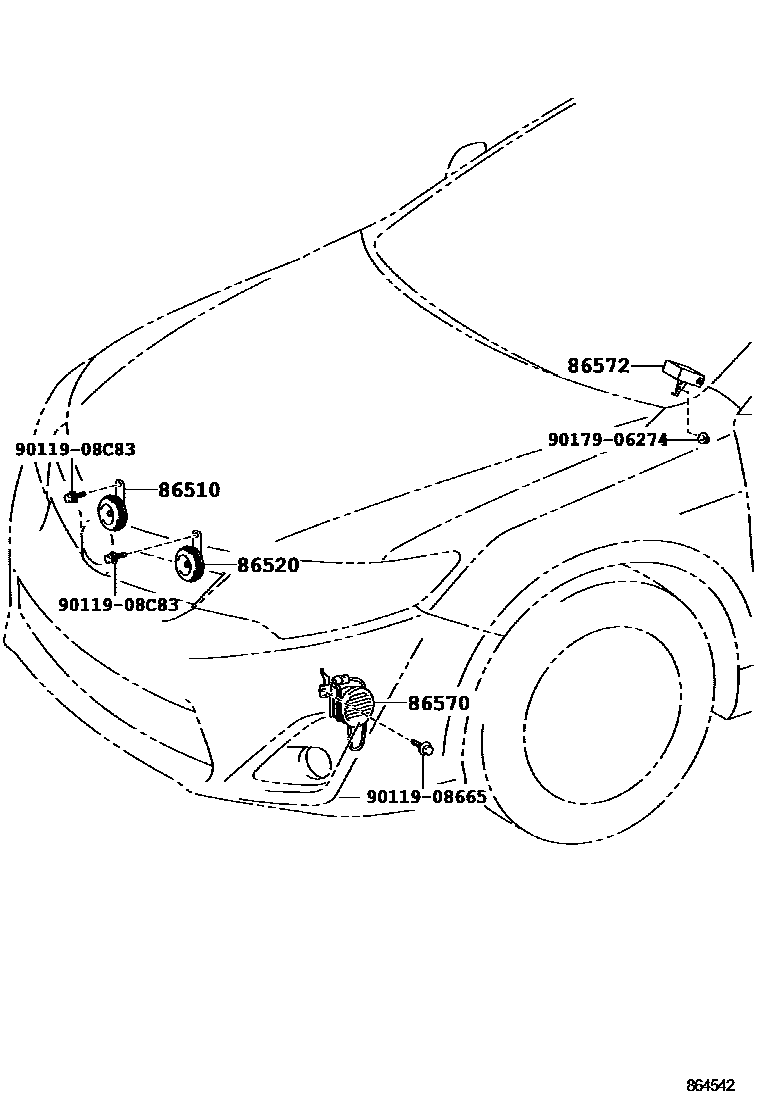

Toyota CAMRY 喇叭 EPC diagram — 864542
喇叭 — 864542 (201108 – 201409)
Toyota CAMRY 喇叭 EPC diagram — 865946
喇叭 — 865946 (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86510-28130
86520Subwoofer assembly86520-28180
86570Vehicle intrusion speaker assembly86570-33010 · 86570-33040
86572vehicle hacking speaker controller86572-33010 · 86572-33050
