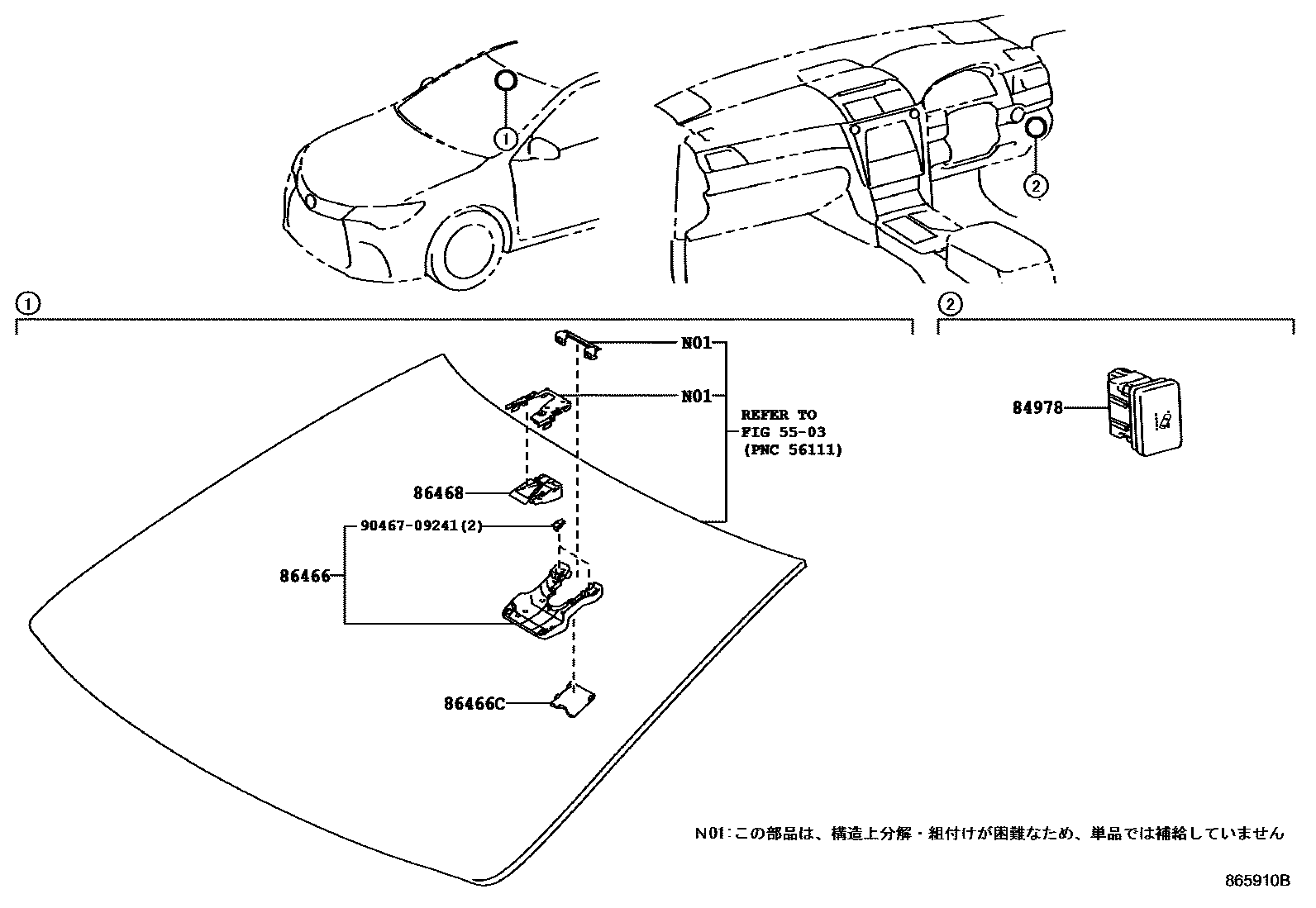

Toyota CAMRY 车道保持辅助系统 — Figure 8609
Toyota CAMRY EPC diagram 8609, 车道保持辅助系统, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84978 | Lane Keeping Assist Master Switch | 84978-33010 · 84978-33011 |
| 86466 | Lane Departure Warning Camera Cover | 86466-06010 |
| 86466C | Toyota part | 86466-06020 |
| 86468 | lane departure warning camera | 86468-33020 |
