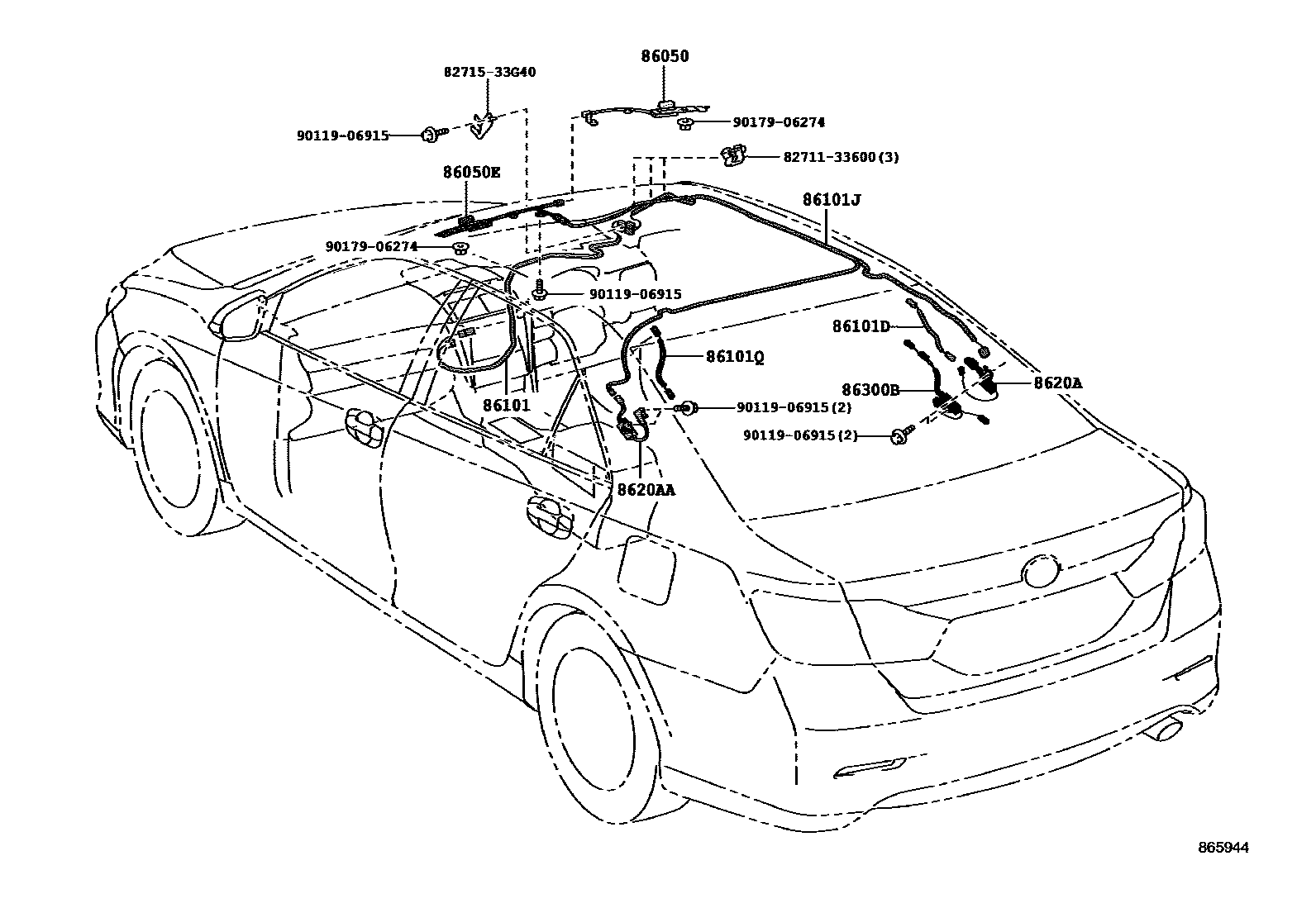

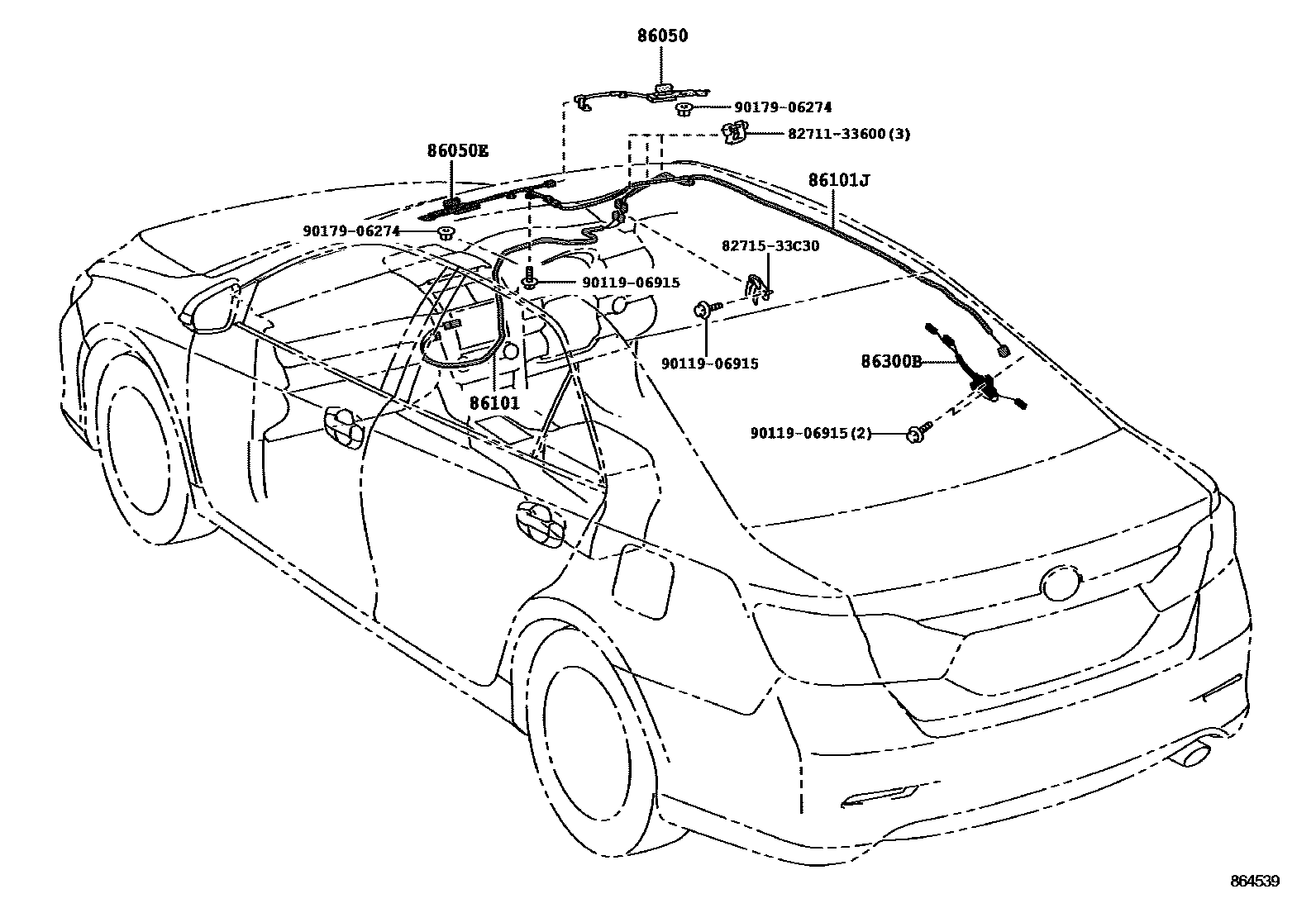

Toyota CAMRY antenna — Figure 8604
Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86050 | Monitor antenna assembly | 86050-33140 |
| 86050E | Monitor antenna assembly | 86050-33150 |
| 86101 | Antenna wire sub-assembly | 86101-33A90 · 86101-33B20 · 86101-33E30 · 86101-33G70 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-33E90 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-33A60 · 86101-33A70 · 86101-33B10 · 86101-33C60 · 86101-33D60 · 86101-33G60 |
| 86101Q | No. 4 antenna wire sub-assembly | 86101-33F00 |
| 8620A | No. 1 digital monitor antenna sub-assembly | 86050-33160 |
| 8620AA | No. 2 digital monitor antenna sub-assembly | 86050-33170 |
| 86300B | Amplifier antenna assembly | 86300-33340 · 86300-33360 |
