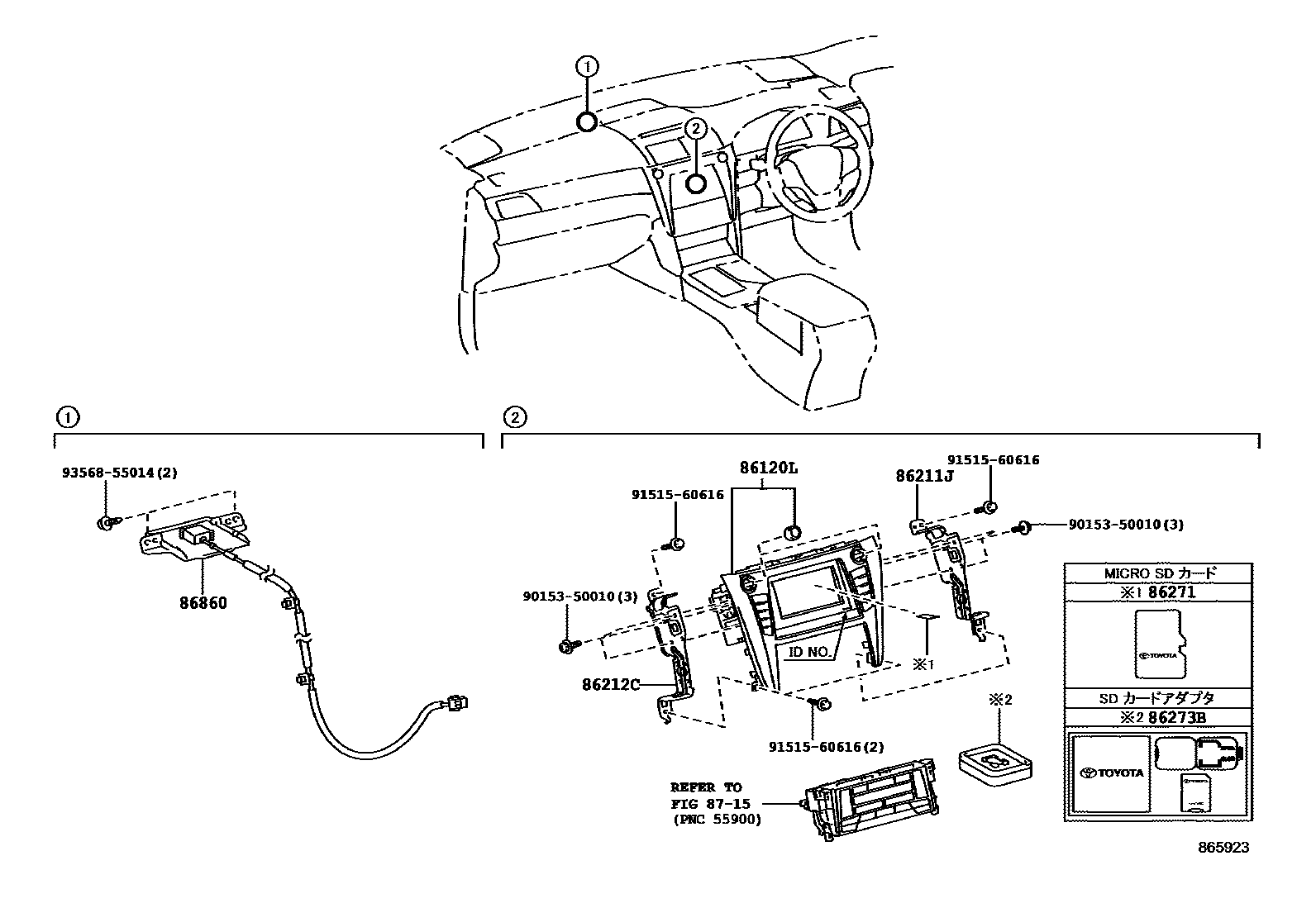

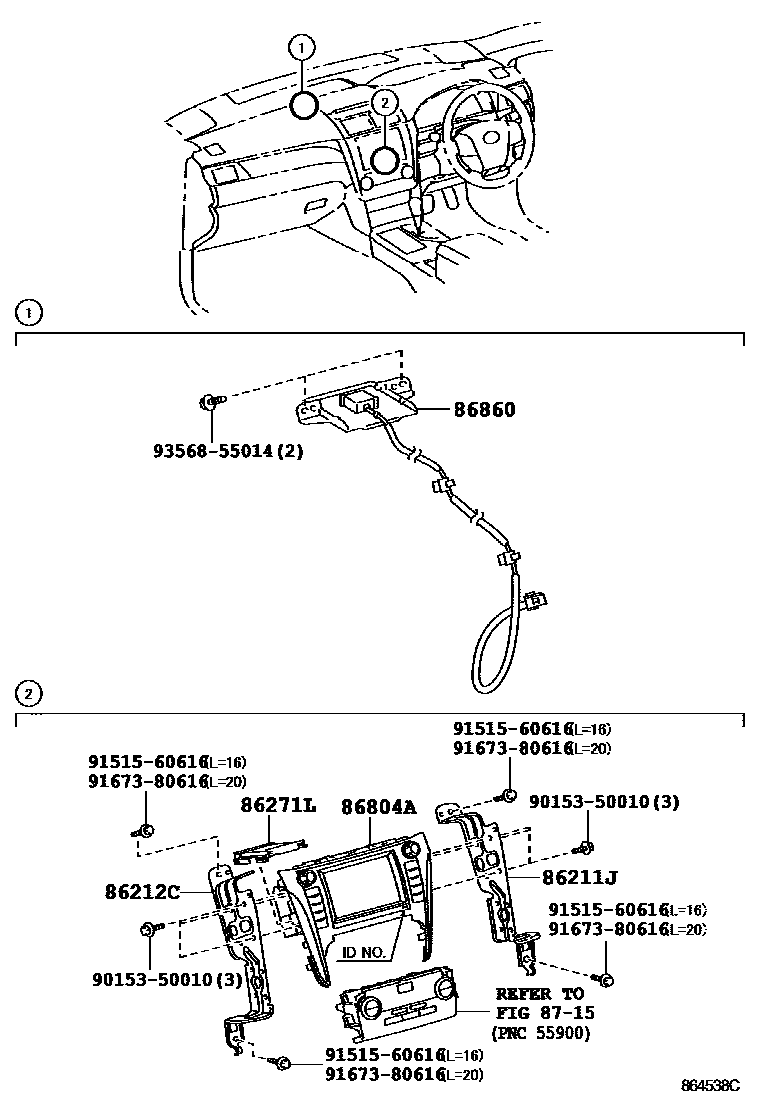

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86804-33740 |
| 86211J | No. 1 radio bracket | 86211-33240 · 86211-33290 |
| 86212C | No. 2 radio bracket | 86212-33240 · 86212-33290 |
| 86271 | CD | 86271-33261 · 86271-33262 · 86271-33263 · 86271-33264 · 86271-33265 |
| 86271L | hard drive | 86271-33190 · 86271-33191 · 86271-33192 · 86271-33193 · 86271-33194 · 86271-33195 · 86271-33196 |
| 86273B | CD player adapter | 86273-48030 |
| 86804A | Navigation ECU sub-assembly | 86804-33390 · 86804-33391 |
| 86860 | Navigation antenna assembly | 86860-33180 · 86860-33210 |
