Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

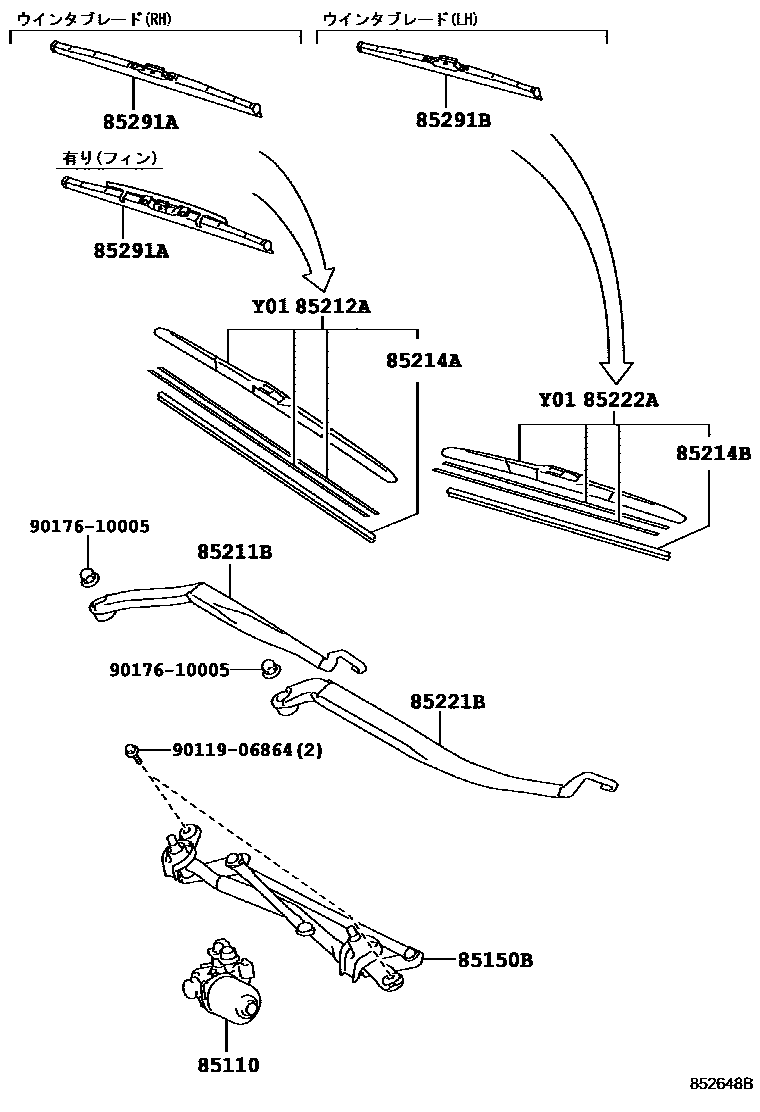

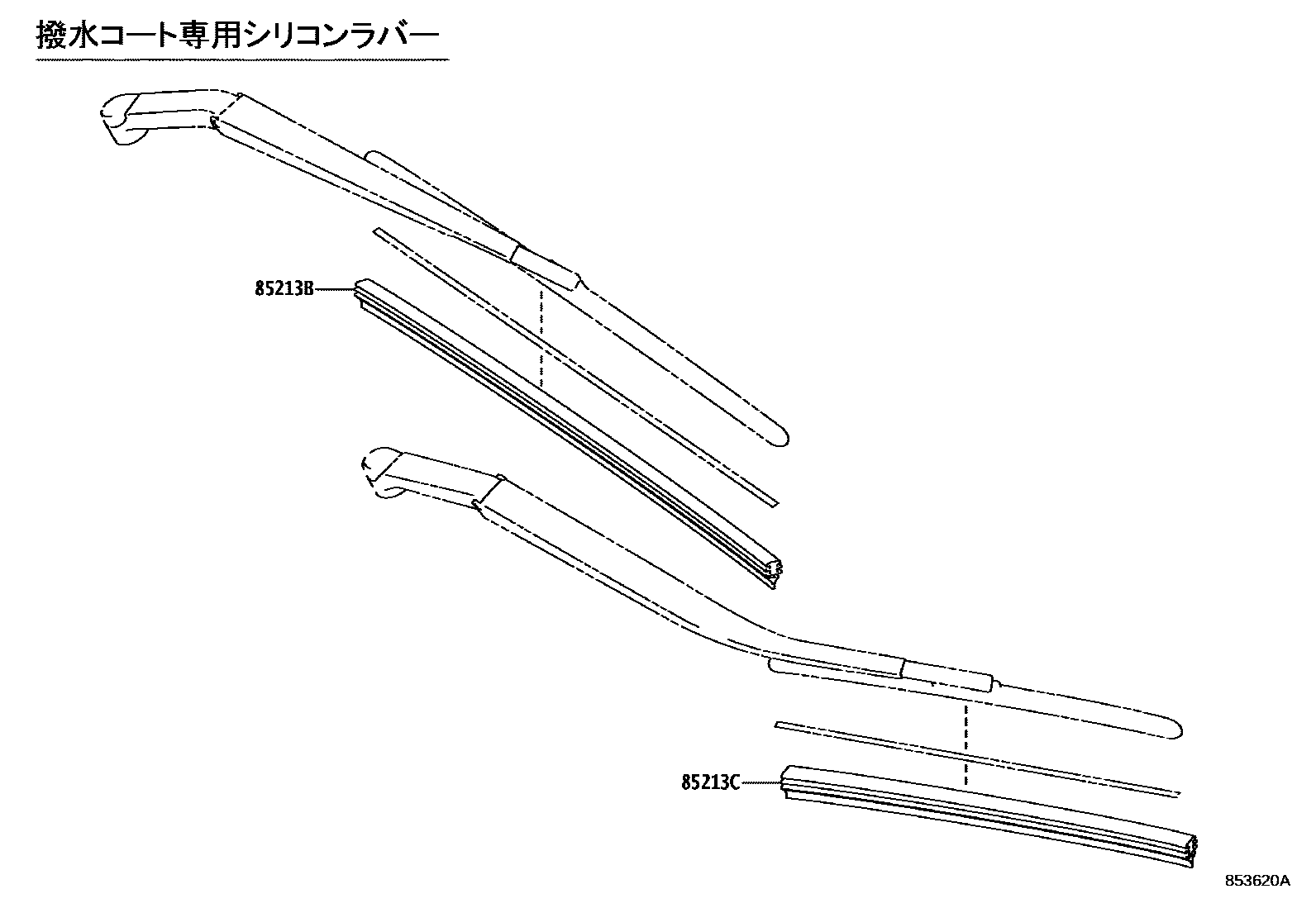

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-33340 · 85110-33350 · 85110-33400 · 85110-33410 |
| 85150B | Wiper connecting rod assembly | 85150-33260 |
| 85211B | Right front wiper arm | 85211-33320 |
| 85212A | Right front wiper blade | 85212-33250 |
| 85213B | Toyota part | 85213-30280 |
| 85213C | Toyota part | 85213-30290 |
| 85214A | Right wiper rubber strip | 85214-52110 · 85214-68020 |
| 85214B | Left wiper rubber strip | 85214-33180 |
| 85221B | Left front wiper arm | 85221-33320 |
| 85222A | Left front wiper blade | 85222-33260 |
| 85291A | Right front wiper blade for winter use | 85291-47040 · 85291-60091 |
| 85291B | Left front wiper blade for winter use | 85291-33050 |
