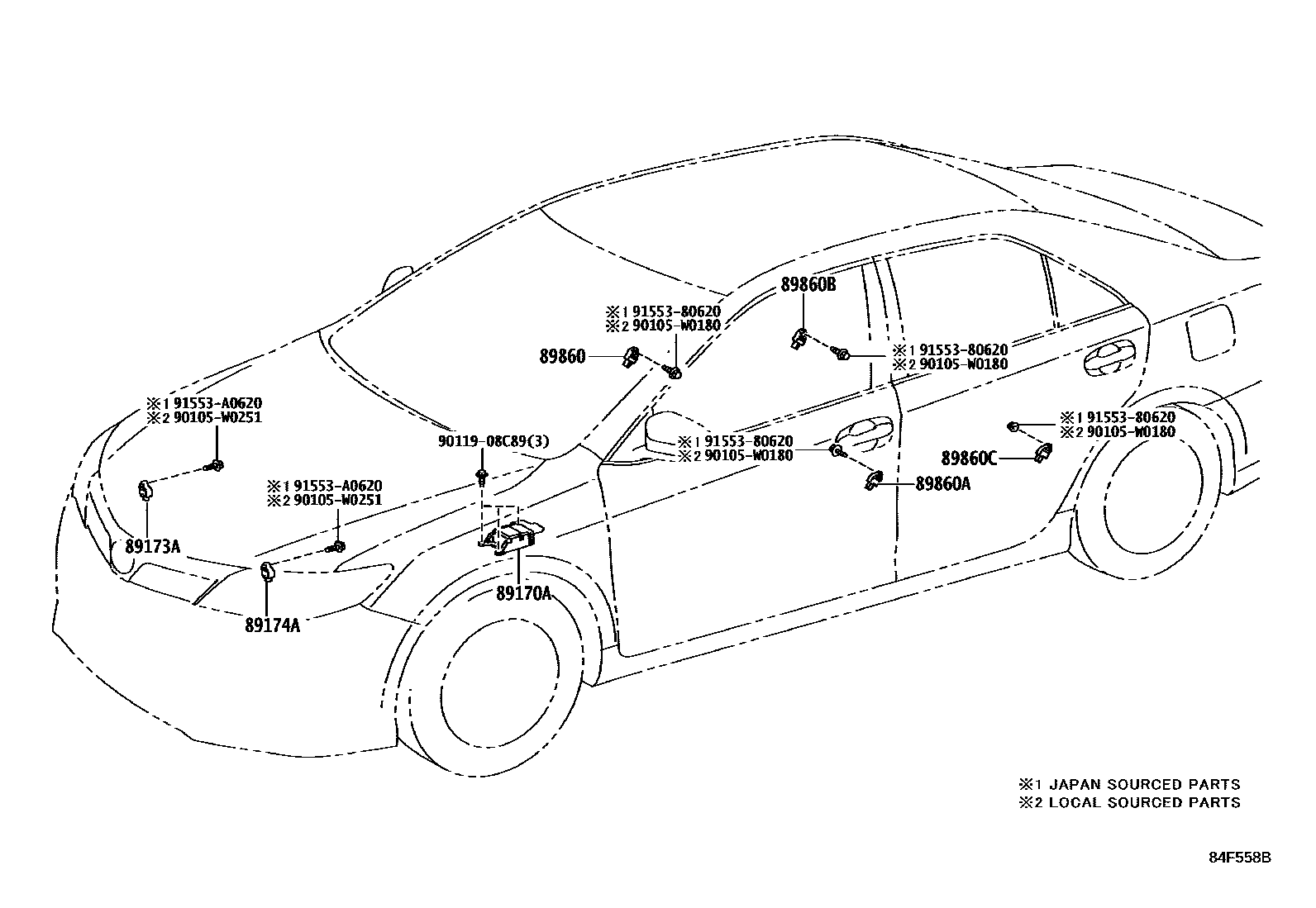

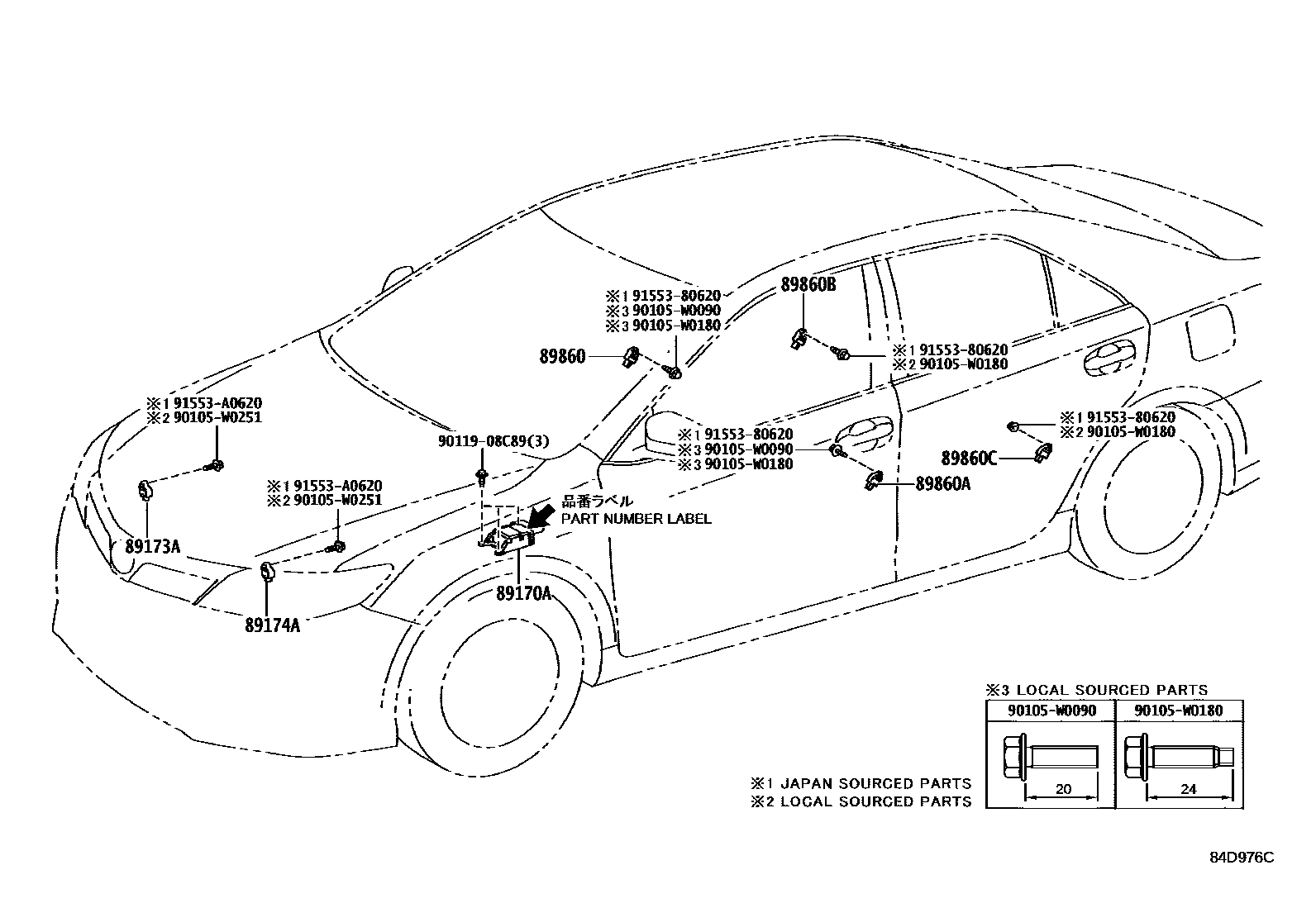

Toyota CAMRY 空气囊 — Figure 8421
Toyota CAMRY EPC diagram 8421, 空气囊, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-33590 · 89170-33770 · 89170-33850 |
| 89173A | Right front air bag sensor | 89173-39465 · 89173-39475 |
| 89174A | Left front air bag sensor | 89173-39465 · 89173-39475 |
| 89860 | Right side airbag sensor assembly | 89831-06060 · 89831-28020 · 89831-52020 |
| 89860A | Left side air bag sensor assembly | 89831-06060 · 89831-28020 · 89831-52020 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-33040 · 89831-33060 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-33040 · 89831-33060 |
