Toyota CAMRY 遥控门锁 — Figure 8420

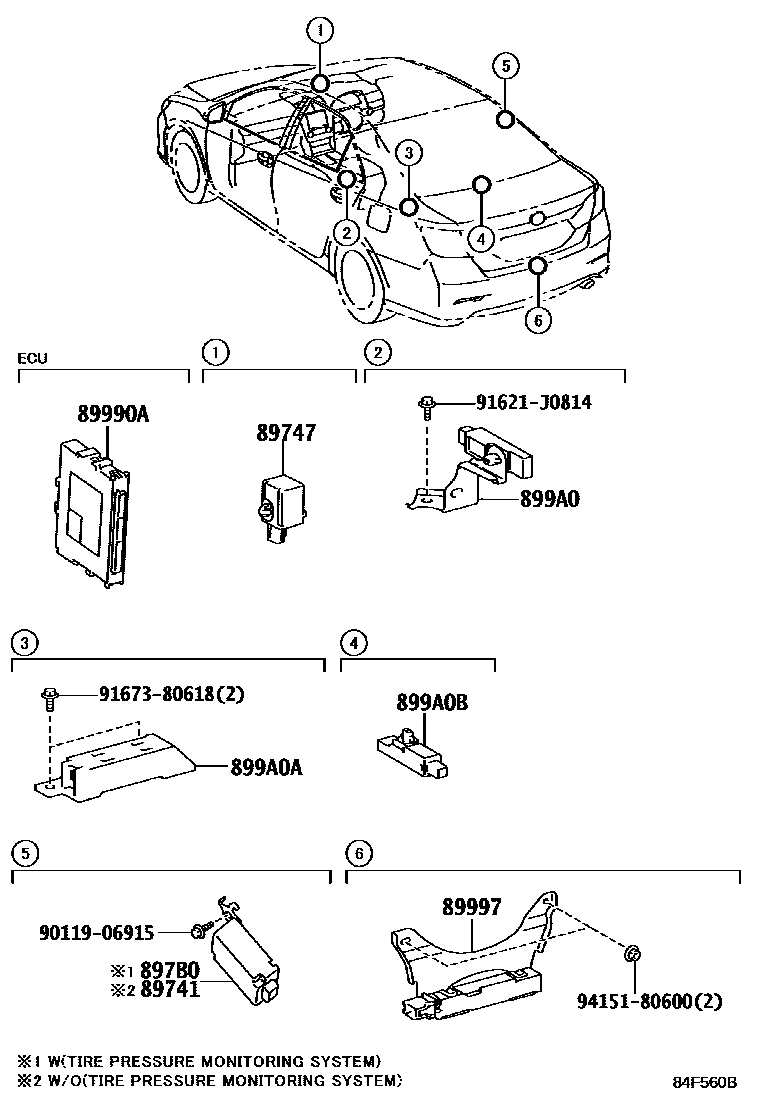

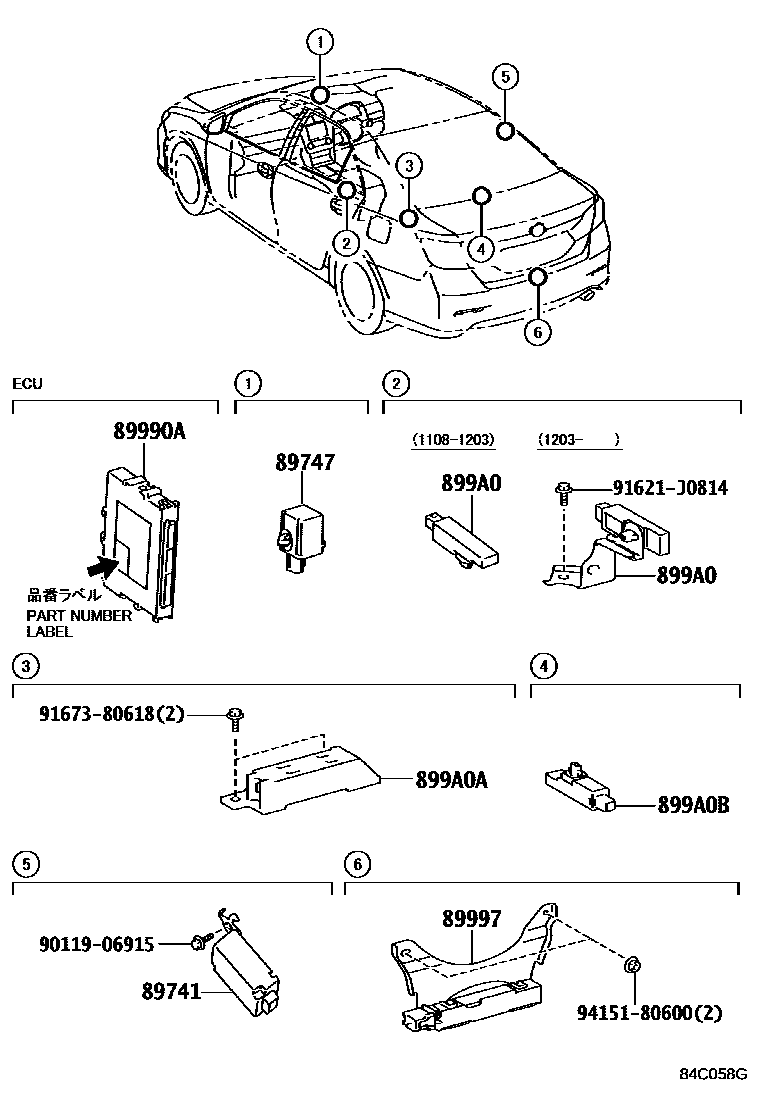

Toyota CAMRY EPC diagram 8420, 遥控门锁, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89741 | door control receiver | 89740-33330 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 897B0 | Electronic key and tire pressure detection system receiver assembly | 897B0-33030 |
| 89990A | Smart key ECU assembly | 89990-33180 · 89990-33181 · 89990-33182 · 89990-33470 |
| 89997 | electronic key antenna | 89997-33020 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-33010 · 899A0-47010 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-33020 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-47010 |
